| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T02_9000000936_06807cztM0_level2.evt | modeM0/AS1G06_086T02_9000000936_06807cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,226,880 | 107,398,080 |
| Size | 533.3 MB | 102.4 MB |
| Events in quadrant A | 3,923,269 | 675,675 |
| Events in quadrant B | 4,074,411 | 688,614 |
| Events in quadrant C | 3,831,363 | 676,120 |
| Events in quadrant D | 4,552,695 | 644,285 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17378 | 3 |
| B | 0 | 17749 | 2 |
| C | 0 | 17090 | 2 |
| D | 0 | 18738 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8168 | 75 | 0.918217% |
| B | 8168 | 135 | 1.652791% |
| C | 8168 | 47 | 0.575416% |
| D | 8168 | 88 | 1.077375% |

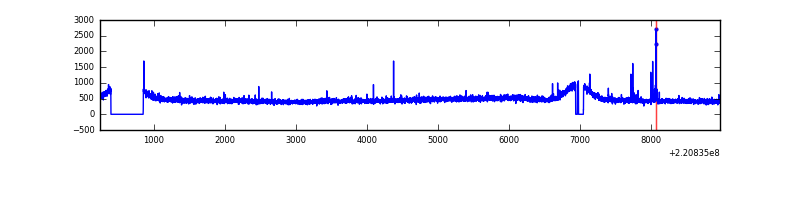

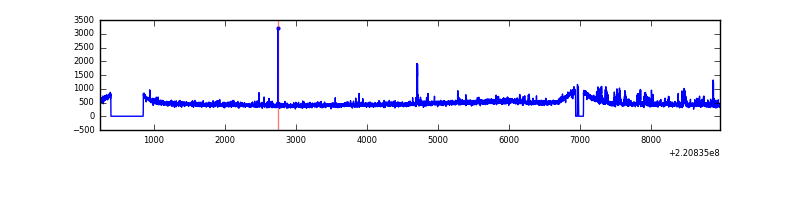

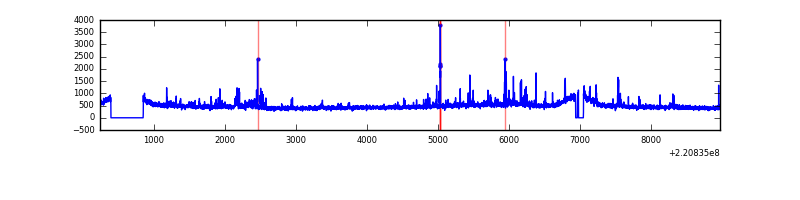

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8718 | 8171 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8718 | 8171 | 6 | 6 | 0.07% | 0.07% |  |
| C | 8718 | 8171 | 2 | 2 | 0.02% | 0.02% |  |
| D | 8718 | 8171 | 68 | 68 | 0.78% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 164513 | 817.97 | 969 | 948 | 200.0 |
| A | 13 | 251 | 21535 | 102.95 | 969 | 948 | 200.0 |
| A | 0 | 226 | 9279 | 41.66 | 969 | 948 | 200.0 |
| B | 4 | 81 | 151977 | 795.24 | 980 | 955 | 189.9 |
| B | 0 | 228 | 53486 | 276.61 | 980 | 955 | 189.9 |
| B | 12 | 111 | 19848 | 99.49 | 980 | 955 | 189.9 |
| C | 9 | 247 | 71664 | 317.17 | 948 | 951 | 223.0 |
| C | 12 | 16 | 27091 | 117.24 | 948 | 951 | 223.0 |
| C | 12 | 4 | 26318 | 113.78 | 948 | 951 | 223.0 |
| D | 8 | 195 | 517241 | 2234.7 | 936 | 905 | 231.1 |
| D | 14 | 34 | 273223 | 1178.59 | 936 | 905 | 231.1 |
| D | 2 | 216 | 147990 | 636.58 | 936 | 905 | 231.1 |

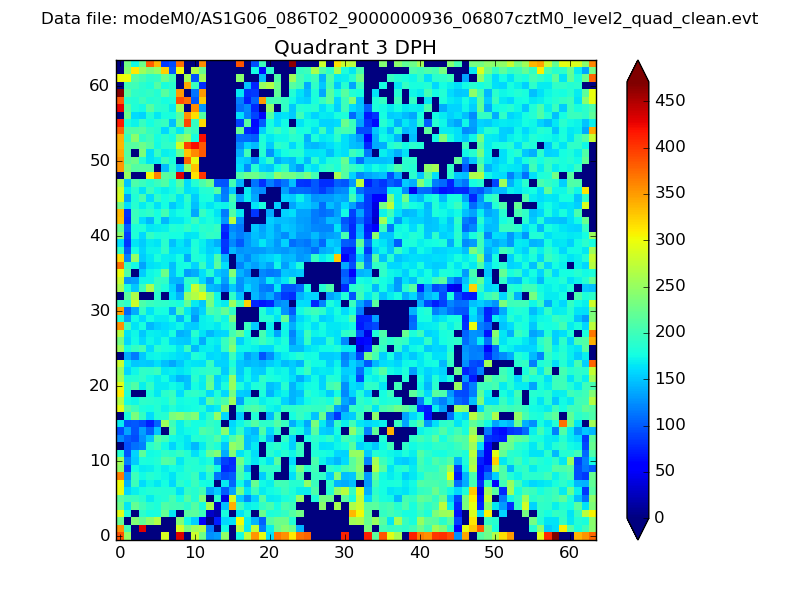

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

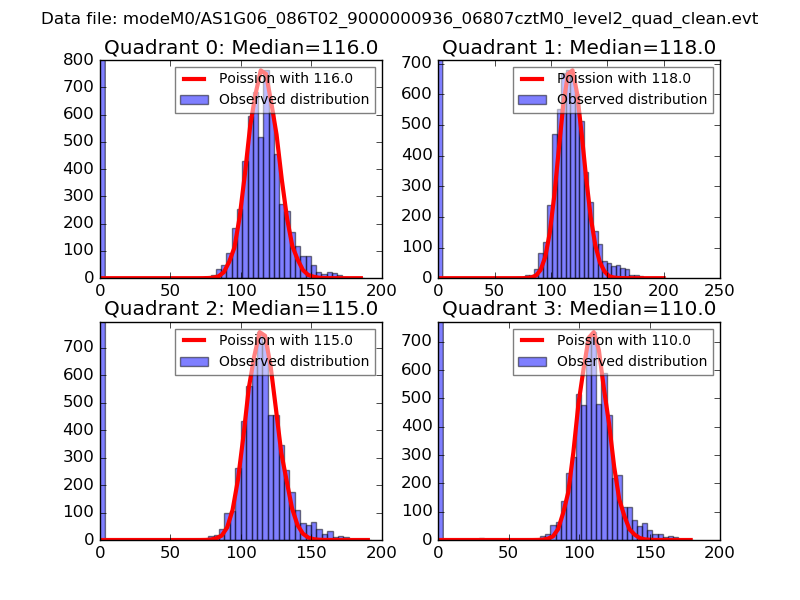

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

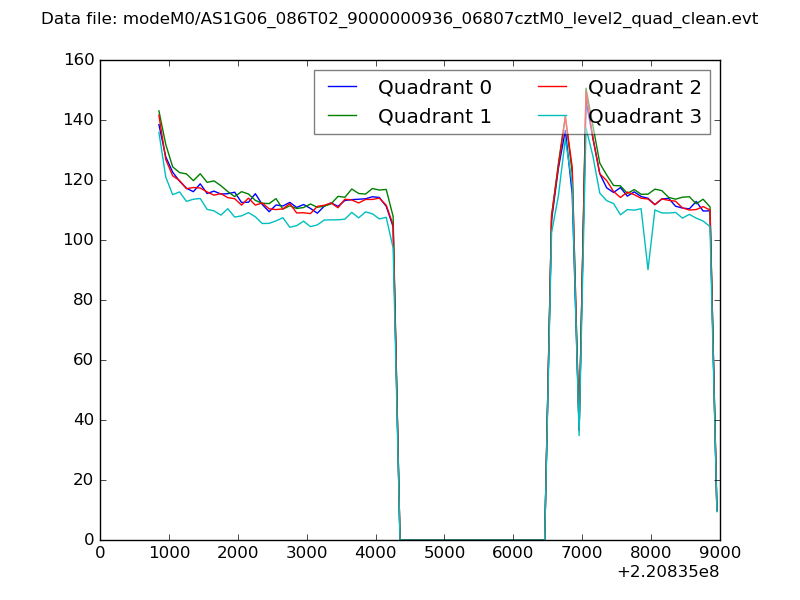

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

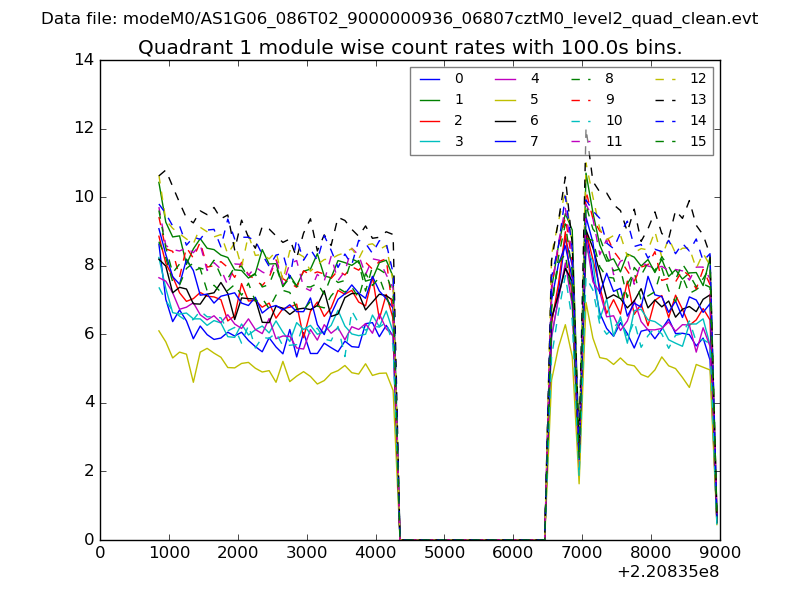

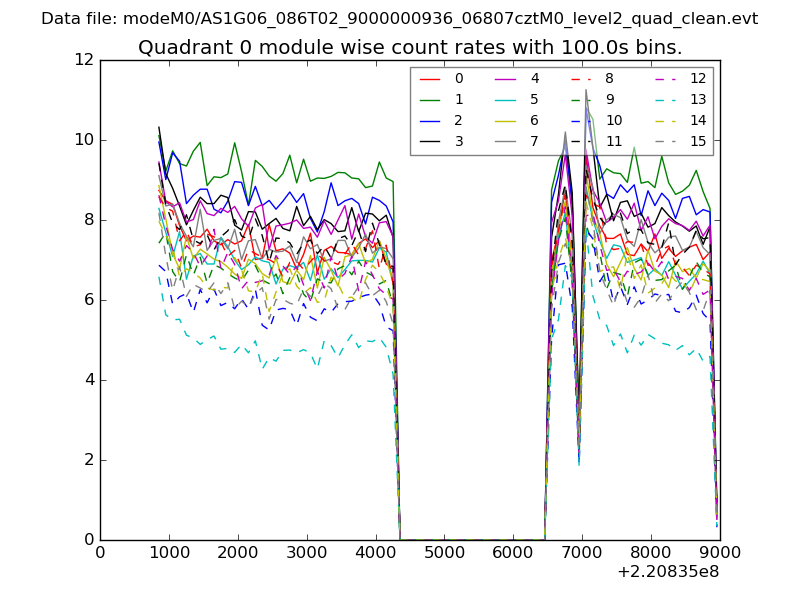

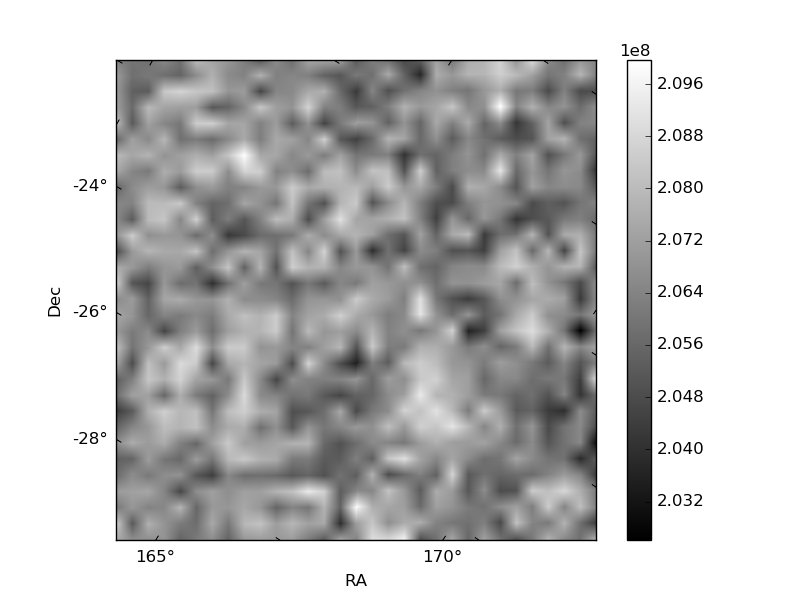

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

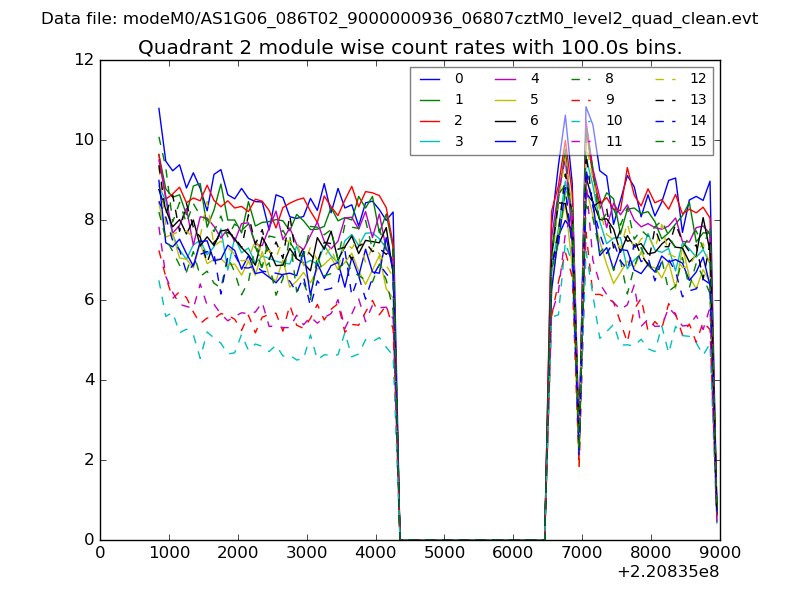

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

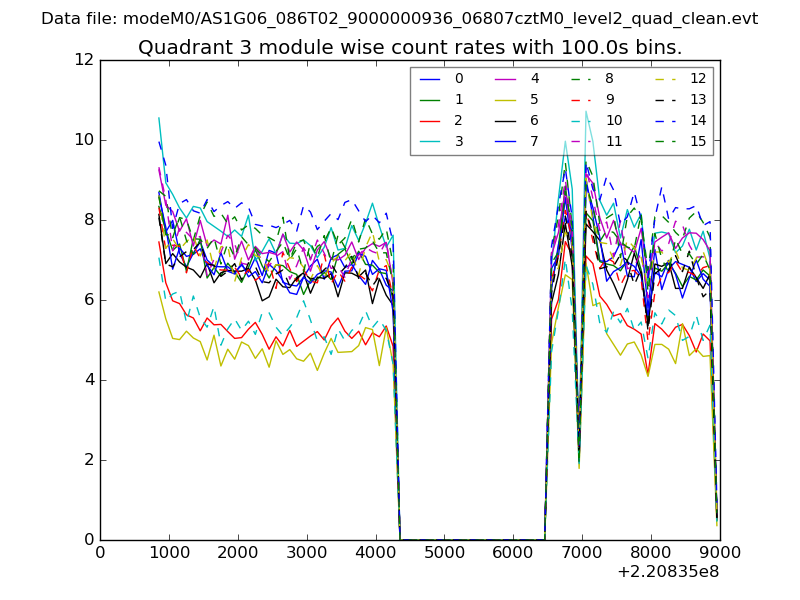

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

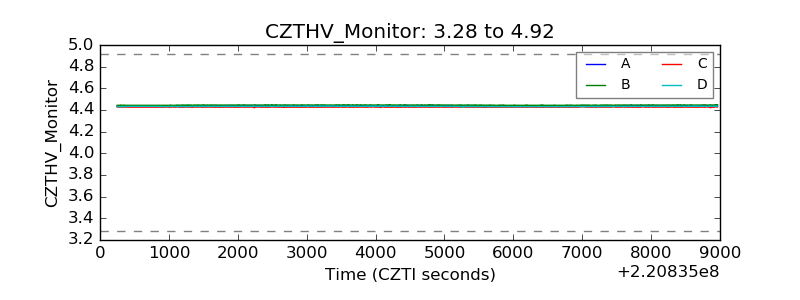

| CZT HV Monitor |  |
| D_VDD |  |

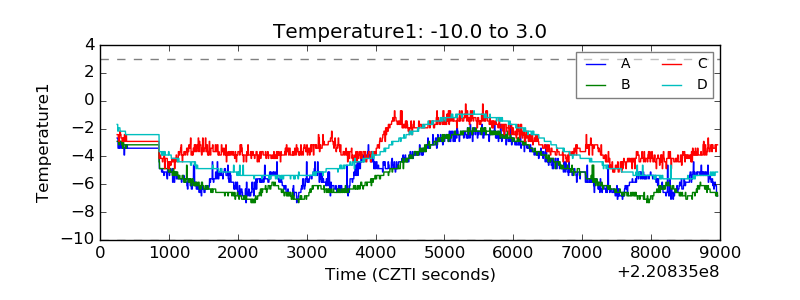

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

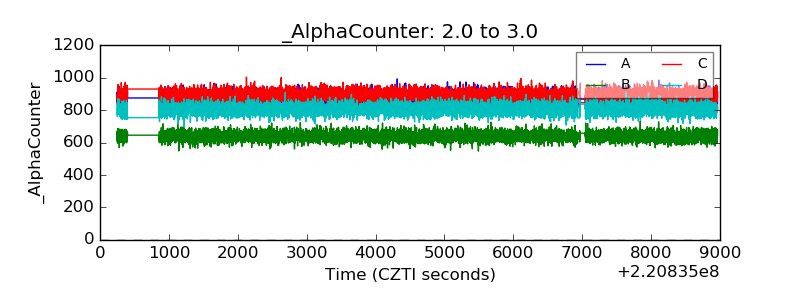

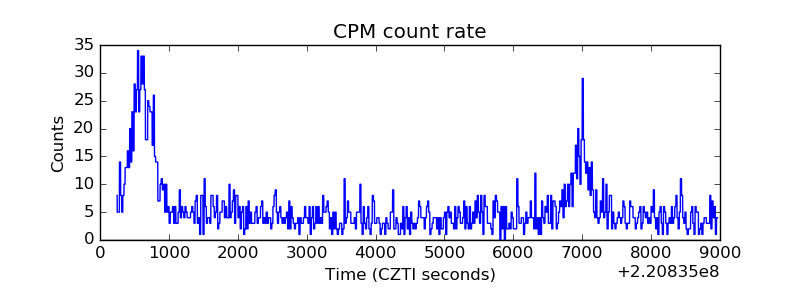

| Alpha Counter |  |
| _CPM_Rate |  |

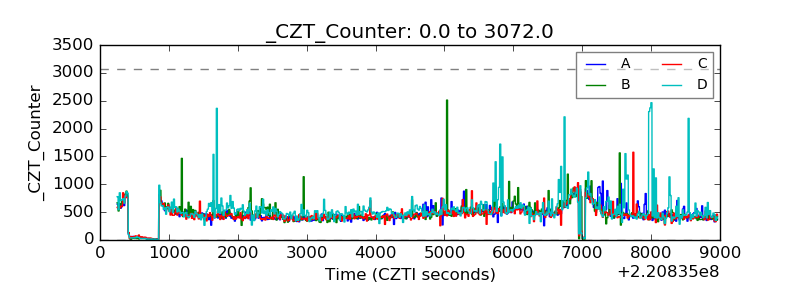

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

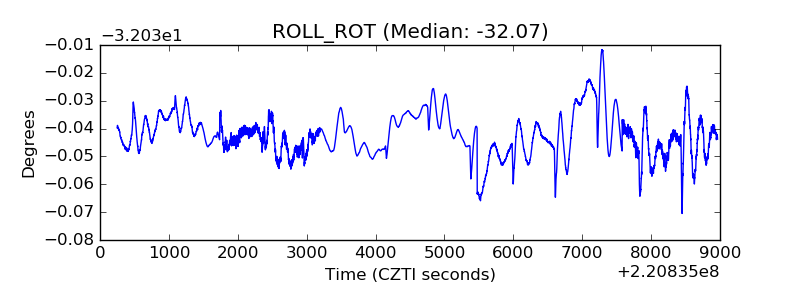

| _ROLL_ROT |  |

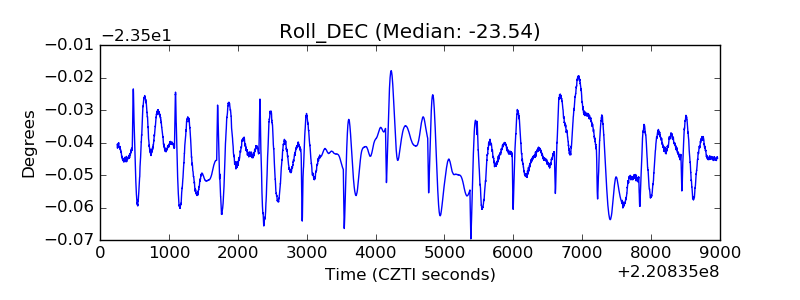

| _Roll_DEC |  |

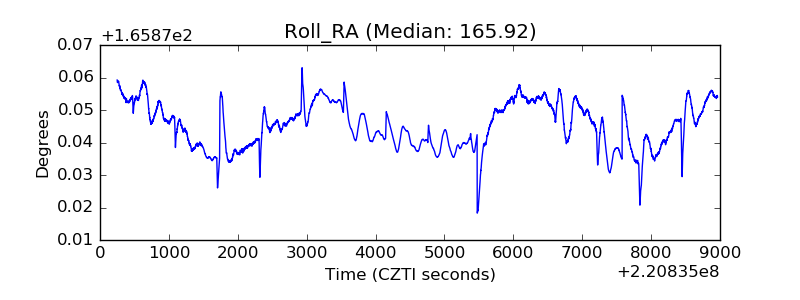

| _Roll_RA |  |

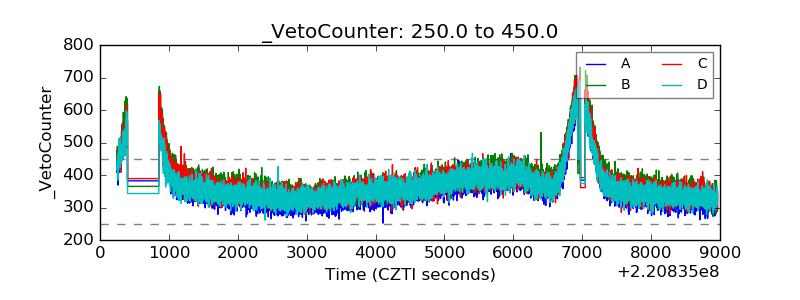

| Veto Counter |  |
