| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_174T04_9000000938_06827cztM0_level2.evt | modeM0/AS1A02_174T04_9000000938_06827cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,960,960 | 79,816,320 |
| Size | 435.8 MB | 76.1 MB |
| Events in quadrant A | 3,167,059 | 496,196 |
| Events in quadrant B | 3,126,275 | 501,637 |
| Events in quadrant C | 3,093,088 | 495,314 |
| Events in quadrant D | 4,016,751 | 476,290 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13503 | 2 |
| B | 0 | 13322 | 1 |
| C | 0 | 13307 | 1 |
| D | 0 | 16202 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6415 | 98 | 1.527670% |
| B | 6415 | 91 | 1.418550% |
| C | 6415 | 80 | 1.247077% |
| D | 6415 | 278 | 4.333593% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7435 | 6416 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7435 | 6416 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7435 | 6416 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7435 | 6416 | 146 | 146 | 1.96% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 187890 | 1179.75 | 772 | 755 | 158.6 |
| A | 0 | 226 | 7485 | 42.43 | 772 | 755 | 158.6 |
| A | 12 | 194 | 7274 | 41.1 | 772 | 755 | 158.6 |
| B | 15 | 204 | 93232 | 625.35 | 771 | 753 | 147.9 |
| B | 10 | 246 | 18207 | 118.03 | 771 | 753 | 147.9 |
| B | 0 | 245 | 17423 | 112.72 | 771 | 753 | 147.9 |
| C | 9 | 247 | 114328 | 653.2 | 746 | 749 | 173.9 |
| C | 9 | 16 | 54214 | 307.48 | 746 | 749 | 173.9 |
| C | 12 | 16 | 6135 | 30.98 | 746 | 749 | 173.9 |
| D | 2 | 136 | 359706 | 1963.55 | 741 | 718 | 182.8 |
| D | 14 | 34 | 292016 | 1593.31 | 741 | 718 | 182.8 |
| D | 12 | 233 | 241237 | 1315.56 | 741 | 718 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

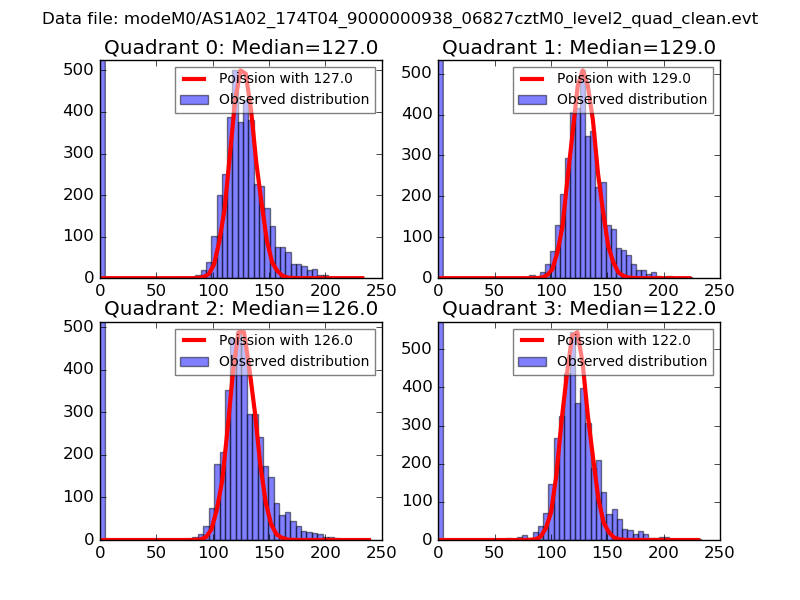

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

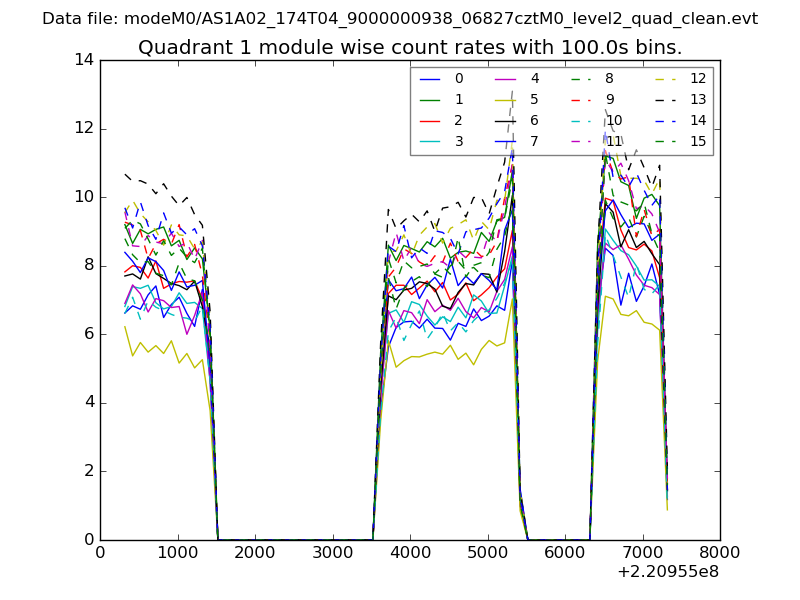

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

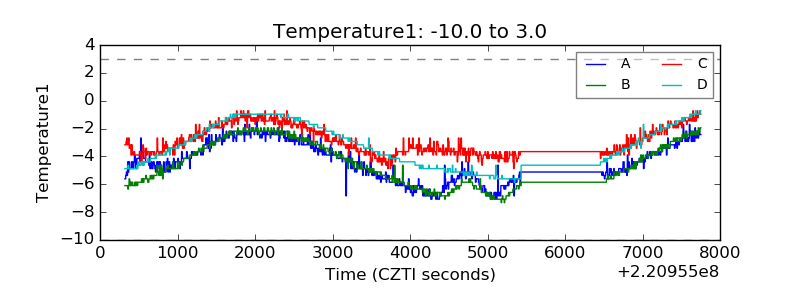

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

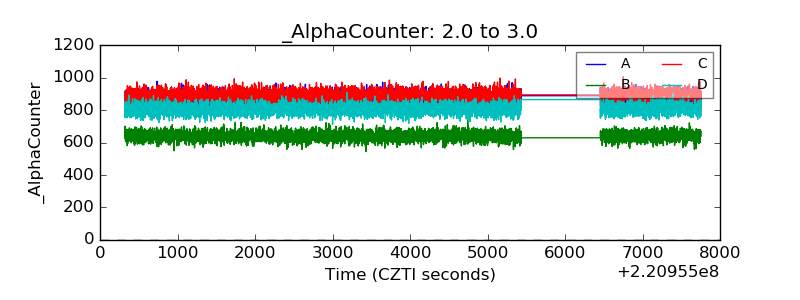

| Alpha Counter |  |
| _CPM_Rate |  |

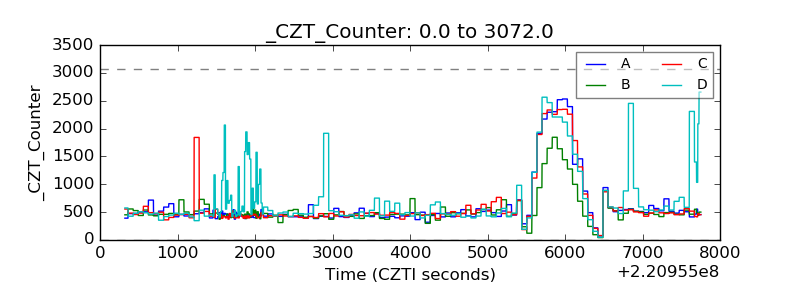

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

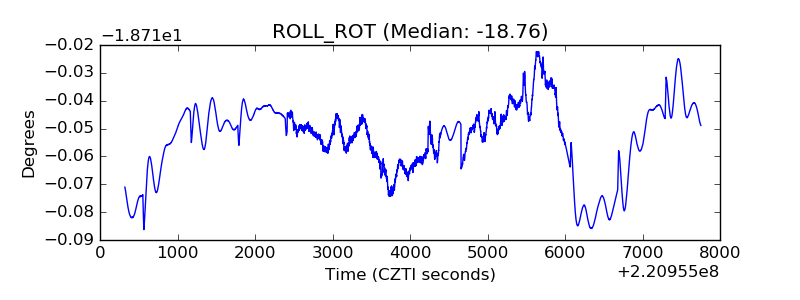

| _ROLL_ROT |  |

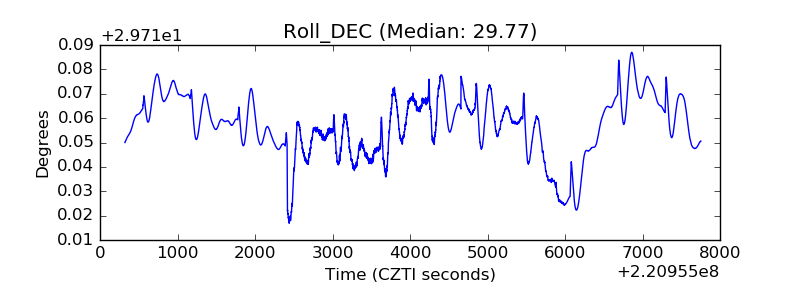

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
