| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06864cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06864cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,826,560 | 96,776,640 |
| Size | 472.9 MB | 92.3 MB |
| Events in quadrant A | 3,469,974 | 607,535 |
| Events in quadrant B | 3,667,615 | 614,587 |
| Events in quadrant C | 3,486,144 | 610,140 |
| Events in quadrant D | 3,891,449 | 585,160 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15498 | 3 |
| B | 0 | 15974 | 2 |
| C | 0 | 15341 | 2 |
| D | 0 | 16602 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7373 | 54 | 0.732402% |
| B | 7373 | 96 | 1.302048% |
| C | 7373 | 54 | 0.732402% |
| D | 7373 | 85 | 1.152855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7743 | 7374 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7743 | 7374 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7743 | 7374 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7743 | 7374 | 45 | 45 | 0.58% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 55201 | 304.5 | 872 | 854 | 178.5 |
| A | 3 | 1 | 15603 | 82.64 | 872 | 854 | 178.5 |
| A | 13 | 248 | 14731 | 77.75 | 872 | 854 | 178.5 |
| B | 4 | 80 | 108999 | 642.14 | 882 | 858 | 168.4 |
| B | 0 | 214 | 38458 | 223.27 | 882 | 858 | 168.4 |
| B | 4 | 239 | 30595 | 176.58 | 882 | 858 | 168.4 |
| C | 9 | 247 | 141348 | 708.57 | 853 | 857 | 198.3 |
| C | 9 | 68 | 8067 | 36.36 | 853 | 857 | 198.3 |
| C | 13 | 61 | 6658 | 29.26 | 853 | 857 | 198.3 |
| D | 2 | 216 | 191640 | 904.3 | 849 | 822 | 211.0 |
| D | 2 | 152 | 128369 | 604.45 | 849 | 822 | 211.0 |
| D | 8 | 195 | 124216 | 584.77 | 849 | 822 | 211.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

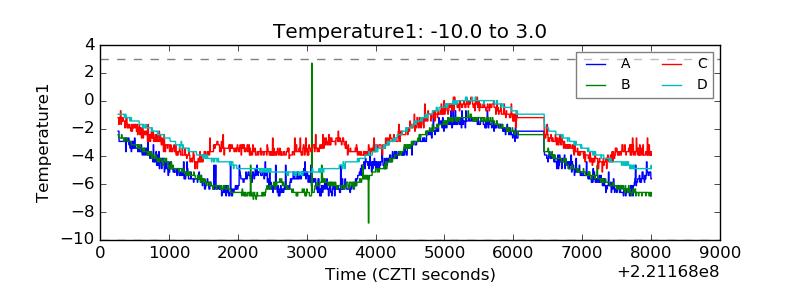

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

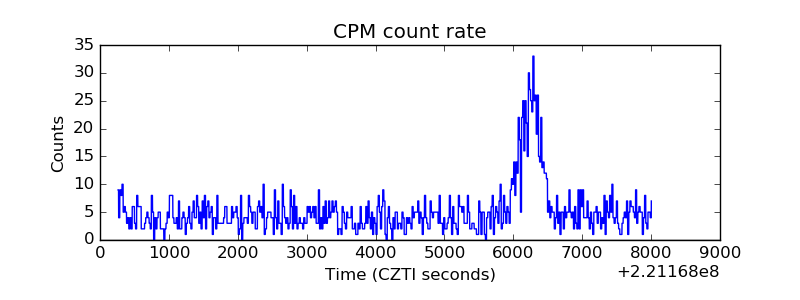

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

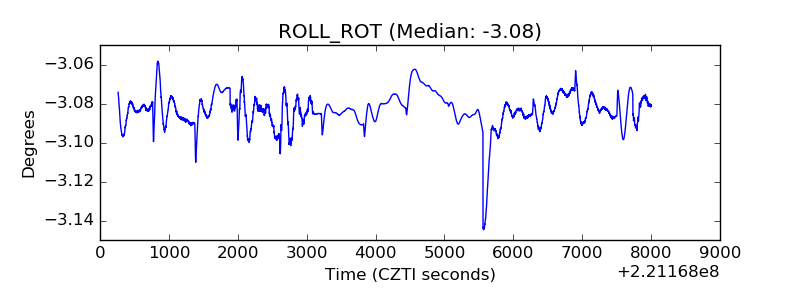

| _ROLL_ROT |  |

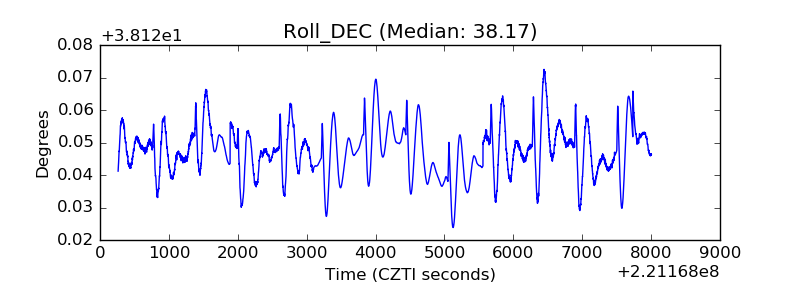

| _Roll_DEC |  |

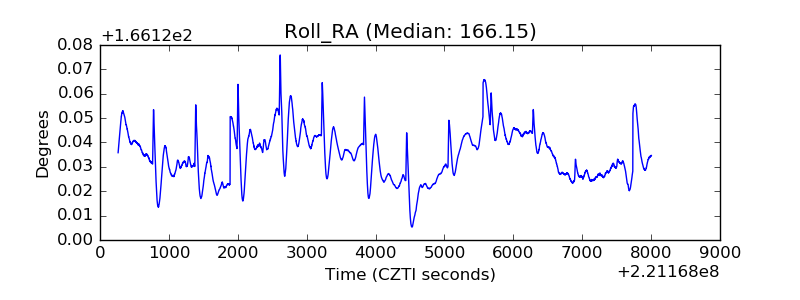

| _Roll_RA |  |
| Veto Counter |  |
