| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06870cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06870cztM0_level2_quad_clean.evt |
| Size (bytes) | 412,214,400 | 82,440,000 |
| Size | 393.1 MB | 78.6 MB |
| Events in quadrant A | 2,930,663 | 514,210 |
| Events in quadrant B | 3,036,794 | 520,794 |
| Events in quadrant C | 2,979,416 | 511,931 |
| Events in quadrant D | 3,097,427 | 498,889 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13122 | 2 |
| B | 0 | 13300 | 1 |
| C | 0 | 13133 | 1 |
| D | 0 | 13481 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6458 | 57 | 0.882626% |
| B | 6458 | 66 | 1.021988% |
| C | 6458 | 49 | 0.758749% |
| D | 6458 | 63 | 0.975534% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7443 | 6459 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7443 | 6459 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7443 | 6459 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7443 | 6459 | 10 | 10 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 15168 | 93.72 | 756 | 739 | 154.0 |
| A | 0 | 226 | 7410 | 43.33 | 756 | 739 | 154.0 |
| A | 12 | 194 | 7105 | 41.35 | 756 | 739 | 154.0 |
| B | 4 | 48 | 60128 | 406.89 | 757 | 740 | 146.0 |
| B | 0 | 214 | 25888 | 172.3 | 757 | 740 | 146.0 |
| B | 0 | 219 | 15943 | 104.16 | 757 | 740 | 146.0 |
| C | 9 | 247 | 124628 | 733.79 | 725 | 727 | 168.9 |
| C | 8 | 222 | 19115 | 108.9 | 725 | 727 | 168.9 |
| C | 13 | 61 | 5747 | 29.73 | 725 | 727 | 168.9 |
| D | 12 | 221 | 113583 | 622.3 | 732 | 709 | 181.4 |
| D | 8 | 195 | 87906 | 480.74 | 732 | 709 | 181.4 |
| D | 13 | 169 | 78016 | 426.21 | 732 | 709 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

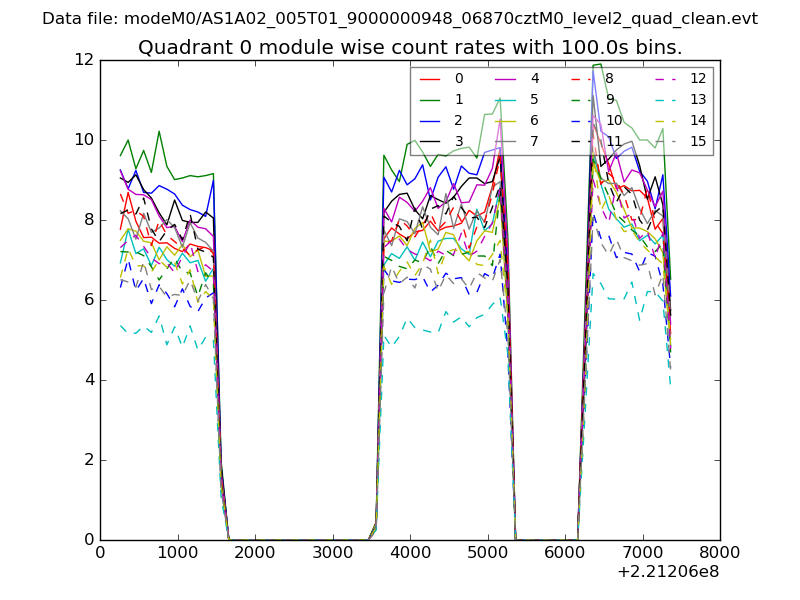

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

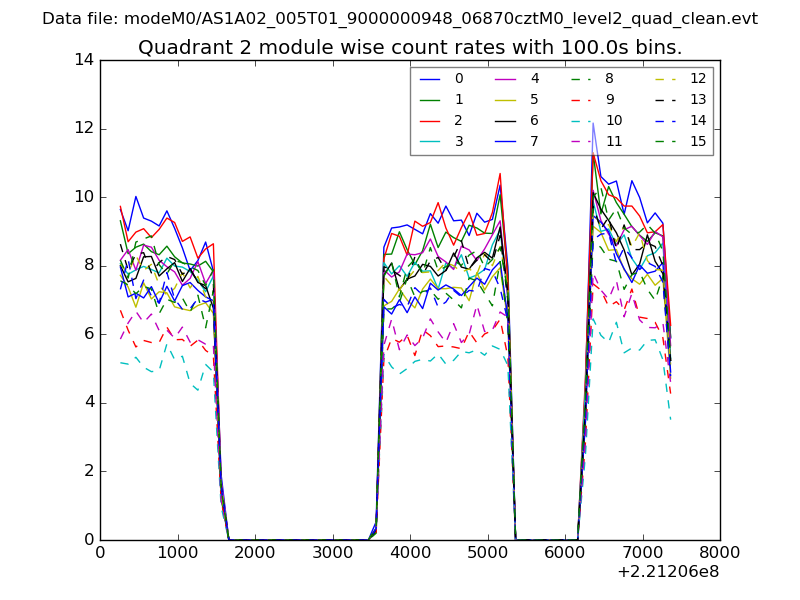

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

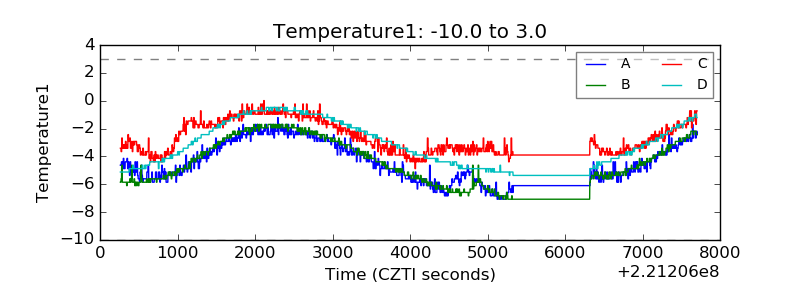

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

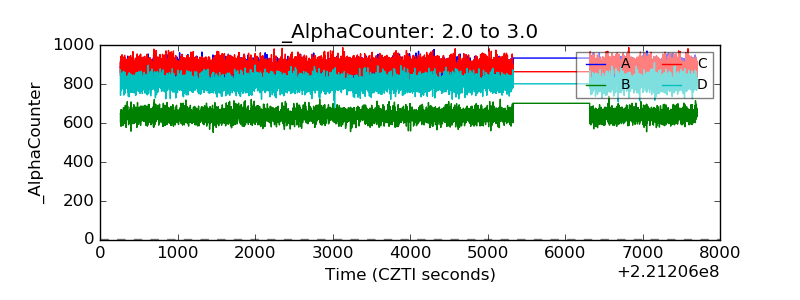

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

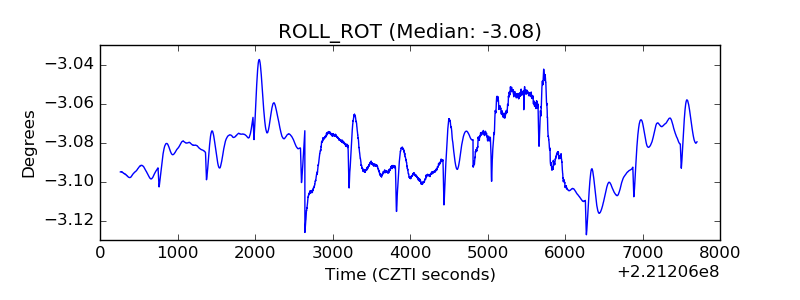

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

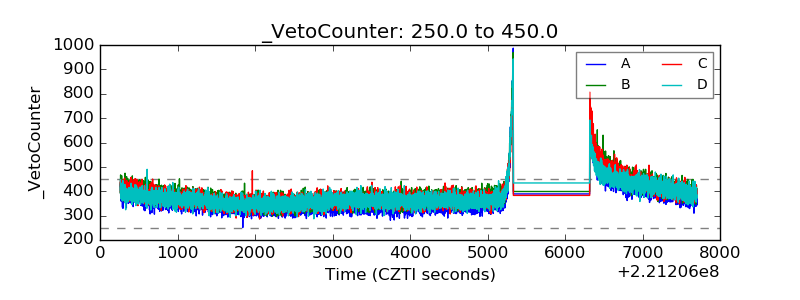

| Veto Counter |  |
