| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06884cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06884cztM0_level2_quad_clean.evt |
| Size (bytes) | 381,902,400 | 77,140,800 |
| Size | 364.2 MB | 73.6 MB |
| Events in quadrant A | 2,807,627 | 478,784 |
| Events in quadrant B | 2,769,286 | 487,541 |
| Events in quadrant C | 2,835,463 | 481,951 |
| Events in quadrant D | 2,741,500 | 464,954 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12564 | 2 |
| B | 0 | 12317 | 1 |
| C | 0 | 12624 | 1 |
| D | 0 | 12448 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6048 | 39 | 0.644841% |
| B | 6048 | 28 | 0.462963% |
| C | 6048 | 34 | 0.562169% |
| D | 6048 | 35 | 0.578704% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6978 | 6049 | 7 | 7 | 0.10% | 0.12% |  |
| B | 6978 | 6049 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6978 | 6049 | 4 | 4 | 0.06% | 0.07% |  |
| D | 6978 | 6049 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 124839 | 875.21 | 695 | 680 | 141.9 |
| A | 0 | 226 | 6650 | 42.08 | 695 | 680 | 141.9 |
| A | 12 | 194 | 6547 | 41.36 | 695 | 680 | 141.9 |
| B | 4 | 48 | 22938 | 165.47 | 697 | 680 | 134.5 |
| B | 0 | 214 | 16721 | 119.25 | 697 | 680 | 134.5 |
| B | 0 | 228 | 14137 | 100.04 | 697 | 680 | 134.5 |
| C | 9 | 247 | 197381 | 1263.18 | 669 | 672 | 155.7 |
| C | 9 | 54 | 22685 | 141.36 | 669 | 672 | 155.7 |
| C | 13 | 61 | 5139 | 28.69 | 669 | 672 | 155.7 |
| D | 8 | 195 | 76167 | 454.64 | 672 | 649 | 166.1 |
| D | 5 | 81 | 46964 | 278.83 | 672 | 649 | 166.1 |
| D | 13 | 169 | 31809 | 187.59 | 672 | 649 | 166.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

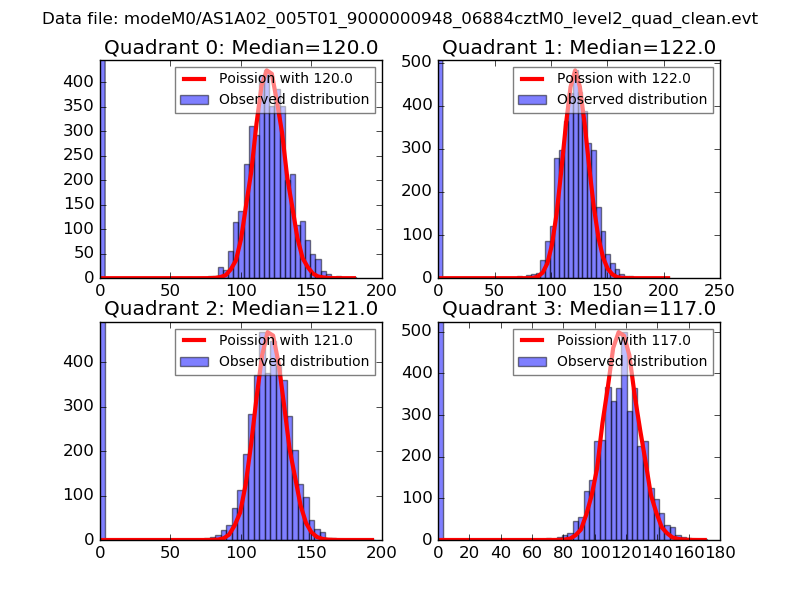

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

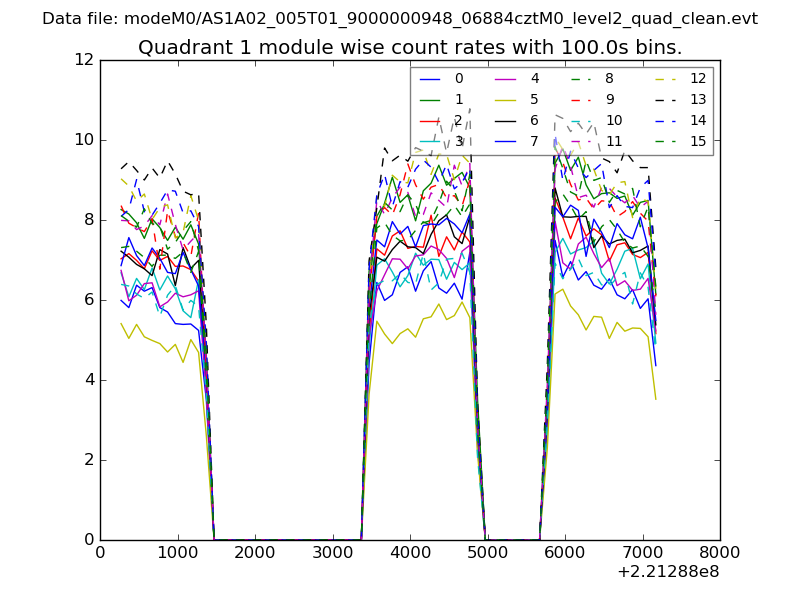

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

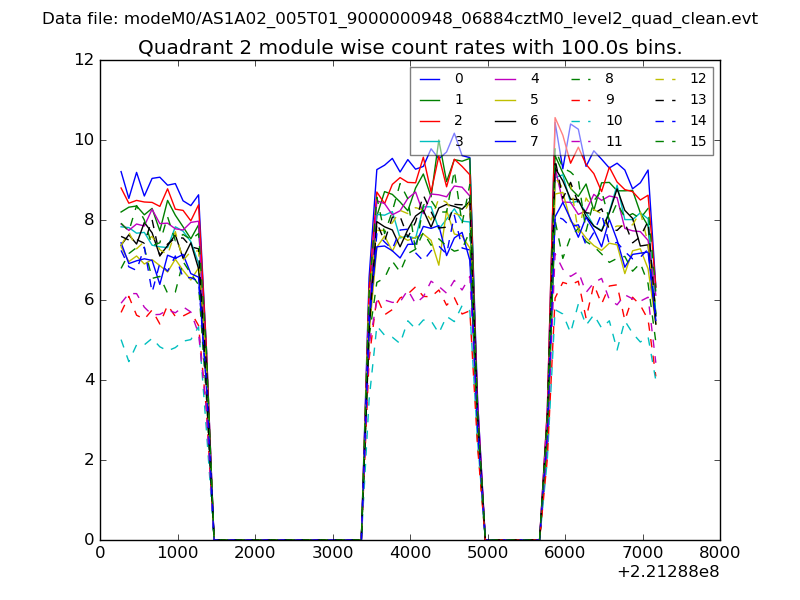

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
