| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06903cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06903cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,361,600 | 69,952,320 |
| Size | 457.2 MB | 66.7 MB |
| Events in quadrant A | 3,384,802 | 420,260 |
| Events in quadrant B | 3,742,476 | 421,912 |
| Events in quadrant C | 3,325,676 | 417,267 |
| Events in quadrant D | 3,620,500 | 402,470 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14104 | 3 |
| B | 0 | 15434 | 2 |
| C | 0 | 13879 | 2 |
| D | 0 | 14846 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6542 | 101 | 1.543870% |
| B | 6542 | 127 | 1.941302% |
| C | 6542 | 86 | 1.314583% |
| D | 6543 | 116 | 1.772887% |

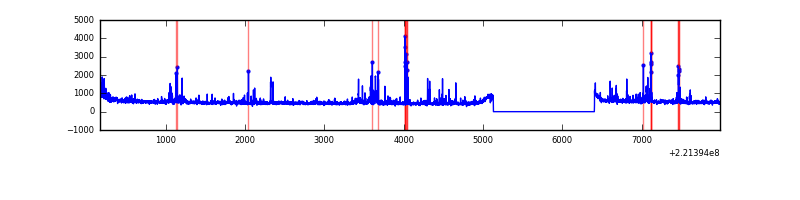

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7817 | 6543 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7817 | 6543 | 16 | 16 | 0.20% | 0.24% |  |
| C | 7817 | 6543 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7818 | 6544 | 21 | 21 | 0.27% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 43516 | 247.99 | 859 | 839 | 172.1 |
| A | 13 | 14 | 30945 | 174.94 | 859 | 839 | 172.1 |
| A | 0 | 226 | 8391 | 43.88 | 859 | 839 | 172.1 |
| B | 4 | 48 | 170322 | 1057.73 | 853 | 835 | 160.2 |
| B | 0 | 214 | 78443 | 484.33 | 853 | 835 | 160.2 |
| B | 0 | 219 | 56308 | 346.19 | 853 | 835 | 160.2 |
| C | 9 | 247 | 54104 | 281.64 | 830 | 835 | 189.1 |
| C | 9 | 54 | 17376 | 87.45 | 830 | 835 | 189.1 |
| C | 12 | 4 | 10575 | 51.5 | 830 | 835 | 189.1 |
| D | 2 | 216 | 179771 | 879.41 | 838 | 814 | 203.5 |
| D | 8 | 195 | 62017 | 300.76 | 838 | 814 | 203.5 |
| D | 5 | 97 | 51447 | 248.81 | 838 | 814 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

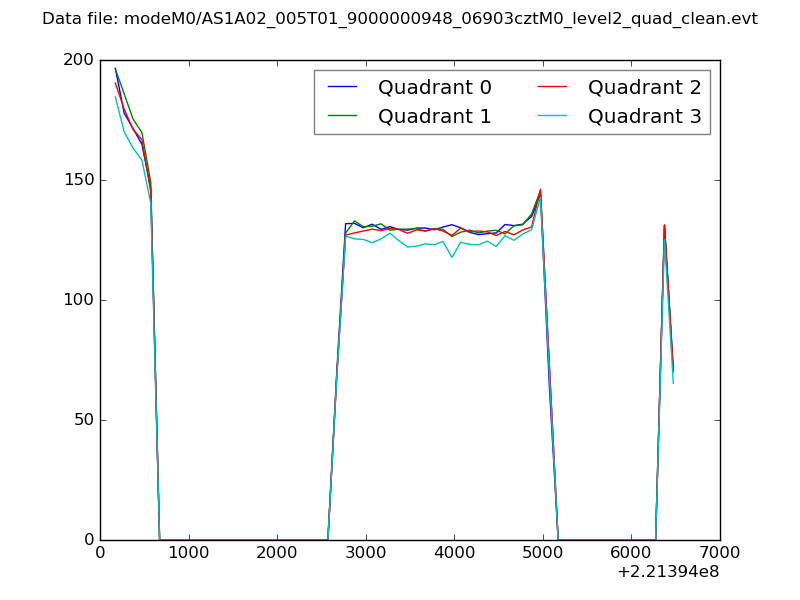

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

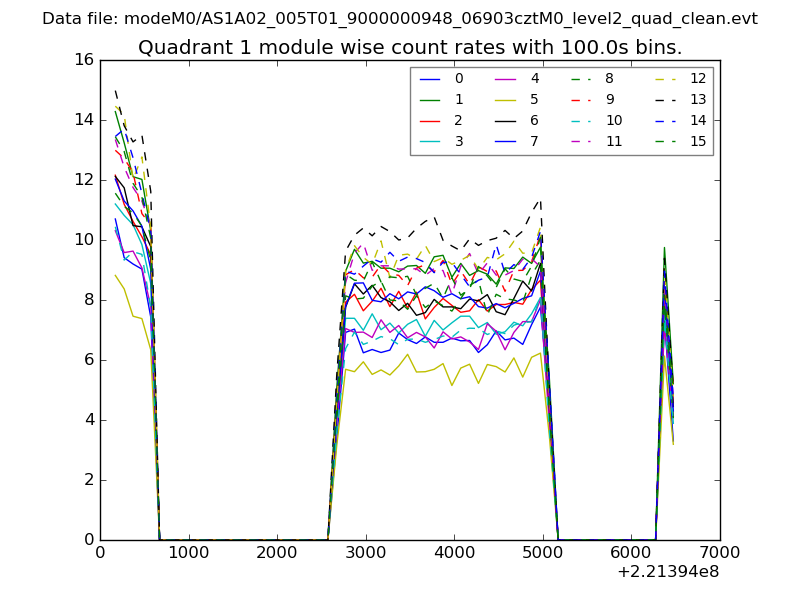

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

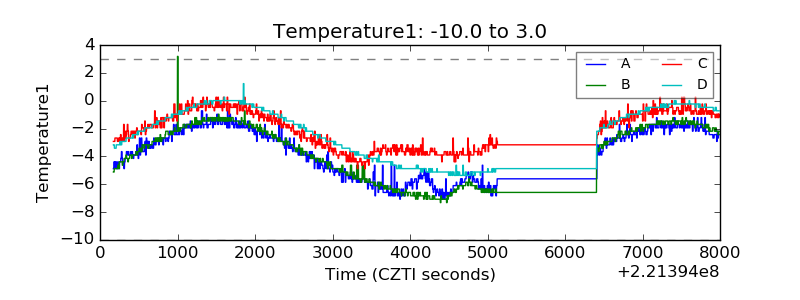

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

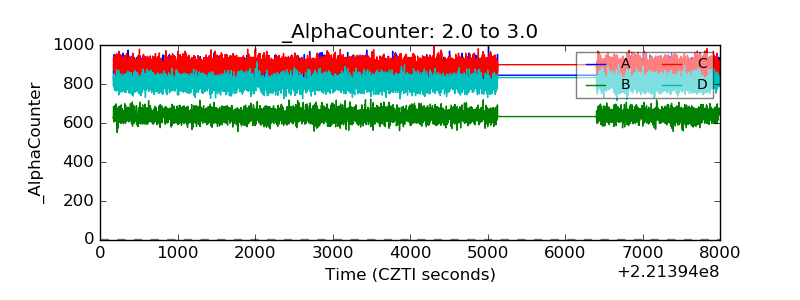

| Alpha Counter |  |

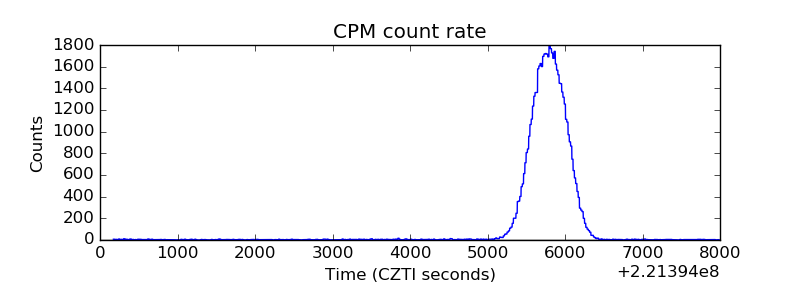

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

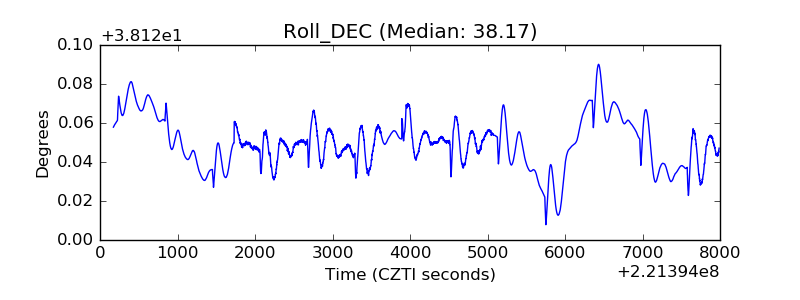

| _Roll_DEC |  |

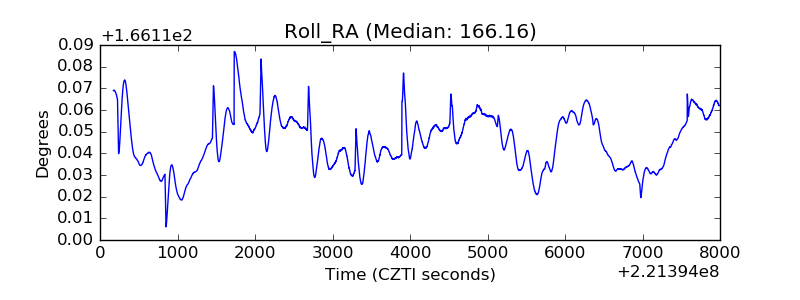

| _Roll_RA |  |
| Veto Counter |  |
