| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06916cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06916cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,898,560 | 80,369,280 |
| Size | 447.2 MB | 76.6 MB |
| Events in quadrant A | 2,923,813 | 508,367 |
| Events in quadrant B | 4,739,448 | 508,291 |
| Events in quadrant C | 2,854,260 | 505,206 |
| Events in quadrant D | 3,265,961 | 483,339 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12629 | 2 |
| B | 0 | 17973 | 1 |
| C | 0 | 12509 | 1 |
| D | 0 | 13680 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6132 | 73 | 1.190476% |
| B | 6132 | 726 | 11.839530% |
| C | 6132 | 51 | 0.831703% |
| D | 6132 | 100 | 1.630789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

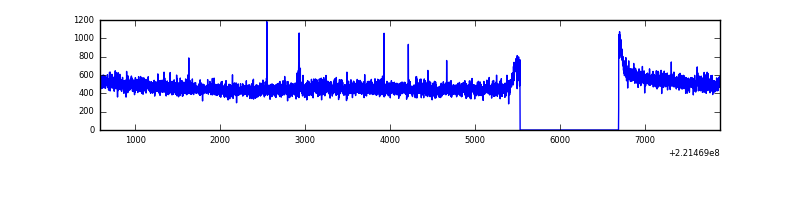

| A | 7292 | 6133 | 0 | 0 | 0.00% | 0.00% |  |

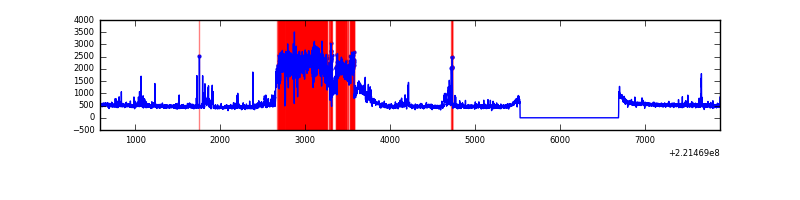

| B | 7292 | 6133 | 568 | 568 | 7.79% | 9.26% |  |
| C | 7292 | 6133 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7292 | 6133 | 43 | 43 | 0.59% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 15503 | 96.5 | 753 | 738 | 153.0 |
| A | 0 | 226 | 7335 | 43.12 | 753 | 738 | 153.0 |
| A | 12 | 194 | 7058 | 41.31 | 753 | 738 | 153.0 |
| B | 0 | 228 | 1787361 | 13048.33 | 724 | 707 | 136.9 |
| B | 4 | 81 | 66137 | 477.85 | 724 | 707 | 136.9 |
| B | 4 | 173 | 41744 | 299.7 | 724 | 707 | 136.9 |
| C | 8 | 128 | 12467 | 69.98 | 722 | 725 | 167.8 |
| C | 9 | 247 | 11670 | 65.23 | 722 | 725 | 167.8 |
| C | 8 | 112 | 6177 | 32.49 | 722 | 725 | 167.8 |
| D | 2 | 33 | 177752 | 1003.31 | 726 | 704 | 176.5 |
| D | 1 | 20 | 119624 | 673.91 | 726 | 704 | 176.5 |
| D | 8 | 195 | 58277 | 326.26 | 726 | 704 | 176.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

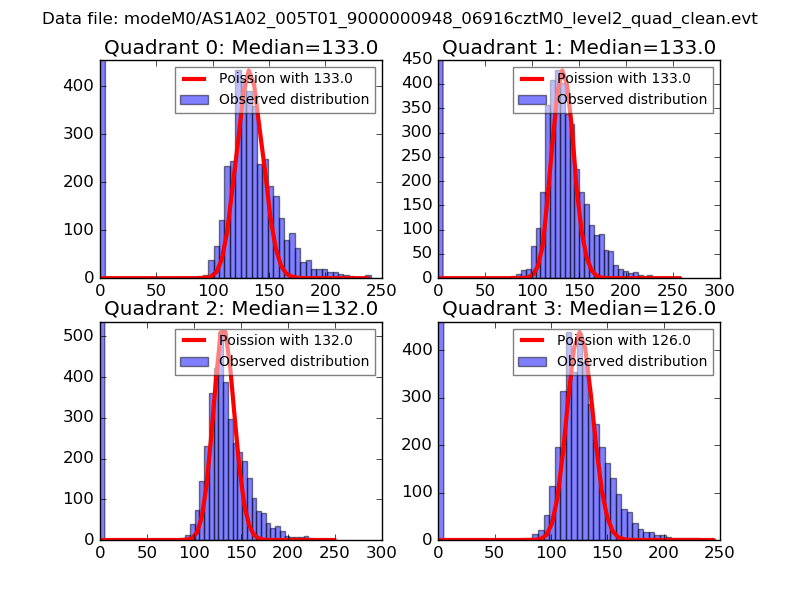

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

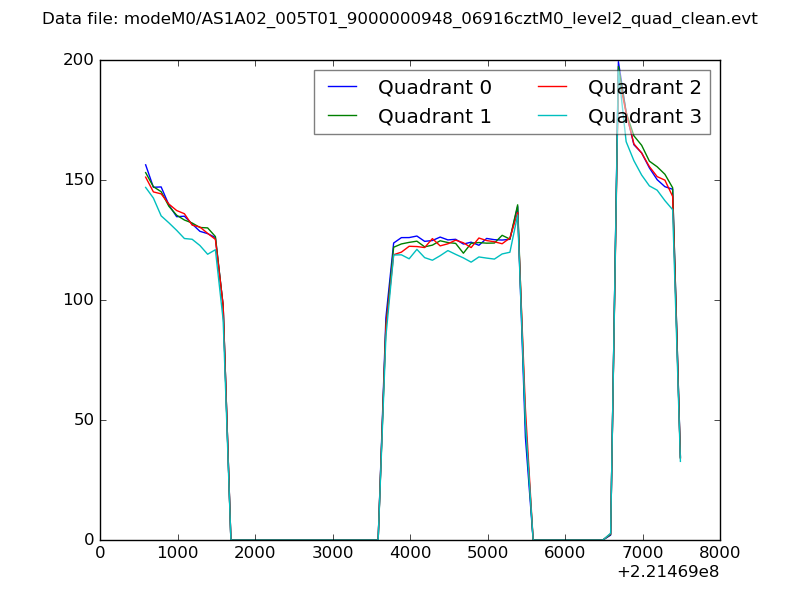

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

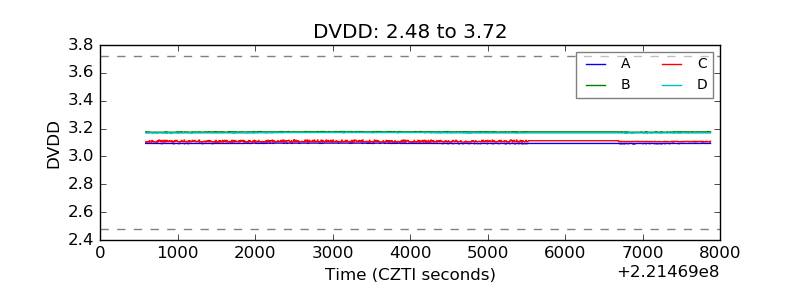

| D_VDD |  |

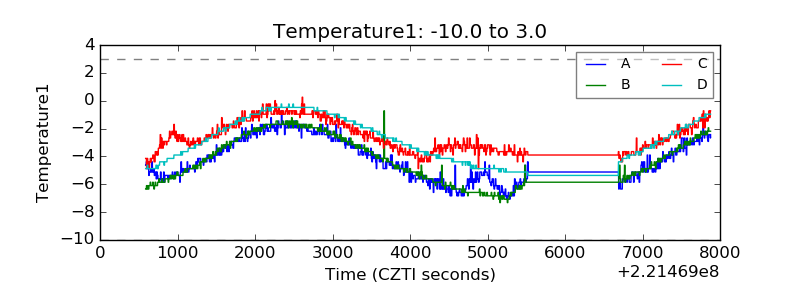

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

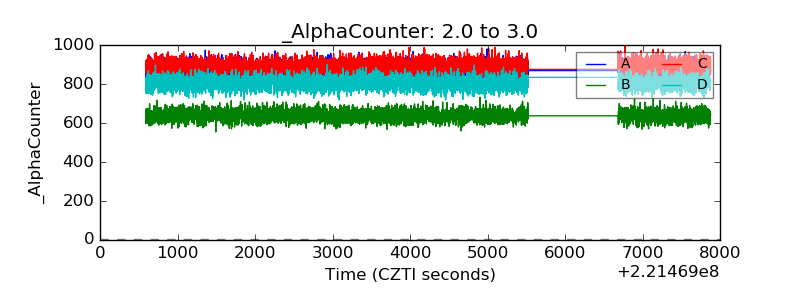

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

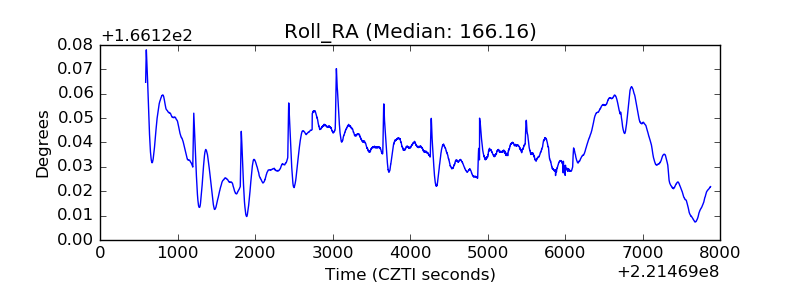

| _Roll_RA |  |
| Veto Counter |  |
