| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06920cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06920cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,550,400 | 74,669,760 |
| Size | 433.5 MB | 71.2 MB |
| Events in quadrant A | 3,156,483 | 456,272 |
| Events in quadrant B | 3,421,388 | 458,039 |
| Events in quadrant C | 3,129,987 | 456,957 |
| Events in quadrant D | 3,619,977 | 439,824 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13635 | 3 |
| B | 0 | 14422 | 2 |
| C | 0 | 13401 | 2 |
| D | 0 | 15147 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 61 | 0.947499% |
| B | 6438 | 73 | 1.133893% |
| C | 6438 | 62 | 0.963032% |
| D | 6438 | 152 | 2.360982% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6439 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7613 | 6439 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7613 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7613 | 6439 | 56 | 56 | 0.74% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 32398 | 195.62 | 797 | 781 | 161.6 |
| A | 15 | 223 | 31282 | 188.71 | 797 | 781 | 161.6 |
| A | 13 | 248 | 17200 | 101.59 | 797 | 781 | 161.6 |
| B | 0 | 228 | 120246 | 788.78 | 801 | 784 | 151.5 |
| B | 4 | 81 | 93224 | 610.36 | 801 | 784 | 151.5 |
| B | 0 | 214 | 28405 | 182.38 | 801 | 784 | 151.5 |
| C | 9 | 247 | 60329 | 332.37 | 780 | 786 | 179.1 |
| C | 1 | 16 | 17673 | 94.26 | 780 | 786 | 179.1 |
| C | 13 | 61 | 6113 | 29.74 | 780 | 786 | 179.1 |
| D | 1 | 20 | 286623 | 1508.08 | 776 | 753 | 189.6 |
| D | 2 | 14 | 119748 | 627.75 | 776 | 753 | 189.6 |
| D | 2 | 33 | 77588 | 405.34 | 776 | 753 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

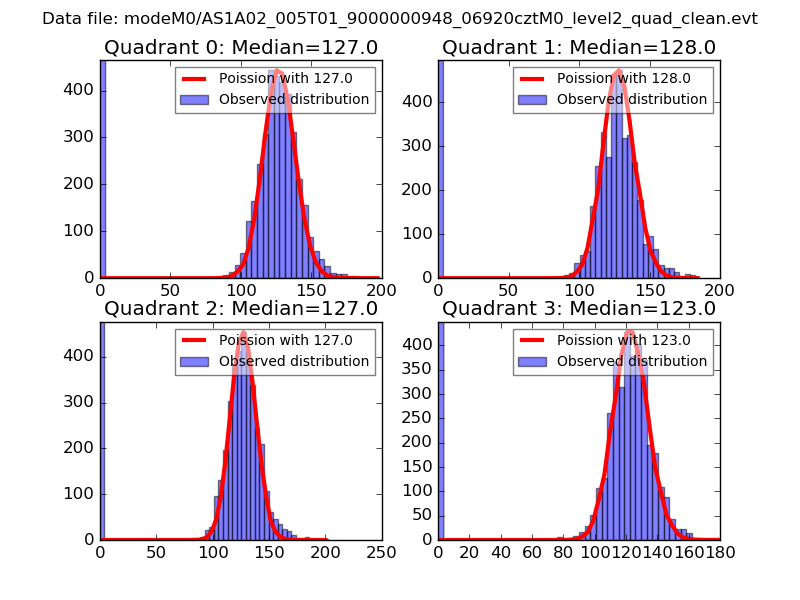

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

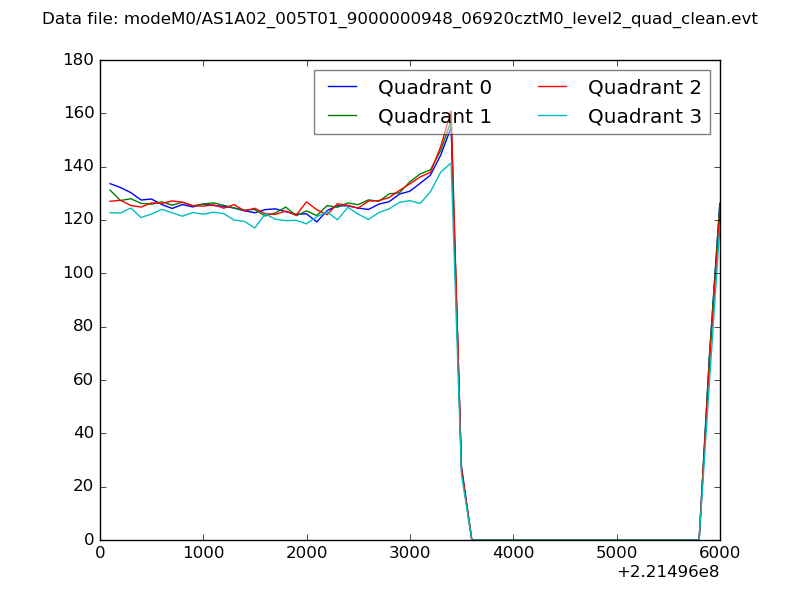

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

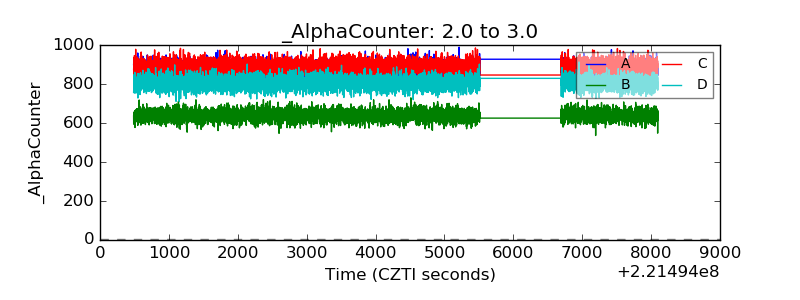

| Alpha Counter |  |

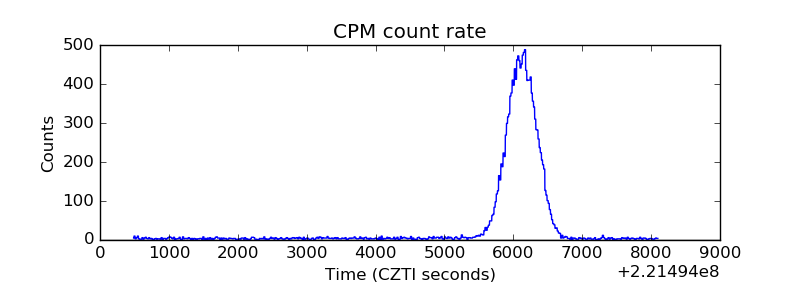

| _CPM_Rate |  |

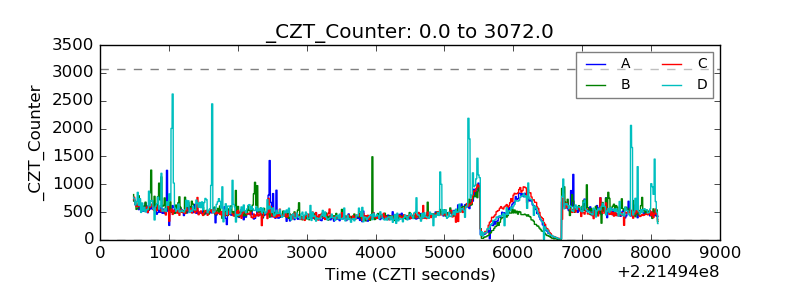

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

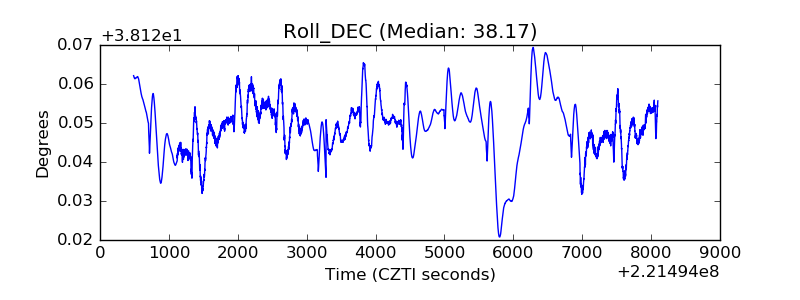

| _Roll_DEC |  |

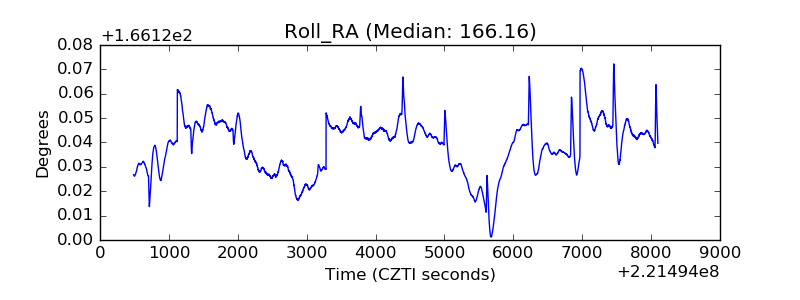

| _Roll_RA |  |

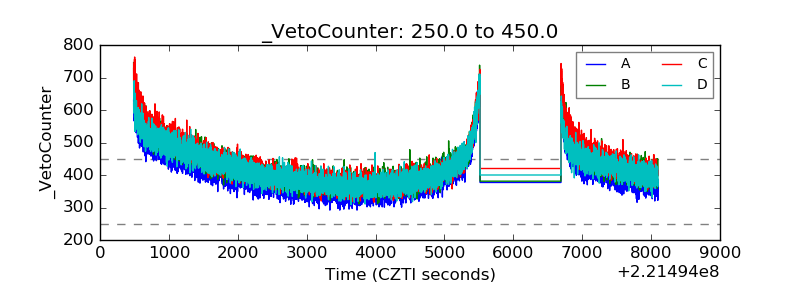

| Veto Counter |  |
