| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_005T01_9000000948_06922cztM0_level2.evt | modeM0/AS1A02_005T01_9000000948_06922cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,916,480 | 89,447,040 |
| Size | 506.3 MB | 85.3 MB |
| Events in quadrant A | 3,597,710 | 550,366 |
| Events in quadrant B | 4,172,287 | 555,103 |
| Events in quadrant C | 3,524,810 | 549,922 |
| Events in quadrant D | 4,272,718 | 529,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15924 | 3 |
| B | 0 | 17565 | 2 |
| C | 0 | 15663 | 2 |
| D | 0 | 17913 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7523 | 117 | 1.555231% |
| B | 7523 | 310 | 4.120697% |
| C | 7523 | 76 | 1.010235% |
| D | 7523 | 183 | 2.432540% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

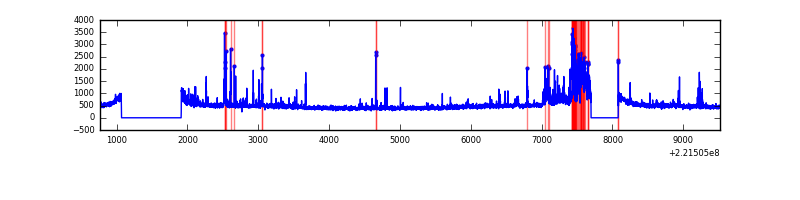

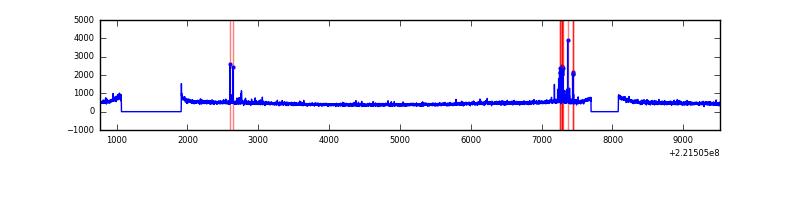

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8753 | 7525 | 16 | 16 | 0.18% | 0.21% |  |
| B | 8753 | 7525 | 79 | 79 | 0.90% | 1.05% |  |
| C | 8753 | 7525 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8753 | 7525 | 79 | 79 | 0.90% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 78094 | 419.79 | 900 | 882 | 183.9 |
| A | 8 | 15 | 38958 | 207.01 | 900 | 882 | 183.9 |
| A | 0 | 226 | 8862 | 43.39 | 900 | 882 | 183.9 |
| B | 0 | 231 | 283646 | 1646.63 | 895 | 873 | 171.7 |
| B | 0 | 228 | 163439 | 946.65 | 895 | 873 | 171.7 |
| B | 4 | 81 | 91020 | 524.94 | 895 | 873 | 171.7 |
| C | 9 | 247 | 86171 | 420.73 | 877 | 881 | 202.7 |
| C | 13 | 61 | 6965 | 30.01 | 877 | 881 | 202.7 |
| C | 1 | 16 | 6437 | 27.41 | 877 | 881 | 202.7 |
| D | 1 | 20 | 371112 | 1711.69 | 877 | 849 | 216.3 |
| D | 2 | 152 | 184297 | 848.06 | 877 | 849 | 216.3 |
| D | 2 | 136 | 93030 | 426.14 | 877 | 849 | 216.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

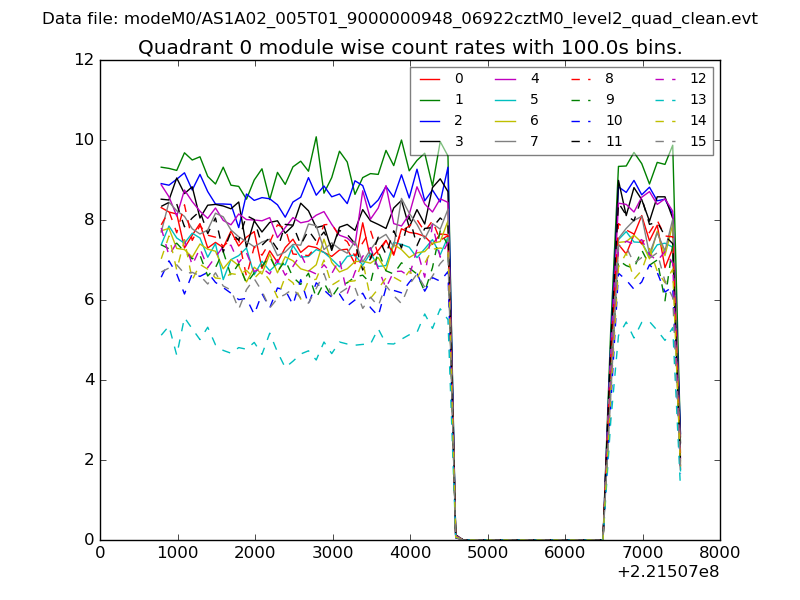

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

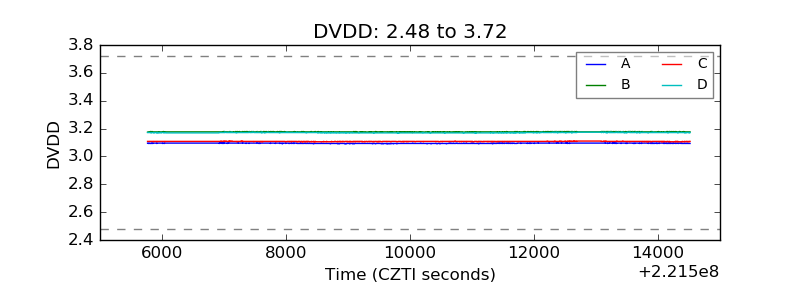

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

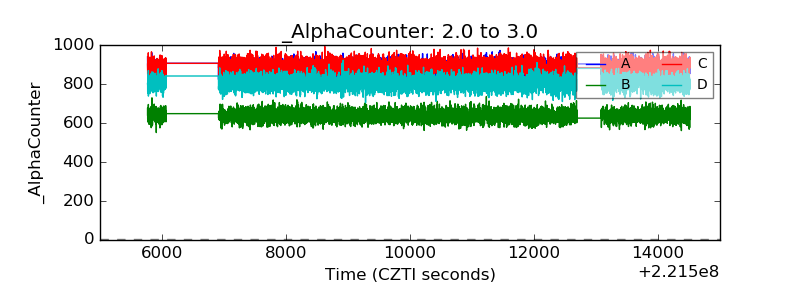

| Alpha Counter |  |
| _CPM_Rate |  |

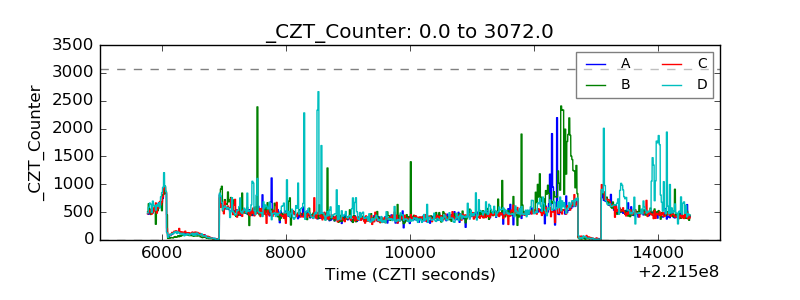

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

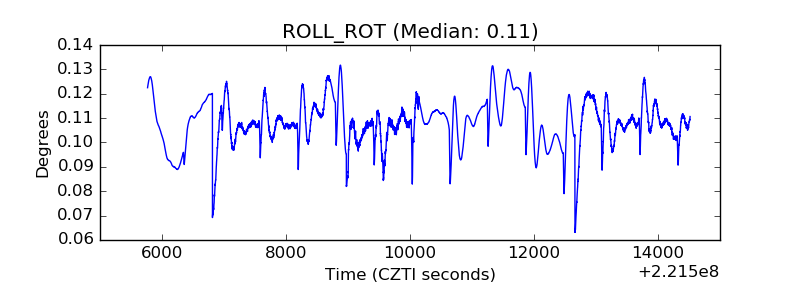

| _ROLL_ROT |  |
| _Roll_DEC |  |

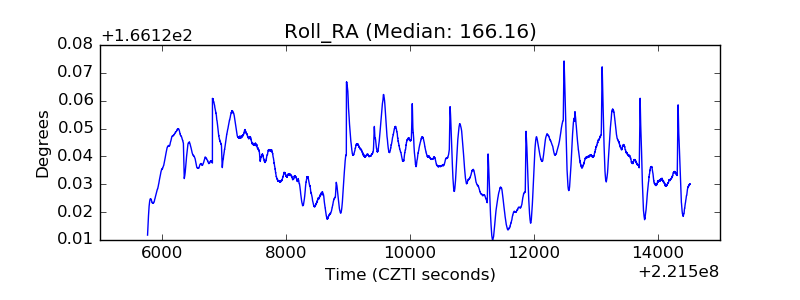

| _Roll_RA |  |
| Veto Counter |  |
