| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_103T01_9000000950_06934cztM0_level2.evt | modeM0/AS1A02_103T01_9000000950_06934cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,113,600 | 59,912,640 |
| Size | 702.0 MB | 57.1 MB |
| Events in quadrant A | 2,857,130 | 400,443 |
| Events in quadrant B | 3,455,168 | 400,767 |
| Events in quadrant C | 12,116,853 | 216,681 |
| Events in quadrant D | 3,468,181 | 386,079 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12187 | 2 |
| B | 0 | 14201 | 1 |
| C | 0 | 40063 | 1 |
| D | 0 | 14226 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5853 | 55 | 0.939689% |
| B | 5853 | 126 | 2.152742% |
| C | 5853 | 4170 | 71.245515% |
| D | 5853 | 101 | 1.725611% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7138 | 5854 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7138 | 5854 | 28 | 28 | 0.39% | 0.48% |  |
| C | 7138 | 5853 | 3554 | 3554 | 49.79% | 60.72% |  |
| D | 7138 | 5854 | 28 | 28 | 0.39% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 8923 | 54.45 | 738 | 724 | 150.6 |
| A | 0 | 226 | 7070 | 42.14 | 738 | 724 | 150.6 |
| A | 12 | 194 | 7005 | 41.71 | 738 | 724 | 150.6 |
| B | 0 | 228 | 488698 | 3469.17 | 738 | 722 | 140.7 |
| B | 4 | 173 | 47195 | 330.39 | 738 | 722 | 140.7 |
| B | 4 | 48 | 25911 | 179.08 | 738 | 722 | 140.7 |
| C | 9 | 247 | 10366655 | 100554.26 | 443 | 446 | 103.1 |
| C | 1 | 16 | 10879 | 101.2 | 443 | 446 | 103.1 |
| C | 8 | 128 | 4594 | 40.24 | 443 | 446 | 103.1 |
| D | 2 | 136 | 274420 | 1555.01 | 719 | 698 | 176.0 |
| D | 8 | 195 | 181198 | 1025.41 | 719 | 698 | 176.0 |
| D | 2 | 152 | 100160 | 565.04 | 719 | 698 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

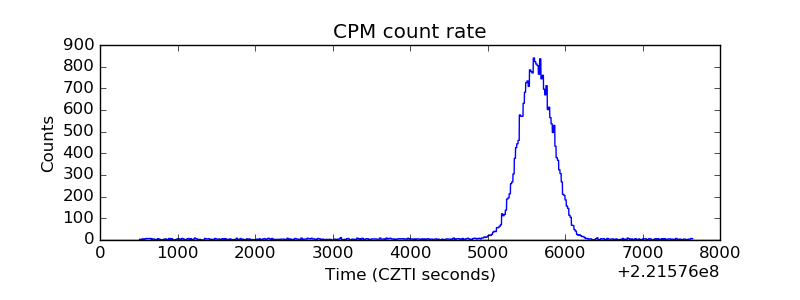

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

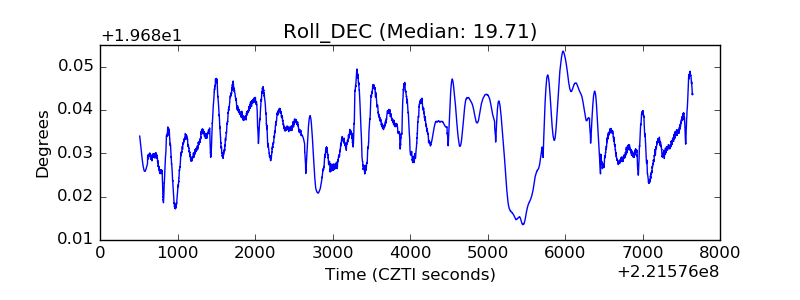

| _Roll_DEC |  |

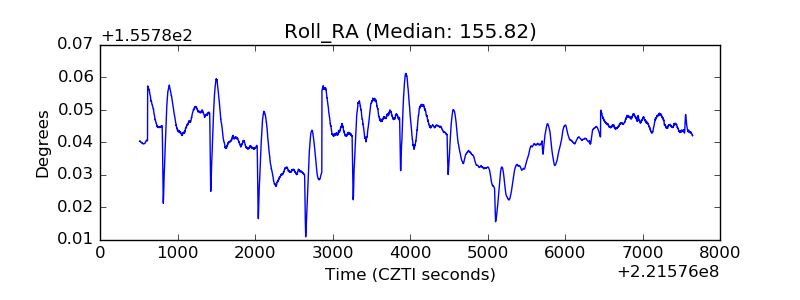

| _Roll_RA |  |

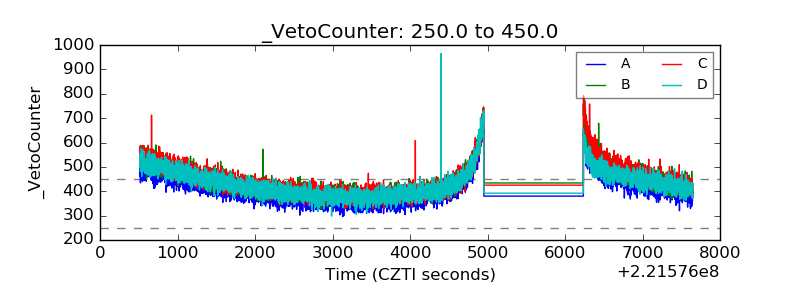

| Veto Counter |  |
