| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_103T01_9000000950_06936cztM0_level2.evt | modeM0/AS1A02_103T01_9000000950_06936cztM0_level2_quad_clean.evt |
| Size (bytes) | 908,023,680 | 74,465,280 |
| Size | 866.0 MB | 71.0 MB |
| Events in quadrant A | 3,281,917 | 510,818 |
| Events in quadrant B | 4,229,943 | 512,870 |
| Events in quadrant C | 15,502,501 | 244,072 |
| Events in quadrant D | 4,007,844 | 493,896 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14584 | 3 |
| B | 0 | 17349 | 2 |
| C | 0 | 50851 | 2 |
| D | 0 | 16572 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7061 | 51 | 0.722277% |
| B | 7061 | 207 | 2.931596% |
| C | 7061 | 5928 | 83.954114% |
| D | 7061 | 100 | 1.416230% |

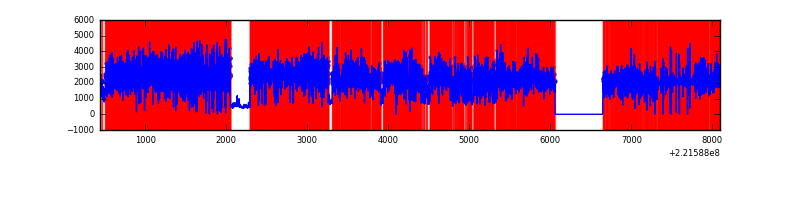

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 7062 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7651 | 7062 | 17 | 17 | 0.22% | 0.24% |  |
| C | 7651 | 7062 | 4638 | 4638 | 60.62% | 65.68% |  |
| D | 7651 | 7062 | 17 | 17 | 0.22% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8158 | 42.23 | 847 | 829 | 173.6 |
| A | 12 | 194 | 7669 | 39.41 | 847 | 829 | 173.6 |
| A | 4 | 2 | 7227 | 36.86 | 847 | 829 | 173.6 |
| B | 0 | 228 | 695084 | 4279.56 | 846 | 823 | 162.2 |
| B | 4 | 48 | 83379 | 508.89 | 846 | 823 | 162.2 |
| B | 4 | 81 | 67743 | 412.51 | 846 | 823 | 162.2 |
| C | 9 | 247 | 14002645 | 158577.31 | 377 | 379 | 88.3 |
| C | 10 | 22 | 14878 | 164.2 | 377 | 379 | 88.3 |
| C | 7 | 247 | 8685 | 94.07 | 377 | 379 | 88.3 |
| D | 8 | 195 | 317741 | 1573.23 | 823 | 797 | 201.5 |
| D | 2 | 136 | 312731 | 1548.36 | 823 | 797 | 201.5 |
| D | 2 | 152 | 91816 | 451.79 | 823 | 797 | 201.5 |

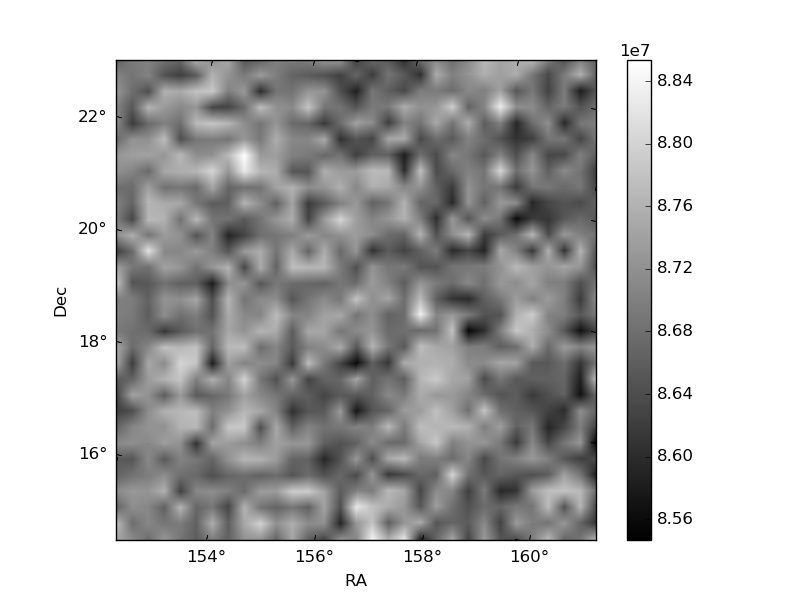

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

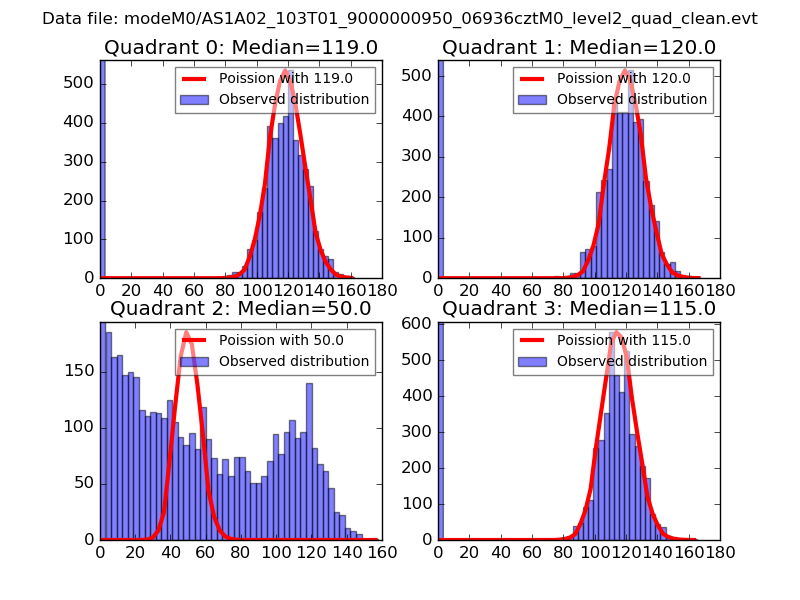

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

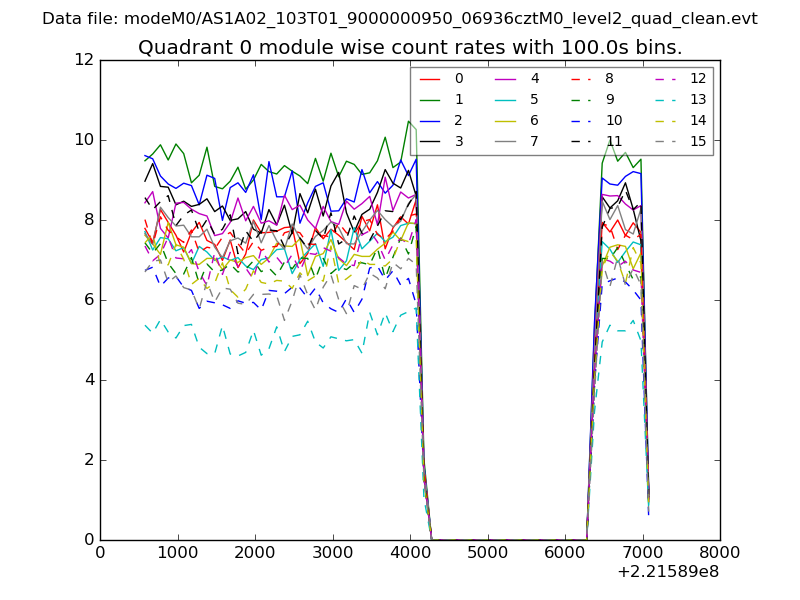

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

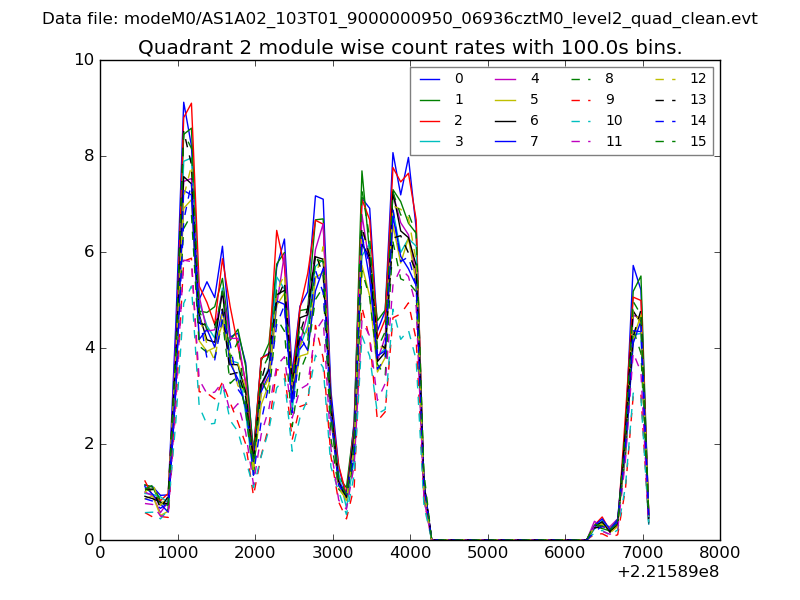

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

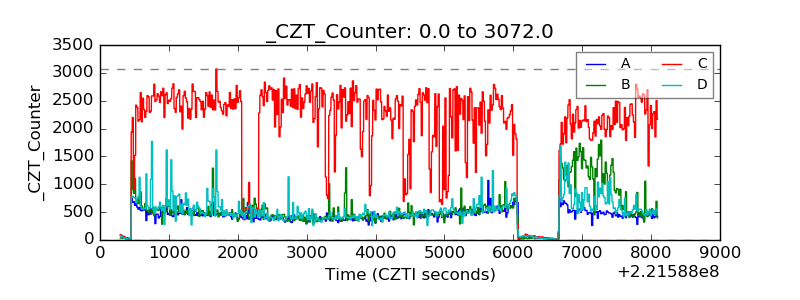

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

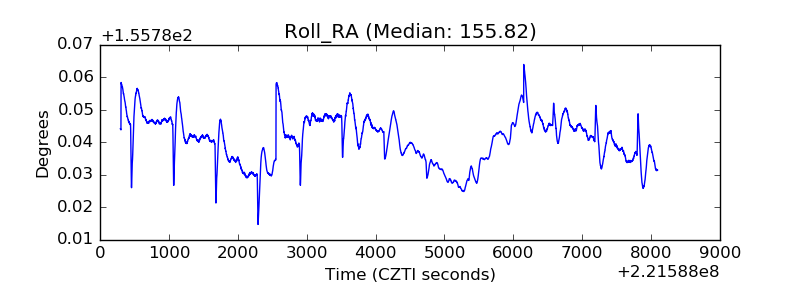

| _Roll_RA |  |

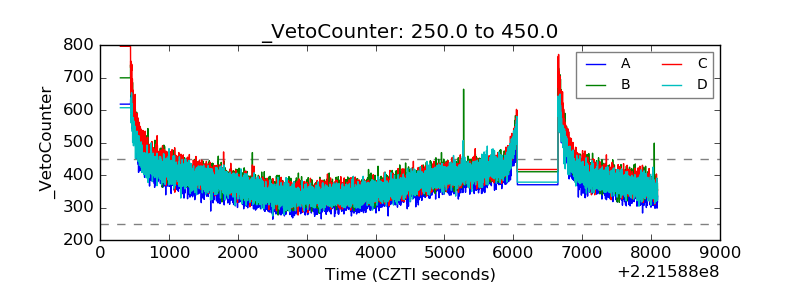

| Veto Counter |  |
