| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_103T01_9000000950_06945cztM0_level2.evt | modeM0/AS1A02_103T01_9000000950_06945cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,168,960 | 72,046,080 |
| Size | 598.1 MB | 68.7 MB |
| Events in quadrant A | 2,928,453 | 457,896 |
| Events in quadrant B | 2,967,642 | 462,168 |
| Events in quadrant C | 8,915,050 | 401,136 |
| Events in quadrant D | 3,768,836 | 433,217 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12577 | 2 |
| B | 0 | 12613 | 1 |
| C | 0 | 30796 | 1 |
| D | 0 | 15077 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6115 | 38 | 0.621423% |
| B | 6115 | 40 | 0.654129% |
| C | 6115 | 1946 | 31.823385% |
| D | 6115 | 88 | 1.439084% |

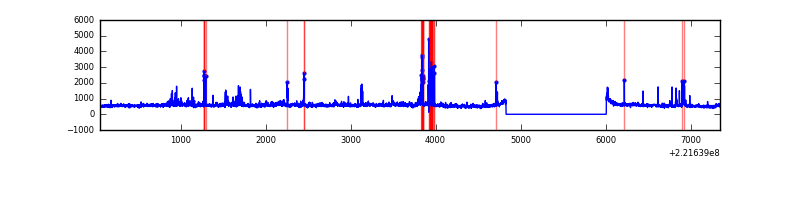

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7295 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7295 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7295 | 6116 | 1766 | 1766 | 24.21% | 28.88% |  |
| D | 7295 | 6116 | 49 | 49 | 0.67% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 8899 | 52.98 | 756 | 740 | 154.0 |
| A | 12 | 194 | 7345 | 42.89 | 756 | 740 | 154.0 |
| A | 0 | 226 | 7313 | 42.68 | 756 | 740 | 154.0 |
| B | 12 | 111 | 14168 | 93.09 | 753 | 735 | 144.3 |
| B | 0 | 228 | 14083 | 92.5 | 753 | 735 | 144.3 |
| B | 11 | 111 | 11288 | 73.13 | 753 | 735 | 144.3 |
| C | 9 | 247 | 6298349 | 42381.5 | 645 | 650 | 148.6 |
| C | 7 | 247 | 66019 | 439.91 | 645 | 650 | 148.6 |
| C | 8 | 128 | 10487 | 66.2 | 645 | 650 | 148.6 |
| D | 8 | 195 | 641825 | 3565.34 | 732 | 708 | 179.8 |
| D | 12 | 233 | 159923 | 885.42 | 732 | 708 | 179.8 |
| D | 2 | 152 | 63356 | 348.39 | 732 | 708 | 179.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

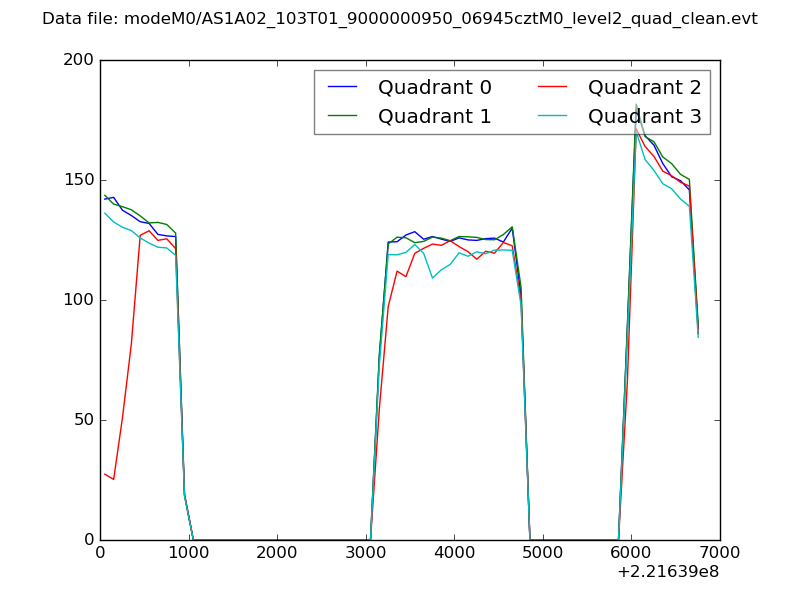

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

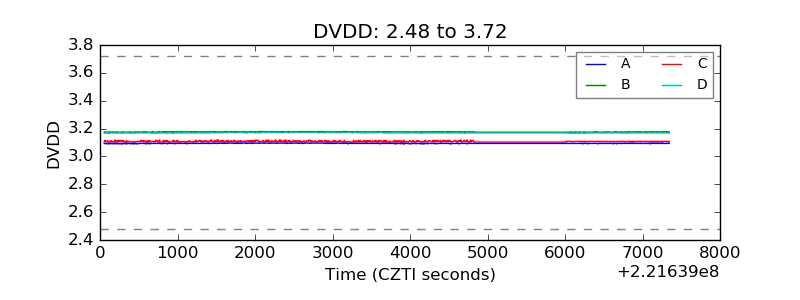

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

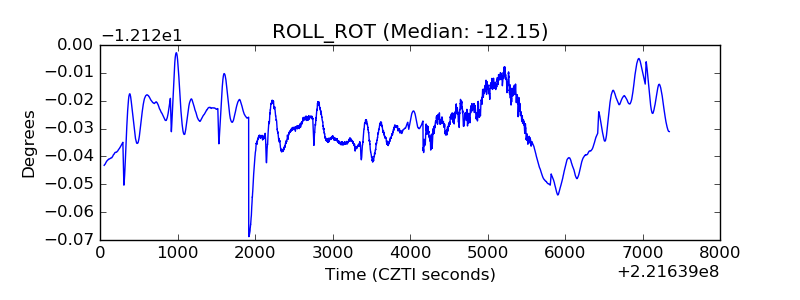

| _ROLL_ROT |  |

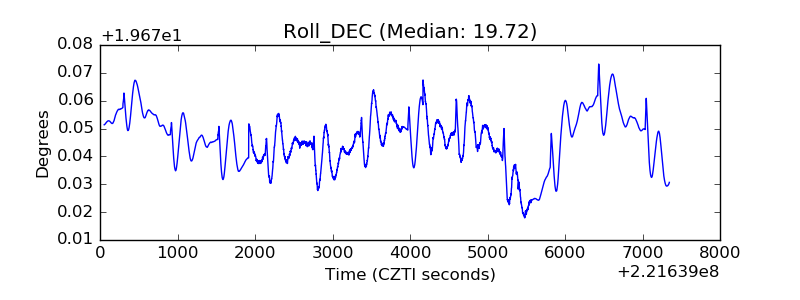

| _Roll_DEC |  |

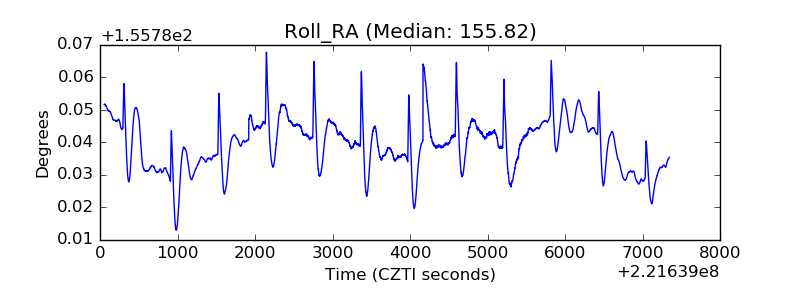

| _Roll_RA |  |
| Veto Counter |  |
