| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06960cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06960cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,494,080 | 82,584,000 |
| Size | 397.2 MB | 78.8 MB |
| Events in quadrant A | 2,893,128 | 522,461 |
| Events in quadrant B | 3,035,844 | 531,135 |
| Events in quadrant C | 2,845,997 | 524,938 |
| Events in quadrant D | 3,427,770 | 500,408 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12387 | 1 |
| B | 0 | 12668 | 0 |
| C | 0 | 12340 | 0 |
| D | 0 | 13799 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6039 | 78 | 1.291605% |
| B | 6039 | 81 | 1.341282% |
| C | 6039 | 56 | 0.927306% |
| D | 6039 | 73 | 1.208809% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 6040 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7229 | 6040 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7229 | 6040 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7229 | 6040 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7251 | 43.0 | 749 | 736 | 151.5 |
| A | 12 | 194 | 7017 | 41.45 | 749 | 736 | 151.5 |
| A | 13 | 14 | 4646 | 25.8 | 749 | 736 | 151.5 |
| B | 0 | 228 | 88638 | 617.34 | 745 | 728 | 142.4 |
| B | 12 | 111 | 13890 | 92.43 | 745 | 728 | 142.4 |
| B | 11 | 111 | 11163 | 73.28 | 745 | 728 | 142.4 |
| C | 8 | 128 | 12950 | 72.72 | 722 | 727 | 168.1 |
| C | 8 | 112 | 5915 | 30.86 | 722 | 727 | 168.1 |
| C | 13 | 61 | 5692 | 29.54 | 722 | 727 | 168.1 |
| D | 8 | 195 | 534020 | 2979.67 | 728 | 705 | 179.0 |
| D | 5 | 97 | 58277 | 321.66 | 728 | 705 | 179.0 |
| D | 2 | 136 | 31693 | 173.13 | 728 | 705 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

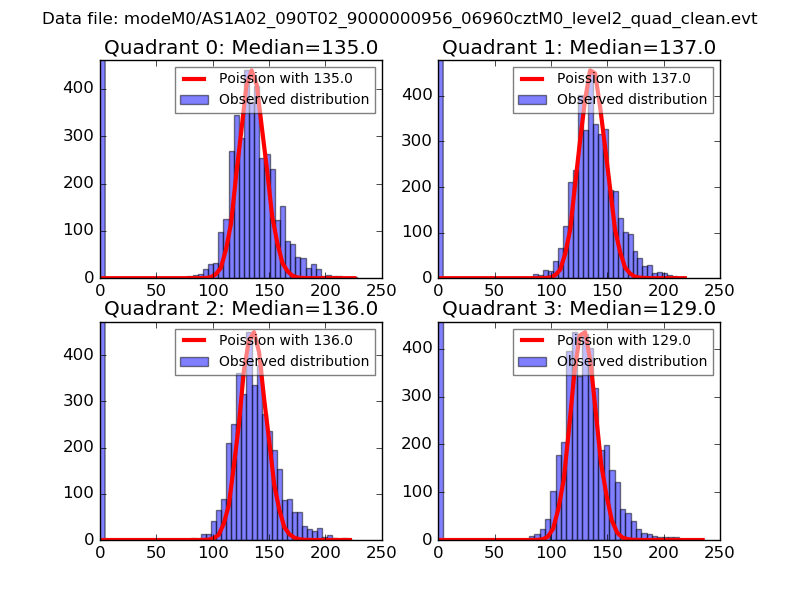

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

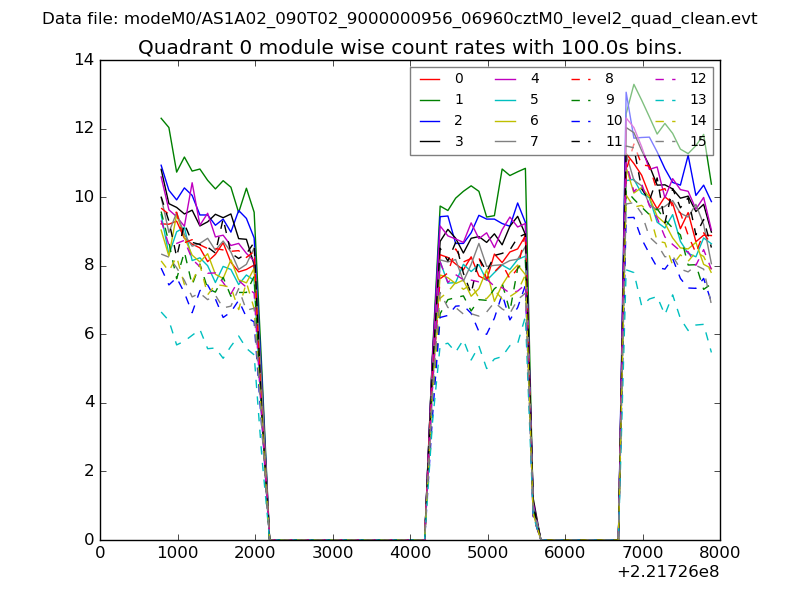

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
