| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06966cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06966cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,938,560 | 80,760,960 |
| Size | 494.9 MB | 77.0 MB |
| Events in quadrant A | 3,483,111 | 482,943 |
| Events in quadrant B | 3,728,201 | 488,523 |
| Events in quadrant C | 3,425,754 | 485,093 |
| Events in quadrant D | 4,569,190 | 466,415 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15532 | 3 |
| B | 0 | 16158 | 2 |
| C | 0 | 15462 | 2 |
| D | 0 | 18586 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7509 | 60 | 0.799041% |
| B | 7509 | 112 | 1.491543% |
| C | 7509 | 50 | 0.665868% |
| D | 7510 | 120 | 1.597870% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

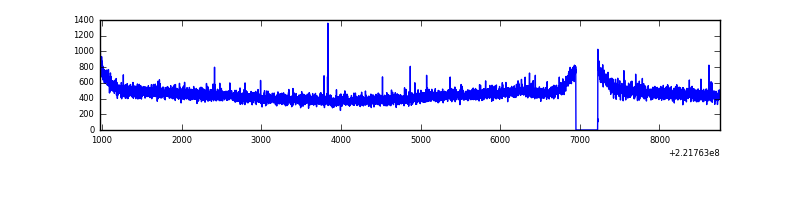

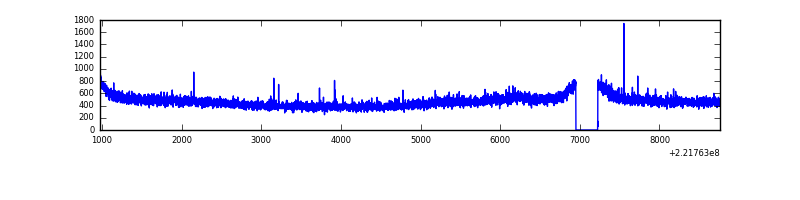

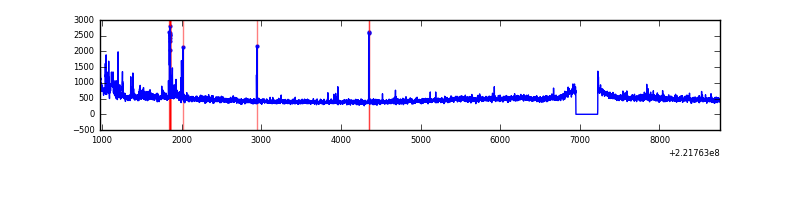

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7784 | 7510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7784 | 7510 | 12 | 12 | 0.15% | 0.16% |  |
| C | 7784 | 7510 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7785 | 7511 | 27 | 27 | 0.35% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 254 | 19279 | 100.03 | 896 | 874 | 184.0 |
| A | 13 | 14 | 9970 | 49.44 | 896 | 874 | 184.0 |
| A | 0 | 226 | 8798 | 43.07 | 896 | 874 | 184.0 |
| B | 0 | 228 | 114138 | 657.47 | 898 | 876 | 172.3 |
| B | 0 | 189 | 37443 | 212.27 | 898 | 876 | 172.3 |
| B | 0 | 214 | 20808 | 115.7 | 898 | 876 | 172.3 |
| C | 1 | 16 | 9905 | 44.56 | 872 | 876 | 202.6 |
| C | 13 | 61 | 6748 | 28.98 | 872 | 876 | 202.6 |
| C | 12 | 4 | 5497 | 22.81 | 872 | 876 | 202.6 |
| D | 8 | 195 | 568853 | 2647.29 | 872 | 845 | 214.6 |
| D | 1 | 20 | 324154 | 1506.83 | 872 | 845 | 214.6 |
| D | 2 | 136 | 159835 | 741.0 | 872 | 845 | 214.6 |

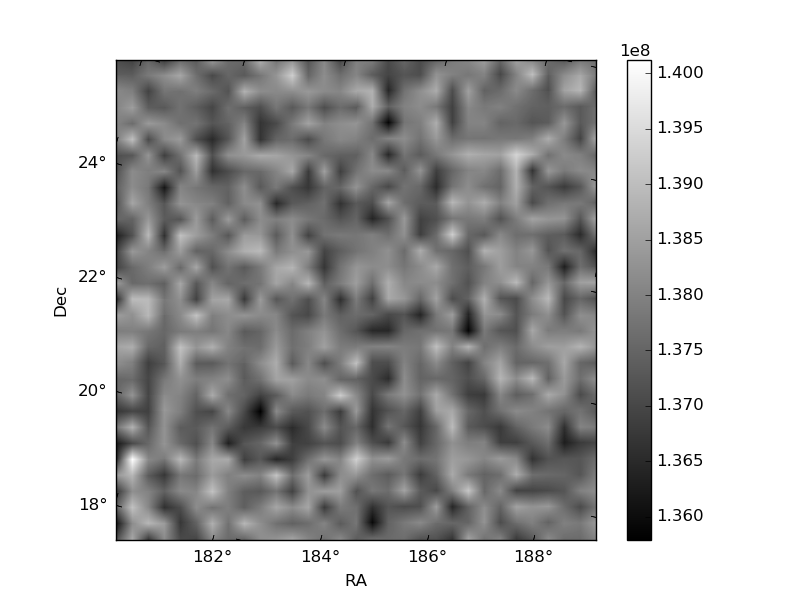

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

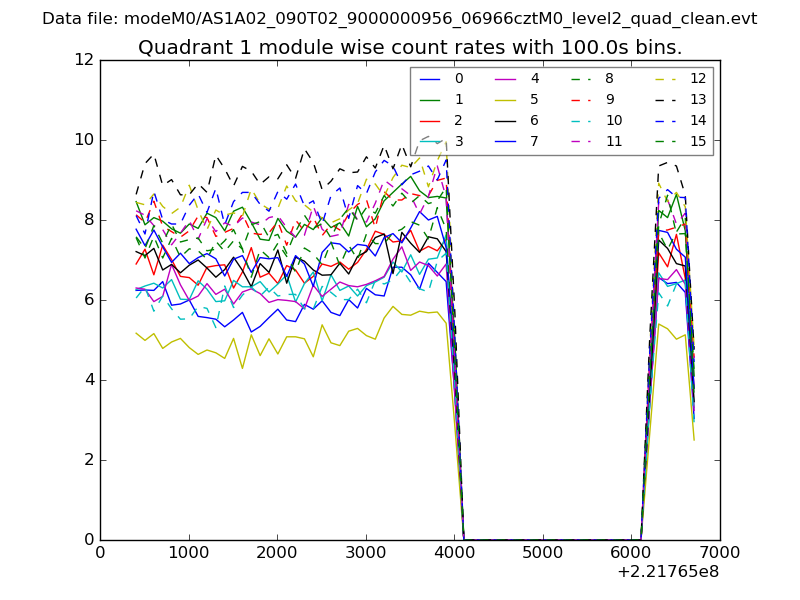

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

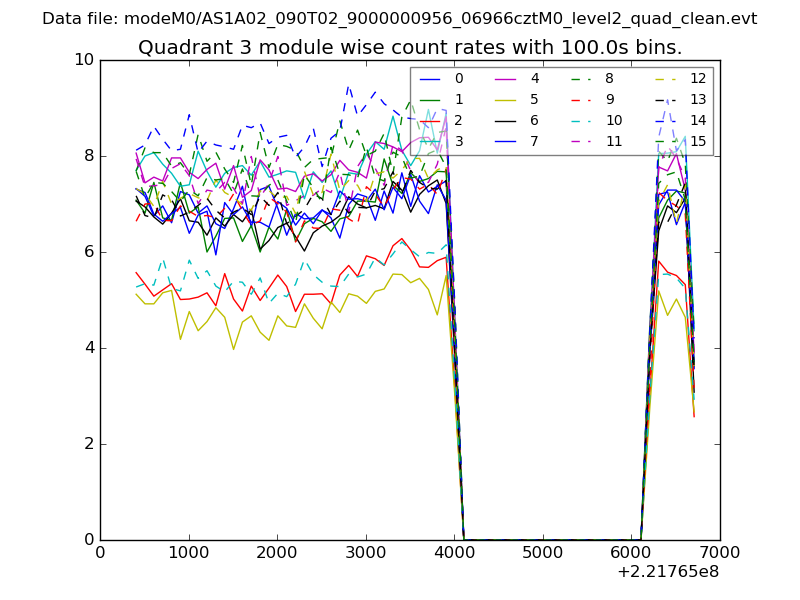

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

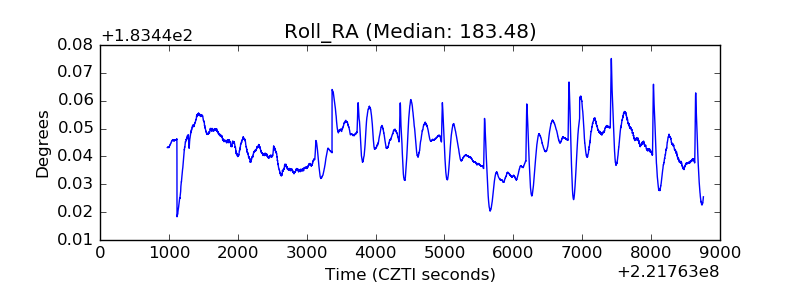

| _Roll_RA |  |

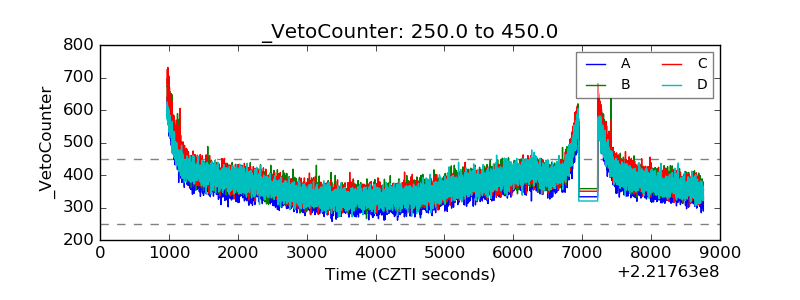

| Veto Counter |  |
