| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06971cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06971cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,372,982,400 | 244,356,480 |
| Size | 1.3 GB | 233.0 MB |
| Events in quadrant A | 9,748,250 | 1,492,051 |
| Events in quadrant B | 10,727,713 | 1,510,868 |
| Events in quadrant C | 9,387,463 | 1,500,292 |
| Events in quadrant D | 10,290,809 | 1,445,272 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43420 | 5 |
| B | 0 | 46884 | 4 |
| C | 0 | 43028 | 4 |
| D | 0 | 44983 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 430 | 0 |
| B | 0 | 430 | 0 |
| C | 0 | 430 | 0 |
| D | 0 | 430 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21093 | 135 | 0.640023% |
| B | 21093 | 412 | 1.953255% |
| C | 21093 | 101 | 0.478832% |
| D | 21093 | 90 | 0.426682% |

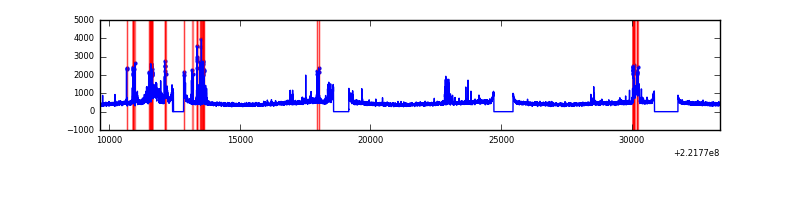

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23723 | 21098 | 0 | 0 | 0.00% | 0.00% |  |
| B | 23723 | 21098 | 100 | 100 | 0.42% | 0.47% |  |
| C | 23723 | 21098 | 0 | 0 | 0.00% | 0.00% |  |
| D | 23723 | 21098 | 18 | 18 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 127108 | 249.44 | 2458 | 2405 | 499.9 |
| A | 0 | 23 | 92360 | 179.93 | 2458 | 2405 | 499.9 |
| A | 8 | 15 | 33427 | 62.05 | 2458 | 2405 | 499.9 |
| B | 0 | 228 | 1086860 | 2290.69 | 2459 | 2403 | 473.4 |
| B | 12 | 111 | 48330 | 97.01 | 2459 | 2403 | 473.4 |
| B | 11 | 111 | 38363 | 75.96 | 2459 | 2403 | 473.4 |
| C | 9 | 68 | 23721 | 38.48 | 2387 | 2397 | 554.2 |
| C | 13 | 61 | 18726 | 29.47 | 2387 | 2397 | 554.2 |
| C | 8 | 128 | 16908 | 26.19 | 2387 | 2397 | 554.2 |
| D | 8 | 195 | 1037626 | 1767.4 | 2387 | 2313 | 585.8 |
| D | 2 | 14 | 88877 | 147.77 | 2387 | 2313 | 585.8 |
| D | 12 | 233 | 45304 | 73.39 | 2387 | 2313 | 585.8 |

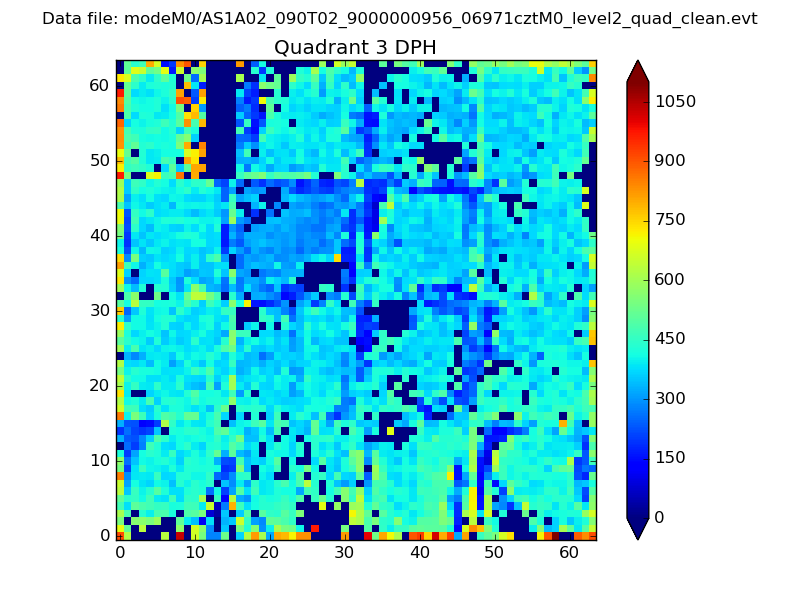

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

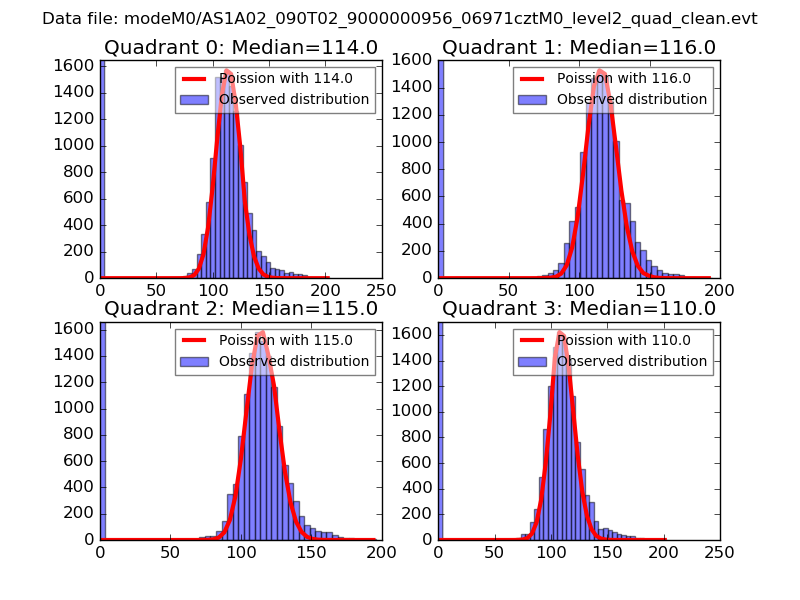

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

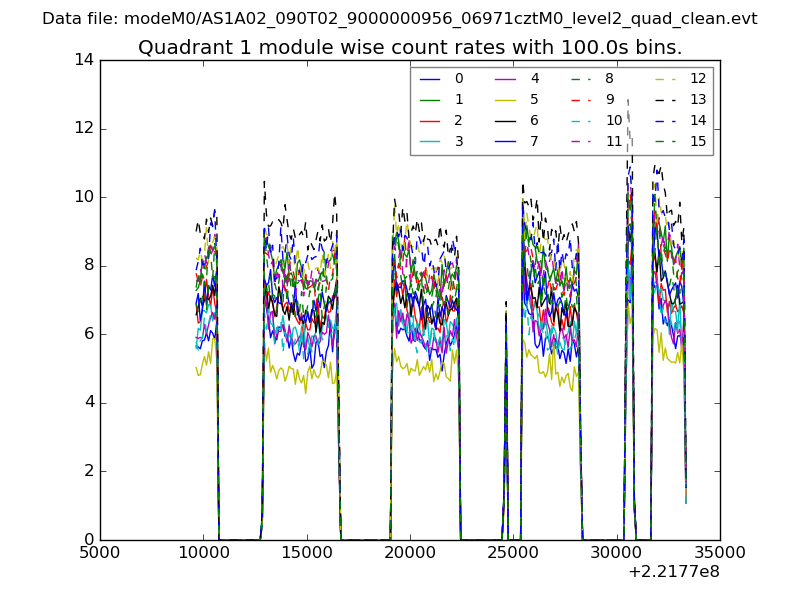

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

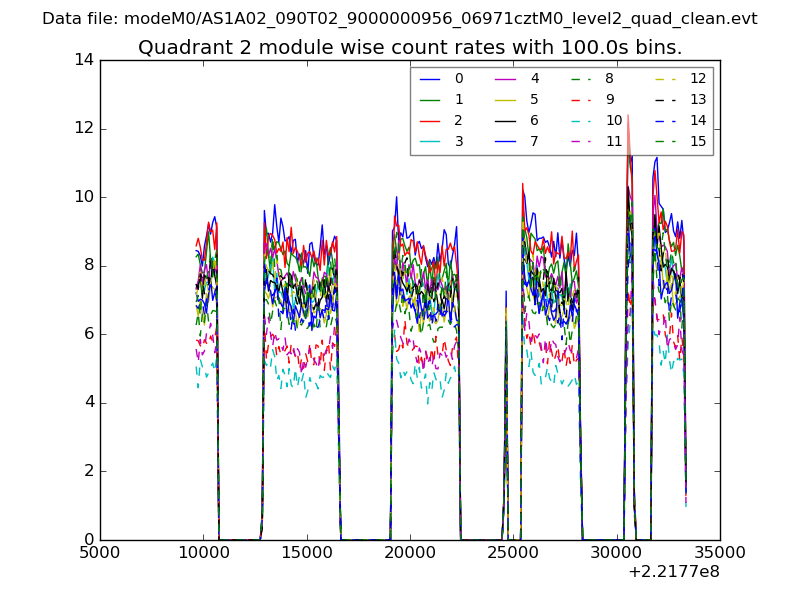

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

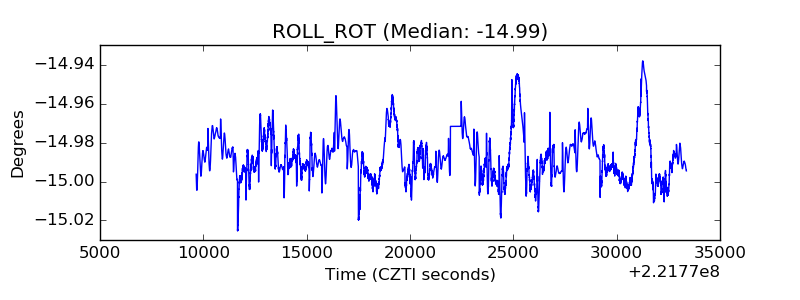

| _ROLL_ROT |  |
| _Roll_DEC |  |

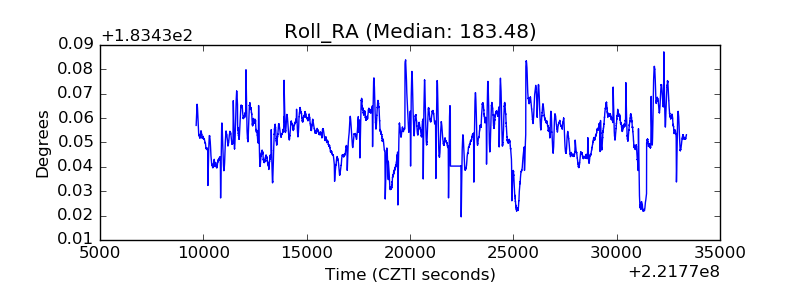

| _Roll_RA |  |

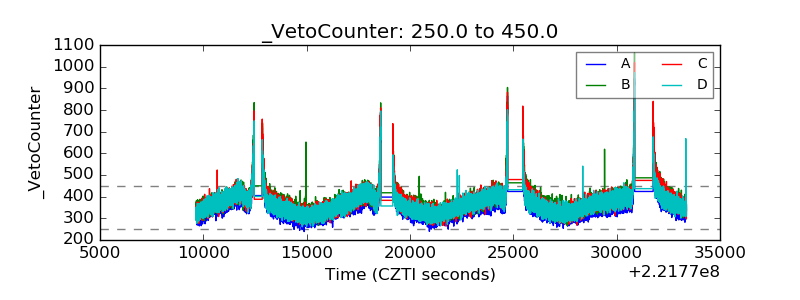

| Veto Counter |  |
