| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06975cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06975cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,872,960 | 75,211,200 |
| Size | 382.3 MB | 71.7 MB |
| Events in quadrant A | 2,848,010 | 469,887 |
| Events in quadrant B | 2,866,635 | 479,965 |
| Events in quadrant C | 2,744,703 | 472,265 |
| Events in quadrant D | 3,285,640 | 448,827 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11967 | 2 |
| B | 0 | 11986 | 1 |
| C | 0 | 11838 | 1 |
| D | 0 | 13244 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5810 | 57 | 0.981067% |
| B | 5810 | 51 | 0.877797% |
| C | 5810 | 19 | 0.327022% |
| D | 5810 | 78 | 1.342513% |

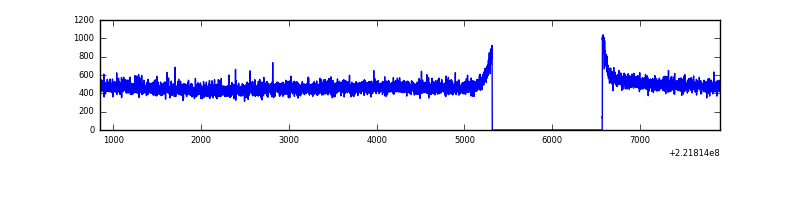

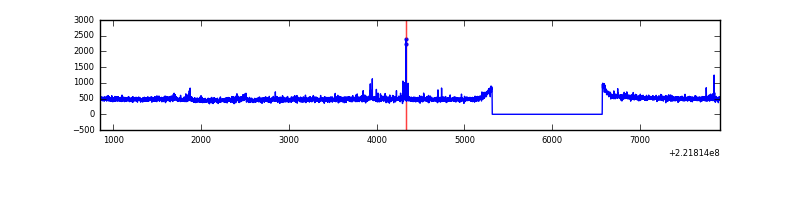

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7065 | 5811 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7065 | 5811 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7065 | 5811 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7065 | 5811 | 22 | 22 | 0.31% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 27660 | 181.85 | 730 | 716 | 148.2 |
| A | 0 | 23 | 10524 | 66.2 | 730 | 716 | 148.2 |
| A | 0 | 226 | 7664 | 46.89 | 730 | 716 | 148.2 |
| B | 4 | 48 | 22213 | 155.74 | 725 | 709 | 138.1 |
| B | 10 | 252 | 19483 | 135.97 | 725 | 709 | 138.1 |
| B | 12 | 111 | 13551 | 93.01 | 725 | 709 | 138.1 |
| C | 1 | 16 | 7119 | 39.44 | 701 | 704 | 162.7 |
| C | 13 | 61 | 5529 | 29.66 | 701 | 704 | 162.7 |
| C | 12 | 4 | 2062 | 8.35 | 701 | 704 | 162.7 |
| D | 8 | 195 | 326698 | 1886.29 | 707 | 684 | 172.8 |
| D | 2 | 136 | 109639 | 630.4 | 707 | 684 | 172.8 |
| D | 2 | 14 | 85738 | 492.12 | 707 | 684 | 172.8 |

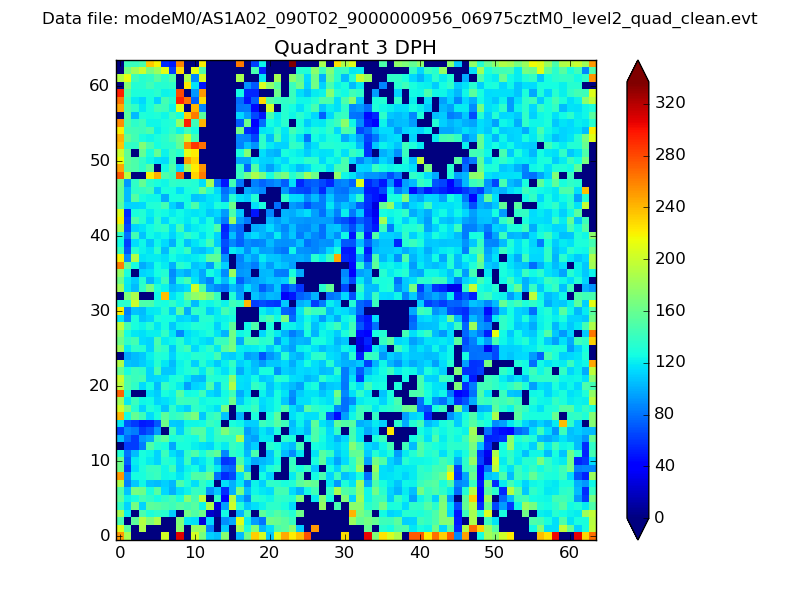

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

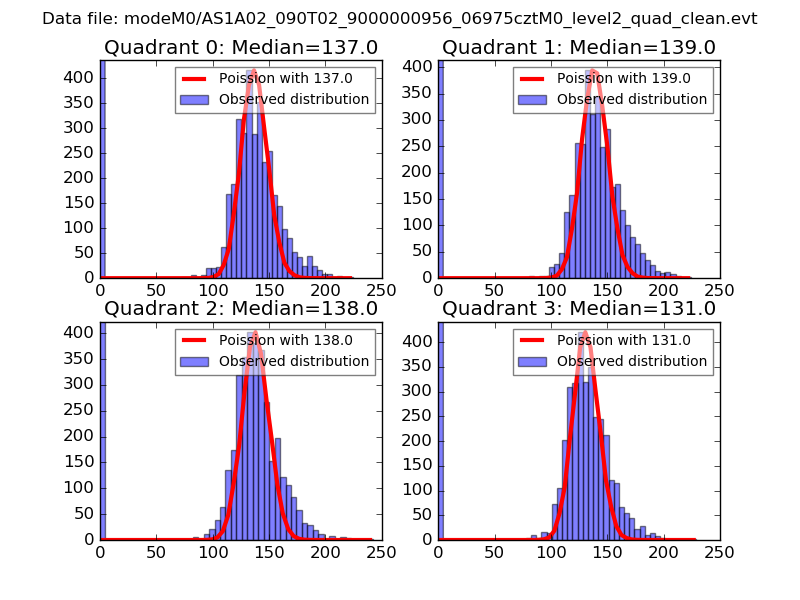

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

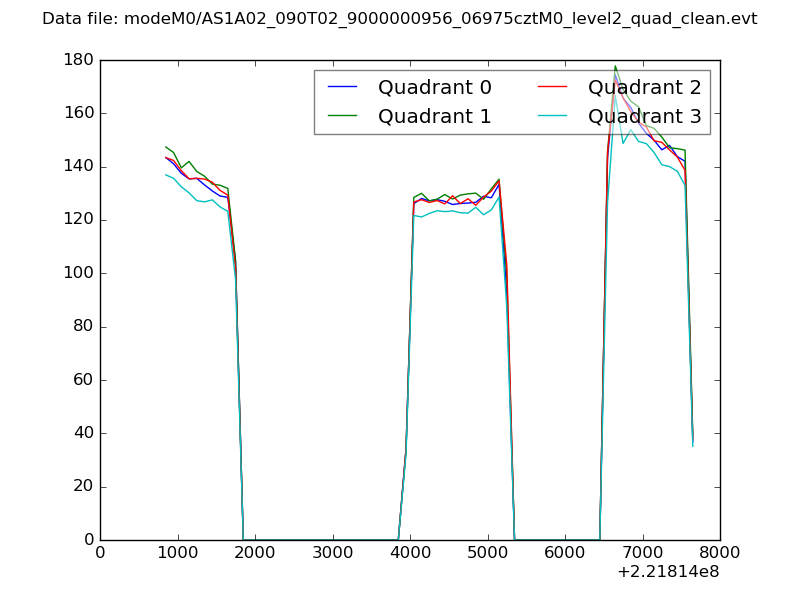

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

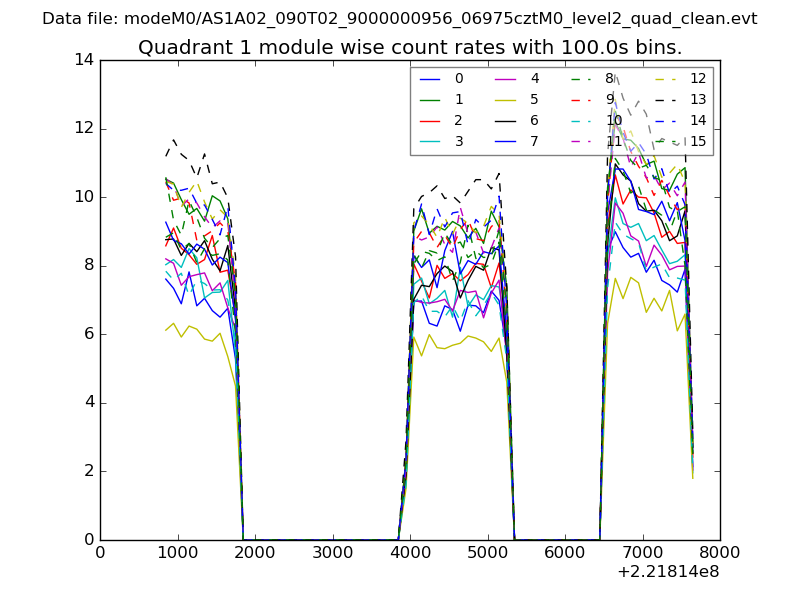

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

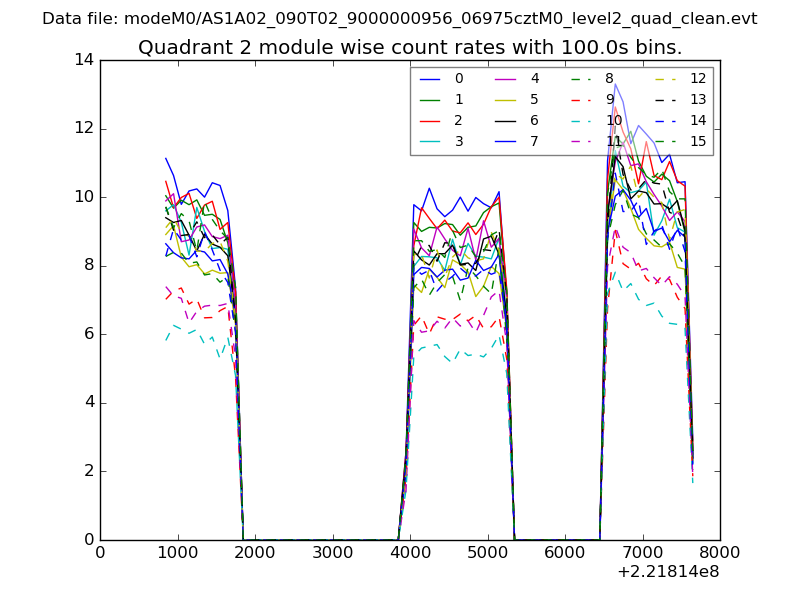

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

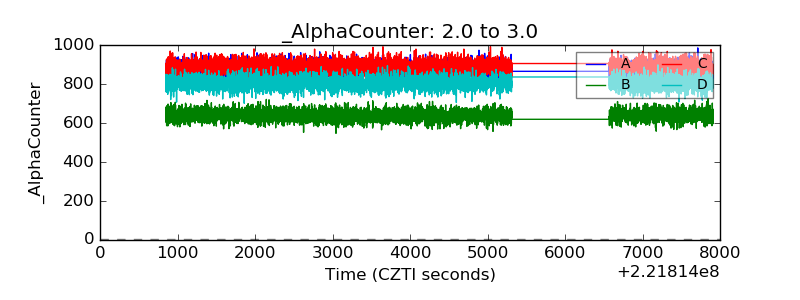

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
