| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06978cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06978cztM0_level2_quad_clean.evt |
| Size (bytes) | 779,592,960 | 113,008,320 |
| Size | 743.5 MB | 107.8 MB |
| Events in quadrant A | 5,440,685 | 662,078 |
| Events in quadrant B | 6,453,006 | 667,912 |
| Events in quadrant C | 5,345,149 | 670,086 |
| Events in quadrant D | 5,612,152 | 646,182 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23230 | 3 |
| B | 0 | 26254 | 2 |
| C | 0 | 23067 | 2 |
| D | 0 | 23560 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 230 | 0 |
| B | 0 | 230 | 0 |
| C | 0 | 230 | 0 |
| D | 0 | 230 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11201 | 162 | 1.446299% |
| B | 11201 | 209 | 1.865905% |
| C | 11201 | 110 | 0.982055% |
| D | 11201 | 135 | 1.205250% |

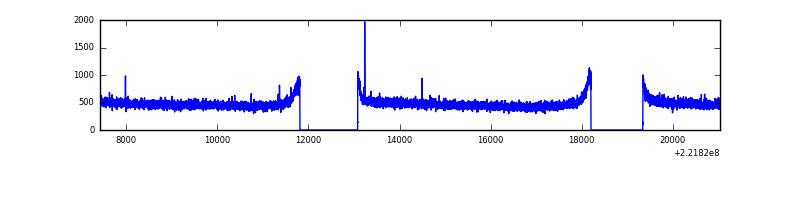

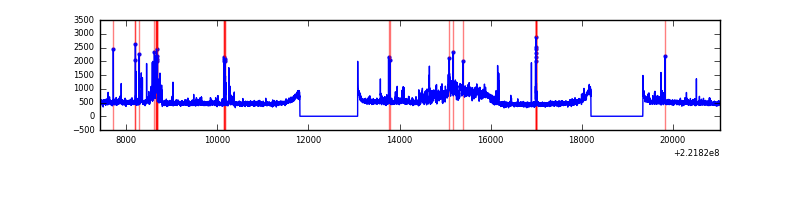

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13611 | 11203 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13611 | 11203 | 29 | 29 | 0.21% | 0.26% |  |
| C | 13611 | 11203 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13611 | 11203 | 7 | 7 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 25274 | 84.67 | 1395 | 1366 | 282.4 |
| A | 4 | 2 | 18799 | 61.74 | 1395 | 1366 | 282.4 |
| A | 0 | 226 | 15278 | 49.27 | 1395 | 1366 | 282.4 |
| B | 0 | 228 | 928431 | 3512.02 | 1394 | 1364 | 264.0 |
| B | 0 | 214 | 44450 | 163.22 | 1394 | 1364 | 264.0 |
| B | 0 | 219 | 34205 | 124.41 | 1394 | 1364 | 264.0 |
| C | 1 | 16 | 31201 | 95.01 | 1361 | 1365 | 314.0 |
| C | 13 | 61 | 10963 | 30.56 | 1361 | 1365 | 314.0 |
| C | 1 | 0 | 5475 | 13.09 | 1361 | 1365 | 314.0 |
| D | 8 | 195 | 292788 | 865.8 | 1369 | 1325 | 336.6 |
| D | 5 | 239 | 39552 | 113.55 | 1369 | 1325 | 336.6 |
| D | 12 | 233 | 37078 | 106.2 | 1369 | 1325 | 336.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

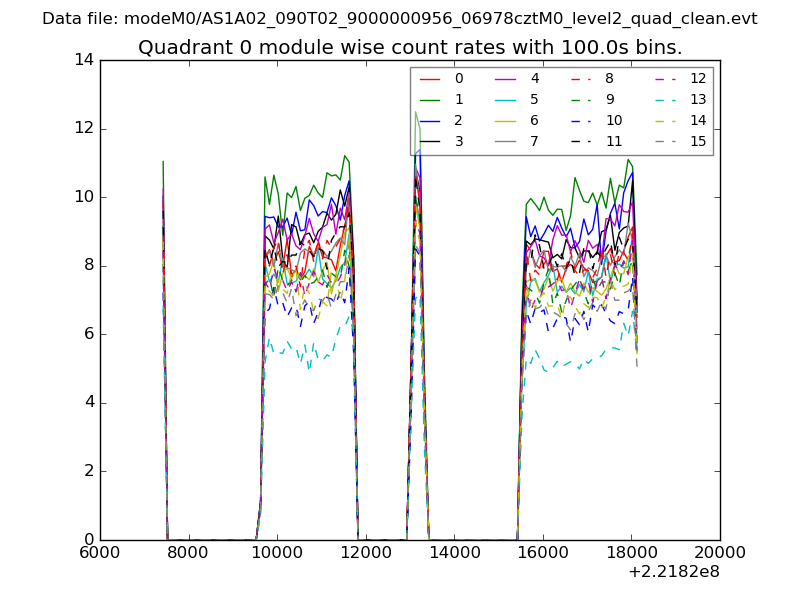

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

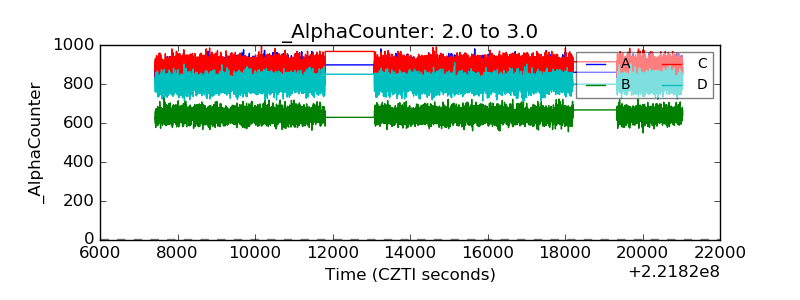

| Alpha Counter |  |

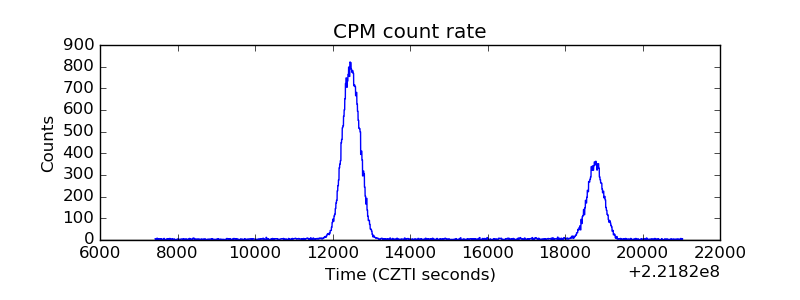

| _CPM_Rate |  |

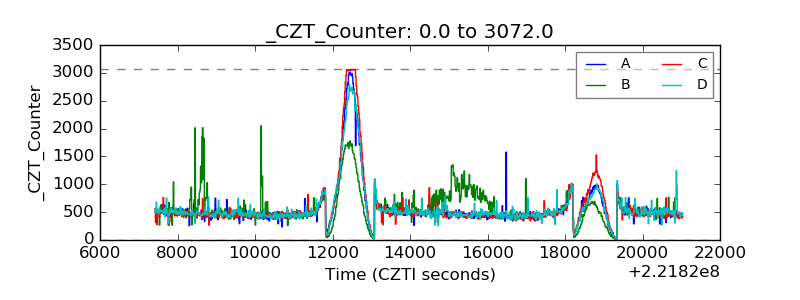

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

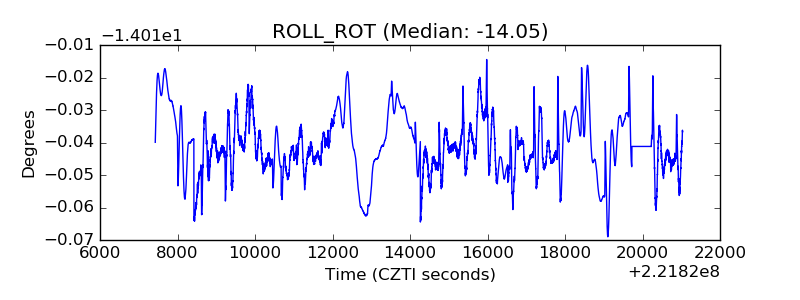

| _ROLL_ROT |  |

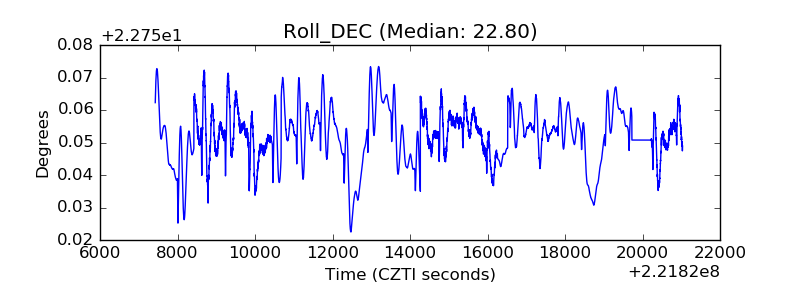

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
