| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T02_9000000956_06984cztM0_level2.evt | modeM0/AS1A02_090T02_9000000956_06984cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,638,400 | 99,555,840 |
| Size | 529.9 MB | 94.9 MB |
| Events in quadrant A | 3,902,524 | 604,322 |
| Events in quadrant B | 4,058,110 | 613,487 |
| Events in quadrant C | 3,868,316 | 610,030 |
| Events in quadrant D | 4,412,033 | 587,226 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17659 | 2 |
| B | 0 | 18022 | 1 |
| C | 0 | 17649 | 1 |
| D | 0 | 18807 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8642 | 58 | 0.671141% |
| B | 8642 | 81 | 0.937283% |
| C | 8642 | 36 | 0.416570% |
| D | 8642 | 60 | 0.694284% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8957 | 8643 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8957 | 8643 | 2 | 2 | 0.02% | 0.02% |  |
| C | 8957 | 8643 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8957 | 8643 | 11 | 11 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9818 | 42.52 | 1009 | 986 | 207.7 |
| A | 12 | 194 | 9301 | 40.03 | 1009 | 986 | 207.7 |
| A | 8 | 15 | 7795 | 32.78 | 1009 | 986 | 207.7 |
| B | 0 | 228 | 35345 | 175.64 | 1012 | 984 | 195.6 |
| B | 0 | 214 | 26031 | 128.03 | 1012 | 984 | 195.6 |
| B | 4 | 80 | 19888 | 96.63 | 1012 | 984 | 195.6 |
| C | 7 | 247 | 34412 | 147.32 | 978 | 983 | 226.9 |
| C | 13 | 61 | 7756 | 29.85 | 978 | 983 | 226.9 |
| C | 8 | 128 | 7105 | 26.98 | 978 | 983 | 226.9 |
| D | 8 | 195 | 463573 | 1919.19 | 978 | 947 | 241.1 |
| D | 14 | 35 | 77493 | 317.55 | 978 | 947 | 241.1 |
| D | 2 | 136 | 58564 | 239.02 | 978 | 947 | 241.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

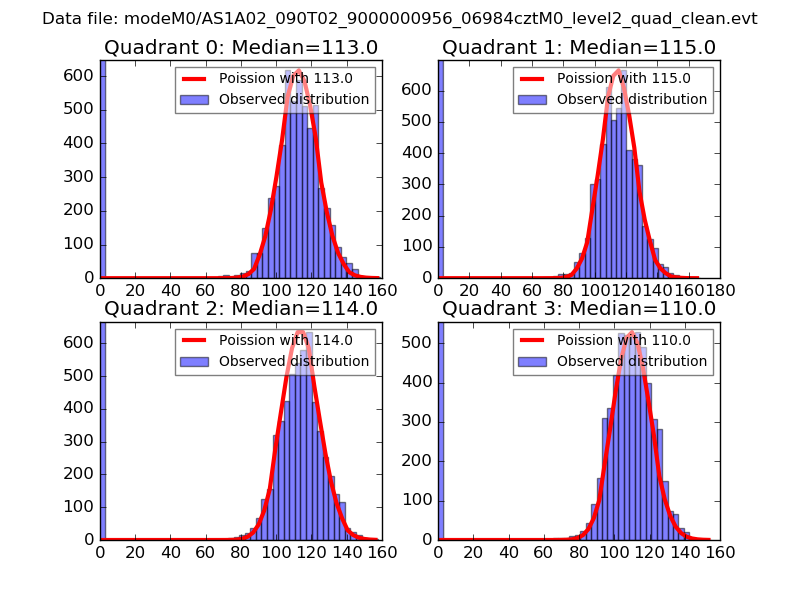

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

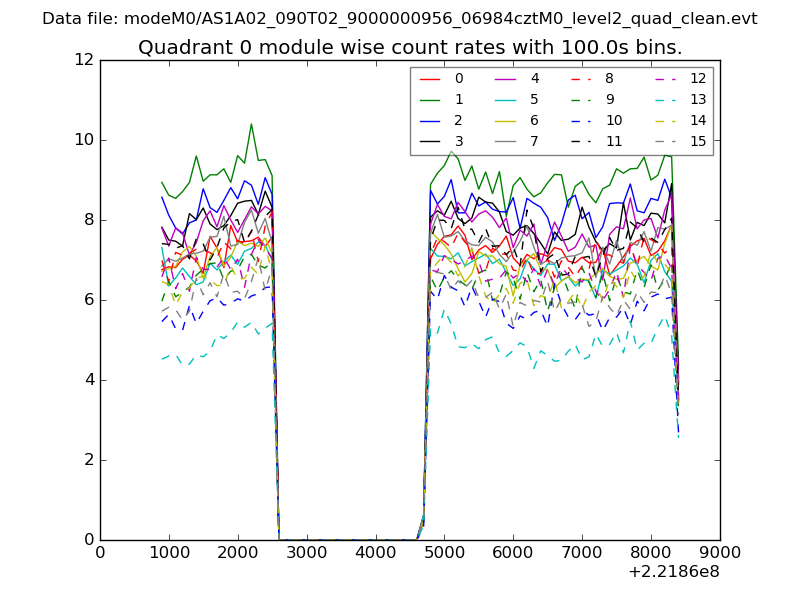

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

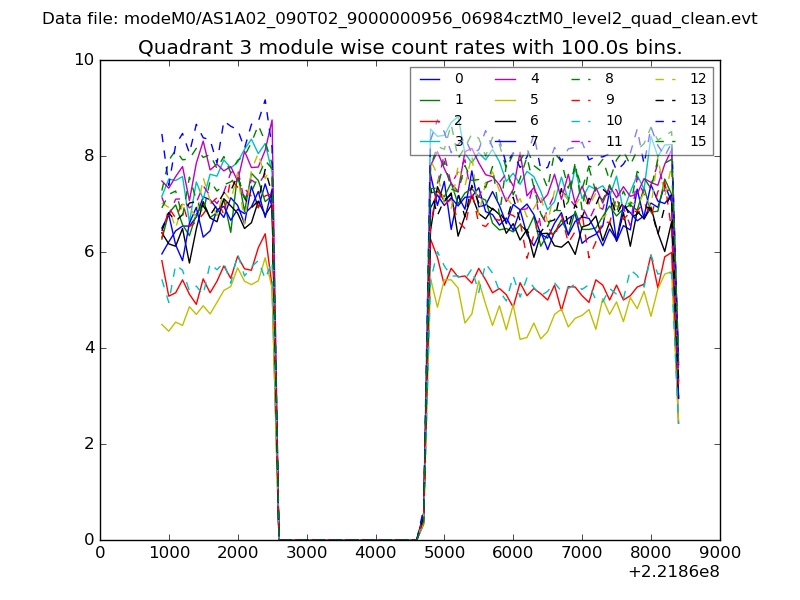

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

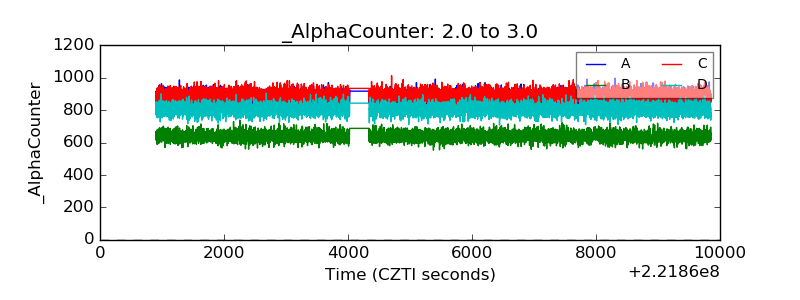

| Alpha Counter |  |
| _CPM_Rate |  |

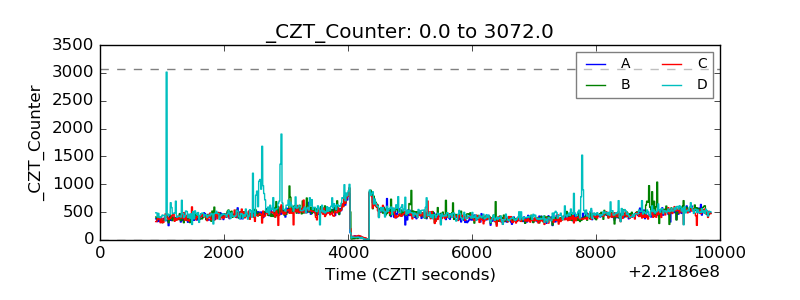

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

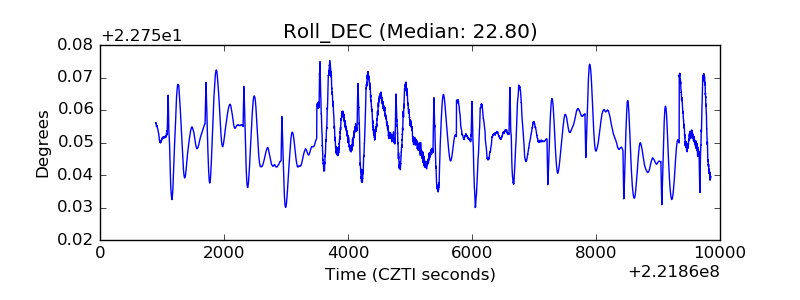

| _Roll_DEC |  |
| _Roll_RA |  |

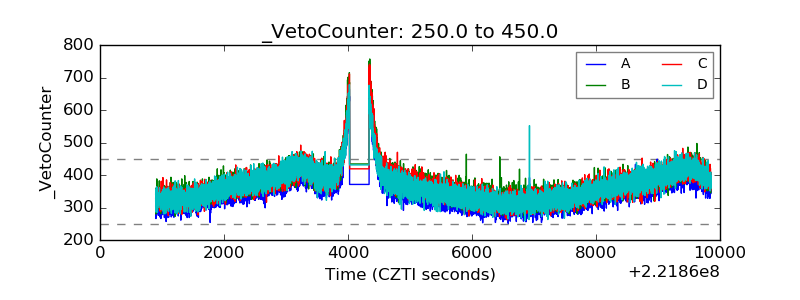

| Veto Counter |  |
