| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_151T01_9000000960_06991cztM0_level2.evt | modeM0/AS1T01_151T01_9000000960_06991cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,305,280 | 95,094,720 |
| Size | 429.4 MB | 90.7 MB |
| Events in quadrant A | 3,267,185 | 621,560 |
| Events in quadrant B | 3,521,703 | 625,887 |
| Events in quadrant C | 3,051,744 | 602,068 |
| Events in quadrant D | 3,366,760 | 588,782 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13505 | 3 |
| B | 0 | 14351 | 2 |
| C | 0 | 13143 | 2 |
| D | 0 | 13769 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6330 | 130 | 2.053712% |
| B | 6330 | 270 | 4.265403% |
| C | 6330 | 84 | 1.327014% |
| D | 6330 | 91 | 1.437599% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

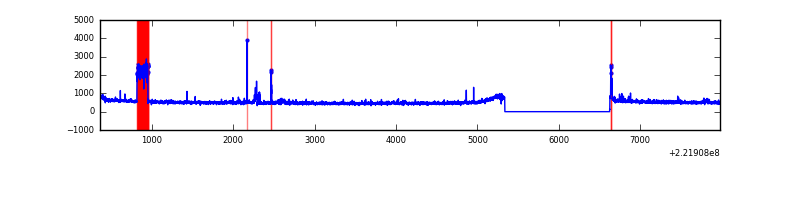

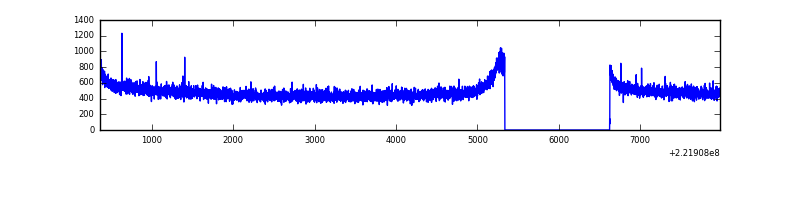

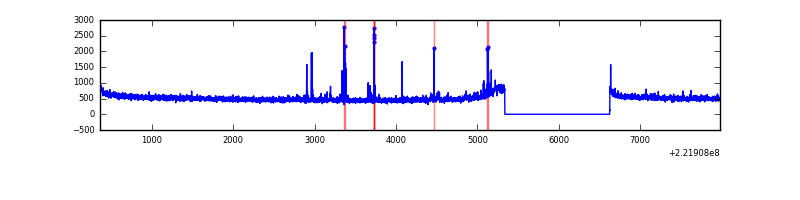

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6331 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7620 | 6331 | 108 | 108 | 1.42% | 1.71% |  |
| C | 7620 | 6331 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7620 | 6331 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 92609 | 555.76 | 823 | 806 | 165.2 |
| A | 0 | 226 | 7966 | 43.35 | 823 | 806 | 165.2 |
| A | 12 | 194 | 7618 | 41.24 | 823 | 806 | 165.2 |
| B | 4 | 81 | 248095 | 1599.47 | 814 | 797 | 154.6 |
| B | 0 | 219 | 38344 | 242.85 | 814 | 797 | 154.6 |
| B | 0 | 214 | 34048 | 215.06 | 814 | 797 | 154.6 |
| C | 13 | 61 | 6264 | 30.57 | 781 | 784 | 179.2 |
| C | 8 | 222 | 2846 | 11.5 | 781 | 784 | 179.2 |
| C | 12 | 4 | 2478 | 9.45 | 781 | 784 | 179.2 |
| D | 8 | 195 | 256532 | 1315.9 | 794 | 770 | 194.4 |
| D | 2 | 14 | 23105 | 114.91 | 794 | 770 | 194.4 |
| D | 14 | 34 | 21976 | 109.11 | 794 | 770 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

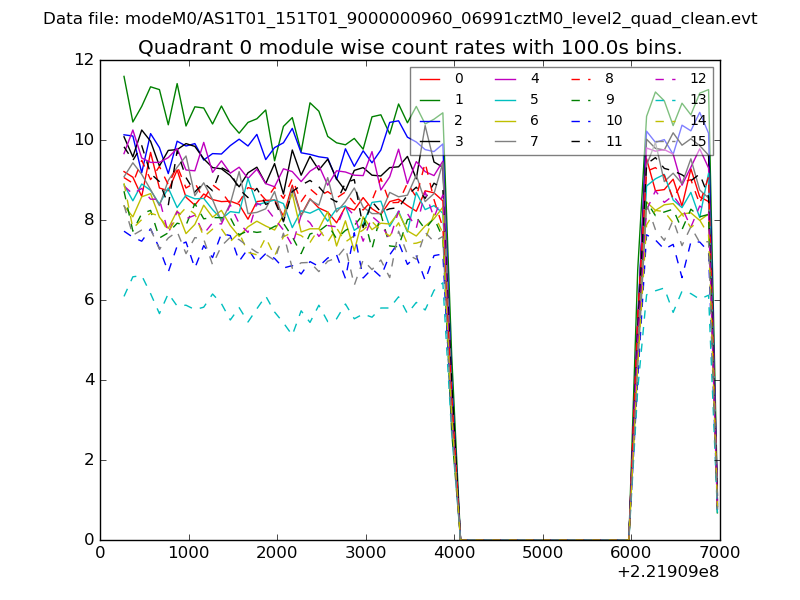

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

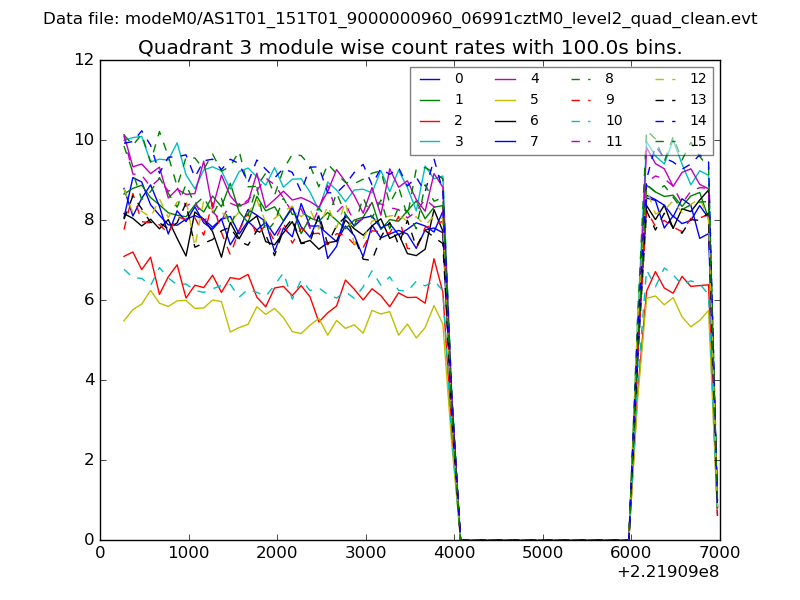

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

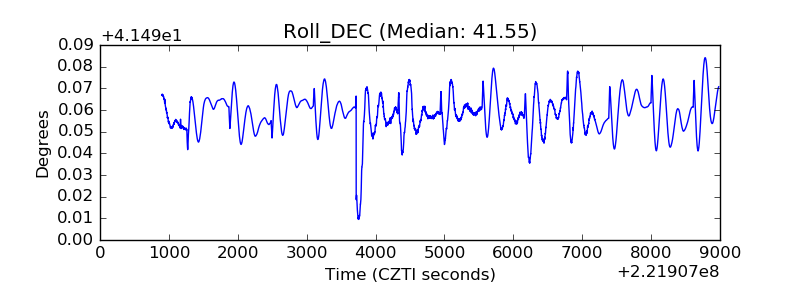

| _Roll_DEC |  |

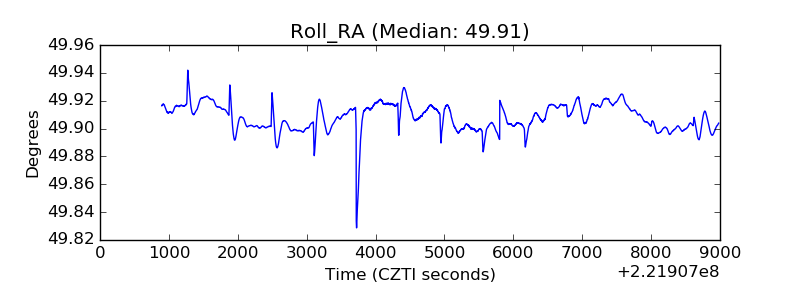

| _Roll_RA |  |

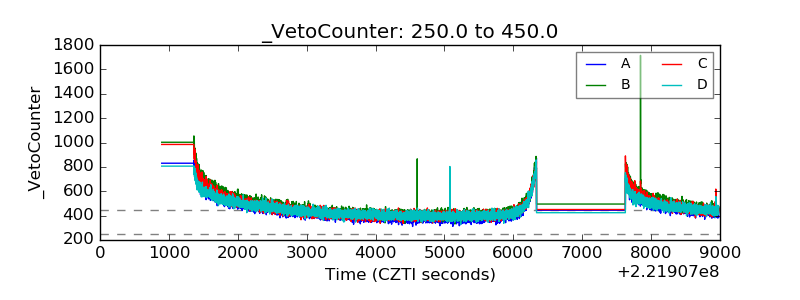

| Veto Counter |  |
