| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_151T01_9000000960_07003cztM0_level2.evt | modeM0/AS1T01_151T01_9000000960_07003cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,001,920 | 64,143,360 |
| Size | 417.7 MB | 61.2 MB |
| Events in quadrant A | 3,120,695 | 378,239 |
| Events in quadrant B | 3,235,946 | 381,082 |
| Events in quadrant C | 3,021,913 | 372,498 |
| Events in quadrant D | 3,446,246 | 358,710 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13450 | 3 |
| B | 0 | 13631 | 2 |
| C | 0 | 13280 | 2 |
| D | 0 | 14526 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6470 | 45 | 0.695518% |
| B | 6470 | 59 | 0.911901% |
| C | 6470 | 25 | 0.386399% |
| D | 6470 | 139 | 2.148377% |

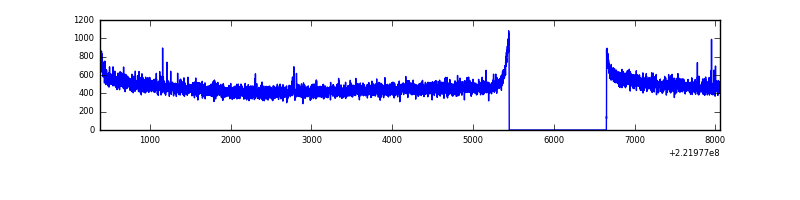

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 6471 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7675 | 6471 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7675 | 6471 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7675 | 6471 | 112 | 112 | 1.46% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 31020 | 186.66 | 801 | 782 | 162.0 |
| A | 0 | 226 | 7789 | 43.26 | 801 | 782 | 162.0 |
| A | 12 | 194 | 7341 | 40.49 | 801 | 782 | 162.0 |
| B | 0 | 214 | 45882 | 293.11 | 807 | 791 | 153.8 |
| B | 4 | 173 | 17478 | 108.47 | 807 | 791 | 153.8 |
| B | 12 | 111 | 15307 | 94.36 | 807 | 791 | 153.8 |
| C | 13 | 61 | 6048 | 29.49 | 772 | 776 | 178.8 |
| C | 10 | 22 | 5234 | 24.93 | 772 | 776 | 178.8 |
| C | 1 | 16 | 3822 | 17.04 | 772 | 776 | 178.8 |
| D | 12 | 233 | 254228 | 1349.06 | 766 | 744 | 187.9 |
| D | 8 | 195 | 128641 | 680.67 | 766 | 744 | 187.9 |
| D | 14 | 34 | 127781 | 676.1 | 766 | 744 | 187.9 |

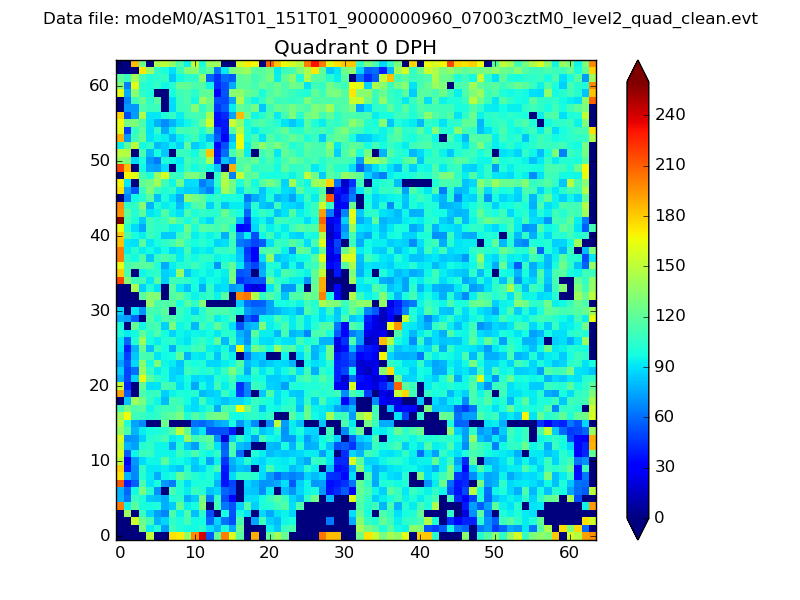

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

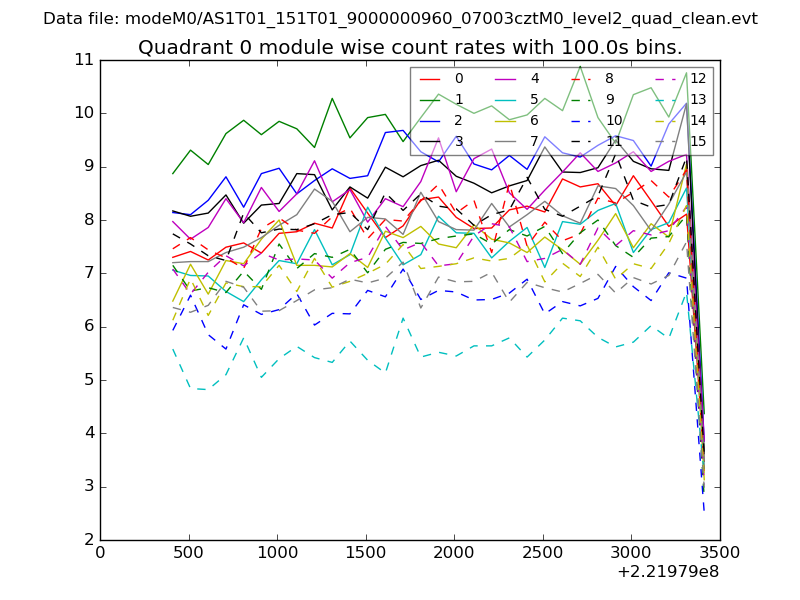

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

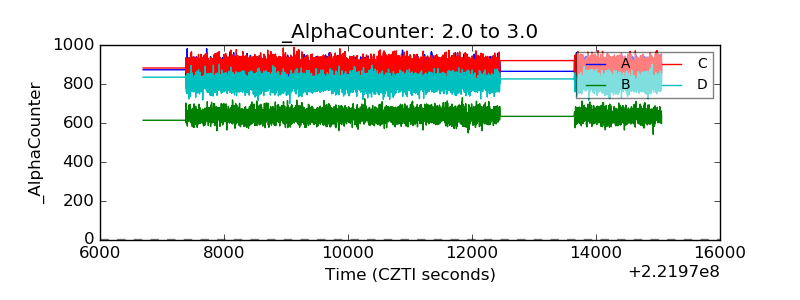

| Alpha Counter |  |
| _CPM_Rate |  |

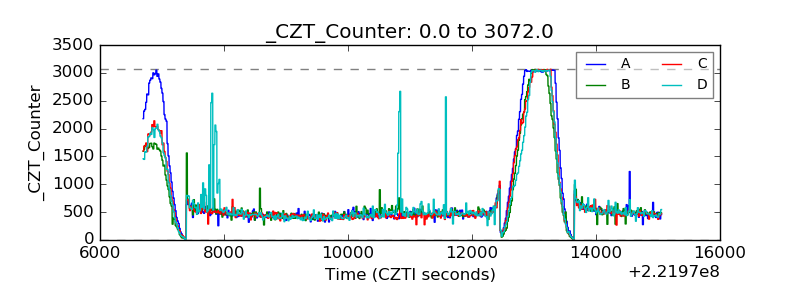

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

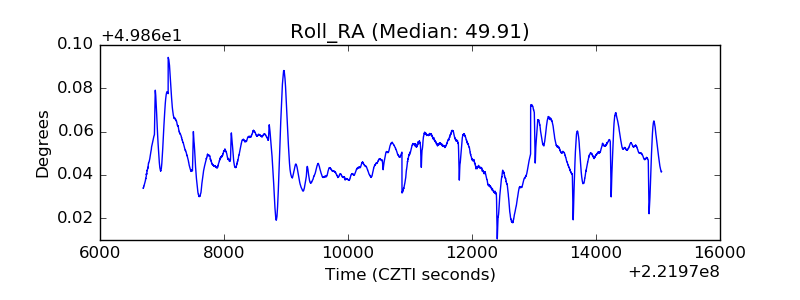

| _Roll_RA |  |
| Veto Counter |  |
