| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_026T01_9000000962_07022cztM0_level2.evt | modeM0/AS1G06_026T01_9000000962_07022cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,079,040 | 75,404,160 |
| Size | 453.1 MB | 71.9 MB |
| Events in quadrant A | 3,264,707 | 452,553 |
| Events in quadrant B | 3,504,076 | 454,176 |
| Events in quadrant C | 3,224,274 | 448,481 |
| Events in quadrant D | 3,914,350 | 435,830 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14524 | 3 |
| B | 0 | 14959 | 2 |
| C | 0 | 14543 | 2 |
| D | 0 | 16361 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7065 | 131 | 1.854211% |
| B | 7065 | 140 | 1.981599% |
| C | 7065 | 109 | 1.542817% |
| D | 7065 | 222 | 3.142251% |

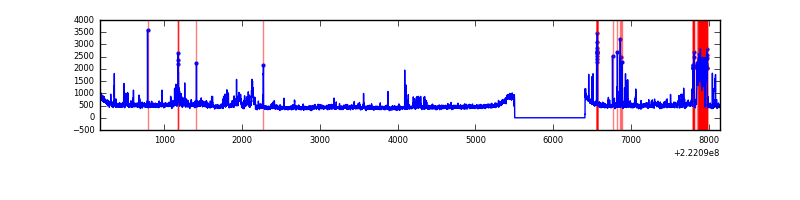

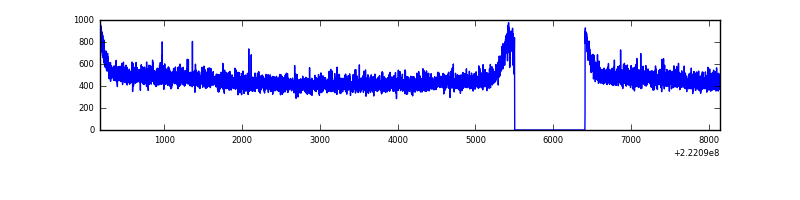

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7970 | 7066 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7970 | 7066 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7970 | 7066 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7970 | 7066 | 97 | 97 | 1.22% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8133 | 42.82 | 846 | 827 | 170.6 |
| A | 12 | 194 | 7703 | 40.3 | 846 | 827 | 170.6 |
| A | 13 | 14 | 3968 | 18.41 | 846 | 827 | 170.6 |
| B | 0 | 214 | 112288 | 695.05 | 848 | 826 | 160.4 |
| B | 4 | 239 | 36381 | 221.71 | 848 | 826 | 160.4 |
| B | 4 | 173 | 28929 | 175.24 | 848 | 826 | 160.4 |
| C | 12 | 4 | 7882 | 37.02 | 824 | 827 | 190.6 |
| C | 13 | 61 | 6433 | 29.42 | 824 | 827 | 190.6 |
| C | 1 | 16 | 2632 | 9.47 | 824 | 827 | 190.6 |
| D | 1 | 18 | 288657 | 1435.08 | 826 | 799 | 200.6 |
| D | 8 | 195 | 150413 | 745.88 | 826 | 799 | 200.6 |
| D | 12 | 221 | 119233 | 590.44 | 826 | 799 | 200.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

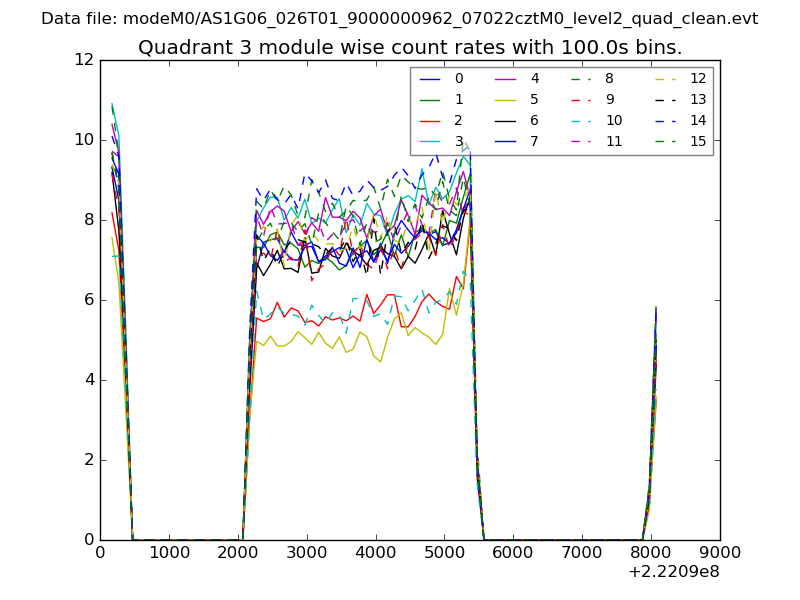

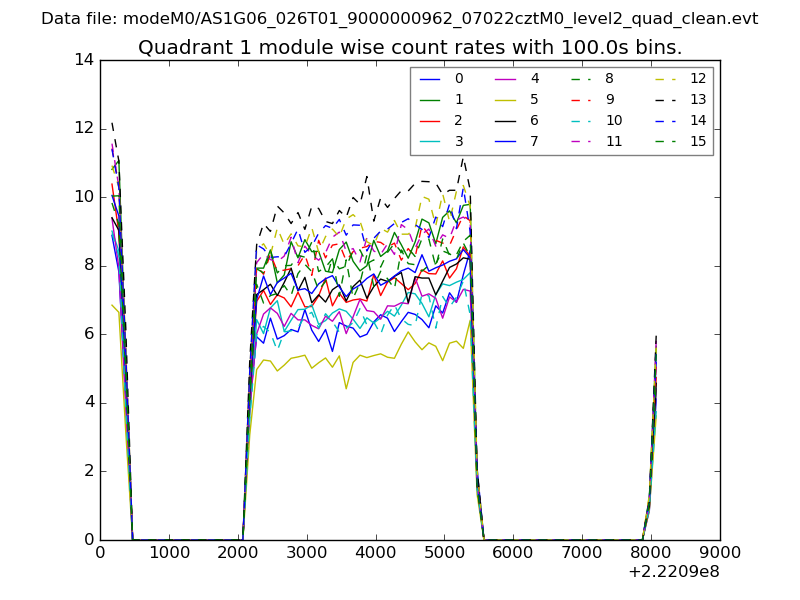

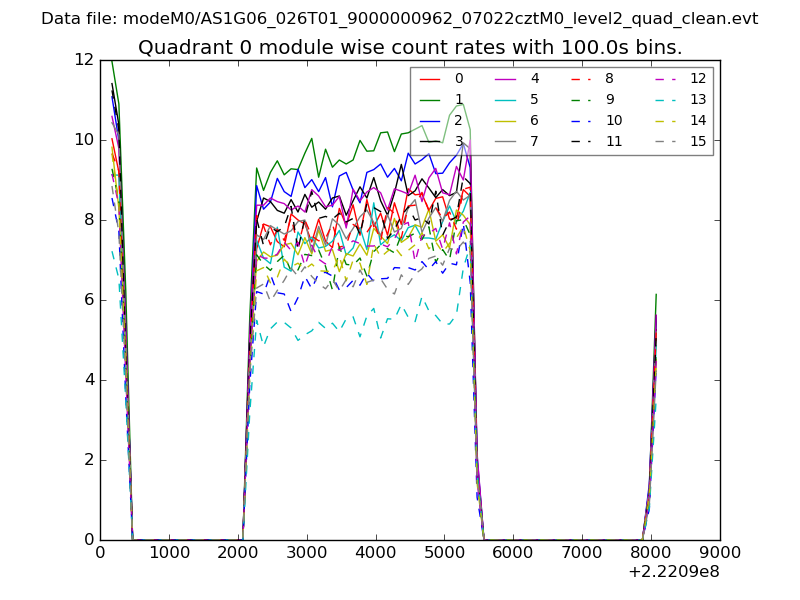

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

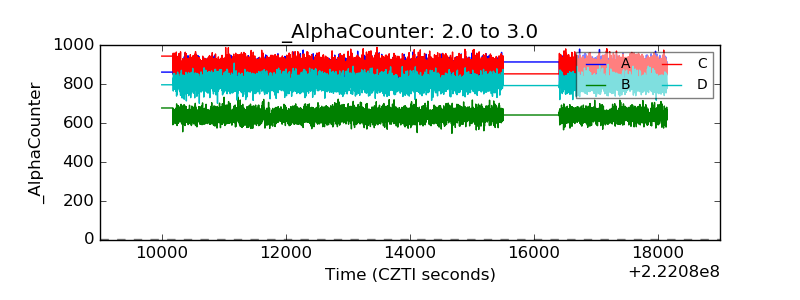

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

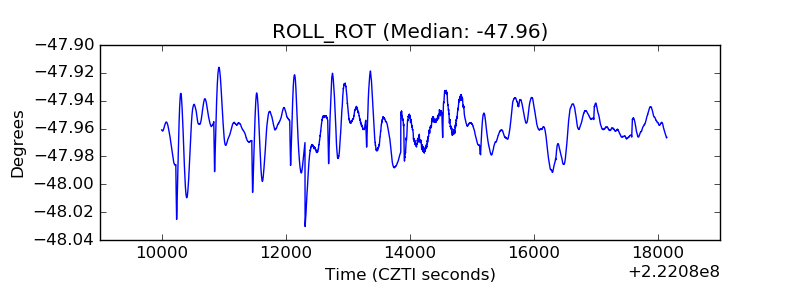

| _ROLL_ROT |  |
| _Roll_DEC |  |

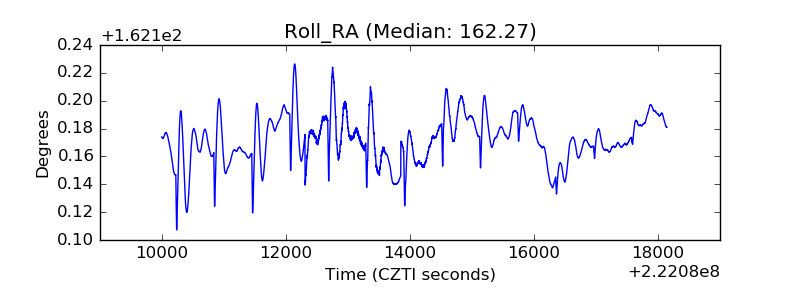

| _Roll_RA |  |
| Veto Counter |  |
