| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07025cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07025cztM0_level2_quad_clean.evt |
| Size (bytes) | 303,258,240 | 46,008,000 |
| Size | 289.2 MB | 43.9 MB |
| Events in quadrant A | 1,786,105 | 294,472 |
| Events in quadrant B | 1,829,729 | 298,061 |
| Events in quadrant C | 1,729,979 | 297,121 |
| Events in quadrant D | 3,597,620 | 253,113 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7492 | 3 |
| B | 0 | 7569 | 2 |
| C | 0 | 7394 | 2 |
| D | 0 | 13011 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3521 | 72 | 2.044874% |
| B | 3521 | 85 | 2.414087% |
| C | 3521 | 27 | 0.766828% |
| D | 3521 | 621 | 17.637035% |

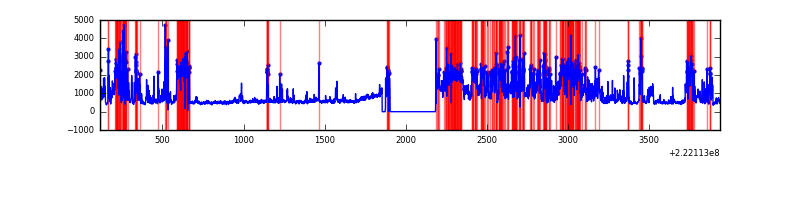

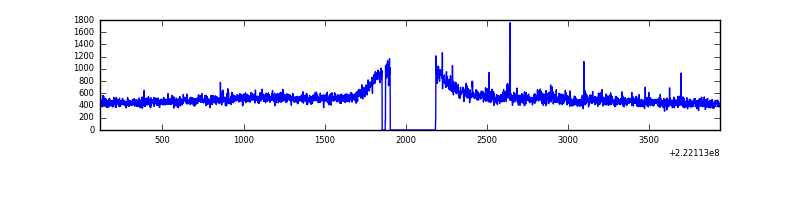

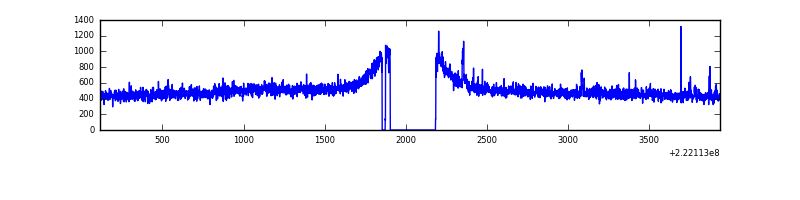

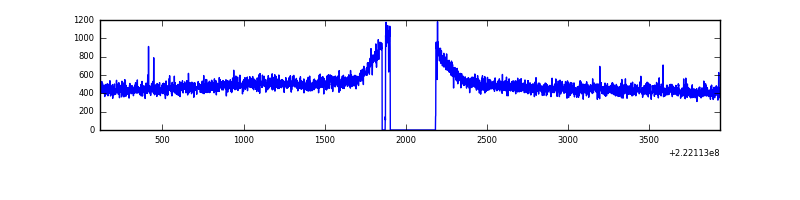

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3821 | 3523 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3821 | 3523 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3821 | 3523 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3821 | 3522 | 409 | 409 | 10.70% | 11.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 13822 | 140.52 | 457 | 448 | 95.2 |
| A | 14 | 111 | 4646 | 44.11 | 457 | 448 | 95.2 |
| A | 12 | 194 | 4233 | 39.77 | 457 | 448 | 95.2 |
| B | 0 | 214 | 42512 | 466.82 | 457 | 445 | 90.1 |
| B | 12 | 111 | 8842 | 93.18 | 457 | 445 | 90.1 |
| B | 11 | 111 | 7212 | 75.09 | 457 | 445 | 90.1 |
| C | 13 | 61 | 3517 | 29.36 | 442 | 445 | 104.6 |
| C | 12 | 4 | 2143 | 16.23 | 442 | 445 | 104.6 |
| C | 10 | 22 | 1282 | 8.0 | 442 | 445 | 104.6 |
| D | 2 | 216 | 1779504 | 17012.55 | 414 | 400 | 104.6 |
| D | 8 | 195 | 115974 | 1105.17 | 414 | 400 | 104.6 |
| D | 12 | 233 | 62473 | 593.57 | 414 | 400 | 104.6 |

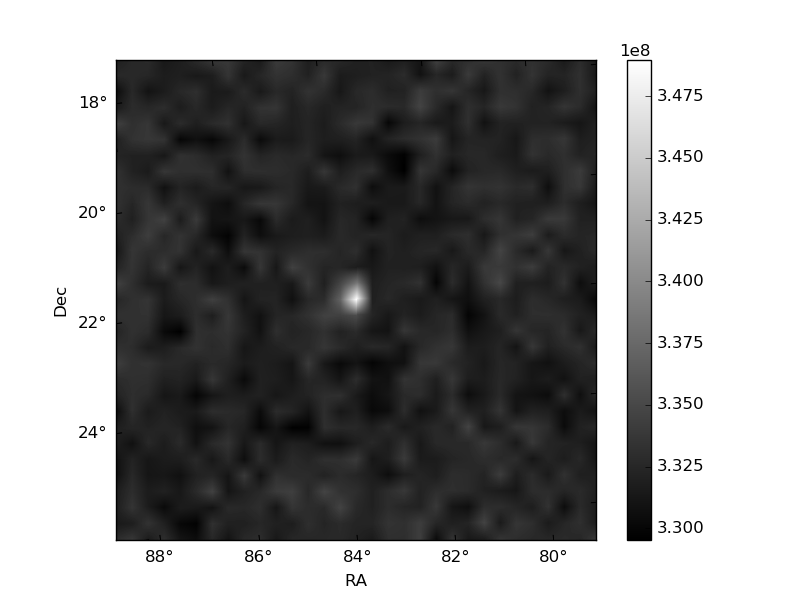

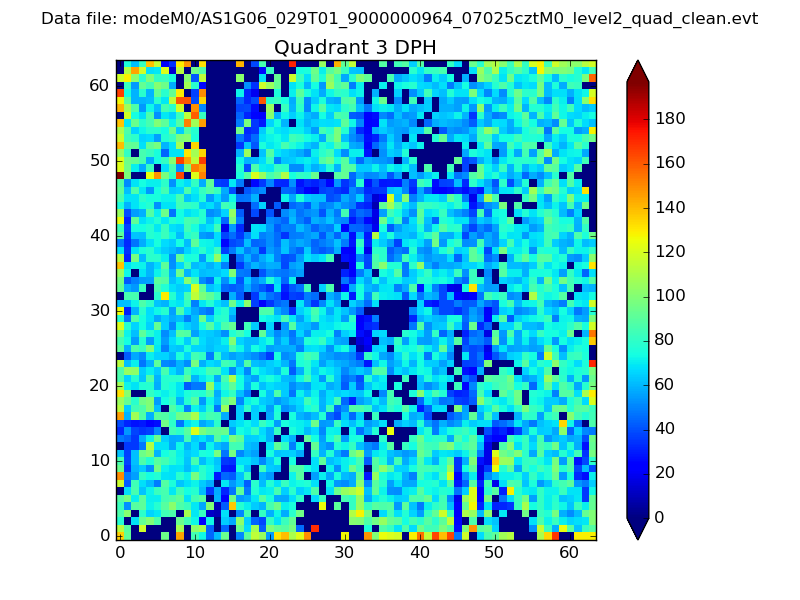

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

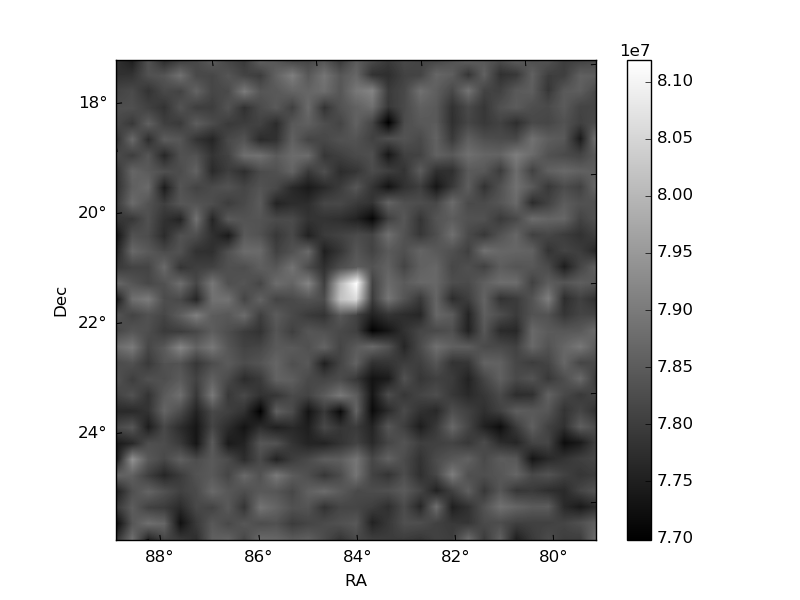

| Plot type | Count rate plots | Images |
|---|---|---|

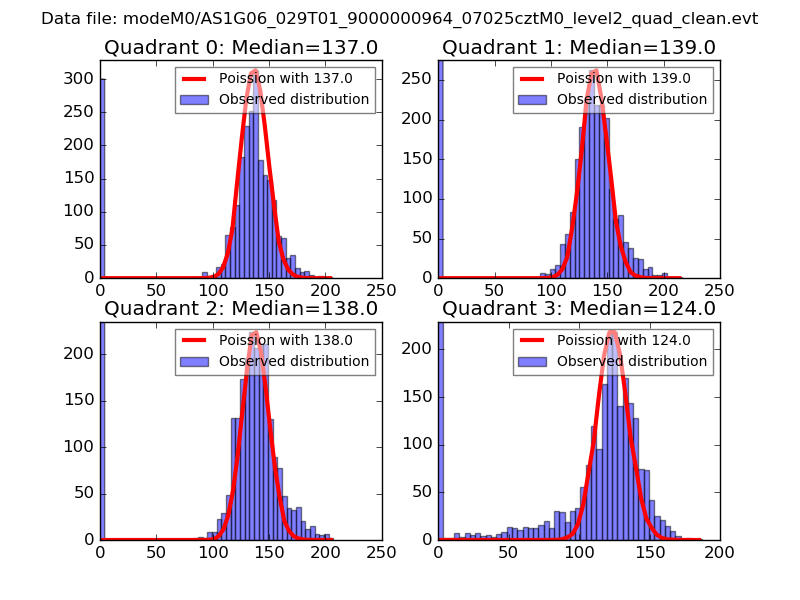

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

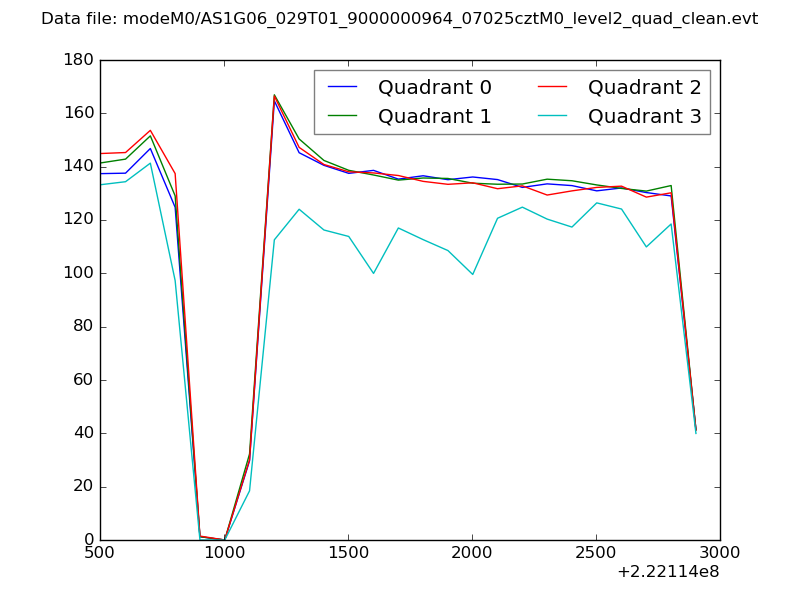

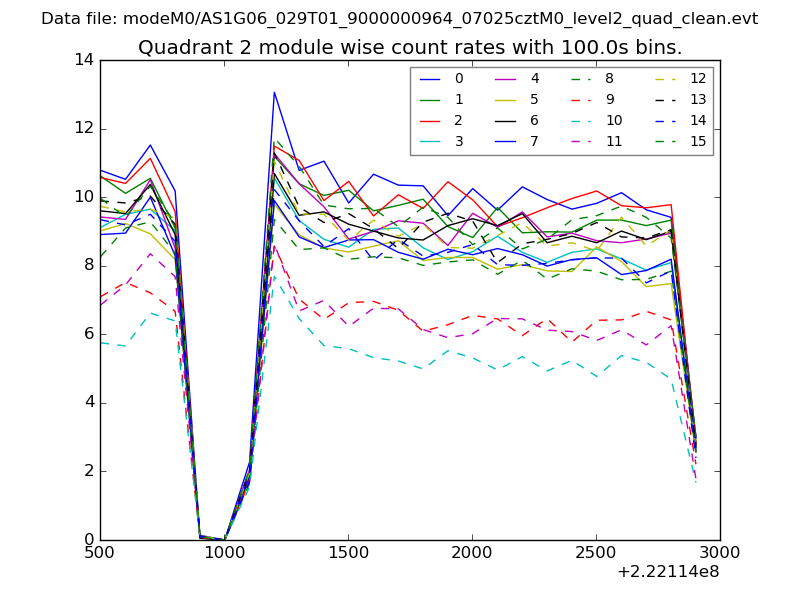

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

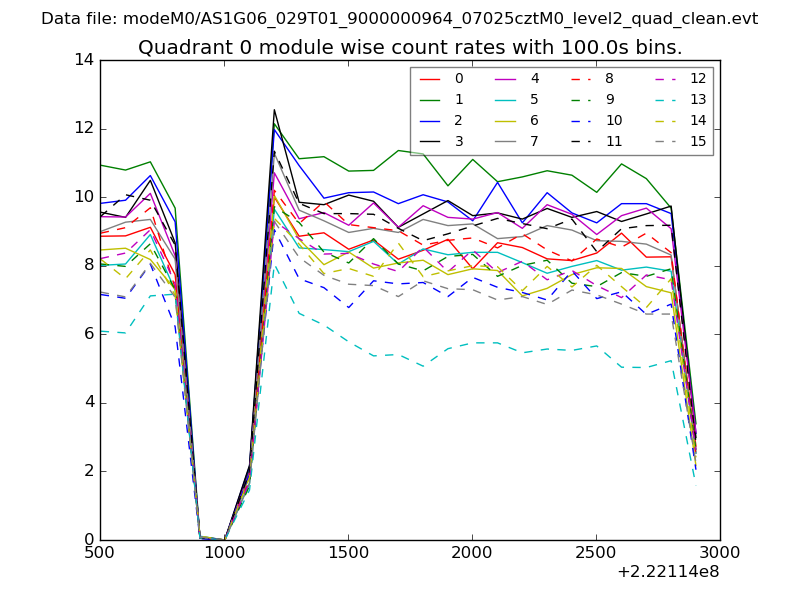

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

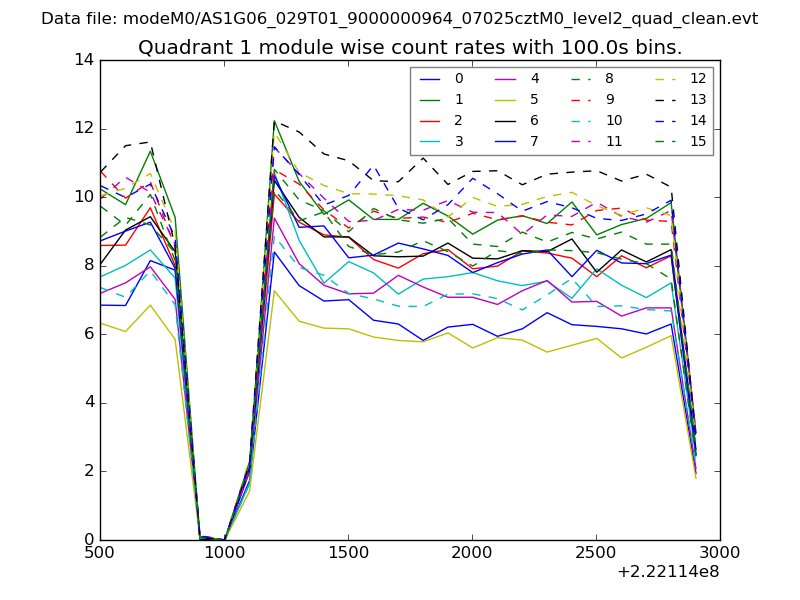

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

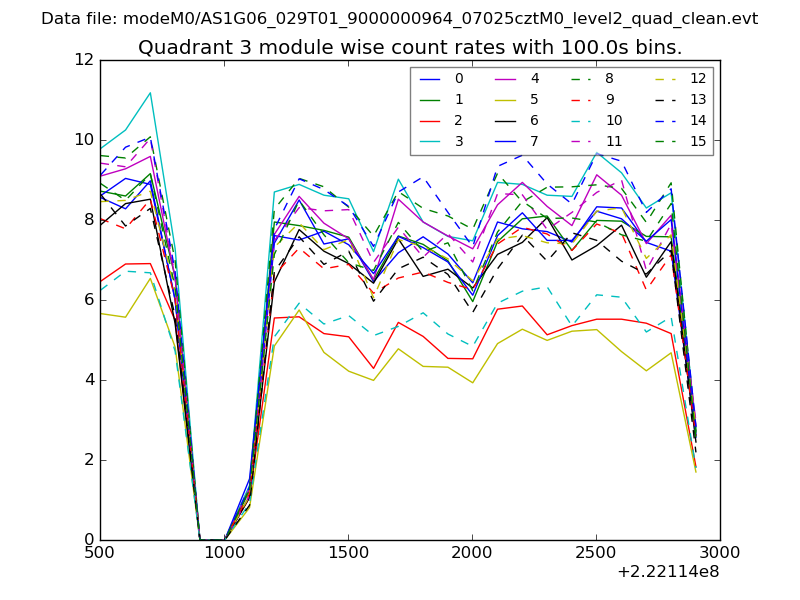

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

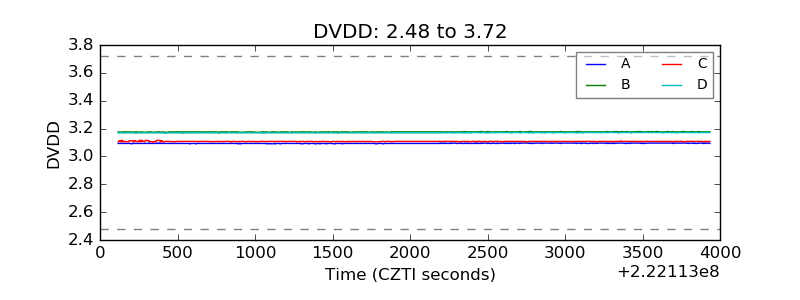

| D_VDD |  |

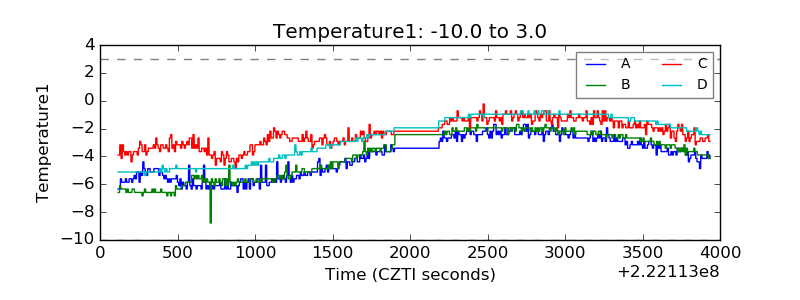

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

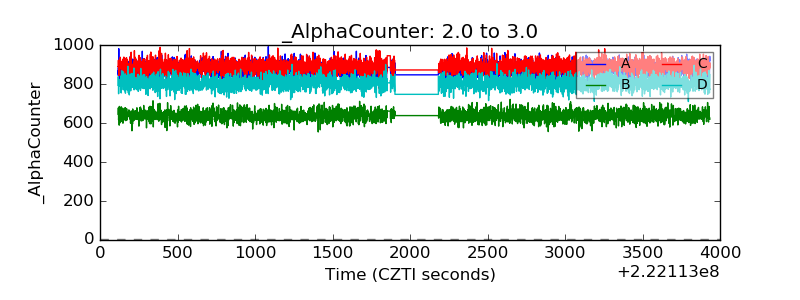

| Alpha Counter |  |

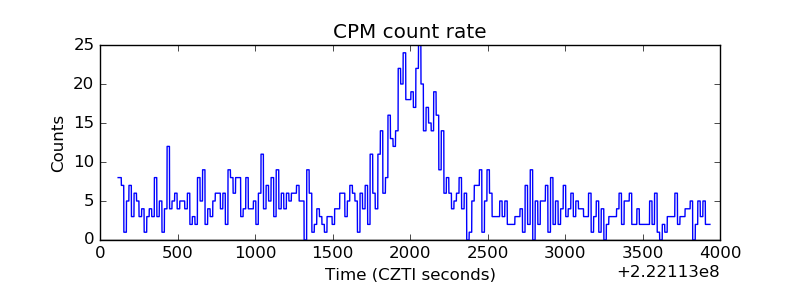

| _CPM_Rate |  |

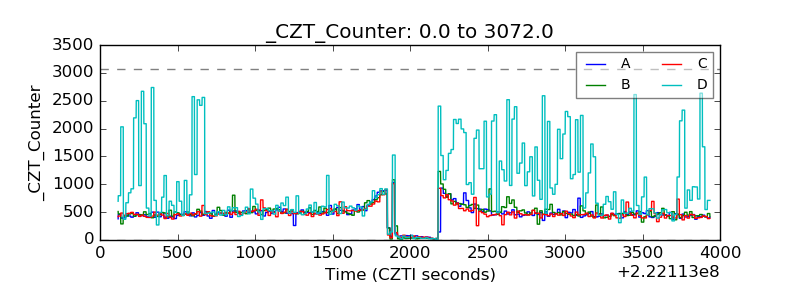

| CZT Counter |  |

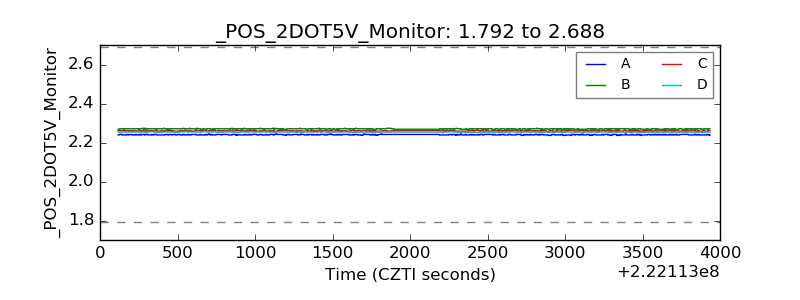

| +2.5 Volts monitor |  |

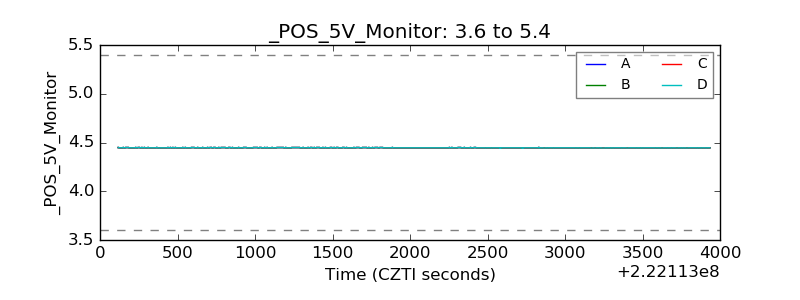

| +5 Volts monitor |  |

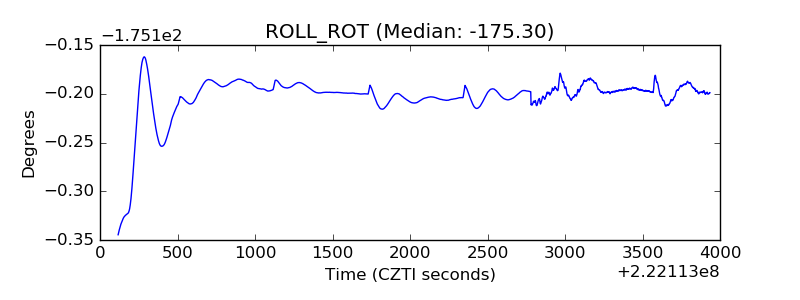

| _ROLL_ROT |  |

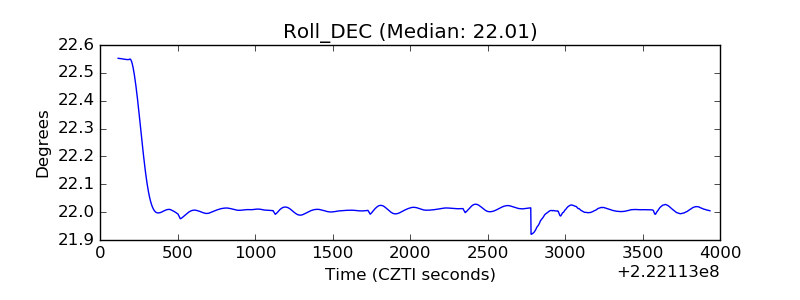

| _Roll_DEC |  |

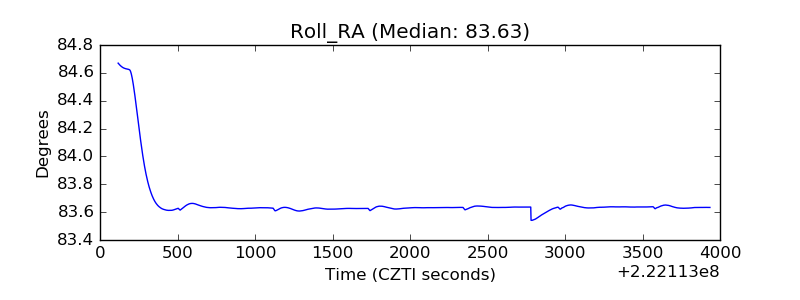

| _Roll_RA |  |

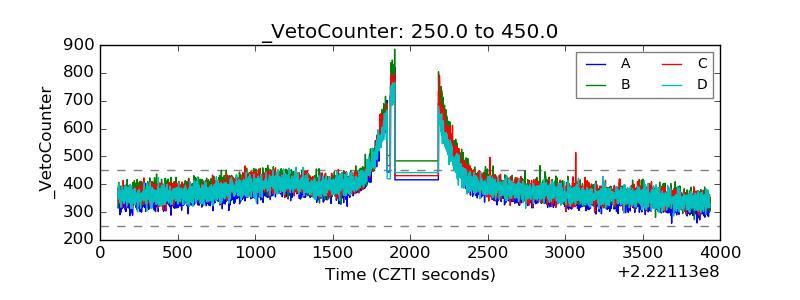

| Veto Counter |  |
