| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07034cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07034cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,021,440 | 70,871,040 |
| Size | 435.8 MB | 67.6 MB |
| Events in quadrant A | 3,304,762 | 430,384 |
| Events in quadrant B | 3,370,948 | 438,071 |
| Events in quadrant C | 3,195,668 | 426,448 |
| Events in quadrant D | 3,536,029 | 405,726 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13501 | 3 |
| B | 0 | 13603 | 2 |
| C | 0 | 13323 | 2 |
| D | 0 | 14375 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6387 | 79 | 1.236887% |
| B | 6387 | 97 | 1.518710% |
| C | 6387 | 76 | 1.189917% |
| D | 6387 | 107 | 1.675278% |

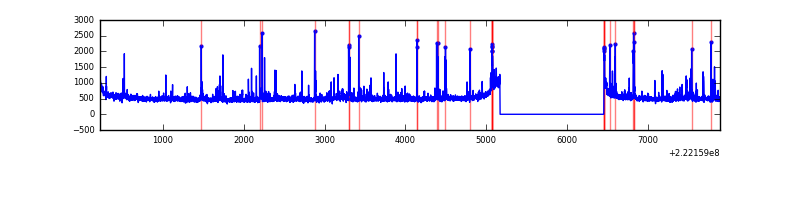

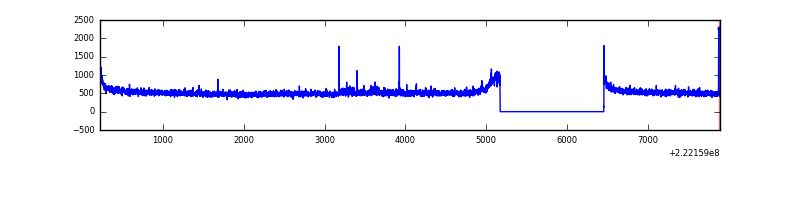

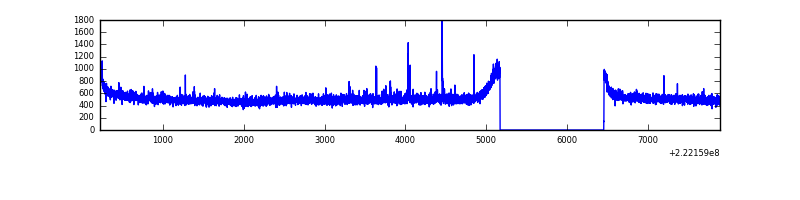

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 6388 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7672 | 6388 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7672 | 6388 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7672 | 6388 | 29 | 29 | 0.38% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 30524 | 174.42 | 845 | 831 | 170.2 |
| A | 4 | 2 | 12479 | 68.42 | 845 | 831 | 170.2 |
| A | 3 | 1 | 8676 | 46.08 | 845 | 831 | 170.2 |
| B | 0 | 214 | 35900 | 216.49 | 855 | 839 | 161.9 |
| B | 12 | 111 | 15739 | 92.0 | 855 | 839 | 161.9 |
| B | 11 | 111 | 12543 | 72.27 | 855 | 839 | 161.9 |
| C | 1 | 16 | 9744 | 47.72 | 813 | 819 | 187.0 |
| C | 14 | 67 | 7559 | 36.04 | 813 | 819 | 187.0 |
| C | 13 | 61 | 6275 | 29.17 | 813 | 819 | 187.0 |
| D | 2 | 216 | 226903 | 1136.07 | 808 | 785 | 199.0 |
| D | 8 | 195 | 130293 | 650.68 | 808 | 785 | 199.0 |
| D | 13 | 169 | 78306 | 389.48 | 808 | 785 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

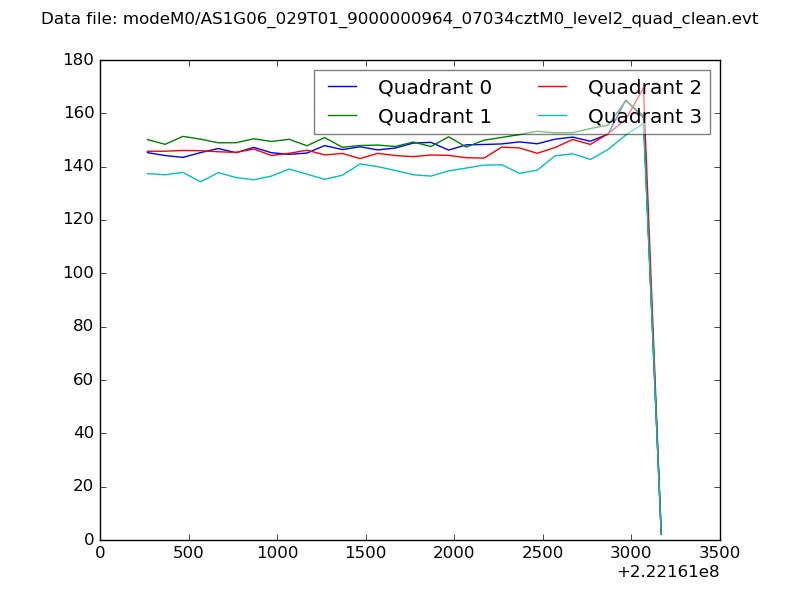

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

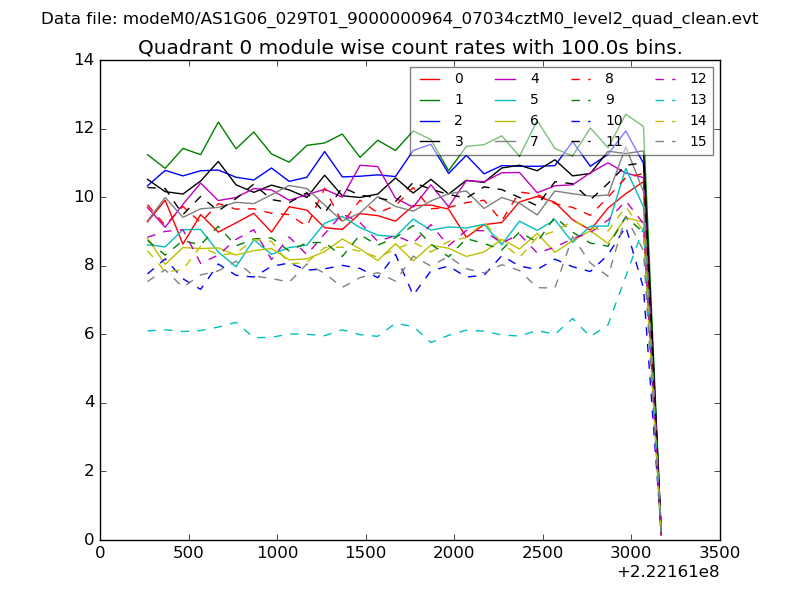

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

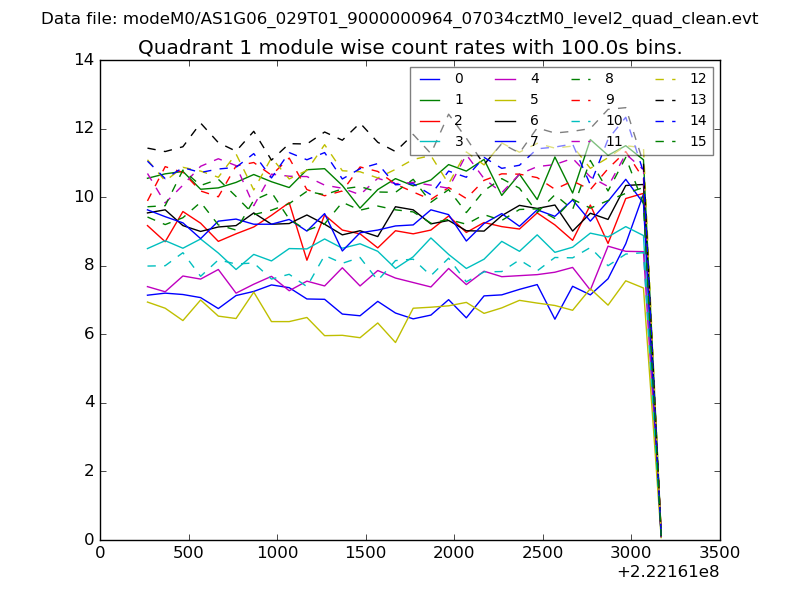

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

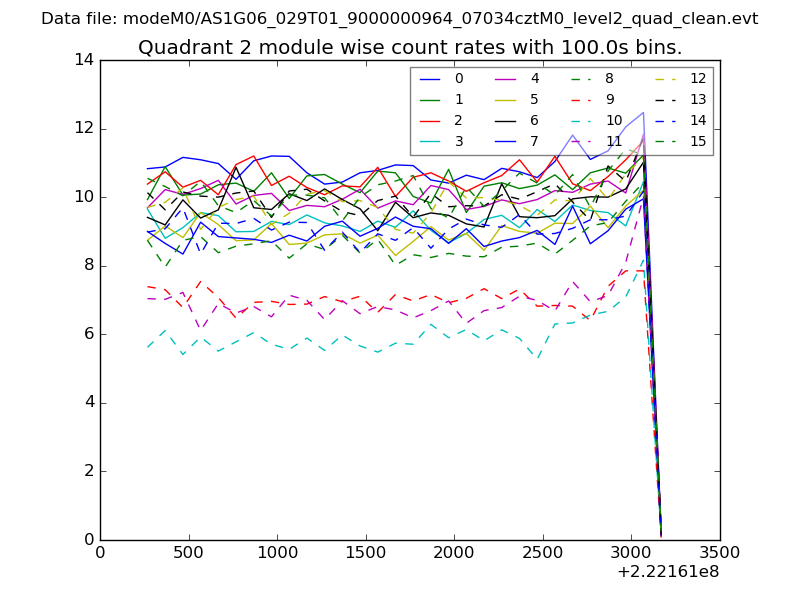

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

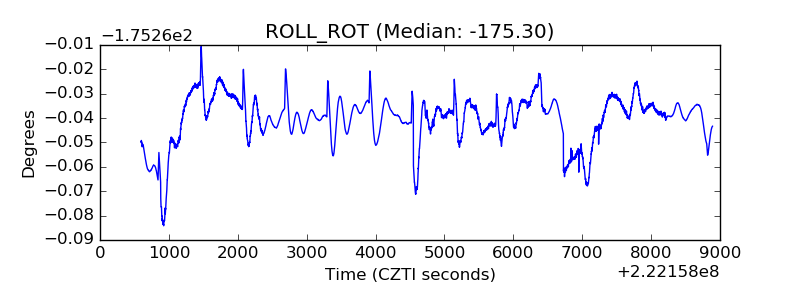

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
