| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07042cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07042cztM0_level2_quad_clean.evt |
| Size (bytes) | 875,975,040 | 175,803,840 |
| Size | 835.4 MB | 167.7 MB |
| Events in quadrant A | 5,874,819 | 1,132,650 |
| Events in quadrant B | 6,229,109 | 1,136,599 |
| Events in quadrant C | 5,831,325 | 1,122,467 |
| Events in quadrant D | 7,732,561 | 1,053,733 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26197 | 4 |
| B | 0 | 26881 | 3 |
| C | 0 | 26051 | 3 |
| D | 0 | 31325 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12718 | 110 | 0.864916% |
| B | 12718 | 124 | 0.974996% |
| C | 12718 | 60 | 0.471772% |
| D | 12718 | 393 | 3.090109% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14428 | 12721 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14428 | 12721 | 13 | 13 | 0.09% | 0.10% |  |
| C | 14428 | 12721 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14428 | 12721 | 215 | 215 | 1.49% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 14518 | 41.67 | 1525 | 1493 | 312.5 |
| A | 12 | 194 | 13695 | 39.04 | 1525 | 1493 | 312.5 |
| A | 13 | 254 | 5864 | 13.98 | 1525 | 1493 | 312.5 |
| B | 0 | 214 | 118714 | 397.33 | 1535 | 1500 | 295.0 |
| B | 0 | 219 | 55196 | 182.02 | 1535 | 1500 | 295.0 |
| B | 4 | 80 | 33954 | 110.01 | 1535 | 1500 | 295.0 |
| C | 1 | 16 | 20459 | 54.78 | 1483 | 1495 | 346.2 |
| C | 14 | 67 | 11864 | 29.95 | 1483 | 1495 | 346.2 |
| C | 13 | 61 | 11592 | 29.17 | 1483 | 1495 | 346.2 |
| D | 2 | 216 | 913594 | 2492.65 | 1472 | 1428 | 365.9 |
| D | 8 | 195 | 568424 | 1549.41 | 1472 | 1428 | 365.9 |
| D | 1 | 239 | 327472 | 890.97 | 1472 | 1428 | 365.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

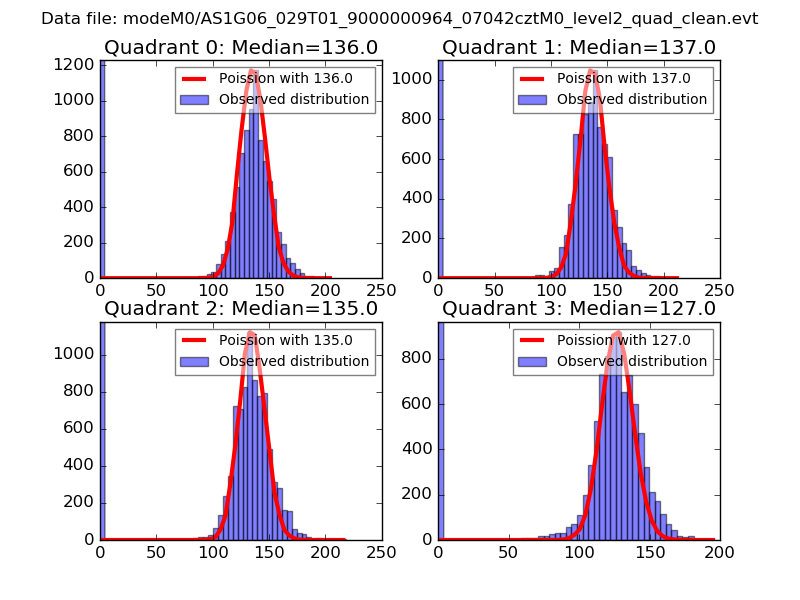

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

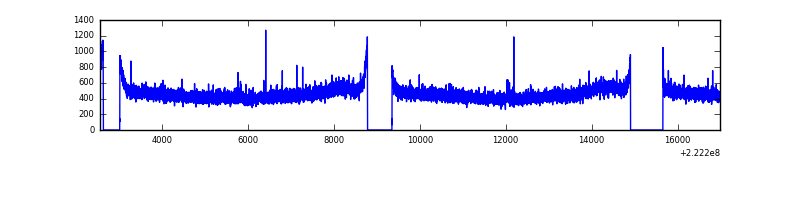

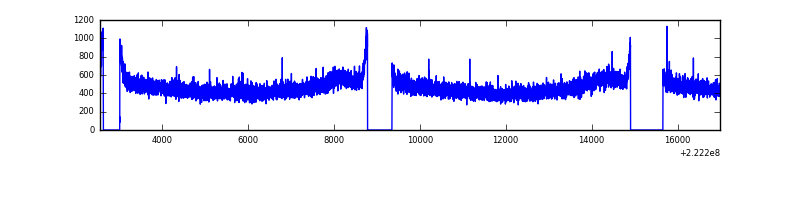

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

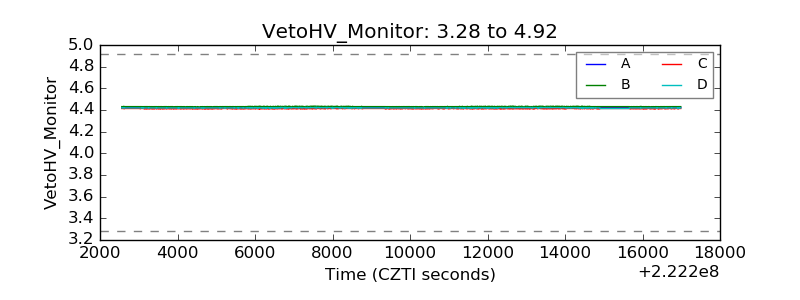

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

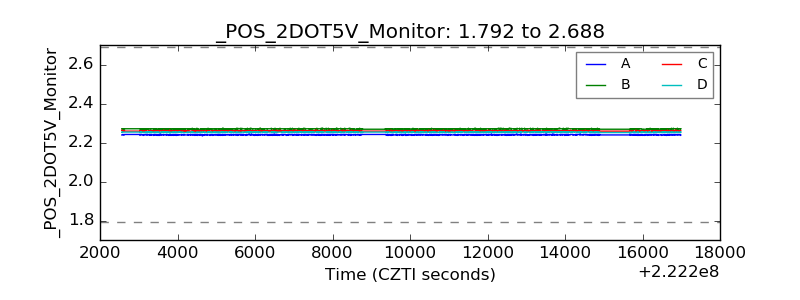

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

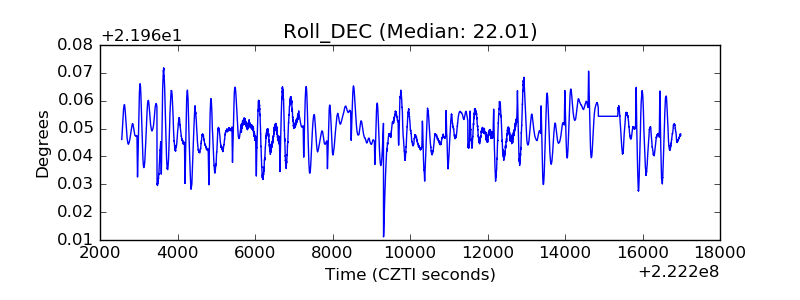

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
