| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07043cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07043cztM0_level2_quad_clean.evt |
| Size (bytes) | 412,490,880 | 85,057,920 |
| Size | 393.4 MB | 81.1 MB |
| Events in quadrant A | 2,793,928 | 545,311 |
| Events in quadrant B | 2,958,620 | 551,037 |
| Events in quadrant C | 2,775,982 | 542,020 |
| Events in quadrant D | 3,545,963 | 508,584 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12493 | 2 |
| B | 0 | 12815 | 1 |
| C | 0 | 12435 | 1 |
| D | 0 | 14604 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6146 | 12 | 0.195249% |
| B | 6146 | 27 | 0.439310% |
| C | 6146 | 19 | 0.309144% |
| D | 6146 | 89 | 1.448096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7041 | 6147 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7041 | 6147 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7041 | 6147 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7041 | 6147 | 59 | 59 | 0.84% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6919 | 41.32 | 724 | 709 | 150.3 |
| A | 12 | 194 | 6384 | 37.76 | 724 | 709 | 150.3 |
| A | 8 | 255 | 5767 | 33.66 | 724 | 709 | 150.3 |
| B | 0 | 214 | 60209 | 417.14 | 732 | 716 | 142.6 |
| B | 7 | 202 | 31080 | 212.9 | 732 | 716 | 142.6 |
| B | 12 | 111 | 14101 | 93.85 | 732 | 716 | 142.6 |
| C | 12 | 4 | 7827 | 43.07 | 707 | 715 | 165.1 |
| C | 14 | 67 | 6012 | 32.08 | 707 | 715 | 165.1 |
| C | 13 | 61 | 5515 | 29.07 | 707 | 715 | 165.1 |
| D | 2 | 216 | 496223 | 2868.03 | 698 | 679 | 172.8 |
| D | 8 | 195 | 295853 | 1708.36 | 698 | 679 | 172.8 |
| D | 12 | 233 | 46341 | 264.28 | 698 | 679 | 172.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

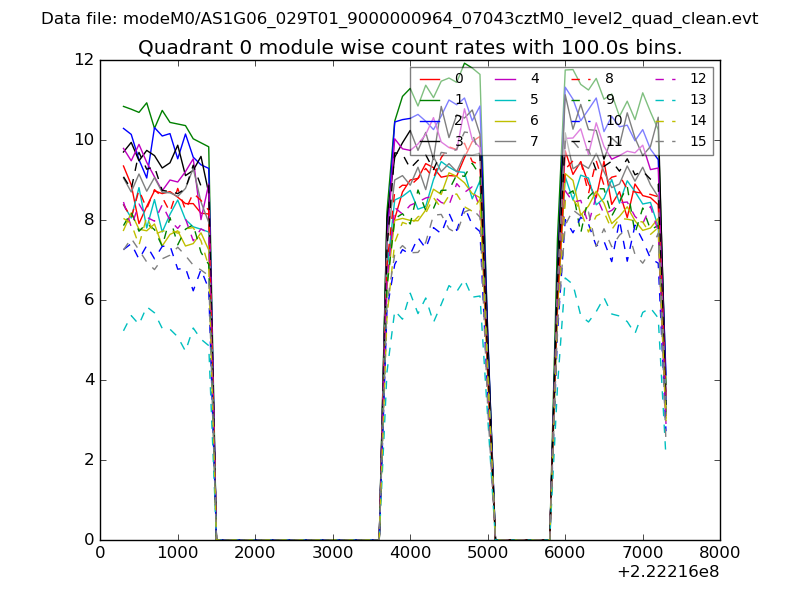

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

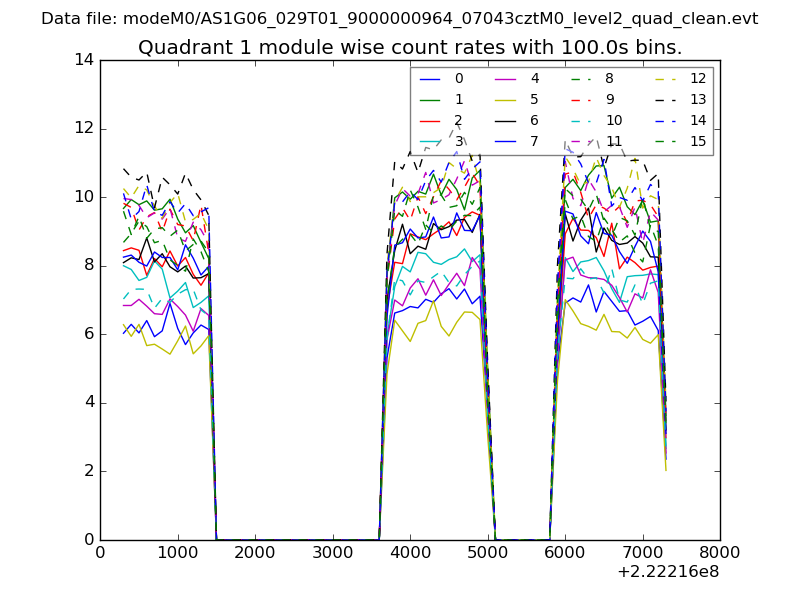

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
