| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07044cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07044cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,384,320 | 80,910,720 |
| Size | 401.9 MB | 77.2 MB |
| Events in quadrant A | 2,880,710 | 510,539 |
| Events in quadrant B | 3,207,545 | 516,557 |
| Events in quadrant C | 2,870,392 | 507,514 |
| Events in quadrant D | 3,378,155 | 479,546 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12740 | 2 |
| B | 0 | 13711 | 1 |
| C | 0 | 12697 | 1 |
| D | 0 | 13914 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6242 | 17 | 0.272349% |
| B | 6242 | 59 | 0.945210% |
| C | 6242 | 25 | 0.400513% |
| D | 6242 | 30 | 0.480615% |

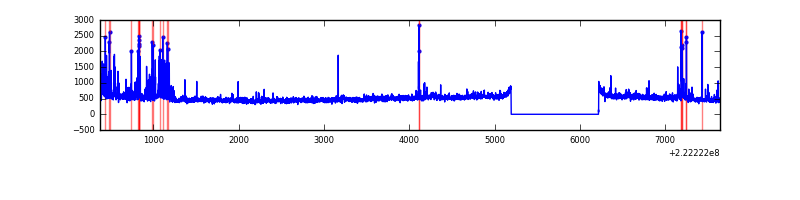

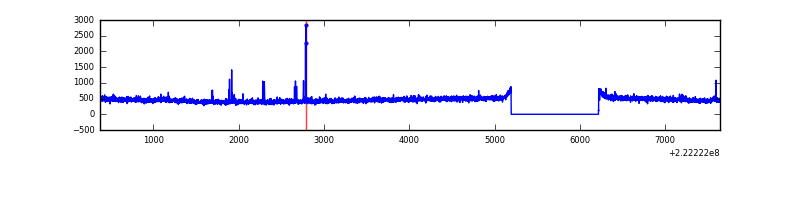

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7267 | 6243 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7267 | 6243 | 13 | 13 | 0.18% | 0.21% |  |
| C | 7267 | 6243 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7267 | 6243 | 24 | 24 | 0.33% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 16539 | 103.24 | 743 | 731 | 153.1 |
| A | 0 | 226 | 7063 | 41.35 | 743 | 731 | 153.1 |
| A | 12 | 194 | 6570 | 38.13 | 743 | 731 | 153.1 |
| B | 7 | 202 | 145700 | 1009.06 | 749 | 733 | 143.7 |
| B | 0 | 214 | 80172 | 552.94 | 749 | 733 | 143.7 |
| B | 10 | 249 | 61061 | 419.92 | 749 | 733 | 143.7 |
| C | 9 | 68 | 16376 | 92.49 | 723 | 729 | 169.2 |
| C | 10 | 22 | 15674 | 88.34 | 723 | 729 | 169.2 |
| C | 14 | 67 | 7218 | 38.36 | 723 | 729 | 169.2 |
| D | 8 | 195 | 426237 | 2405.32 | 717 | 696 | 176.9 |
| D | 2 | 216 | 180259 | 1014.96 | 717 | 696 | 176.9 |
| D | 12 | 233 | 44299 | 246.46 | 717 | 696 | 176.9 |

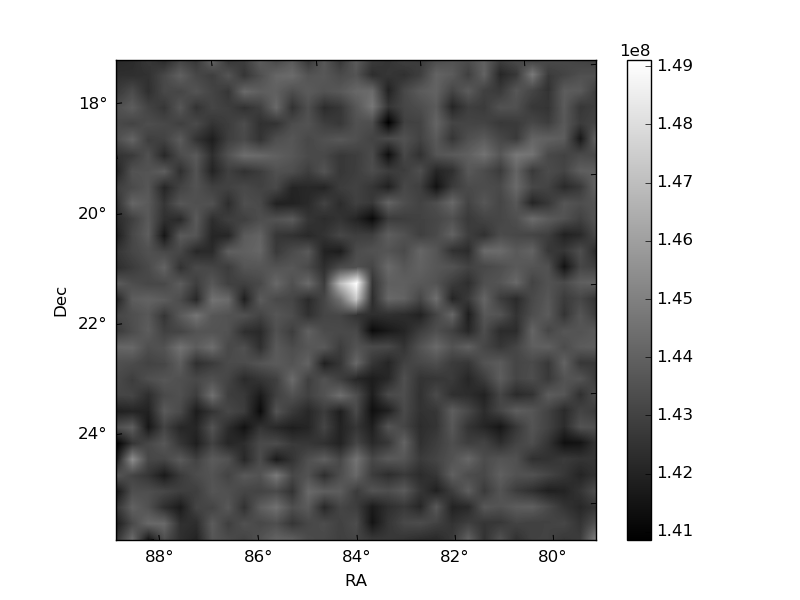

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

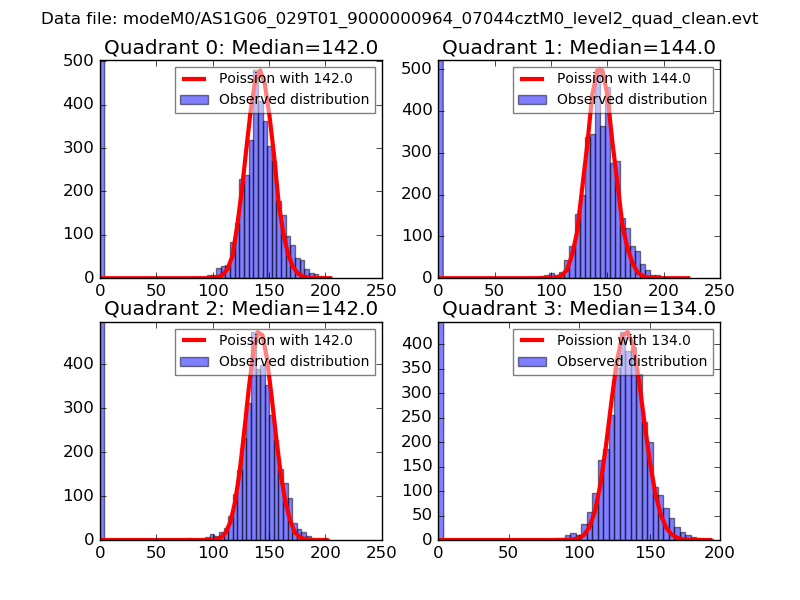

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

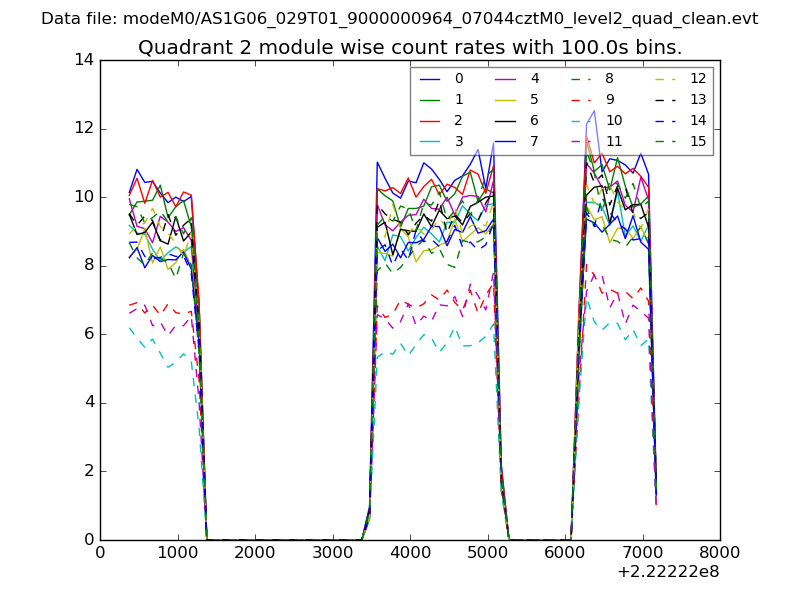

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

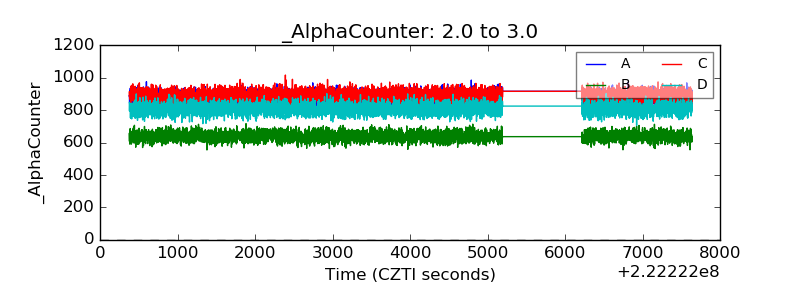

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

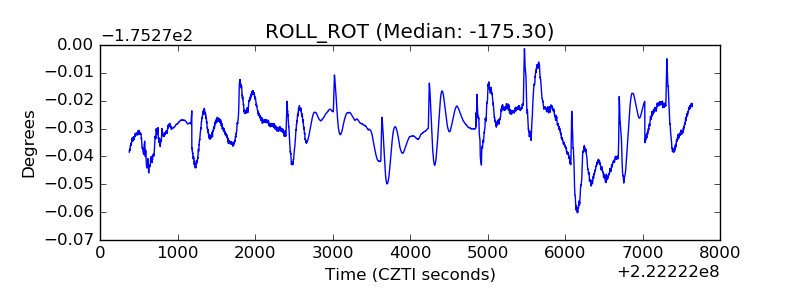

| _ROLL_ROT |  |
| _Roll_DEC |  |

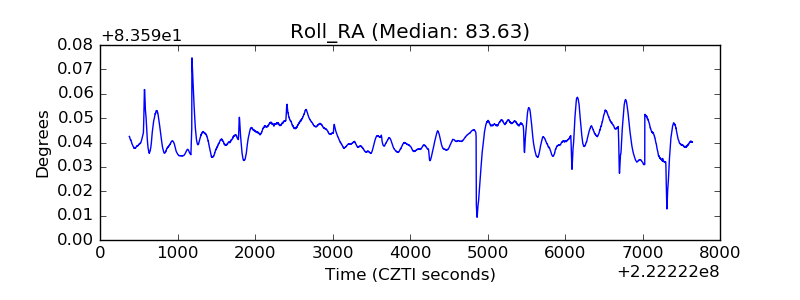

| _Roll_RA |  |
| Veto Counter |  |
