| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T01_9000000964_07048cztM0_level2.evt | modeM0/AS1G06_029T01_9000000964_07048cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,901,760 | 66,539,520 |
| Size | 451.0 MB | 63.5 MB |
| Events in quadrant A | 3,192,184 | 400,079 |
| Events in quadrant B | 3,985,989 | 406,030 |
| Events in quadrant C | 3,253,502 | 391,359 |
| Events in quadrant D | 3,459,965 | 374,898 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13174 | 3 |
| B | 0 | 15711 | 2 |
| C | 0 | 13514 | 2 |
| D | 0 | 14091 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6333 | 13 | 0.205274% |
| B | 6333 | 124 | 1.957998% |
| C | 6333 | 77 | 1.215853% |
| D | 6333 | 19 | 0.300016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7668 | 6334 | 49 | 49 | 0.64% | 0.77% |  |
| C | 7668 | 6334 | 38 | 38 | 0.50% | 0.60% |  |
| D | 7668 | 6334 | 8 | 8 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 15915 | 90.92 | 823 | 808 | 166.2 |
| A | 0 | 226 | 7897 | 42.66 | 823 | 808 | 166.2 |
| A | 12 | 194 | 7431 | 39.86 | 823 | 808 | 166.2 |
| B | 3 | 220 | 476626 | 3077.95 | 829 | 816 | 154.6 |
| B | 7 | 202 | 121626 | 781.5 | 829 | 816 | 154.6 |
| B | 4 | 81 | 100165 | 642.67 | 829 | 816 | 154.6 |
| C | 9 | 68 | 126756 | 694.21 | 790 | 799 | 181.4 |
| C | 10 | 22 | 26965 | 144.21 | 790 | 799 | 181.4 |
| C | 1 | 16 | 10307 | 52.4 | 790 | 799 | 181.4 |
| D | 8 | 195 | 317471 | 1656.1 | 785 | 764 | 191.2 |
| D | 2 | 136 | 101178 | 525.08 | 785 | 764 | 191.2 |
| D | 2 | 14 | 70775 | 366.1 | 785 | 764 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

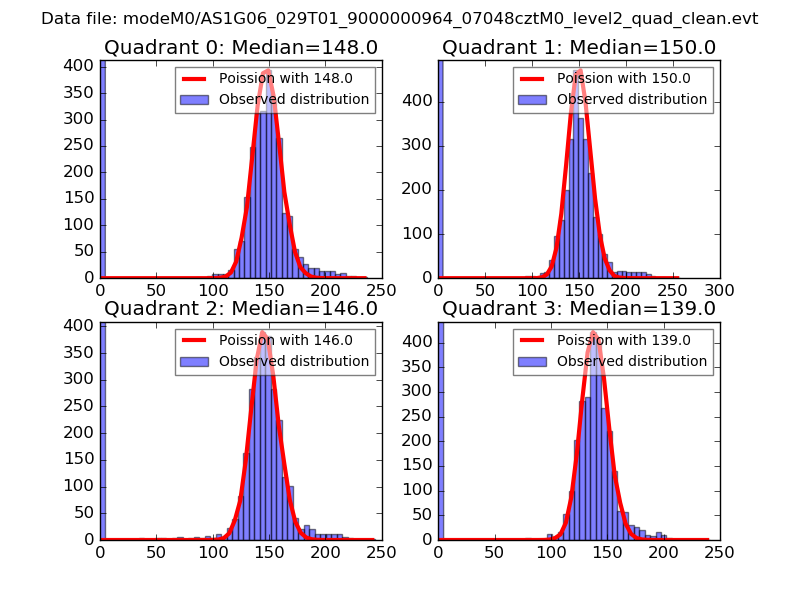

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

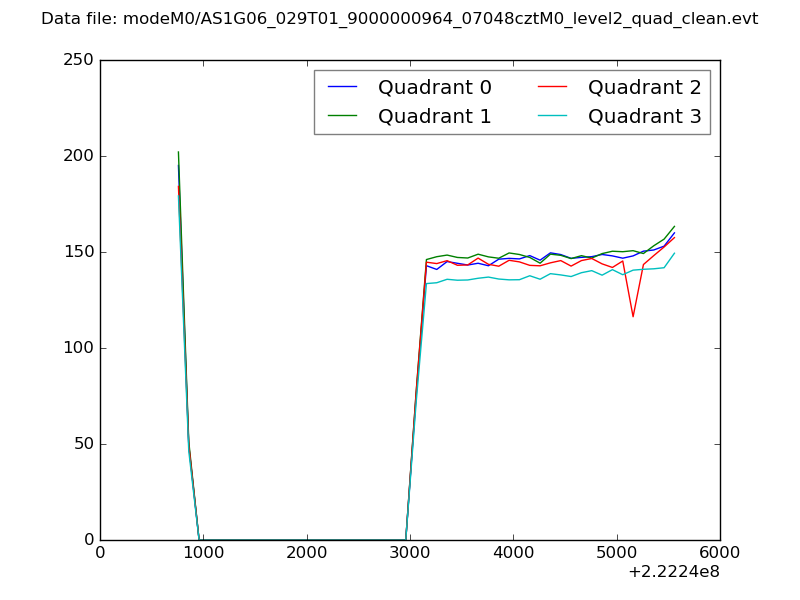

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

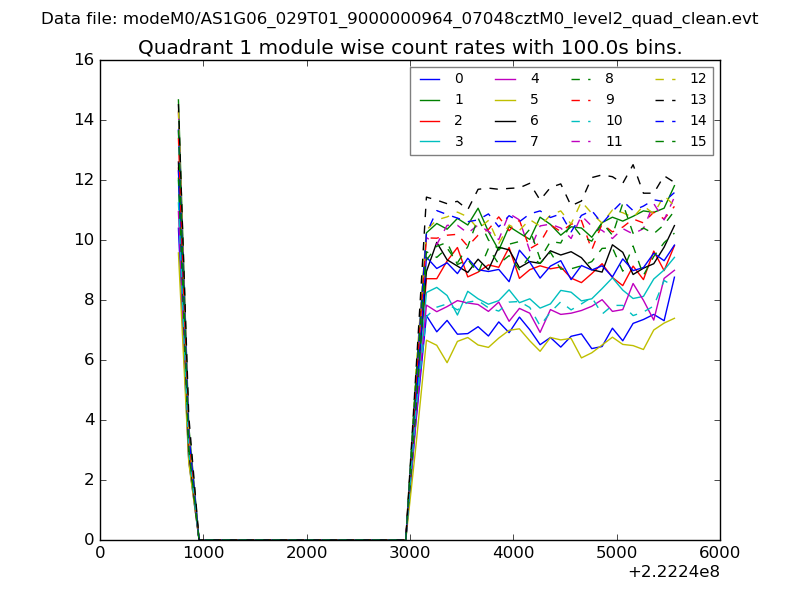

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

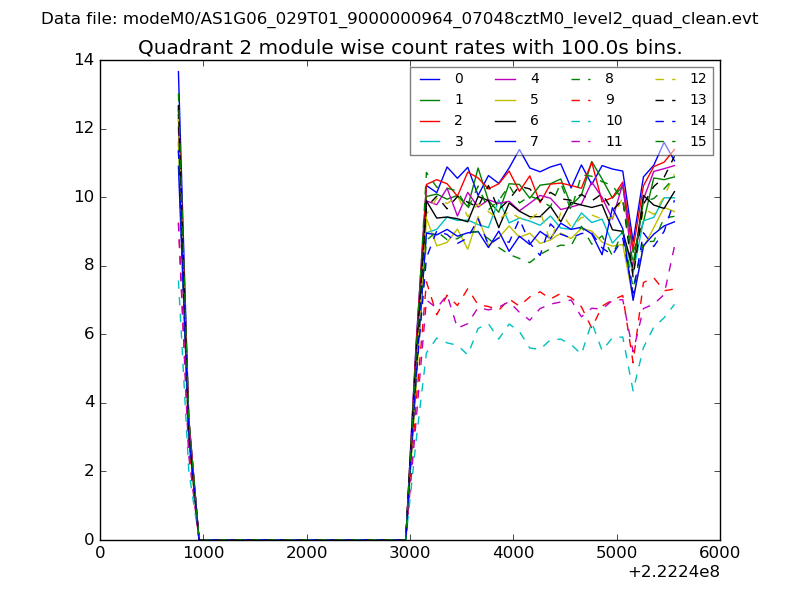

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

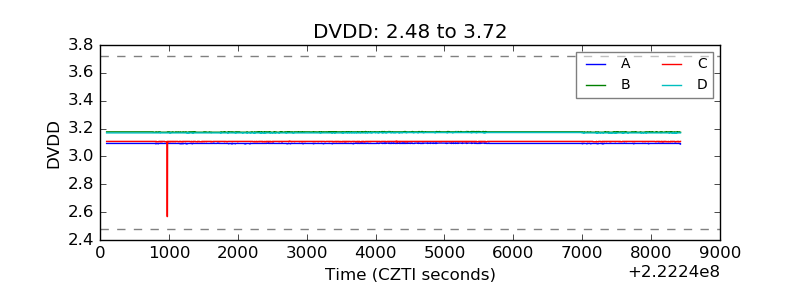

| D_VDD |  |

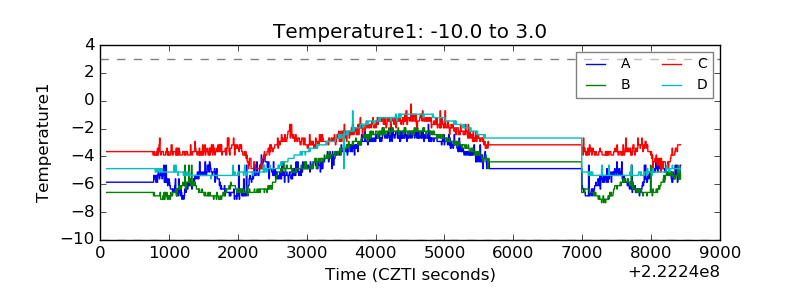

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
