| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_155T01_9000000966_07063cztM0_level2.evt | modeM0/AS1A02_155T01_9000000966_07063cztM0_level2_quad_clean.evt |
| Size (bytes) | 247,835,520 | 45,619,200 |
| Size | 236.4 MB | 43.5 MB |
| Events in quadrant A | 1,722,118 | 284,959 |
| Events in quadrant B | 1,692,249 | 295,064 |
| Events in quadrant C | 1,998,102 | 282,778 |
| Events in quadrant D | 1,856,829 | 273,283 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7116 | 2 |
| B | 0 | 7188 | 1 |
| C | 0 | 8246 | 1 |
| D | 0 | 7655 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3459 | 8 | 0.231281% |
| B | 3459 | 9 | 0.260191% |
| C | 3459 | 104 | 3.006649% |
| D | 3459 | 30 | 0.867303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3459 | 3459 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3459 | 3459 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3459 | 3459 | 91 | 91 | 2.63% | 2.63% |  |
| D | 3459 | 3459 | 21 | 21 | 0.61% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 87416 | 1019.34 | 419 | 412 | 85.4 |
| A | 8 | 15 | 17596 | 201.33 | 419 | 412 | 85.4 |
| A | 13 | 14 | 7137 | 78.79 | 419 | 412 | 85.4 |
| B | 0 | 214 | 58893 | 734.2 | 419 | 409 | 79.7 |
| B | 12 | 111 | 7417 | 87.97 | 419 | 409 | 79.7 |
| B | 0 | 229 | 5936 | 69.38 | 419 | 409 | 79.7 |
| C | 4 | 254 | 387228 | 4040.27 | 412 | 415 | 95.7 |
| C | 13 | 61 | 3190 | 28.98 | 412 | 415 | 95.7 |
| C | 1 | 3 | 2141 | 18.03 | 412 | 415 | 95.7 |
| D | 12 | 233 | 140620 | 1402.37 | 413 | 403 | 100.0 |
| D | 8 | 195 | 90311 | 899.21 | 413 | 403 | 100.0 |
| D | 14 | 34 | 30313 | 299.14 | 413 | 403 | 100.0 |

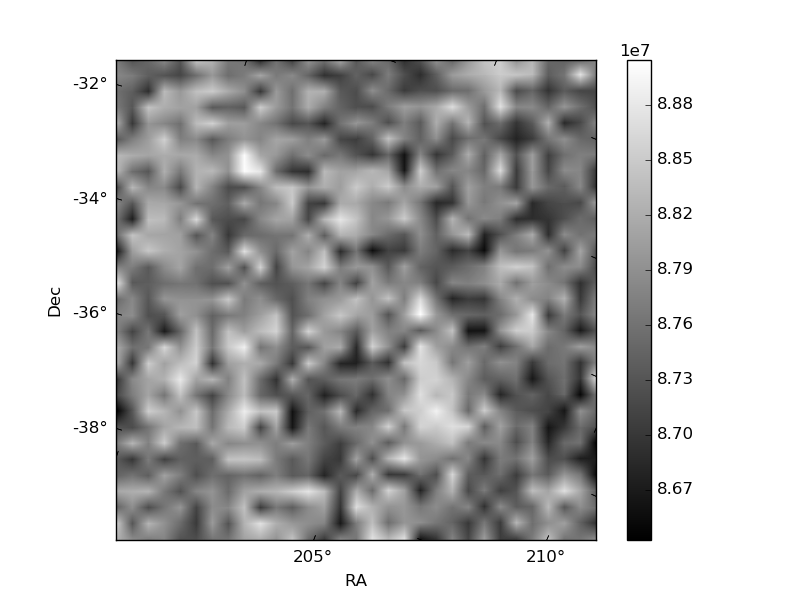

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

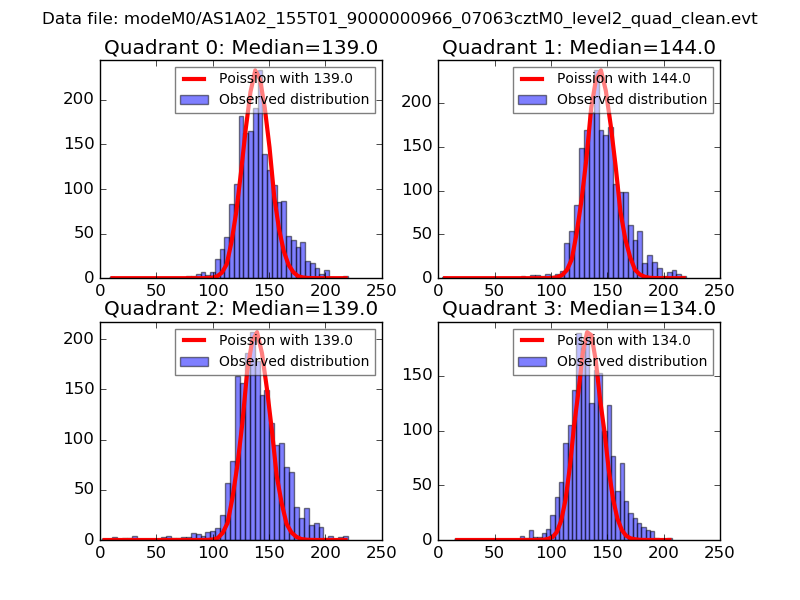

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

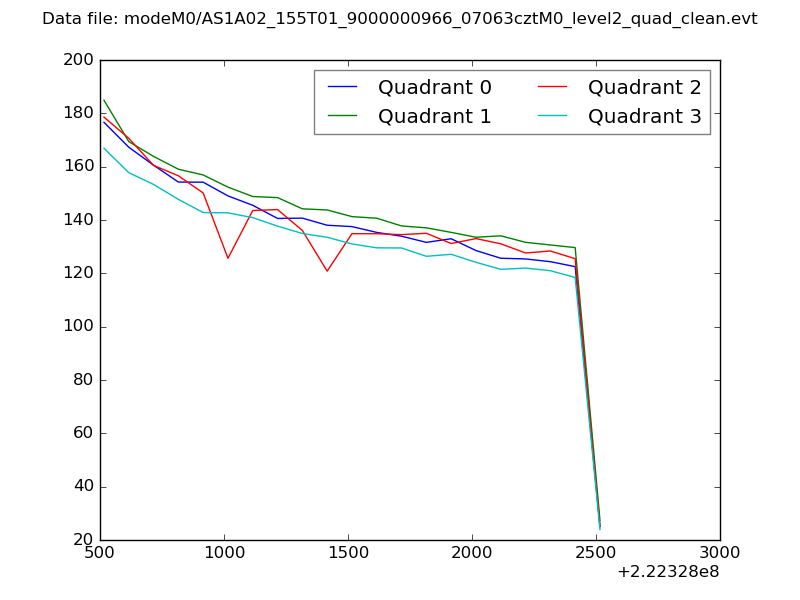

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

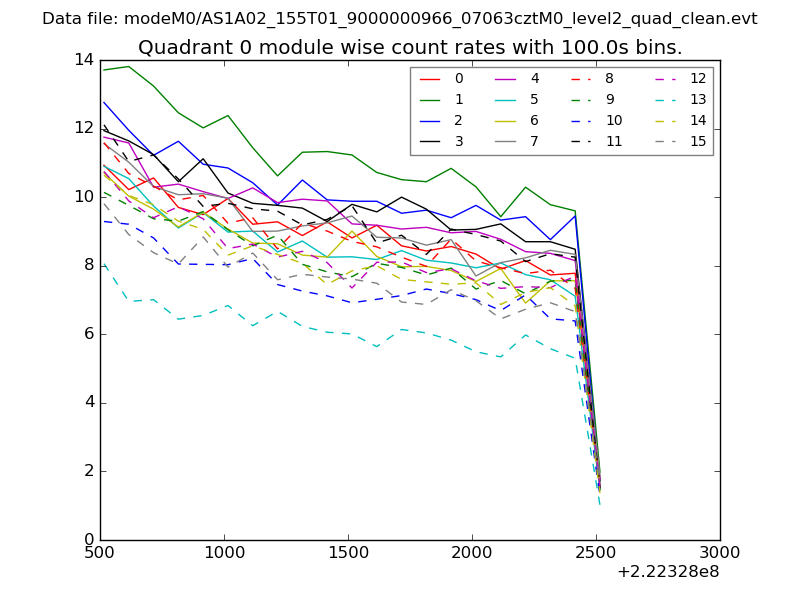

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

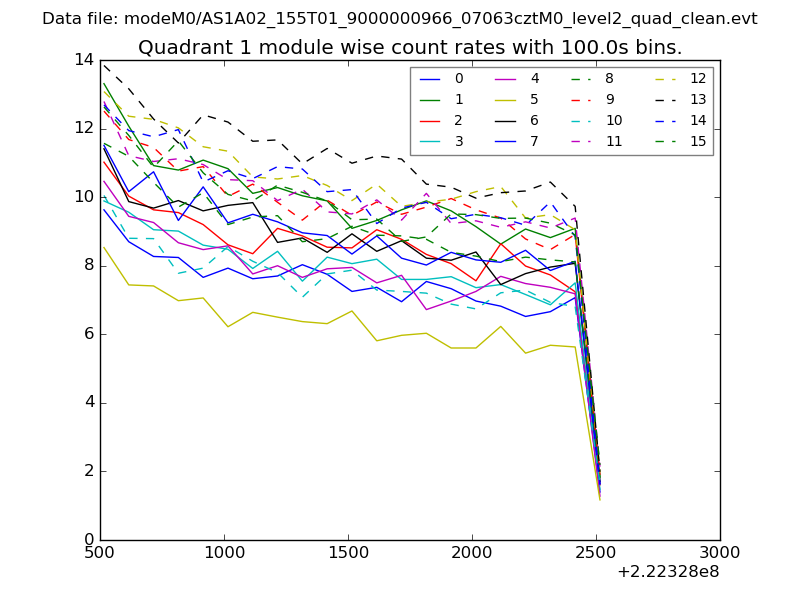

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

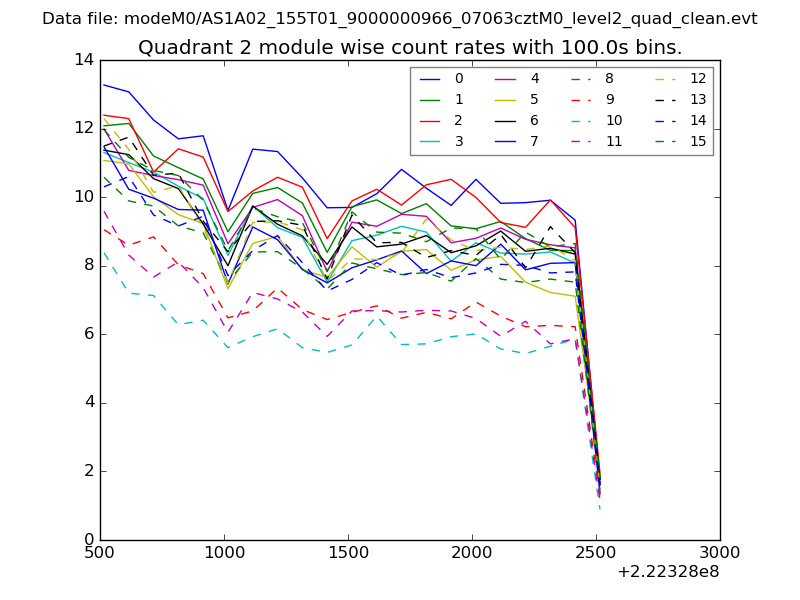

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

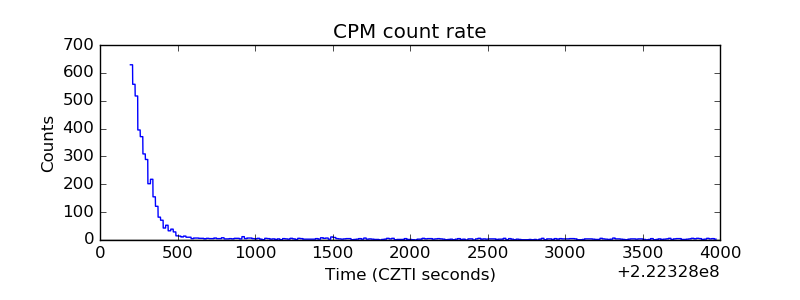

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
