| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_155T01_9000000966_07066cztM0_level2.evt | modeM0/AS1A02_155T01_9000000966_07066cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,760,320 | 79,021,440 |
| Size | 490.0 MB | 75.4 MB |
| Events in quadrant A | 3,326,159 | 478,378 |
| Events in quadrant B | 4,091,678 | 486,336 |
| Events in quadrant C | 3,888,288 | 475,123 |
| Events in quadrant D | 3,771,410 | 458,779 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14662 | 3 |
| B | 0 | 16743 | 2 |
| C | 0 | 16529 | 2 |
| D | 0 | 15329 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7083 | 166 | 2.343640% |
| B | 7083 | 289 | 4.080192% |
| C | 7083 | 239 | 3.374276% |
| D | 7083 | 138 | 1.948327% |

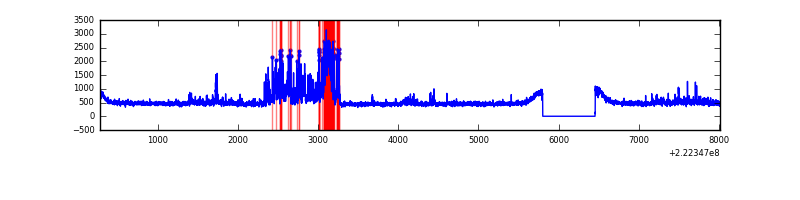

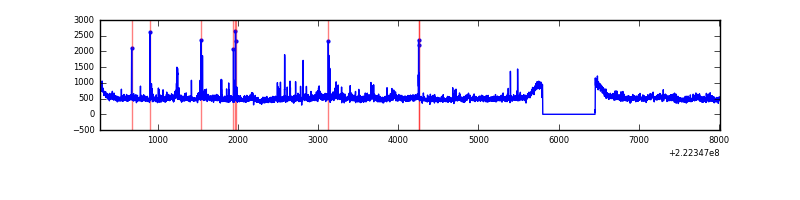

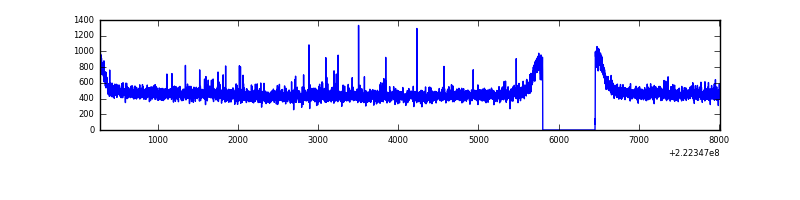

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7738 | 7084 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7738 | 7084 | 113 | 113 | 1.46% | 1.60% |  |
| C | 7738 | 7084 | 103 | 103 | 1.33% | 1.45% |  |
| D | 7738 | 7084 | 9 | 9 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 30666 | 171.08 | 852 | 833 | 174.4 |
| A | 0 | 226 | 8135 | 41.87 | 852 | 833 | 174.4 |
| A | 12 | 194 | 7725 | 39.52 | 852 | 833 | 174.4 |
| B | 4 | 239 | 671996 | 4092.05 | 851 | 830 | 164.0 |
| B | 0 | 214 | 98933 | 598.12 | 851 | 830 | 164.0 |
| B | 4 | 80 | 15812 | 91.34 | 851 | 830 | 164.0 |
| C | 9 | 68 | 583265 | 3019.55 | 828 | 834 | 192.9 |
| C | 4 | 254 | 39270 | 199.27 | 828 | 834 | 192.9 |
| C | 9 | 52 | 12567 | 60.83 | 828 | 834 | 192.9 |
| D | 8 | 195 | 457572 | 2211.72 | 836 | 807 | 206.5 |
| D | 12 | 233 | 37502 | 177.68 | 836 | 807 | 206.5 |
| D | 2 | 14 | 30807 | 145.26 | 836 | 807 | 206.5 |

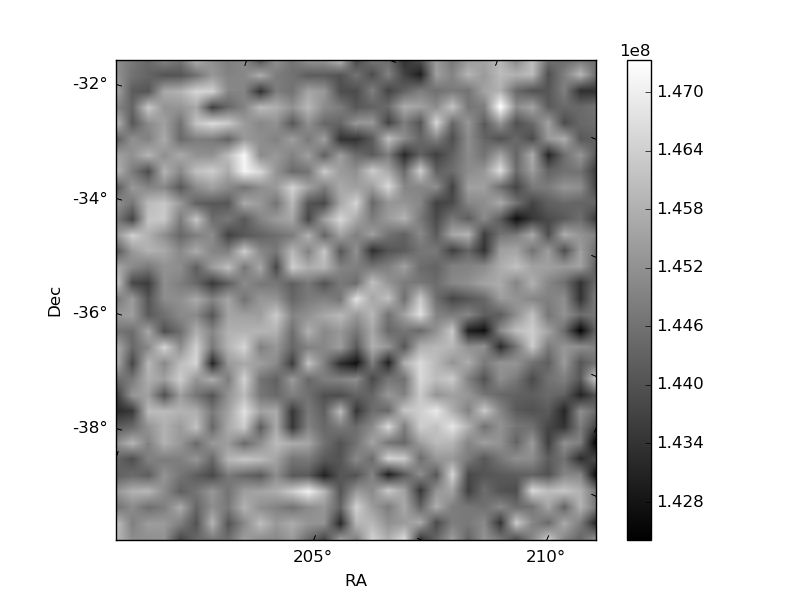

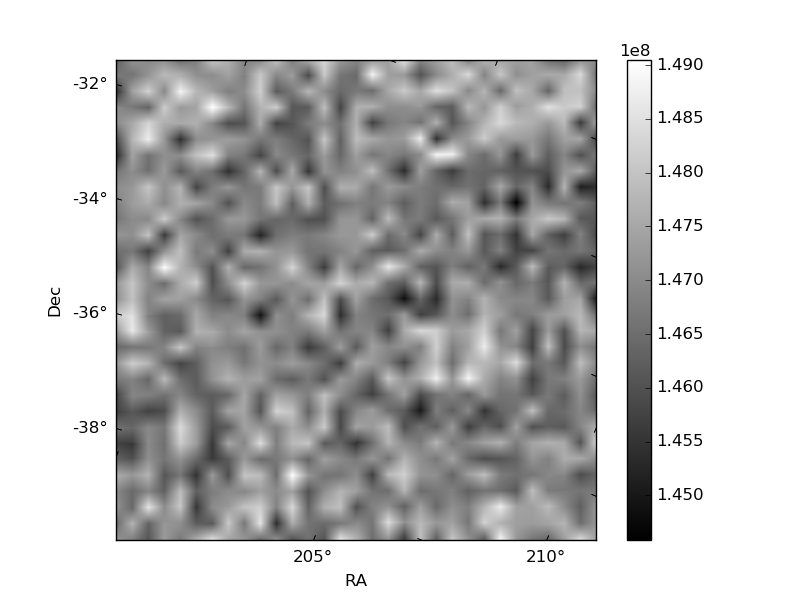

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

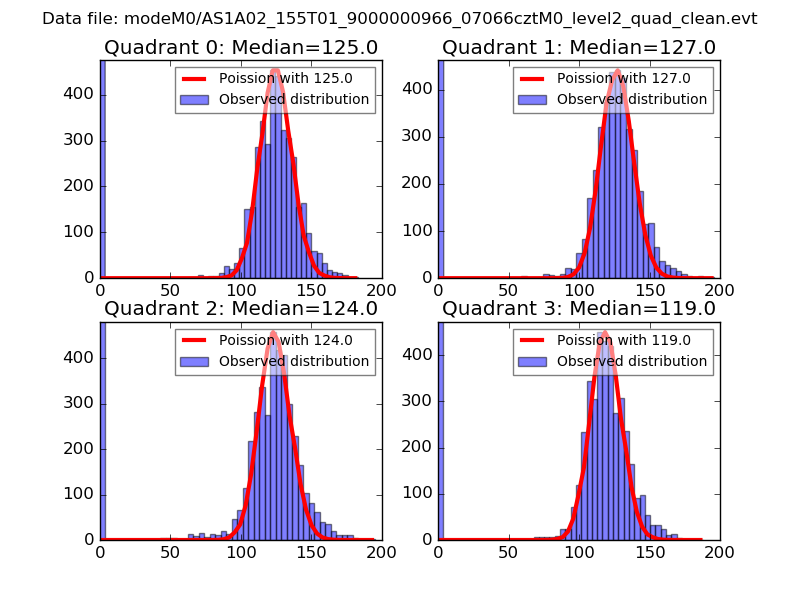

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

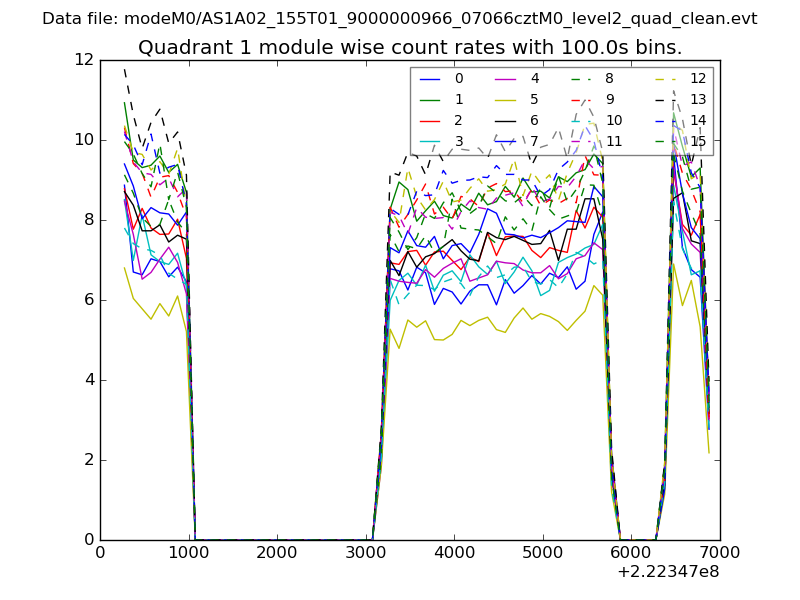

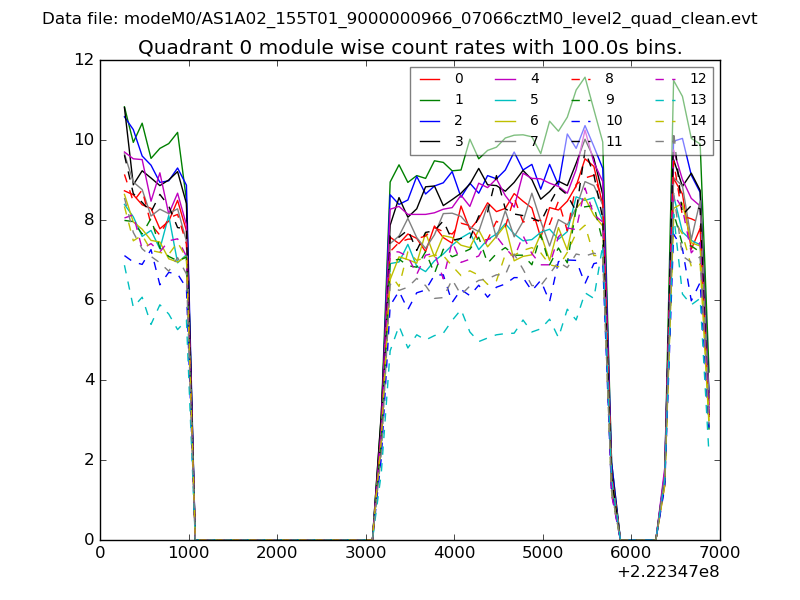

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
