| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000968_07072cztM0_level2.evt | modeM0/AS1G06_164T01_9000000968_07072cztM0_level2_quad_clean.evt |
| Size (bytes) | 945,279,360 | 219,142,080 |
| Size | 901.5 MB | 209.0 MB |
| Events in quadrant A | 6,532,017 | 1,415,259 |
| Events in quadrant B | 7,019,456 | 1,436,308 |
| Events in quadrant C | 6,445,808 | 1,405,911 |
| Events in quadrant D | 7,619,677 | 1,350,365 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 306 | 0 |
| B | 0 | 306 | 0 |
| C | 0 | 306 | 0 |
| D | 0 | 306 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30281 | 4 |
| B | 0 | 31785 | 3 |
| C | 0 | 30275 | 3 |
| D | 0 | 33133 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14915 | 46 | 0.308414% |
| B | 14915 | 119 | 0.797855% |
| C | 14915 | 56 | 0.375461% |
| D | 14915 | 227 | 1.521958% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

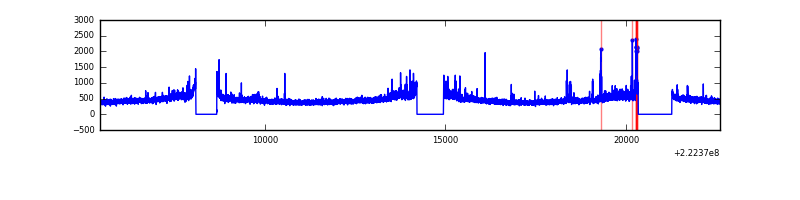

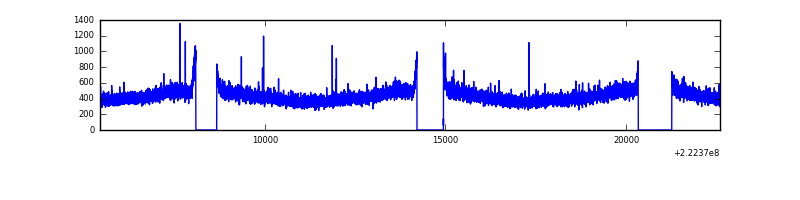

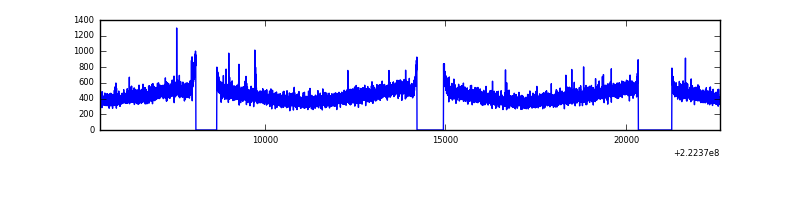

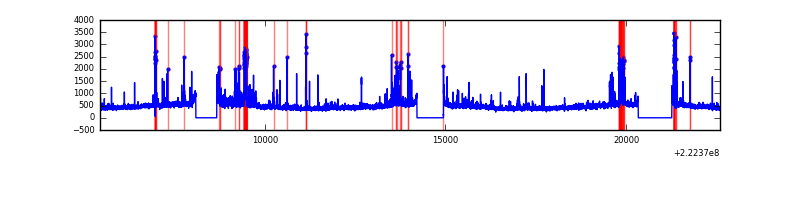

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17160 | 14918 | 0 | 0 | 0.00% | 0.00% |  |
| B | 17160 | 14918 | 9 | 9 | 0.05% | 0.06% |  |
| C | 17160 | 14918 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17160 | 14918 | 123 | 123 | 0.72% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 23348 | 63.44 | 1685 | 1645 | 342.1 |
| A | 8 | 15 | 18042 | 47.93 | 1685 | 1645 | 342.1 |
| A | 0 | 226 | 15970 | 41.87 | 1685 | 1645 | 342.1 |
| B | 0 | 214 | 191114 | 592.13 | 1703 | 1662 | 319.9 |
| B | 0 | 228 | 91898 | 282.03 | 1703 | 1662 | 319.9 |
| B | 4 | 142 | 55345 | 167.79 | 1703 | 1662 | 319.9 |
| C | 13 | 61 | 12980 | 29.95 | 1640 | 1646 | 378.4 |
| C | 7 | 247 | 10185 | 22.57 | 1640 | 1646 | 378.4 |
| C | 4 | 254 | 10113 | 22.38 | 1640 | 1646 | 378.4 |
| D | 8 | 195 | 602291 | 1527.86 | 1628 | 1576 | 393.2 |
| D | 12 | 233 | 458457 | 1162.03 | 1628 | 1576 | 393.2 |
| D | 14 | 34 | 149819 | 377.04 | 1628 | 1576 | 393.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

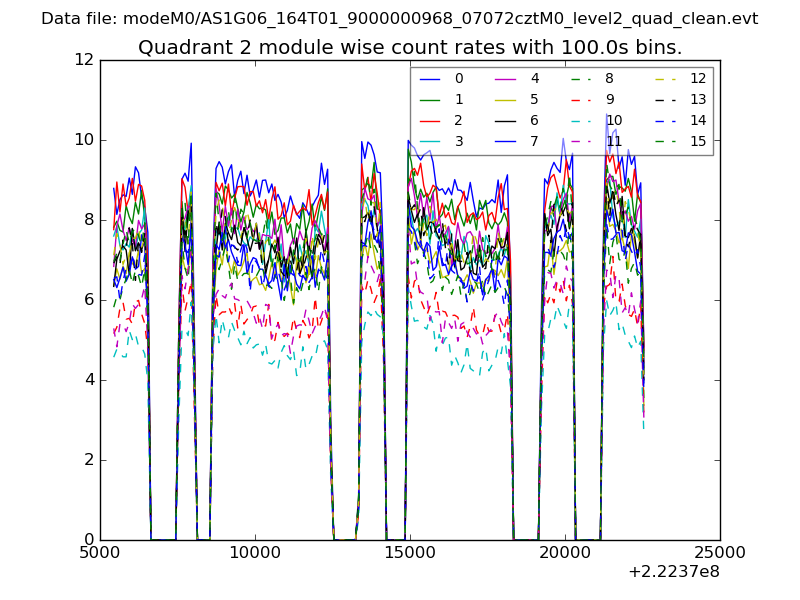

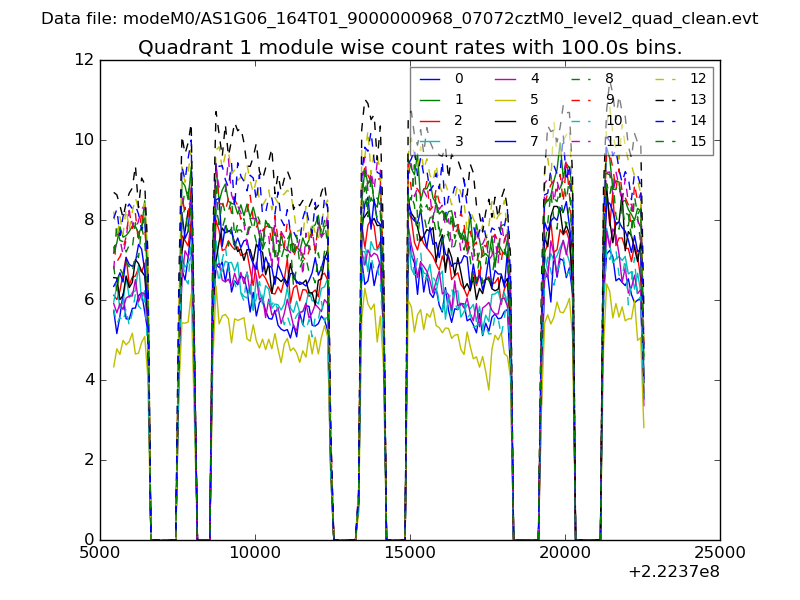

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

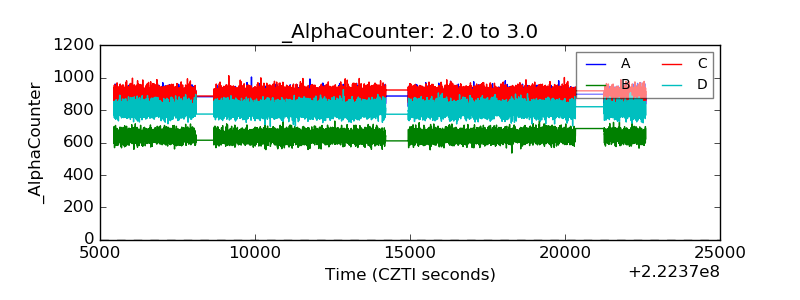

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
