| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000968_07078cztM0_level2.evt | modeM0/AS1G06_164T01_9000000968_07078cztM0_level2_quad_clean.evt |
| Size (bytes) | 415,569,600 | 87,209,280 |
| Size | 396.3 MB | 83.2 MB |
| Events in quadrant A | 2,709,618 | 571,110 |
| Events in quadrant B | 3,326,972 | 579,136 |
| Events in quadrant C | 2,609,990 | 556,923 |
| Events in quadrant D | 3,545,208 | 529,214 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11846 | 2 |
| B | 0 | 13615 | 1 |
| C | 0 | 11842 | 1 |
| D | 0 | 14433 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5785 | 142 | 2.454624% |
| B | 5785 | 247 | 4.269663% |
| C | 5785 | 89 | 1.538462% |
| D | 5785 | 292 | 5.047537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6990 | 5786 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6990 | 5786 | 66 | 66 | 0.94% | 1.14% |  |
| C | 6990 | 5786 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6990 | 5786 | 188 | 188 | 2.69% | 3.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 16557 | 113.87 | 697 | 684 | 139.4 |
| A | 13 | 14 | 6980 | 45.17 | 697 | 684 | 139.4 |
| A | 0 | 226 | 6607 | 42.49 | 697 | 684 | 139.4 |
| B | 0 | 219 | 557388 | 4240.99 | 696 | 679 | 131.3 |
| B | 0 | 214 | 69460 | 523.97 | 696 | 679 | 131.3 |
| B | 12 | 111 | 12912 | 93.19 | 696 | 679 | 131.3 |
| C | 1 | 3 | 6573 | 38.62 | 665 | 667 | 152.9 |
| C | 13 | 61 | 5247 | 29.95 | 665 | 667 | 152.9 |
| C | 10 | 22 | 3501 | 18.53 | 665 | 667 | 152.9 |
| D | 9 | 68 | 427368 | 2678.65 | 662 | 640 | 159.3 |
| D | 1 | 83 | 358167 | 2244.26 | 662 | 640 | 159.3 |
| D | 8 | 195 | 83640 | 521.01 | 662 | 640 | 159.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

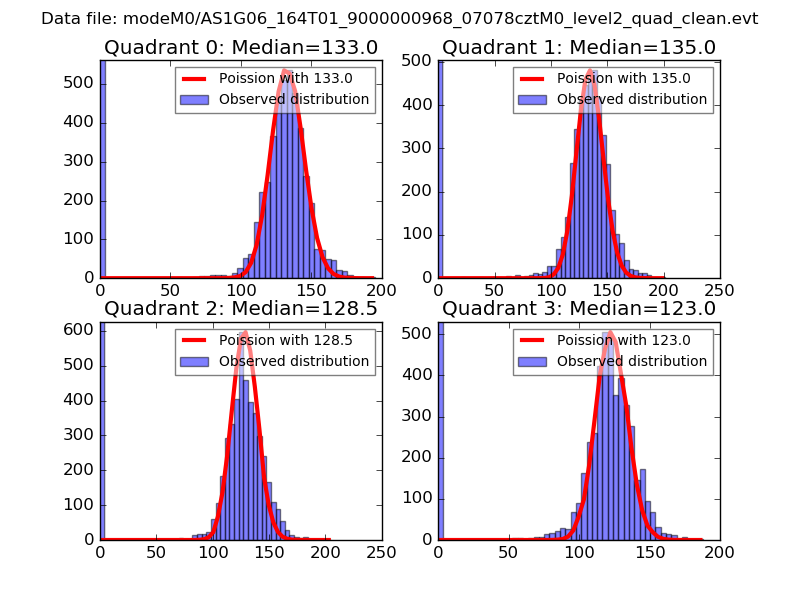

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

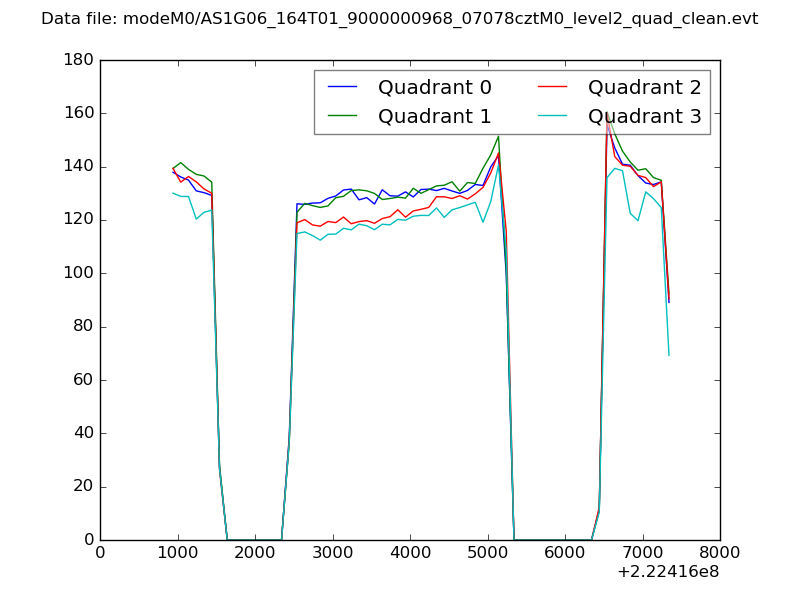

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

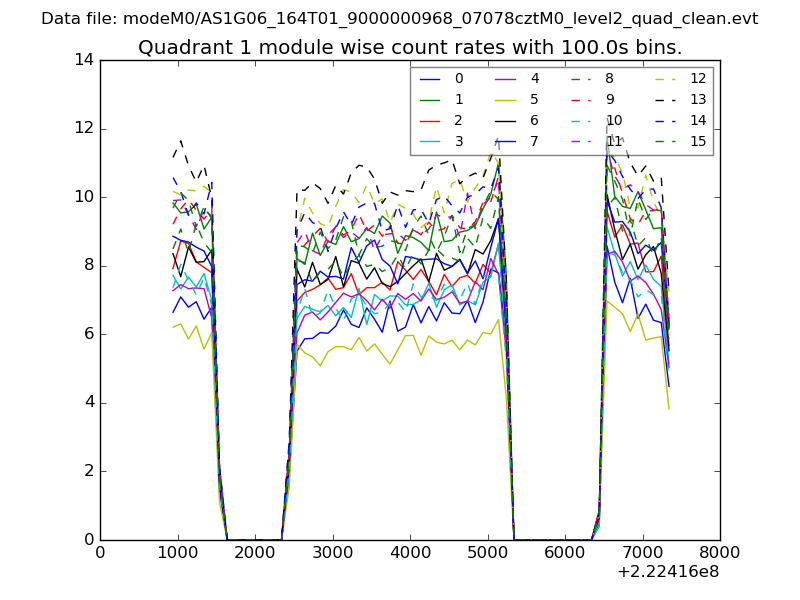

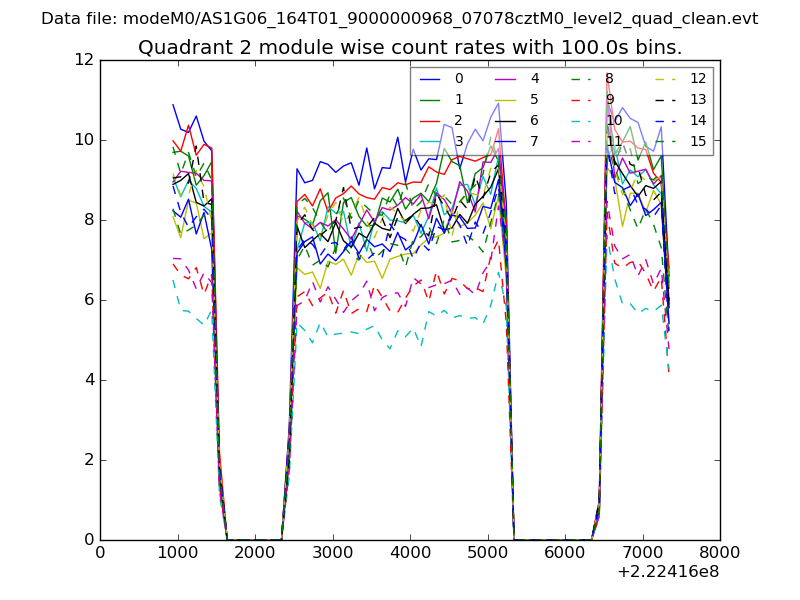

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

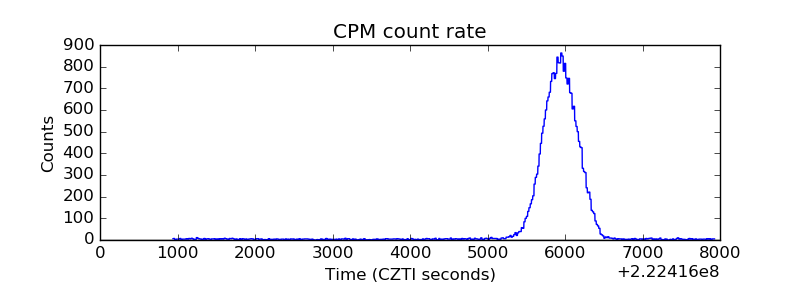

| _CPM_Rate |  |

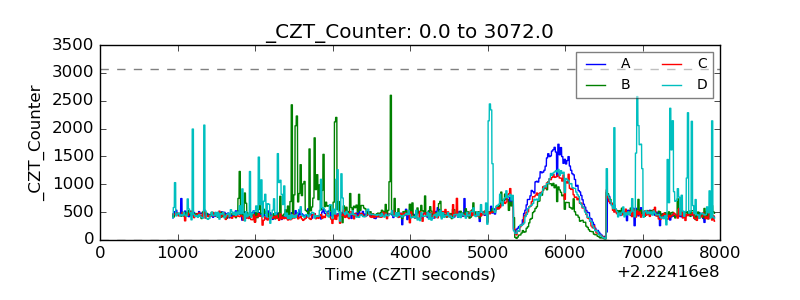

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

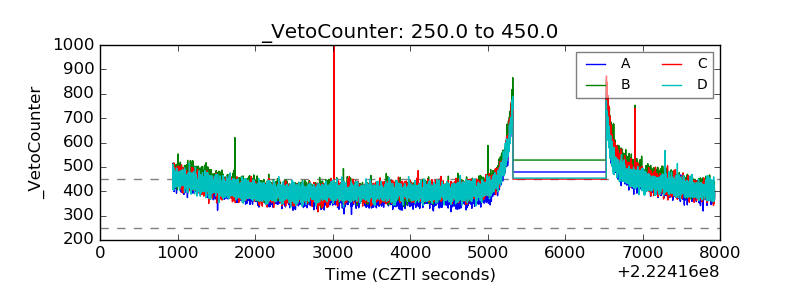

| Veto Counter |  |
