| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T01_9000000970_07101cztM0_level2.evt | modeM0/AS1A02_090T01_9000000970_07101cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,698,240 | 107,812,800 |
| Size | 462.2 MB | 102.8 MB |
| Events in quadrant A | 3,363,214 | 699,247 |
| Events in quadrant B | 3,533,920 | 707,275 |
| Events in quadrant C | 3,372,825 | 693,163 |
| Events in quadrant D | 3,917,574 | 661,559 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14909 | 3 |
| B | 0 | 15238 | 2 |
| C | 0 | 14840 | 2 |
| D | 0 | 16350 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7234 | 64 | 0.884711% |
| B | 7234 | 74 | 1.022947% |
| C | 7234 | 54 | 0.746475% |
| D | 7234 | 85 | 1.175007% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8894 | 7234 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8894 | 7234 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8894 | 7235 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8894 | 7234 | 37 | 37 | 0.42% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8228 | 41.34 | 873 | 856 | 178.3 |
| A | 12 | 194 | 7758 | 38.7 | 873 | 856 | 178.3 |
| A | 3 | 137 | 2723 | 10.47 | 873 | 856 | 178.3 |
| B | 0 | 214 | 53460 | 308.54 | 883 | 862 | 170.5 |
| B | 0 | 219 | 28700 | 163.3 | 883 | 862 | 170.5 |
| B | 4 | 81 | 23799 | 134.55 | 883 | 862 | 170.5 |
| C | 9 | 68 | 32186 | 157.61 | 852 | 860 | 198.8 |
| C | 13 | 61 | 6757 | 29.67 | 852 | 860 | 198.8 |
| C | 8 | 128 | 5868 | 25.19 | 852 | 860 | 198.8 |
| D | 8 | 195 | 364351 | 1732.52 | 850 | 824 | 209.8 |
| D | 13 | 169 | 199079 | 944.86 | 850 | 824 | 209.8 |
| D | 2 | 216 | 55368 | 259.95 | 850 | 824 | 209.8 |

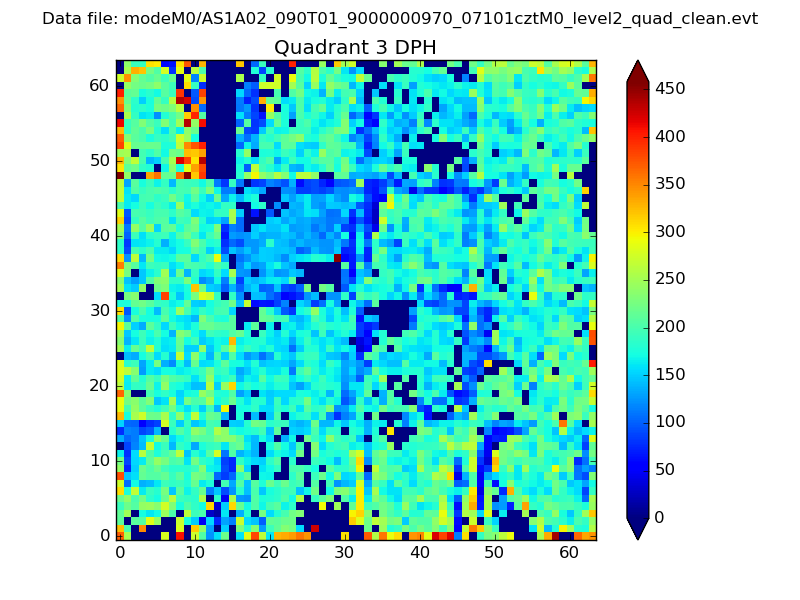

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

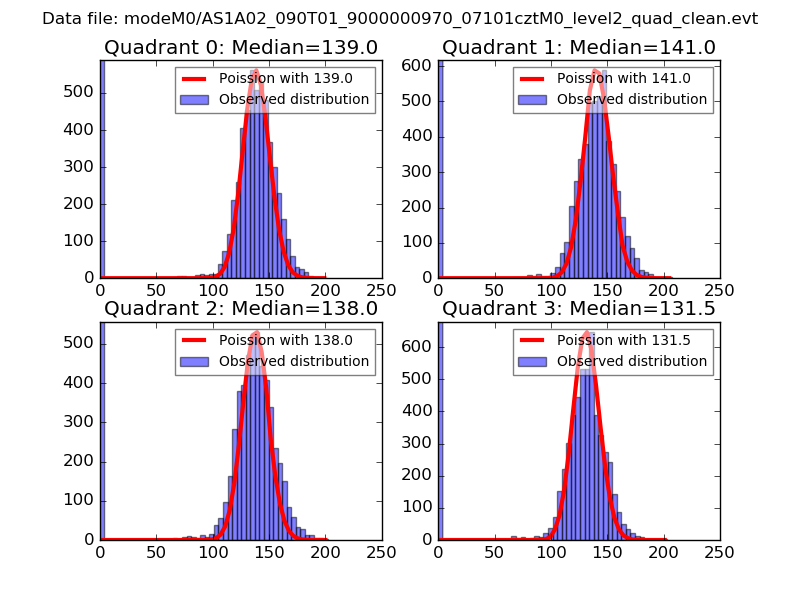

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

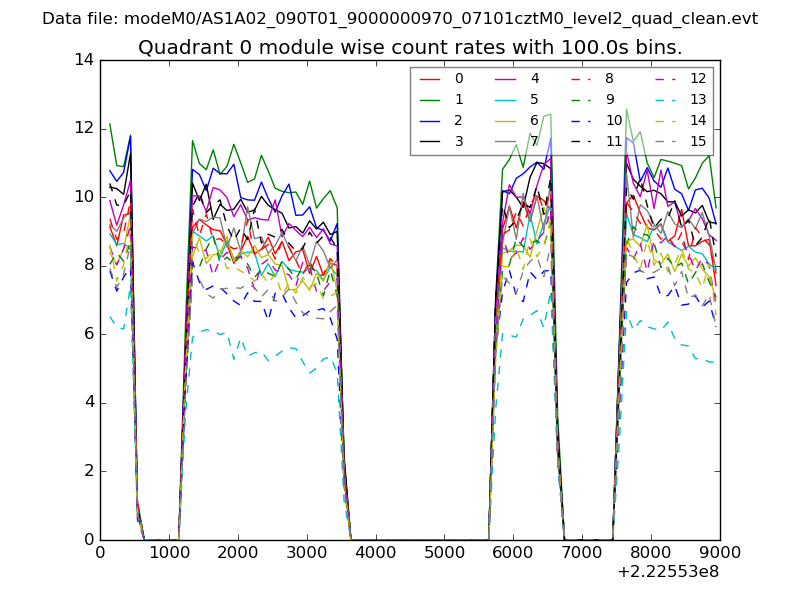

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

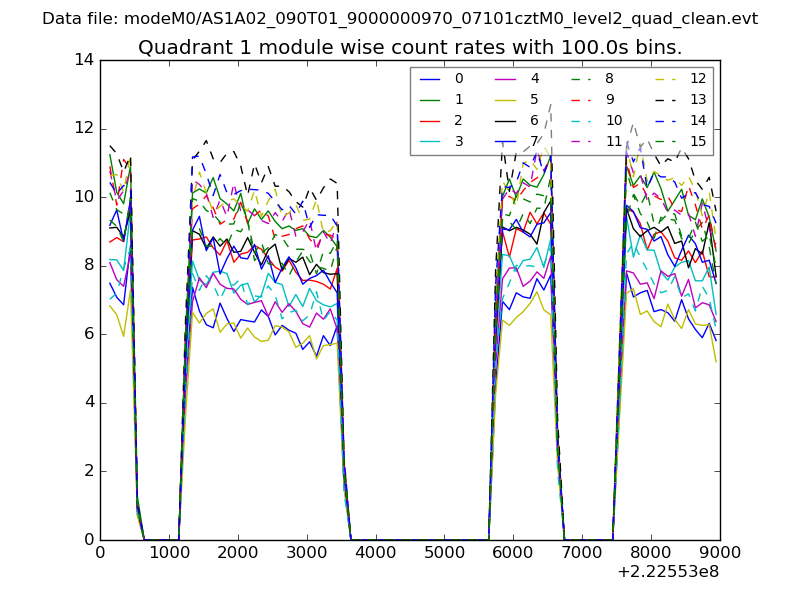

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

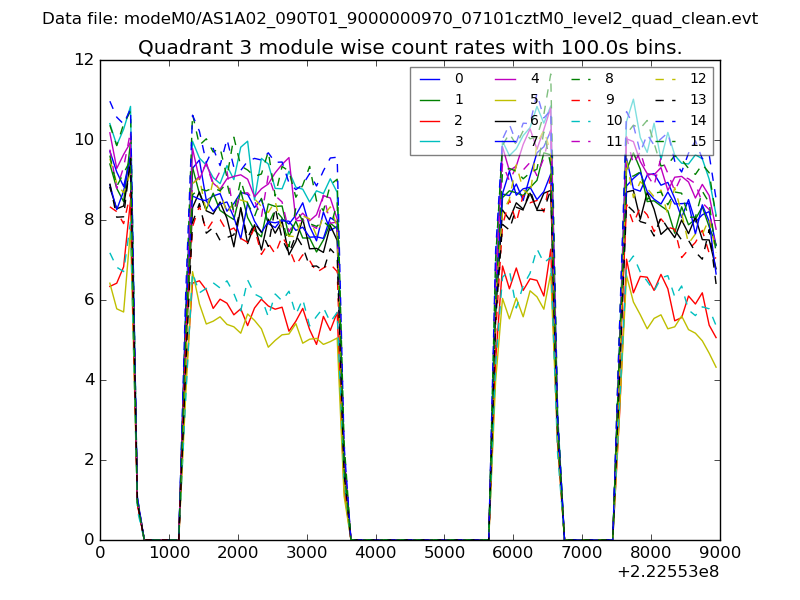

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

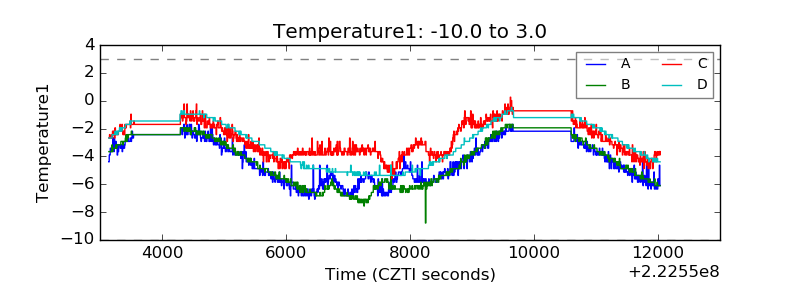

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

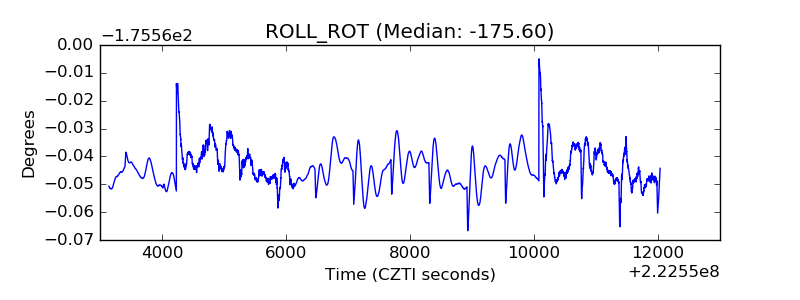

| _ROLL_ROT |  |
| _Roll_DEC |  |

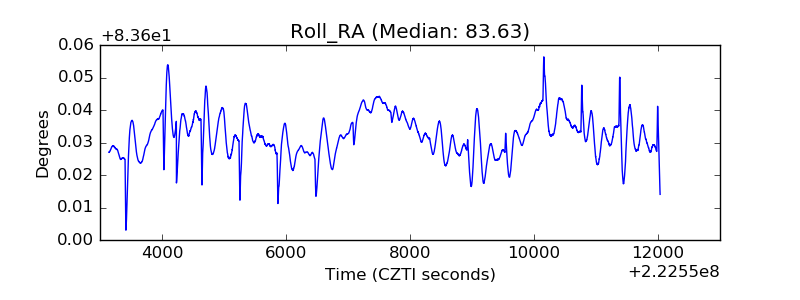

| _Roll_RA |  |
| Veto Counter |  |
