| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_090T01_9000000970_07112cztM0_level2.evt | modeM0/AS1A02_090T01_9000000970_07112cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,673,280 | 102,864,960 |
| Size | 482.2 MB | 98.1 MB |
| Events in quadrant A | 3,308,745 | 667,235 |
| Events in quadrant B | 3,628,112 | 672,304 |
| Events in quadrant C | 3,394,762 | 664,014 |
| Events in quadrant D | 4,504,988 | 621,842 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14522 | 2 |
| B | 0 | 15275 | 1 |
| C | 0 | 14850 | 1 |
| D | 0 | 17691 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7035 | 154 | 2.189055% |
| B | 7035 | 199 | 2.828714% |
| C | 7035 | 122 | 1.734186% |
| D | 7035 | 306 | 4.349680% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 7035 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7285 | 7035 | 33 | 33 | 0.45% | 0.47% |  |
| C | 7285 | 7035 | 18 | 18 | 0.25% | 0.26% |  |
| D | 7285 | 7035 | 175 | 175 | 2.40% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8260 | 41.84 | 855 | 838 | 177.4 |
| A | 12 | 194 | 7794 | 39.21 | 855 | 838 | 177.4 |
| A | 8 | 15 | 6576 | 32.35 | 855 | 838 | 177.4 |
| B | 3 | 220 | 117818 | 712.56 | 854 | 835 | 164.2 |
| B | 0 | 214 | 114530 | 692.53 | 854 | 835 | 164.2 |
| B | 4 | 81 | 39546 | 235.79 | 854 | 835 | 164.2 |
| C | 4 | 254 | 130421 | 665.44 | 829 | 836 | 194.7 |
| C | 9 | 68 | 13851 | 66.83 | 829 | 836 | 194.7 |
| C | 13 | 61 | 6449 | 28.82 | 829 | 836 | 194.7 |
| D | 2 | 216 | 985562 | 4815.63 | 823 | 799 | 204.5 |
| D | 8 | 195 | 352156 | 1718.18 | 823 | 799 | 204.5 |
| D | 5 | 81 | 24946 | 118.08 | 823 | 799 | 204.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

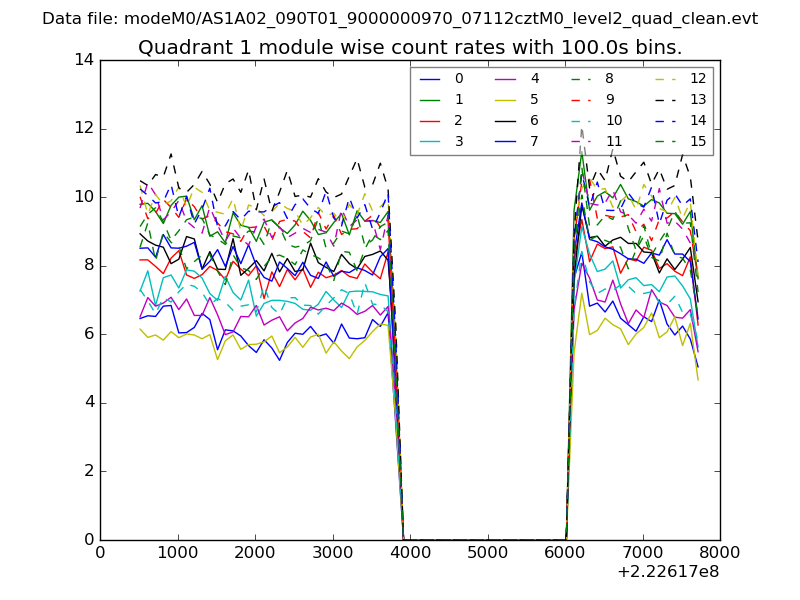

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

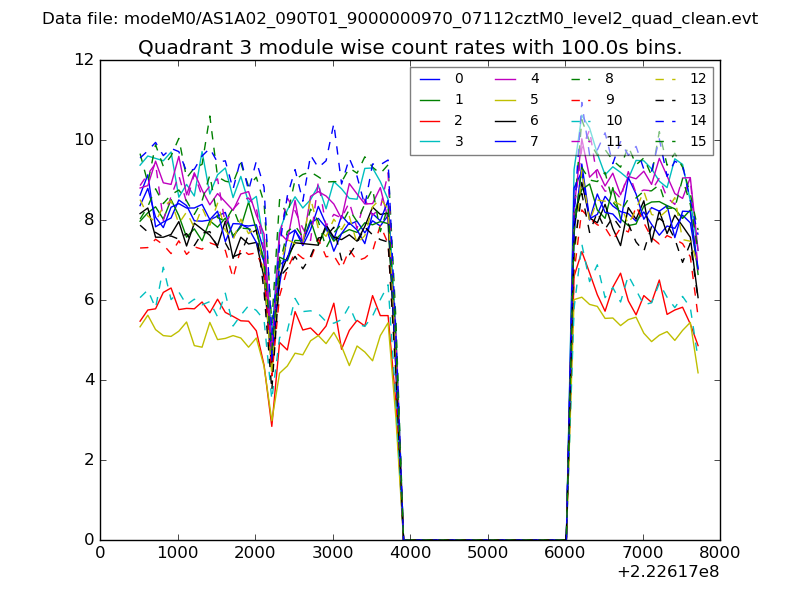

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

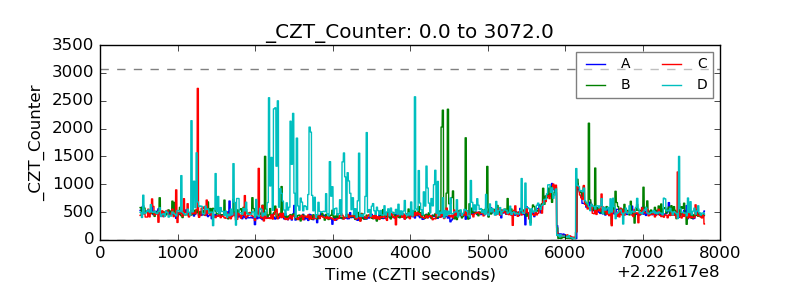

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

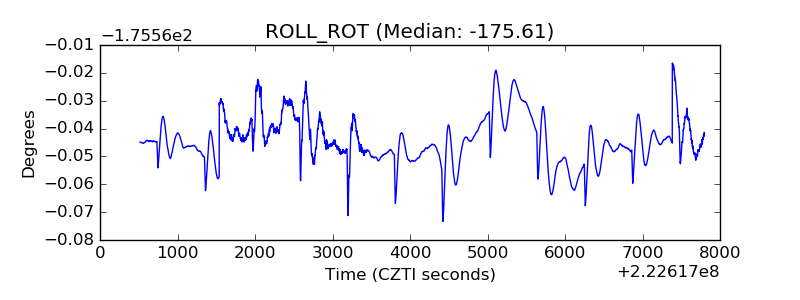

| _ROLL_ROT |  |

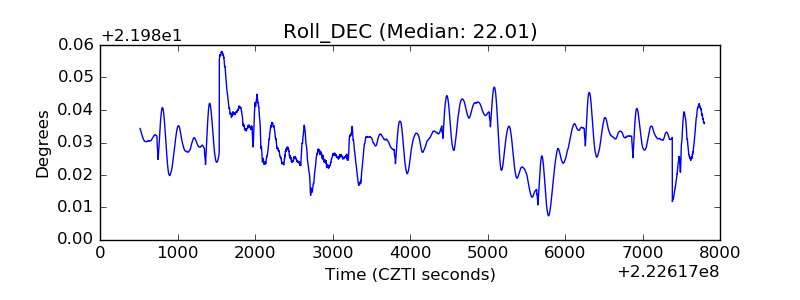

| _Roll_DEC |  |

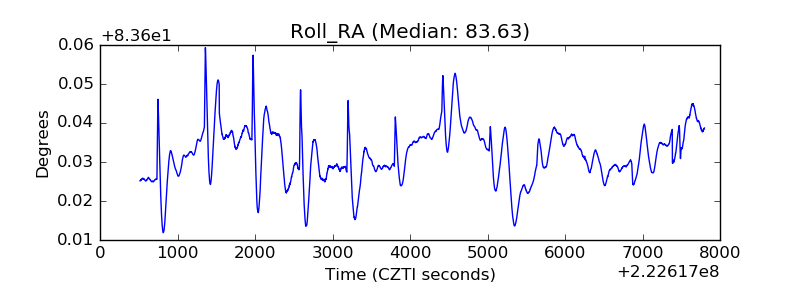

| _Roll_RA |  |

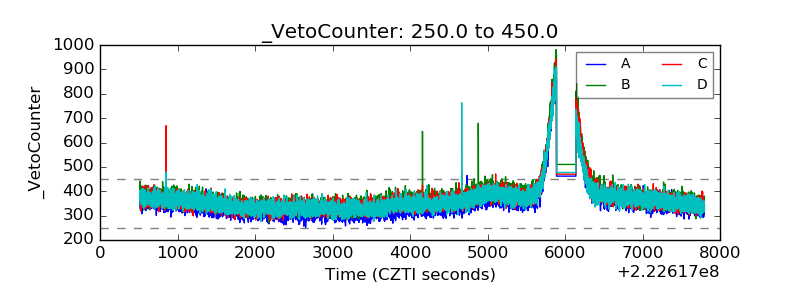

| Veto Counter |  |
