| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_051T01_9000000972_07133cztM0_level2.evt | modeM0/AS1G06_051T01_9000000972_07133cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,350,045,440 | 429,249,600 |
| Size | 2.2 GB | 409.4 MB |
| Events in quadrant A | 15,763,138 | 2,685,355 |
| Events in quadrant B | 16,726,079 | 2,735,538 |
| Events in quadrant C | 16,056,009 | 2,679,393 |
| Events in quadrant D | 20,300,028 | 2,535,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 698 | 0 |
| B | 0 | 698 | 0 |
| C | 0 | 698 | 0 |
| D | 0 | 698 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70783 | 8 |
| B | 0 | 73020 | 7 |
| C | 0 | 71671 | 7 |
| D | 0 | 84253 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34450 | 247 | 0.716981% |
| B | 34450 | 329 | 0.955007% |
| C | 34450 | 291 | 0.844702% |
| D | 34450 | 1538 | 4.464441% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 39800 | 34452 | 4 | 4 | 0.01% | 0.01% |  |
| B | 39800 | 34451 | 16 | 16 | 0.04% | 0.05% |  |
| C | 39800 | 34451 | 84 | 84 | 0.21% | 0.24% |  |
| D | 39800 | 34452 | 1087 | 1087 | 2.73% | 3.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 145397 | 172.58 | 4018 | 3923 | 819.8 |
| A | 13 | 248 | 80219 | 93.07 | 4018 | 3923 | 819.8 |
| A | 3 | 1 | 46990 | 52.54 | 4018 | 3923 | 819.8 |
| B | 10 | 246 | 454301 | 590.66 | 4043 | 3948 | 762.5 |
| B | 0 | 214 | 251684 | 324.92 | 4043 | 3948 | 762.5 |
| B | 0 | 219 | 118273 | 149.94 | 4043 | 3948 | 762.5 |
| C | 4 | 254 | 587363 | 647.46 | 3901 | 3918 | 901.1 |
| C | 9 | 68 | 199725 | 217.29 | 3901 | 3918 | 901.1 |
| C | 13 | 61 | 30437 | 29.43 | 3901 | 3918 | 901.1 |
| D | 2 | 216 | 3762996 | 3985.45 | 3840 | 3725 | 943.2 |
| D | 8 | 195 | 728370 | 768.24 | 3840 | 3725 | 943.2 |
| D | 12 | 233 | 657740 | 693.36 | 3840 | 3725 | 943.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

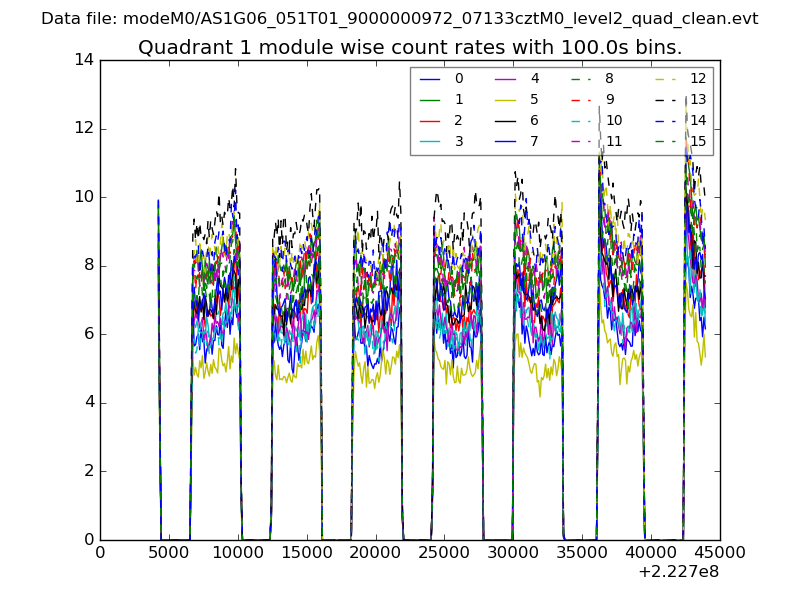

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

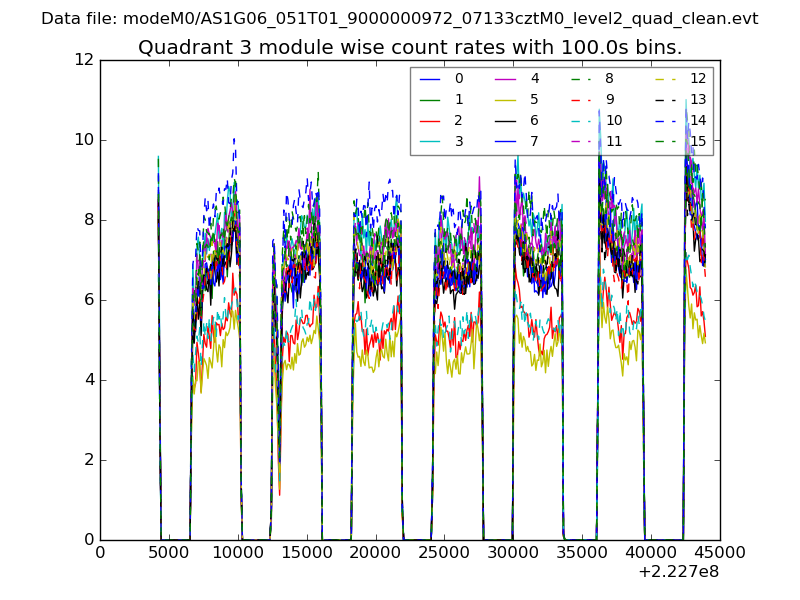

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

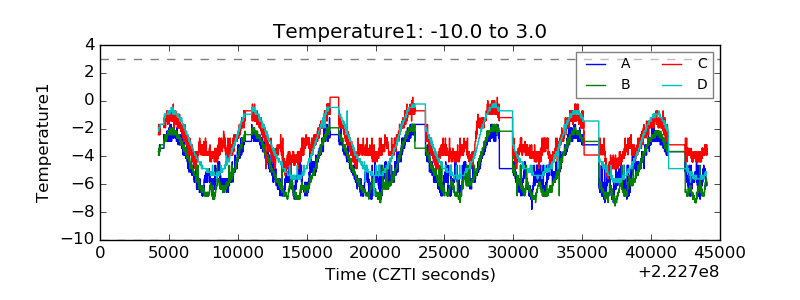

| Temperature 1 |  |
| Veto HV Monitor |  |

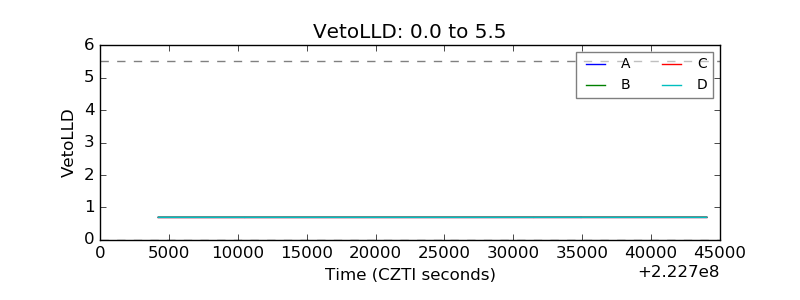

| Veto LLD |  |

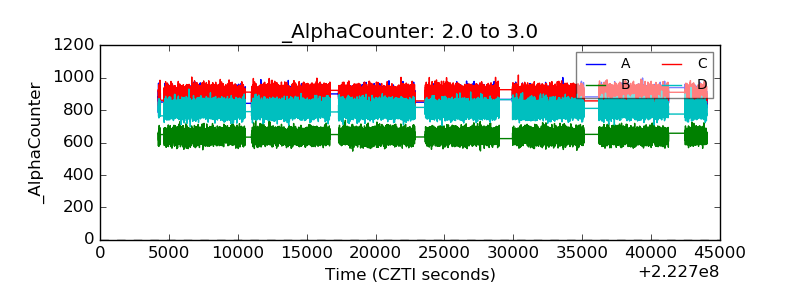

| Alpha Counter |  |
| _CPM_Rate |  |

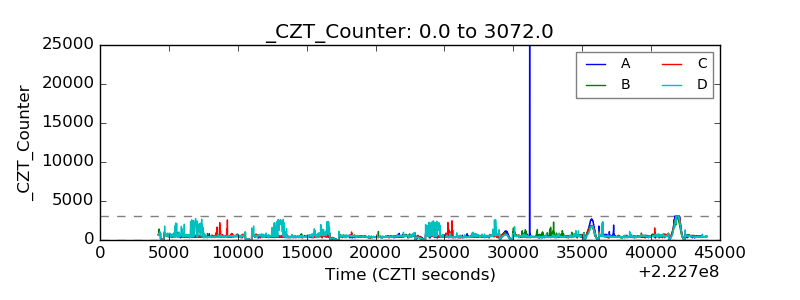

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

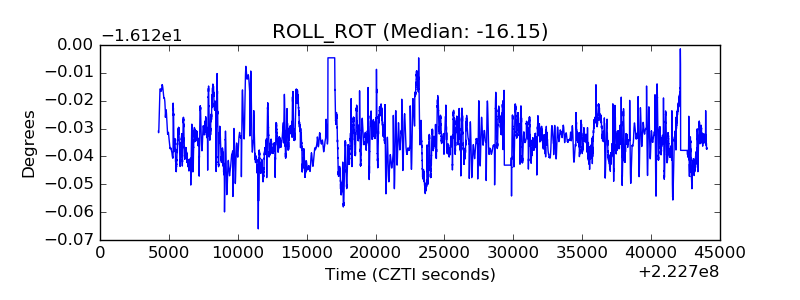

| _ROLL_ROT |  |
| _Roll_DEC |  |

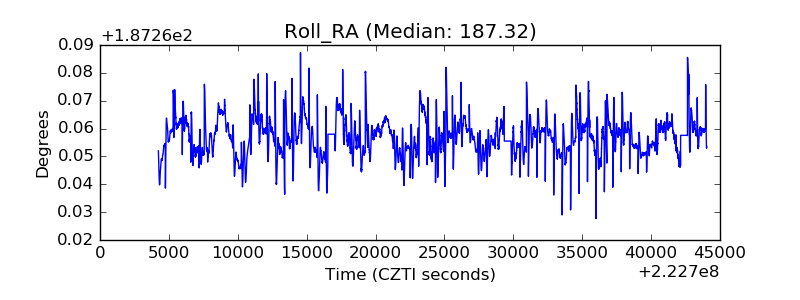

| _Roll_RA |  |
| Veto Counter |  |
