| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_051T01_9000000972_07136cztM0_level2.evt | modeM0/AS1G06_051T01_9000000972_07136cztM0_level2_quad_clean.evt |
| Size (bytes) | 737,657,280 | 137,148,480 |
| Size | 703.5 MB | 130.8 MB |
| Events in quadrant A | 5,314,809 | 850,535 |
| Events in quadrant B | 5,503,732 | 876,602 |
| Events in quadrant C | 5,210,794 | 853,044 |
| Events in quadrant D | 5,569,204 | 816,015 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22814 | 3 |
| B | 0 | 23482 | 2 |
| C | 0 | 22688 | 2 |
| D | 0 | 23740 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10951 | 114 | 1.041001% |
| B | 10951 | 134 | 1.223633% |
| C | 10951 | 83 | 0.757922% |
| D | 10951 | 99 | 0.904027% |

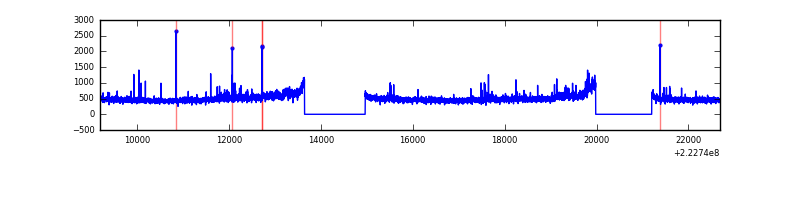

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13491 | 10952 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13491 | 10952 | 5 | 5 | 0.04% | 0.05% |  |
| C | 13491 | 10952 | 2 | 2 | 0.01% | 0.02% |  |
| D | 13491 | 10952 | 24 | 24 | 0.18% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 95667 | 346.04 | 1349 | 1322 | 272.6 |
| A | 8 | 15 | 22396 | 77.3 | 1349 | 1322 | 272.6 |
| A | 0 | 226 | 13079 | 43.12 | 1349 | 1322 | 272.6 |
| B | 0 | 219 | 137597 | 530.51 | 1357 | 1326 | 256.9 |
| B | 0 | 214 | 80394 | 307.82 | 1357 | 1326 | 256.9 |
| B | 4 | 81 | 37028 | 138.99 | 1357 | 1326 | 256.9 |
| C | 9 | 68 | 51387 | 165.14 | 1311 | 1319 | 303.2 |
| C | 7 | 247 | 33197 | 105.14 | 1311 | 1319 | 303.2 |
| C | 10 | 22 | 11175 | 32.51 | 1311 | 1319 | 303.2 |
| D | 12 | 233 | 282454 | 878.94 | 1310 | 1267 | 319.9 |
| D | 2 | 136 | 136331 | 422.19 | 1310 | 1267 | 319.9 |
| D | 8 | 195 | 87257 | 268.79 | 1310 | 1267 | 319.9 |

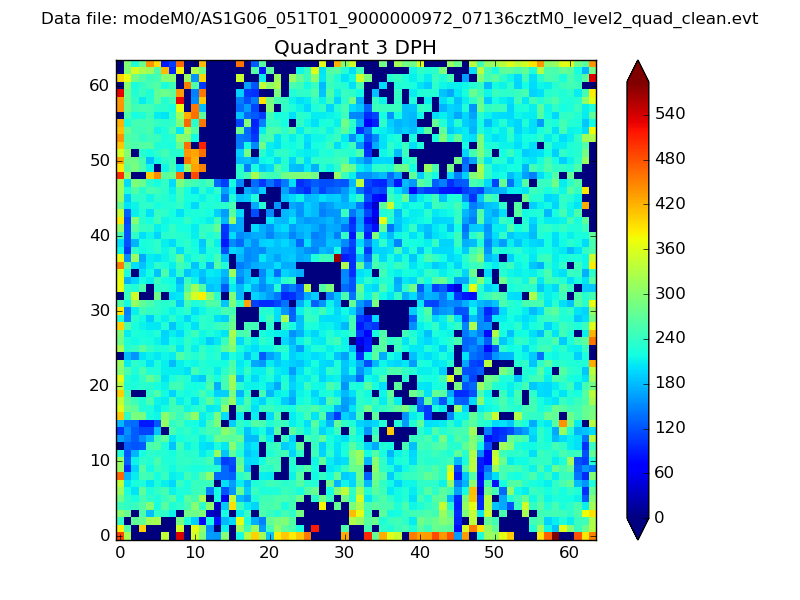

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

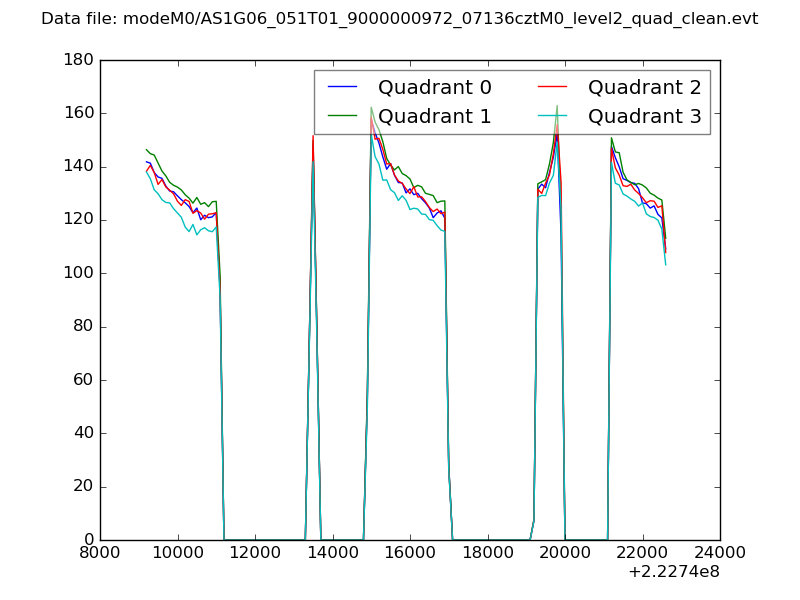

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

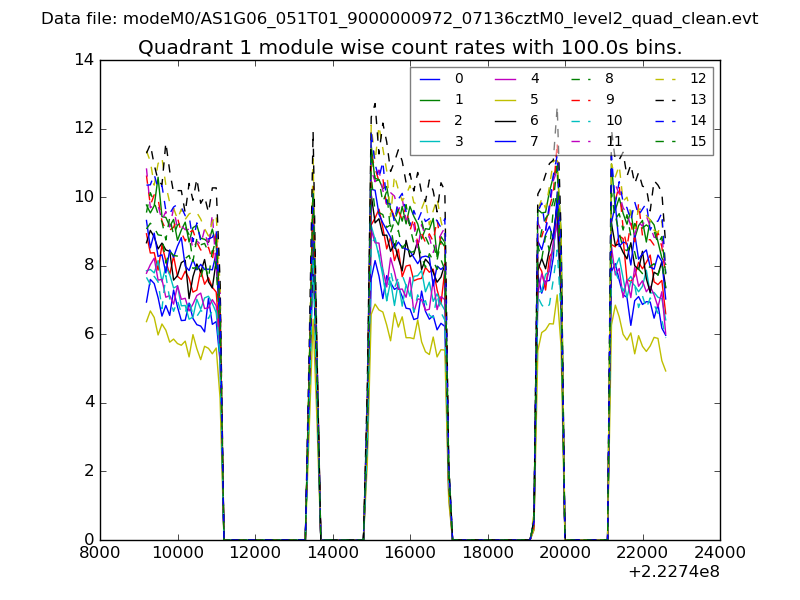

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

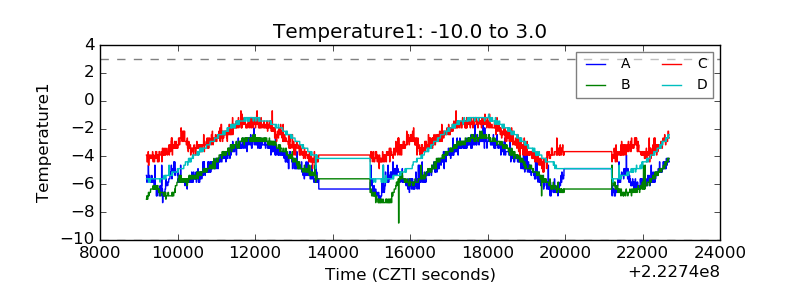

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

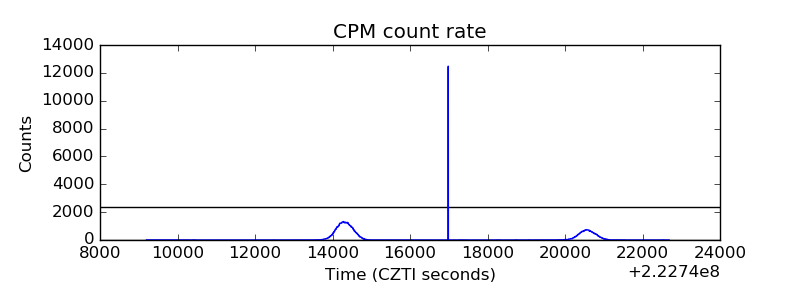

| _CPM_Rate |  |

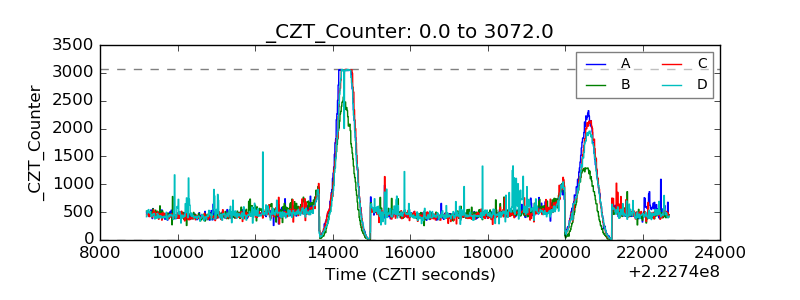

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

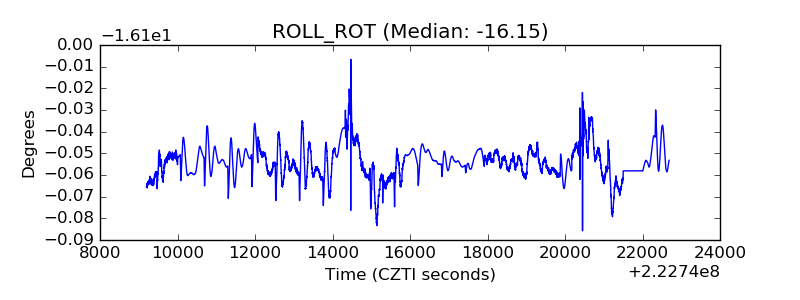

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
