| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T02_9000000974_07149cztM0_level2.evt | modeM0/AS1G06_029T02_9000000974_07149cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,332,800 | 89,072,640 |
| Size | 422.8 MB | 84.9 MB |
| Events in quadrant A | 3,106,721 | 564,772 |
| Events in quadrant B | 3,128,932 | 584,215 |
| Events in quadrant C | 2,986,482 | 567,407 |
| Events in quadrant D | 3,765,879 | 531,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13427 | 2 |
| B | 0 | 13446 | 1 |
| C | 0 | 13232 | 1 |
| D | 0 | 15420 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6452 | 28 | 0.433974% |
| B | 6452 | 35 | 0.542467% |
| C | 6452 | 21 | 0.325480% |
| D | 6452 | 93 | 1.441414% |

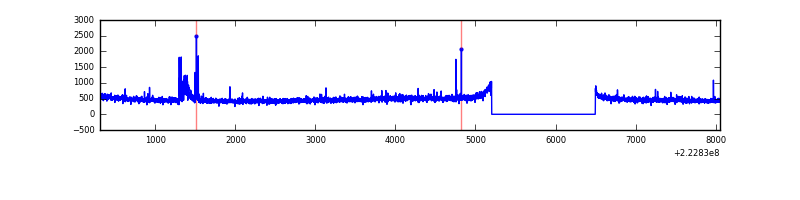

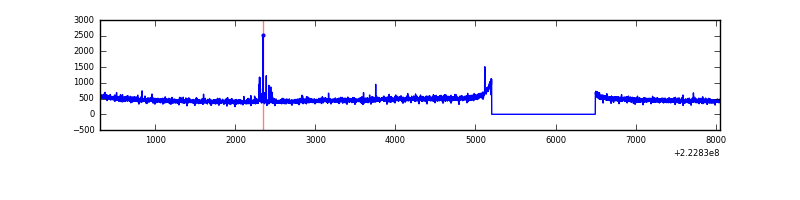

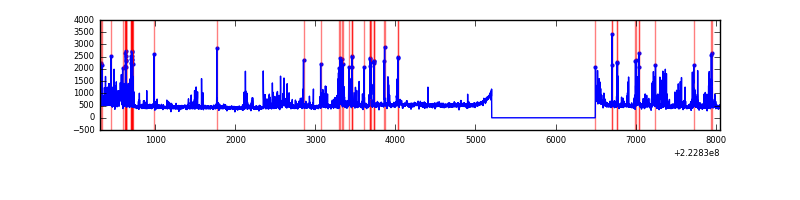

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 6453 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7747 | 6452 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7747 | 6453 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7747 | 6453 | 59 | 59 | 0.76% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 52850 | 331.87 | 780 | 767 | 156.9 |
| A | 13 | 248 | 25444 | 157.24 | 780 | 767 | 156.9 |
| A | 8 | 15 | 20740 | 127.27 | 780 | 767 | 156.9 |
| B | 0 | 214 | 32553 | 212.33 | 789 | 771 | 149.7 |
| B | 0 | 219 | 28845 | 187.56 | 789 | 771 | 149.7 |
| B | 12 | 111 | 14904 | 94.42 | 789 | 771 | 149.7 |
| C | 4 | 254 | 28333 | 159.33 | 755 | 759 | 173.1 |
| C | 10 | 22 | 8559 | 45.07 | 755 | 759 | 173.1 |
| C | 13 | 61 | 6065 | 30.66 | 755 | 759 | 173.1 |
| D | 2 | 216 | 603778 | 3305.72 | 747 | 722 | 182.4 |
| D | 8 | 195 | 186625 | 1019.05 | 747 | 722 | 182.4 |
| D | 2 | 14 | 146155 | 797.21 | 747 | 722 | 182.4 |

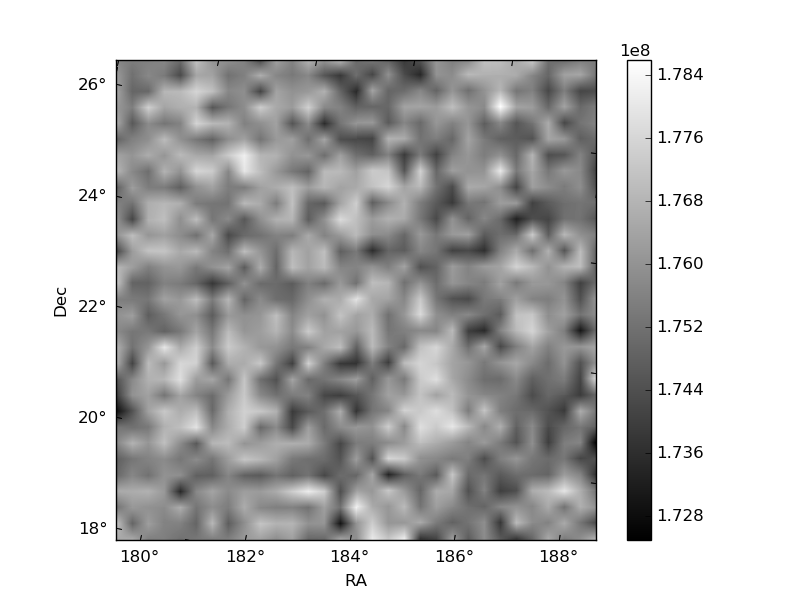

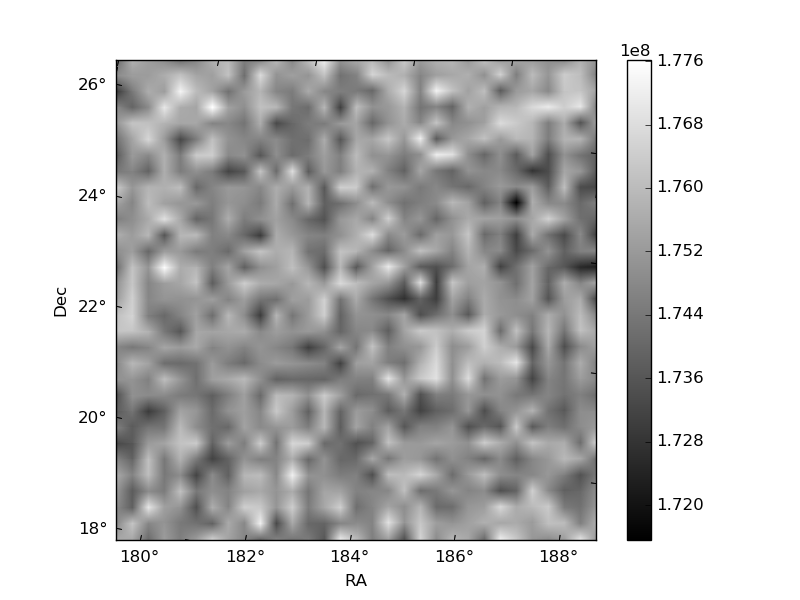

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

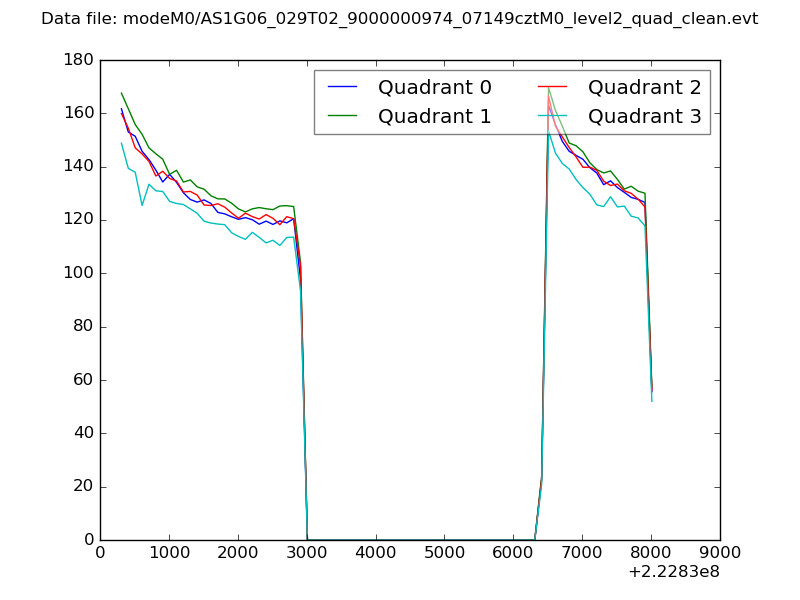

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

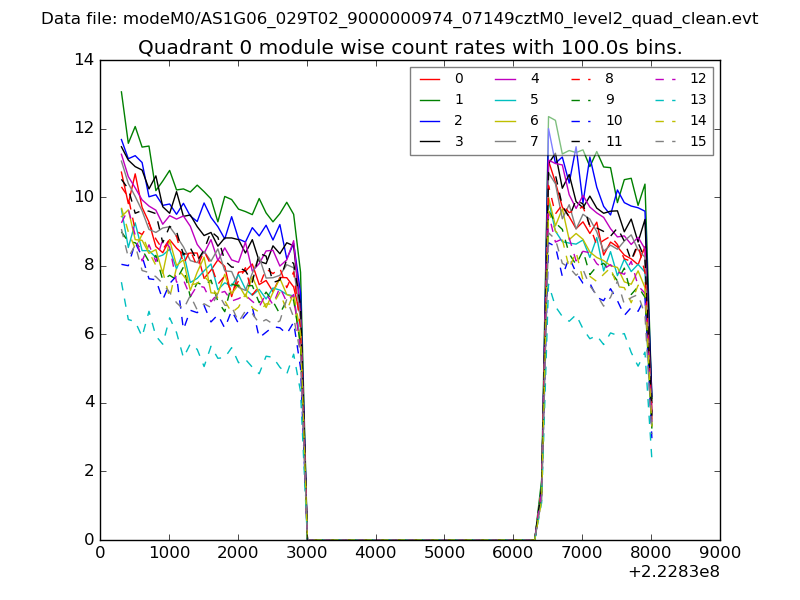

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

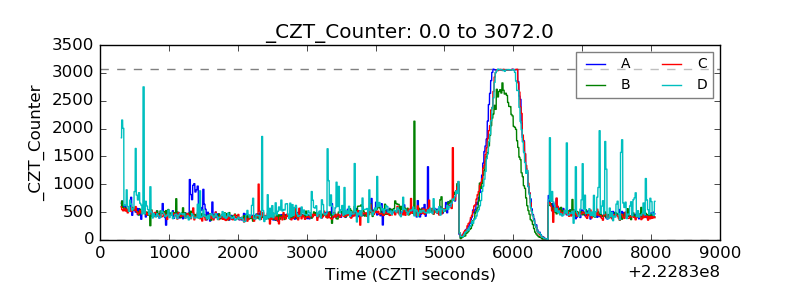

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
