| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_029T02_9000000974_07159cztM0_level2.evt | modeM0/AS1G06_029T02_9000000974_07159cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,621,120 | 87,384,960 |
| Size | 461.2 MB | 83.3 MB |
| Events in quadrant A | 3,205,490 | 544,697 |
| Events in quadrant B | 3,349,029 | 555,175 |
| Events in quadrant C | 3,231,845 | 548,551 |
| Events in quadrant D | 4,391,022 | 516,565 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14220 | 3 |
| B | 0 | 14746 | 2 |
| C | 0 | 14455 | 2 |
| D | 0 | 17672 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6900 | 48 | 0.695652% |
| B | 6900 | 77 | 1.115942% |
| C | 6900 | 66 | 0.956522% |
| D | 6900 | 259 | 3.753623% |

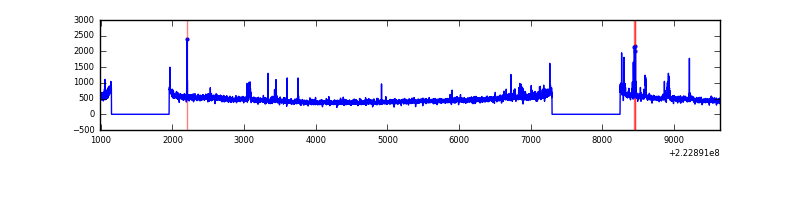

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8655 | 6900 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8655 | 6900 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8655 | 6900 | 12 | 12 | 0.14% | 0.17% |  |
| D | 8655 | 6900 | 159 | 159 | 1.84% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 59186 | 350.26 | 810 | 791 | 166.7 |
| A | 13 | 248 | 17011 | 97.29 | 810 | 791 | 166.7 |
| A | 0 | 226 | 7693 | 41.4 | 810 | 791 | 166.7 |
| B | 0 | 214 | 69699 | 432.01 | 819 | 797 | 159.5 |
| B | 4 | 80 | 38309 | 235.2 | 819 | 797 | 159.5 |
| B | 4 | 81 | 31351 | 191.57 | 819 | 797 | 159.5 |
| C | 4 | 254 | 146797 | 785.41 | 790 | 792 | 185.9 |
| C | 13 | 61 | 6176 | 28.96 | 790 | 792 | 185.9 |
| C | 9 | 68 | 2564 | 9.53 | 790 | 792 | 185.9 |
| D | 2 | 216 | 993999 | 5182.87 | 778 | 754 | 191.6 |
| D | 8 | 195 | 294368 | 1532.11 | 778 | 754 | 191.6 |
| D | 2 | 14 | 64436 | 332.3 | 778 | 754 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

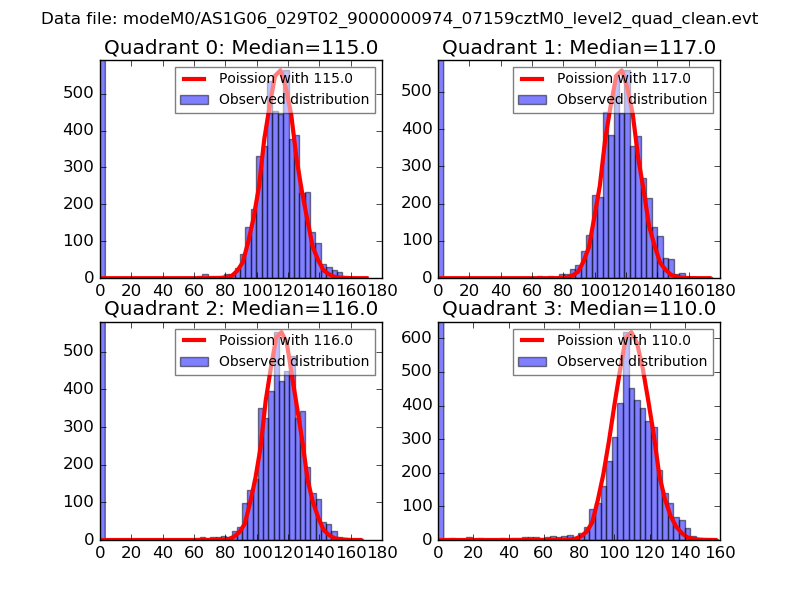

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

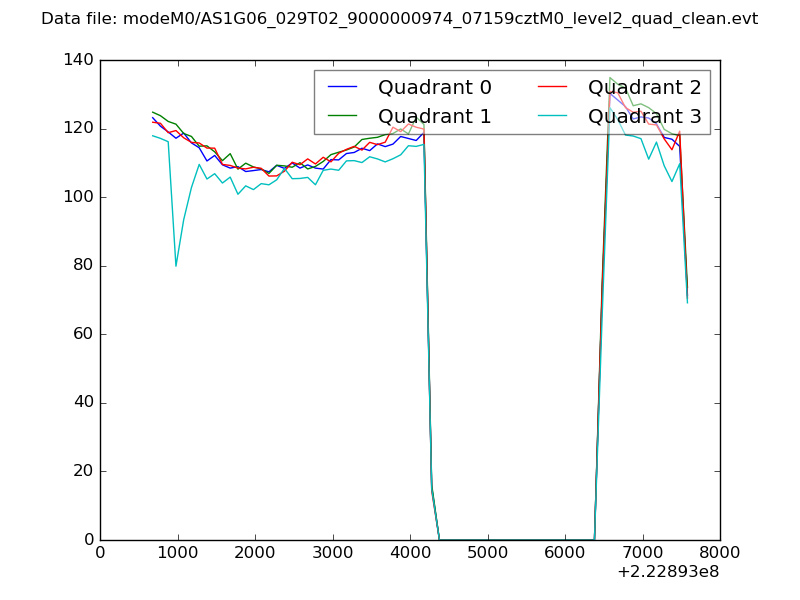

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

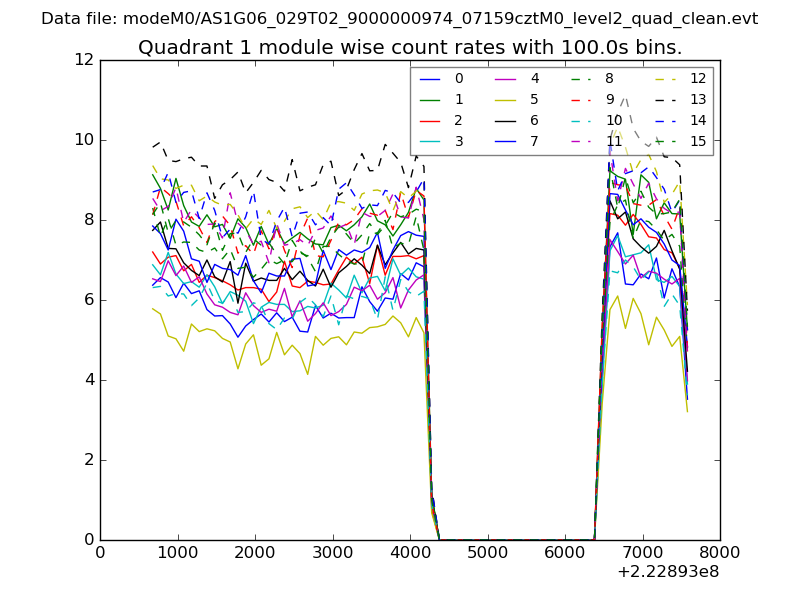

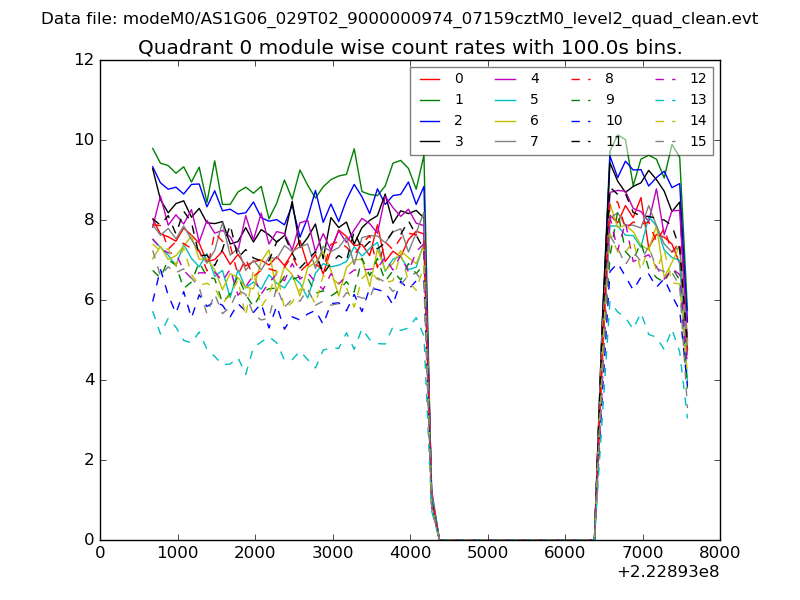

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

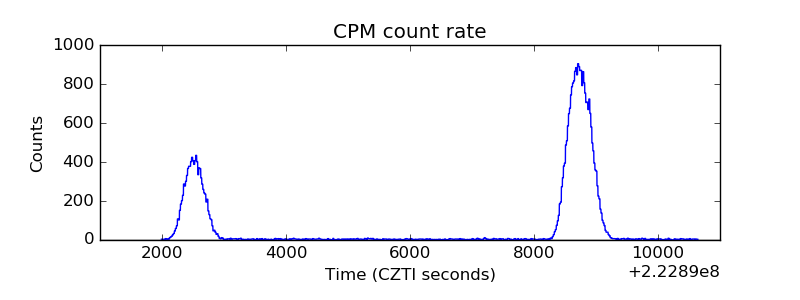

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

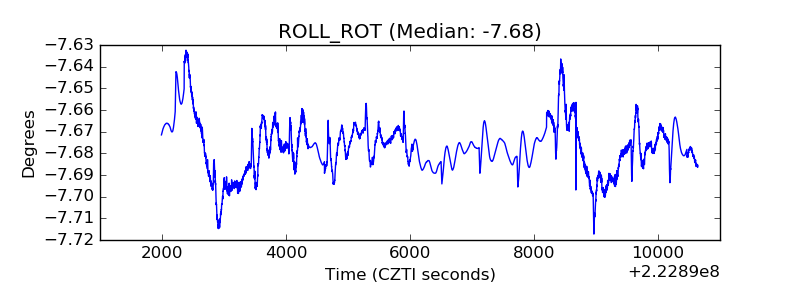

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

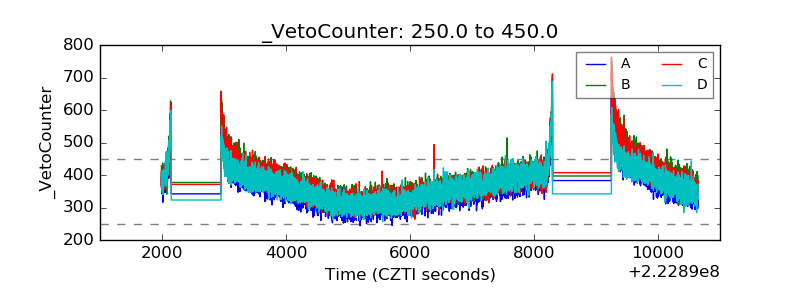

| Veto Counter |  |
