| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_175T01_9000000976_07160cztM0_level2.evt | modeM0/AS1A02_175T01_9000000976_07160cztM0_level2_quad_clean.evt |
| Size (bytes) | 165,487,680 | 34,260,480 |
| Size | 157.8 MB | 32.7 MB |
| Events in quadrant A | 997,129 | 228,881 |
| Events in quadrant B | 1,128,036 | 235,879 |
| Events in quadrant C | 918,215 | 233,406 |
| Events in quadrant D | 1,841,111 | 204,502 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4079 | 2 |
| B | 0 | 4558 | 1 |
| C | 0 | 3883 | 1 |
| D | 0 | 6769 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1841 | 45 | 2.444324% |
| B | 1841 | 65 | 3.530690% |
| C | 1841 | 20 | 1.086366% |
| D | 1841 | 245 | 13.307985% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

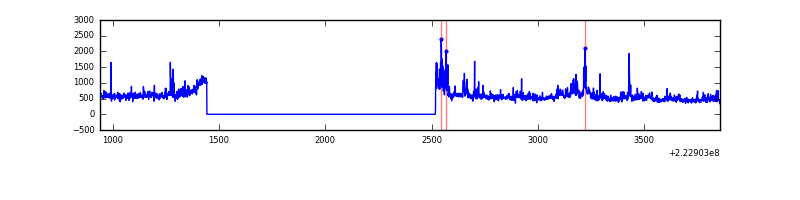

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2916 | 1841 | 11 | 11 | 0.38% | 0.60% |  |
| B | 2916 | 1841 | 3 | 3 | 0.10% | 0.16% |  |
| C | 2916 | 1841 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2916 | 1841 | 182 | 182 | 6.24% | 9.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 48343 | 944.87 | 239 | 234 | 50.9 |
| A | 8 | 15 | 20401 | 396.08 | 239 | 234 | 50.9 |
| A | 15 | 31 | 3438 | 62.93 | 239 | 234 | 50.9 |
| B | 4 | 81 | 55041 | 1133.32 | 241 | 236 | 48.4 |
| B | 0 | 219 | 52232 | 1075.23 | 241 | 236 | 48.4 |
| B | 0 | 214 | 35385 | 726.85 | 241 | 236 | 48.4 |
| C | 4 | 254 | 9038 | 157.97 | 231 | 231 | 55.8 |
| C | 9 | 68 | 7283 | 126.49 | 231 | 231 | 55.8 |
| C | 13 | 61 | 1767 | 27.55 | 231 | 231 | 55.8 |
| D | 2 | 216 | 396147 | 7062.78 | 221 | 214 | 56.1 |
| D | 14 | 34 | 358442 | 6390.18 | 221 | 214 | 56.1 |
| D | 12 | 233 | 109197 | 1944.07 | 221 | 214 | 56.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

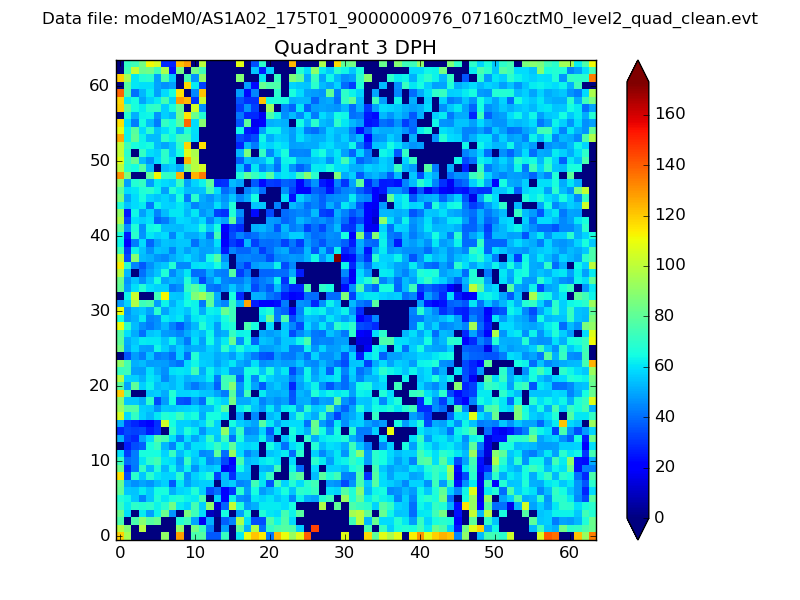

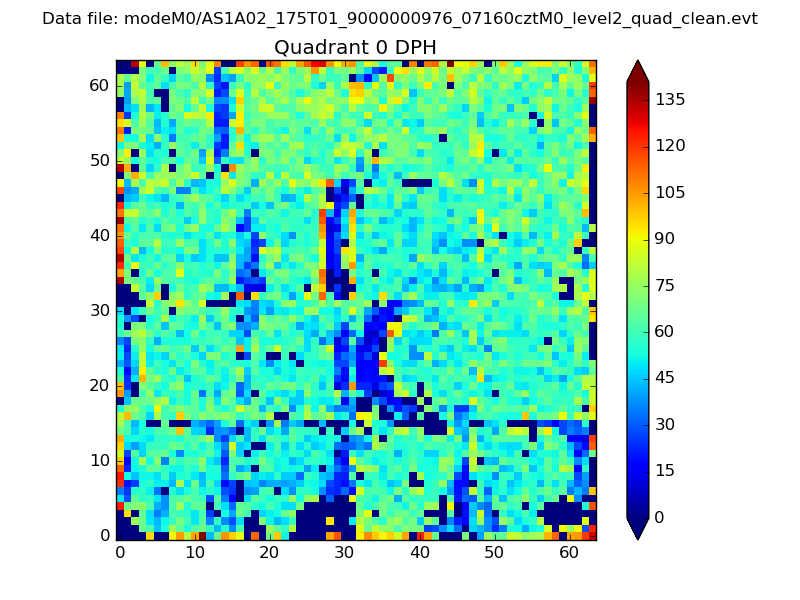

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

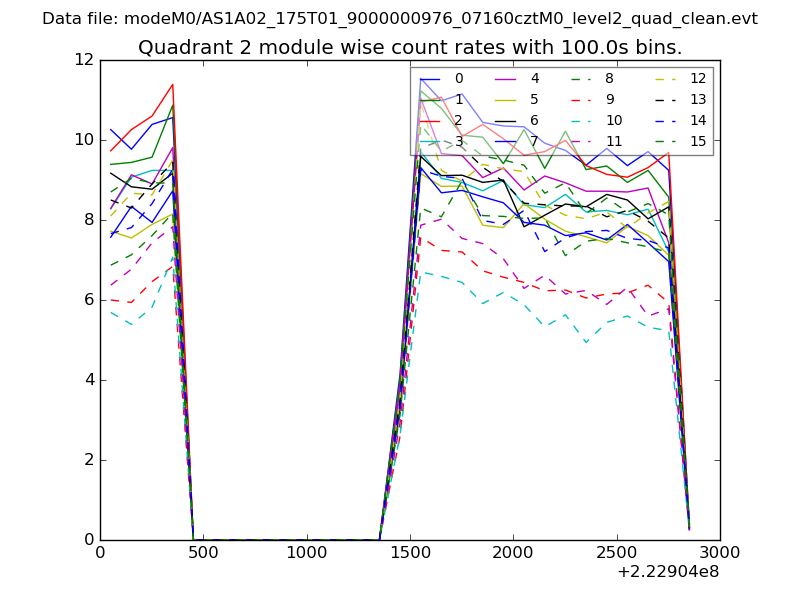

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

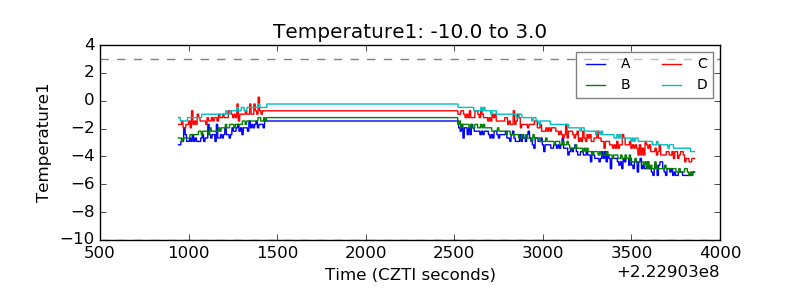

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

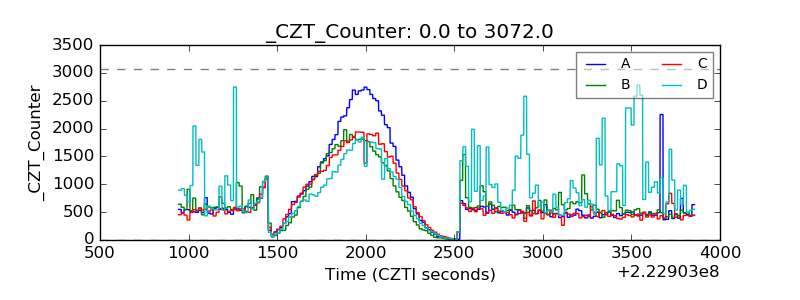

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

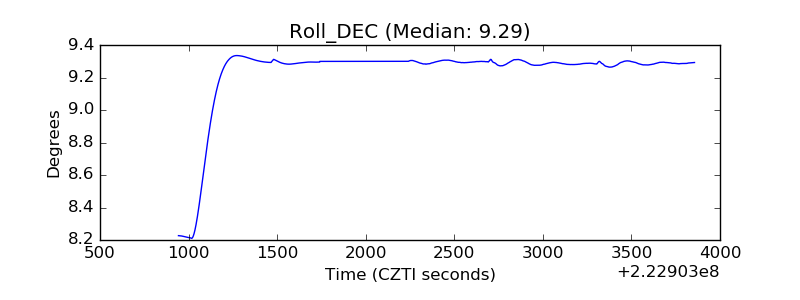

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
