| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_175T01_9000000976_07162cztM0_level2.evt | modeM0/AS1A02_175T01_9000000976_07162cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,375,360 | 83,701,440 |
| Size | 509.6 MB | 79.8 MB |
| Events in quadrant A | 3,282,332 | 531,888 |
| Events in quadrant B | 3,193,375 | 549,386 |
| Events in quadrant C | 3,451,786 | 537,431 |
| Events in quadrant D | 5,827,793 | 474,788 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13759 | 3 |
| B | 0 | 13616 | 2 |
| C | 0 | 14509 | 2 |
| D | 0 | 21567 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 66 | 1.045627% |
| B | 6312 | 57 | 0.903042% |
| C | 6312 | 150 | 2.376426% |
| D | 6312 | 625 | 9.901774% |

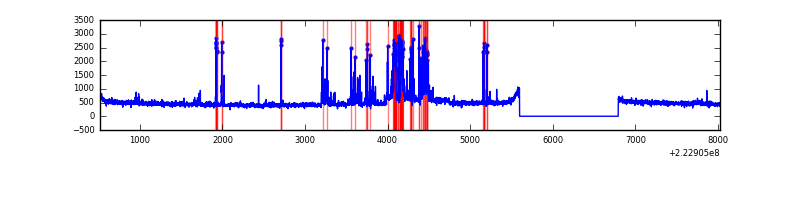

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6312 | 33 | 33 | 0.44% | 0.52% |  |
| B | 7507 | 6312 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7507 | 6313 | 106 | 106 | 1.41% | 1.68% |  |
| D | 7507 | 6312 | 549 | 549 | 7.31% | 8.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 224599 | 1452.56 | 750 | 734 | 154.1 |
| A | 14 | 238 | 145786 | 941.18 | 750 | 734 | 154.1 |
| A | 15 | 31 | 10090 | 60.71 | 750 | 734 | 154.1 |
| B | 0 | 219 | 95138 | 649.1 | 764 | 748 | 145.4 |
| B | 4 | 81 | 49773 | 337.13 | 764 | 748 | 145.4 |
| B | 0 | 214 | 26525 | 177.26 | 764 | 748 | 145.4 |
| C | 4 | 254 | 298473 | 1733.73 | 732 | 736 | 171.7 |
| C | 9 | 68 | 292895 | 1701.25 | 732 | 736 | 171.7 |
| C | 13 | 61 | 5552 | 28.04 | 732 | 736 | 171.7 |
| D | 2 | 216 | 1412296 | 8130.79 | 703 | 680 | 173.6 |
| D | 14 | 34 | 905005 | 5208.83 | 703 | 680 | 173.6 |
| D | 2 | 14 | 283505 | 1629.05 | 703 | 680 | 173.6 |

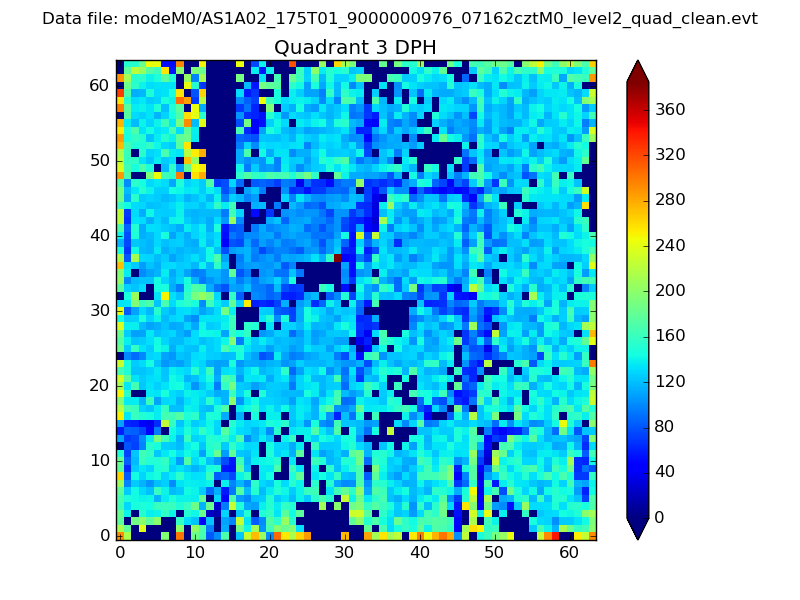

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

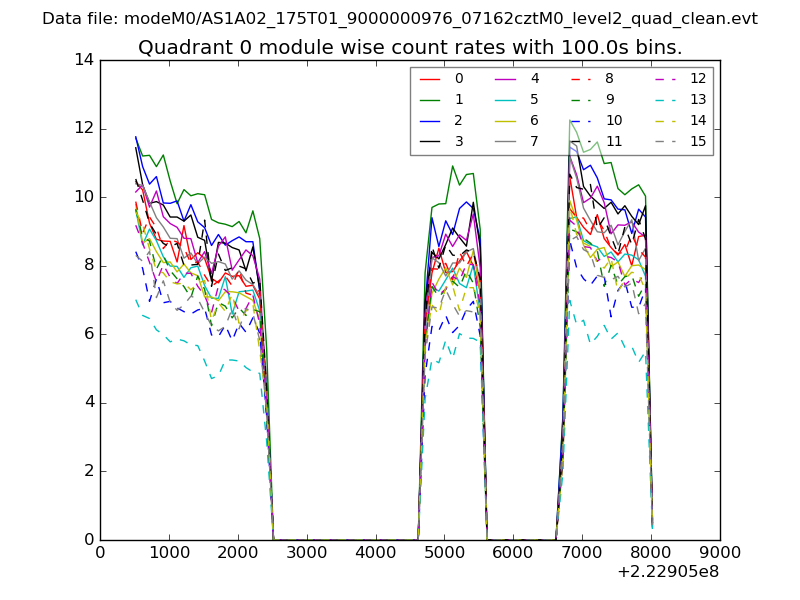

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

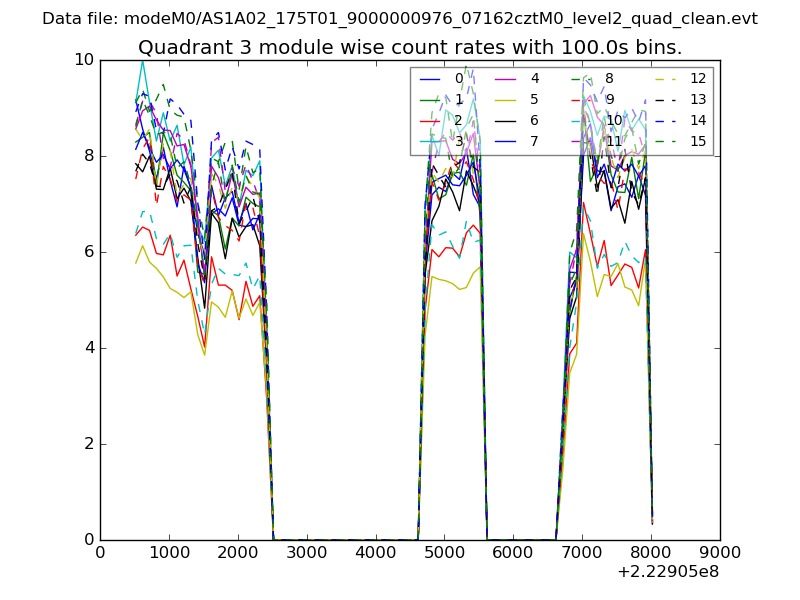

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

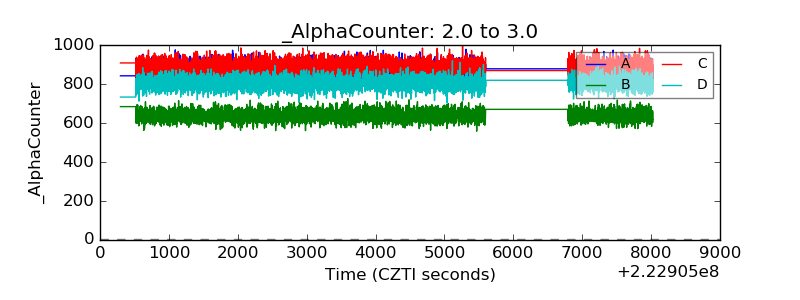

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

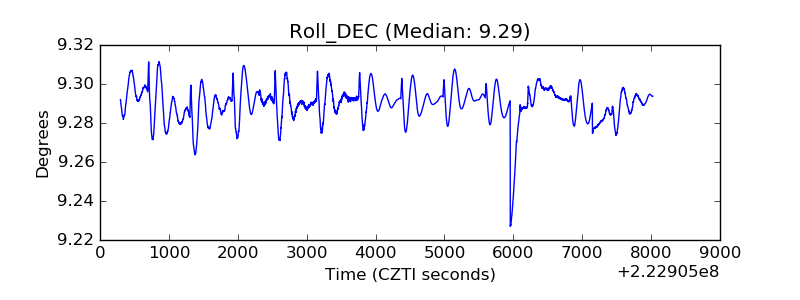

| _Roll_DEC |  |

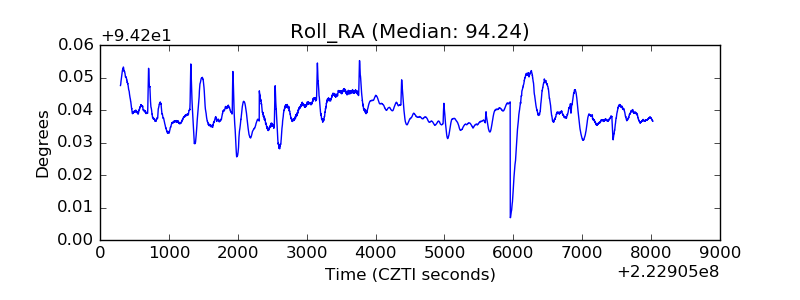

| _Roll_RA |  |
| Veto Counter |  |
