| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_175T01_9000000976_07165cztM0_level2.evt | modeM0/AS1A02_175T01_9000000976_07165cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,824,000 | 69,050,880 |
| Size | 485.3 MB | 65.9 MB |
| Events in quadrant A | 3,474,495 | 412,003 |
| Events in quadrant B | 3,225,228 | 429,464 |
| Events in quadrant C | 4,047,278 | 413,038 |
| Events in quadrant D | 4,229,339 | 390,288 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14396 | 3 |
| B | 0 | 13473 | 2 |
| C | 0 | 16096 | 2 |
| D | 0 | 16622 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 78 | 1.220657% |
| B | 6390 | 48 | 0.751174% |
| C | 6390 | 198 | 3.098592% |
| D | 6390 | 225 | 3.521127% |

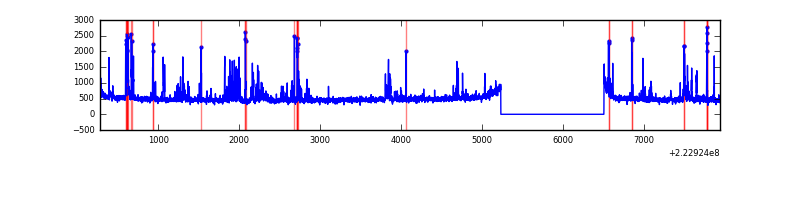

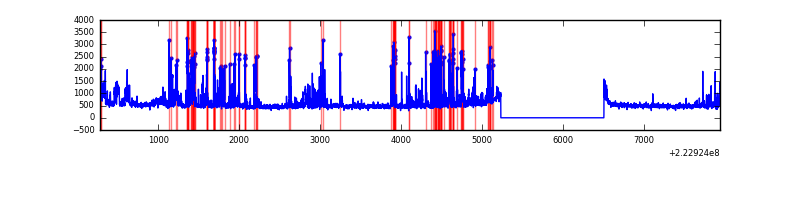

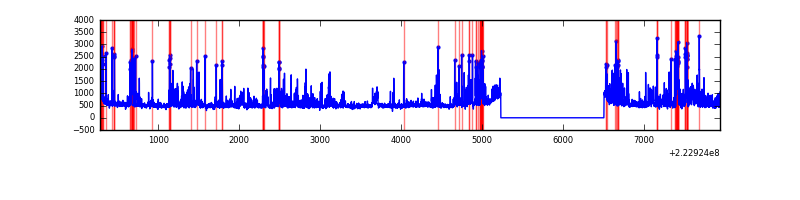

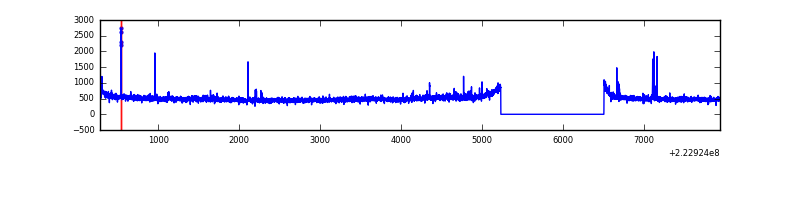

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6390 | 32 | 32 | 0.42% | 0.50% |  |
| B | 7665 | 6390 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7665 | 6390 | 138 | 138 | 1.80% | 2.16% |  |
| D | 7665 | 6390 | 121 | 121 | 1.58% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 398804 | 2502.37 | 784 | 768 | 159.1 |
| A | 3 | 1 | 25265 | 154.01 | 784 | 768 | 159.1 |
| A | 8 | 15 | 17779 | 106.94 | 784 | 768 | 159.1 |
| B | 0 | 214 | 35704 | 228.8 | 801 | 785 | 152.6 |
| B | 15 | 204 | 30969 | 197.77 | 801 | 785 | 152.6 |
| B | 0 | 219 | 23183 | 146.76 | 801 | 785 | 152.6 |
| C | 4 | 254 | 849949 | 4780.94 | 765 | 770 | 177.6 |
| C | 9 | 68 | 183054 | 1026.27 | 765 | 770 | 177.6 |
| C | 7 | 247 | 13802 | 73.37 | 765 | 770 | 177.6 |
| D | 2 | 216 | 740126 | 3976.09 | 755 | 731 | 186.0 |
| D | 8 | 195 | 248899 | 1334.52 | 755 | 731 | 186.0 |
| D | 2 | 14 | 226899 | 1216.22 | 755 | 731 | 186.0 |

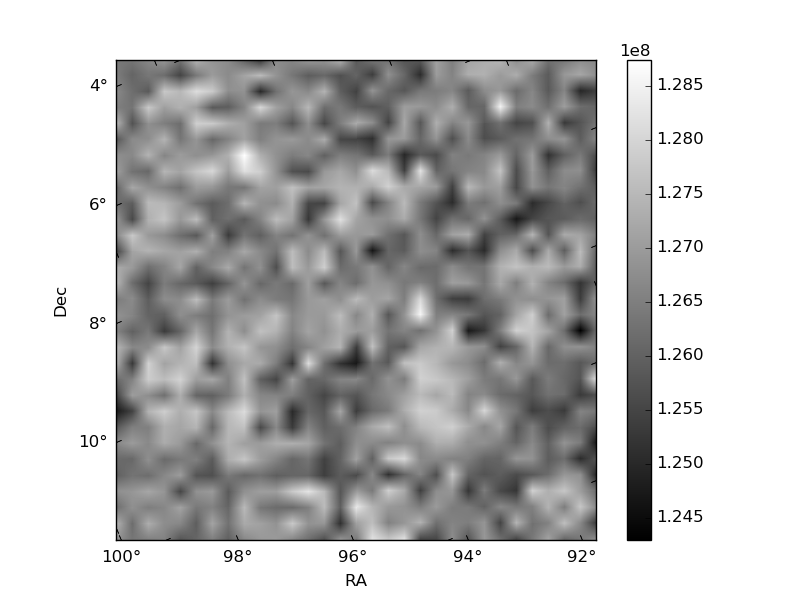

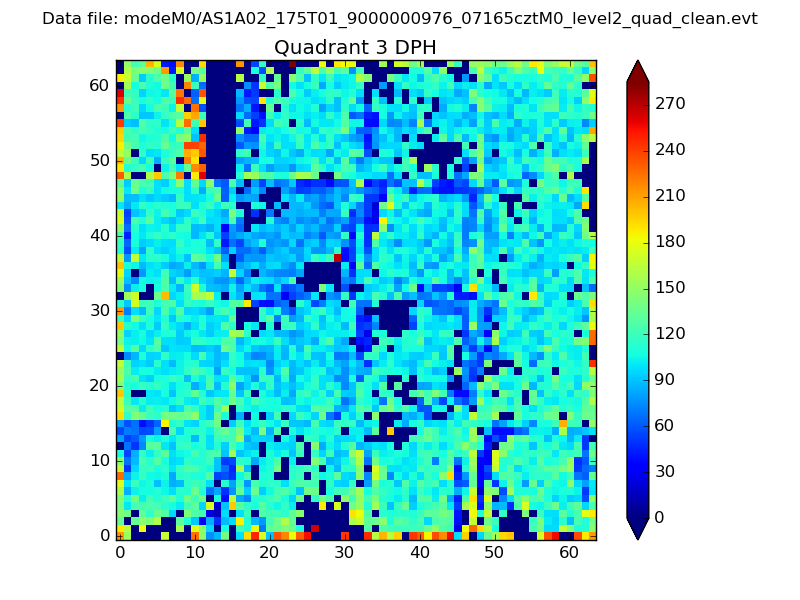

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

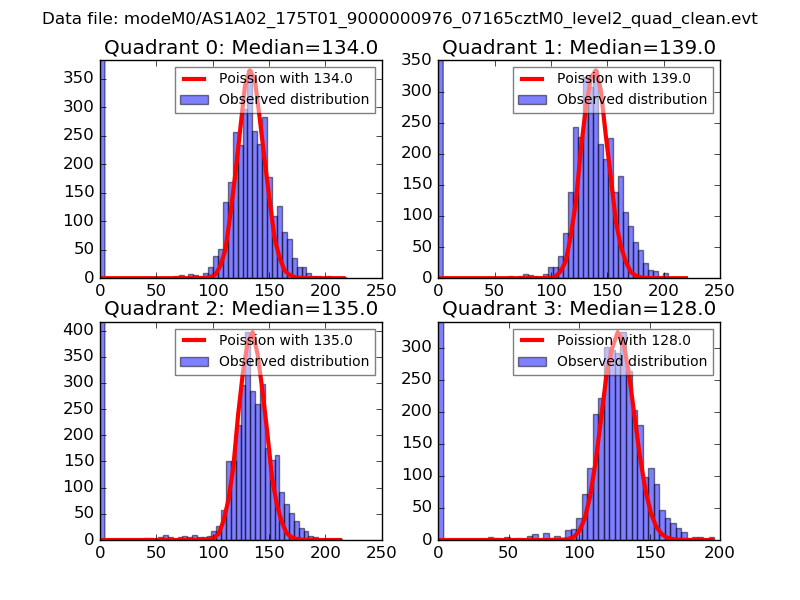

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

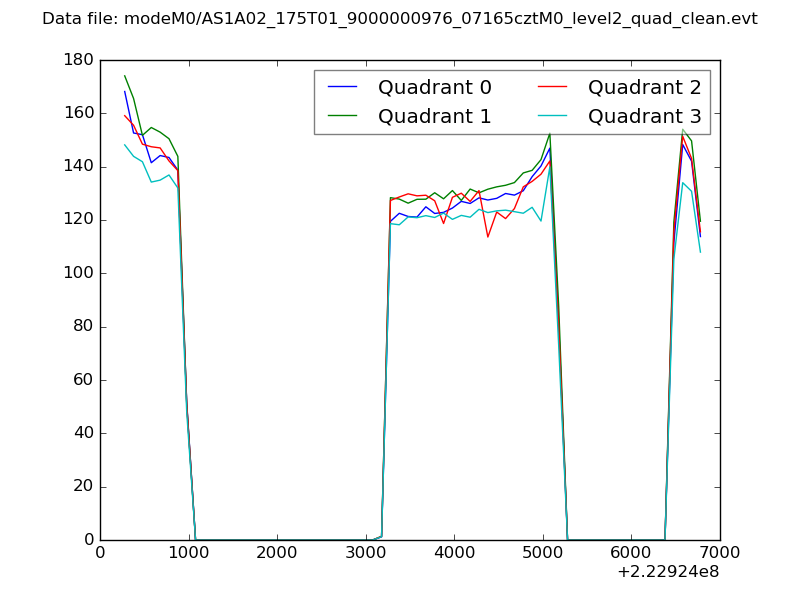

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

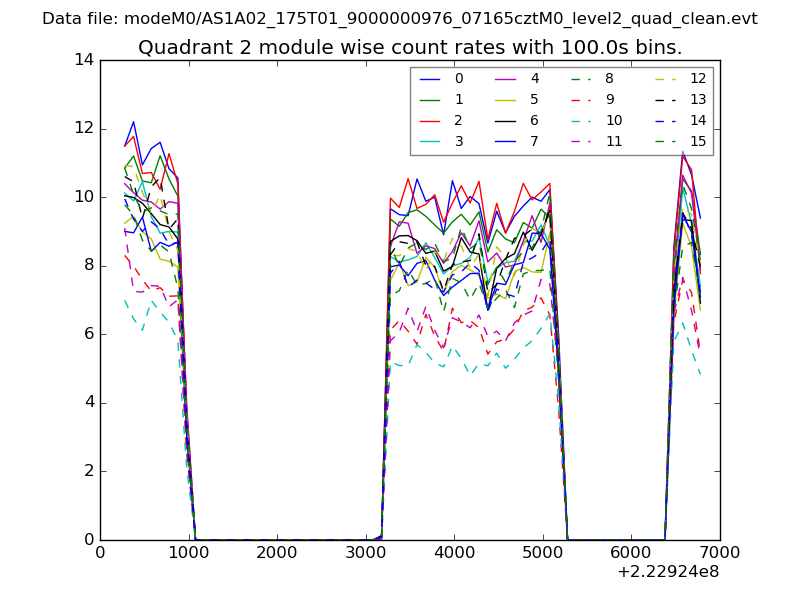

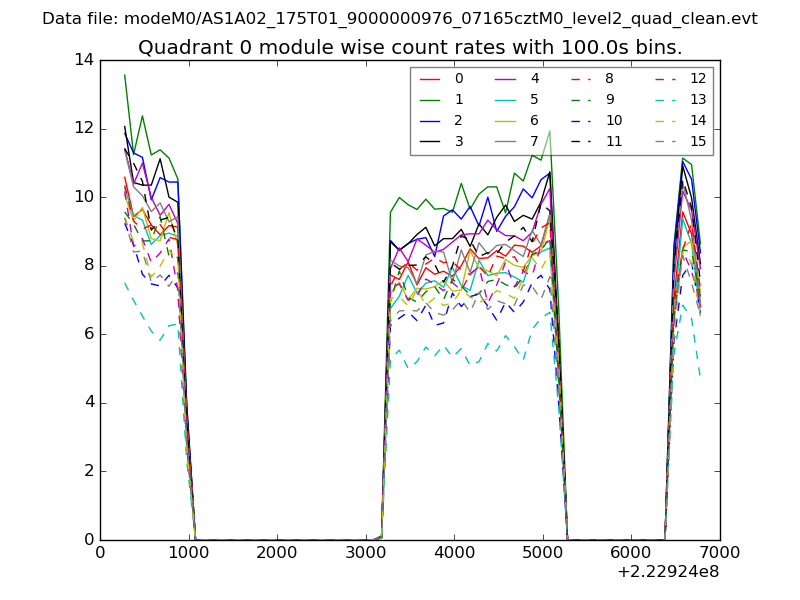

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

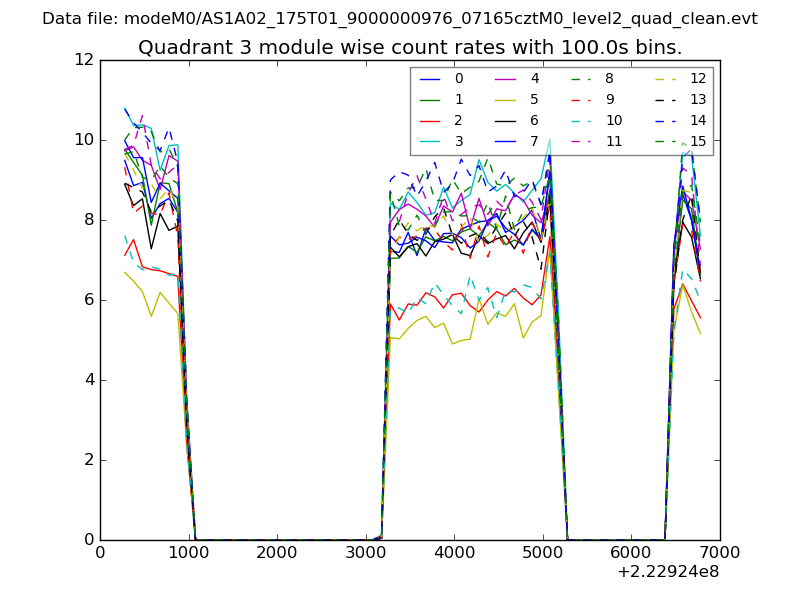

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

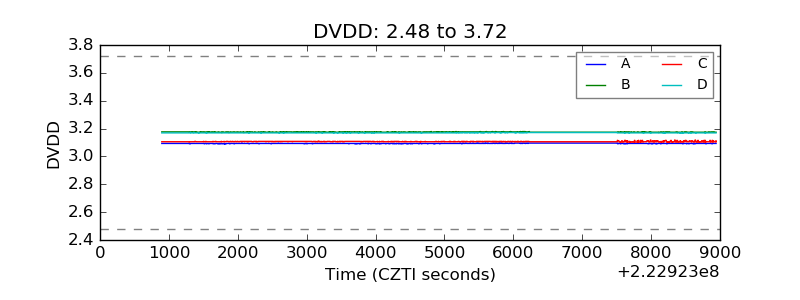

| D_VDD |  |

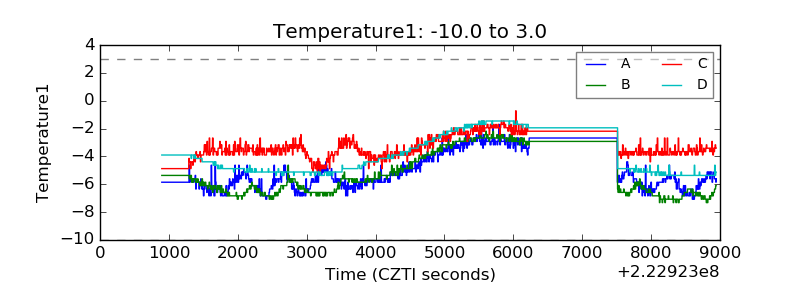

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

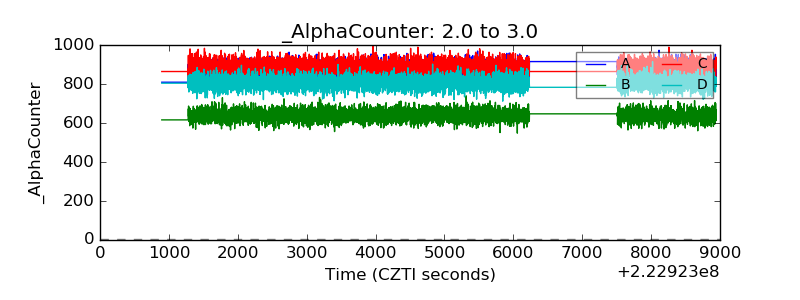

| Alpha Counter |  |

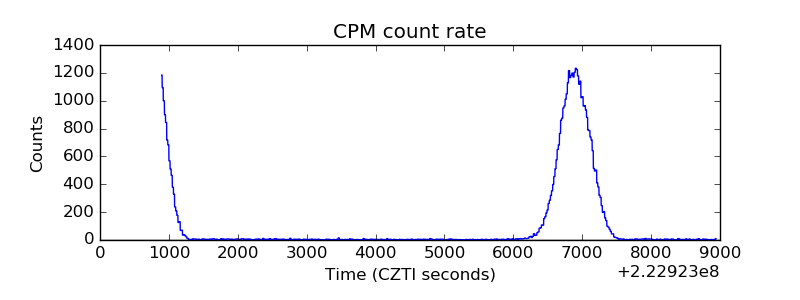

| _CPM_Rate |  |

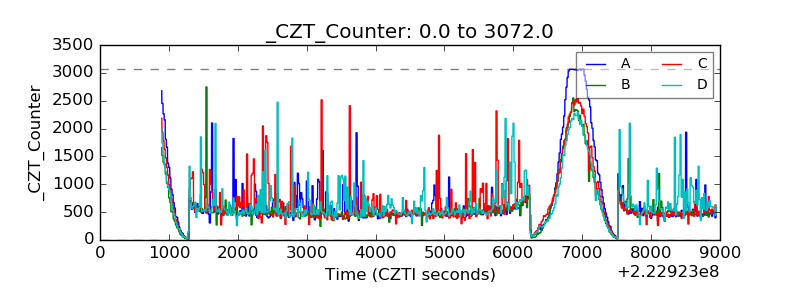

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

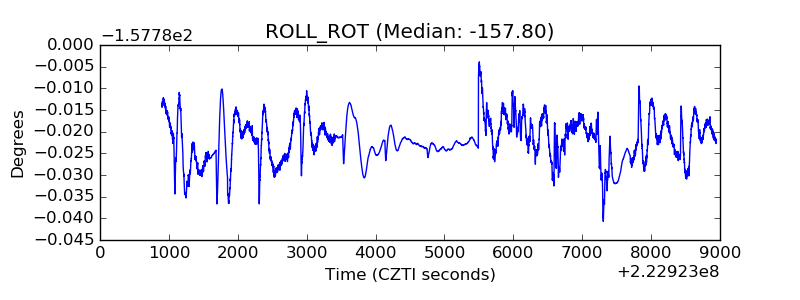

| _ROLL_ROT |  |

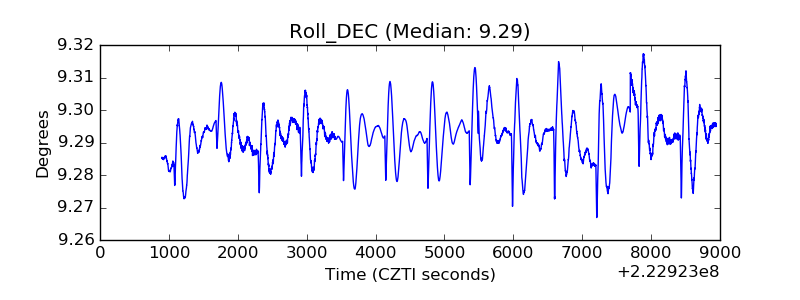

| _Roll_DEC |  |

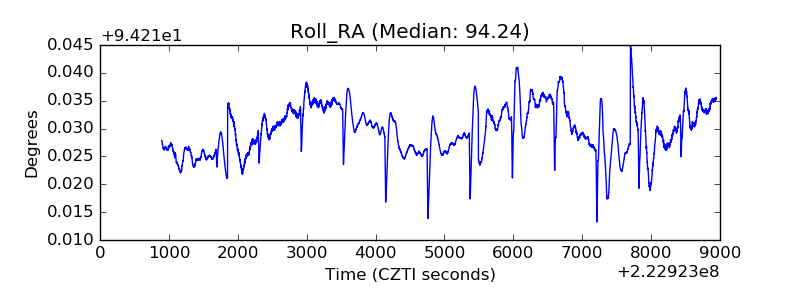

| _Roll_RA |  |

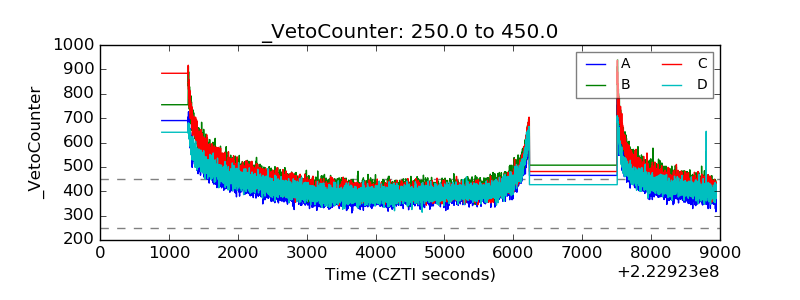

| Veto Counter |  |
