| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_102T01_9000000978_07176cztM0_level2.evt | modeM0/AS1G06_102T01_9000000978_07176cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,017,920 | 92,344,320 |
| Size | 454.0 MB | 88.1 MB |
| Events in quadrant A | 3,074,999 | 592,756 |
| Events in quadrant B | 3,038,345 | 614,556 |
| Events in quadrant C | 2,922,630 | 601,768 |
| Events in quadrant D | 4,952,785 | 548,063 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13505 | 3 |
| B | 0 | 13424 | 2 |
| C | 0 | 13129 | 2 |
| D | 0 | 18972 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 25 | 0.397204% |
| B | 6294 | 32 | 0.508421% |
| C | 6294 | 18 | 0.285987% |
| D | 6294 | 420 | 6.673022% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6295 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7459 | 6294 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7459 | 6295 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7459 | 6295 | 403 | 403 | 5.40% | 6.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 203640 | 1355.34 | 732 | 717 | 149.7 |
| A | 14 | 238 | 49669 | 326.95 | 732 | 717 | 149.7 |
| A | 0 | 226 | 6950 | 41.63 | 732 | 717 | 149.7 |
| B | 0 | 214 | 76888 | 541.81 | 746 | 729 | 140.6 |
| B | 15 | 204 | 18280 | 124.86 | 746 | 729 | 140.6 |
| B | 4 | 81 | 15699 | 106.5 | 746 | 729 | 140.6 |
| C | 9 | 68 | 110397 | 656.28 | 720 | 721 | 167.1 |
| C | 13 | 61 | 5665 | 29.58 | 720 | 721 | 167.1 |
| C | 10 | 22 | 4137 | 20.44 | 720 | 721 | 167.1 |
| D | 2 | 216 | 842046 | 4936.23 | 695 | 674 | 170.4 |
| D | 12 | 233 | 841356 | 4932.18 | 695 | 674 | 170.4 |
| D | 8 | 195 | 331198 | 1939.15 | 695 | 674 | 170.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

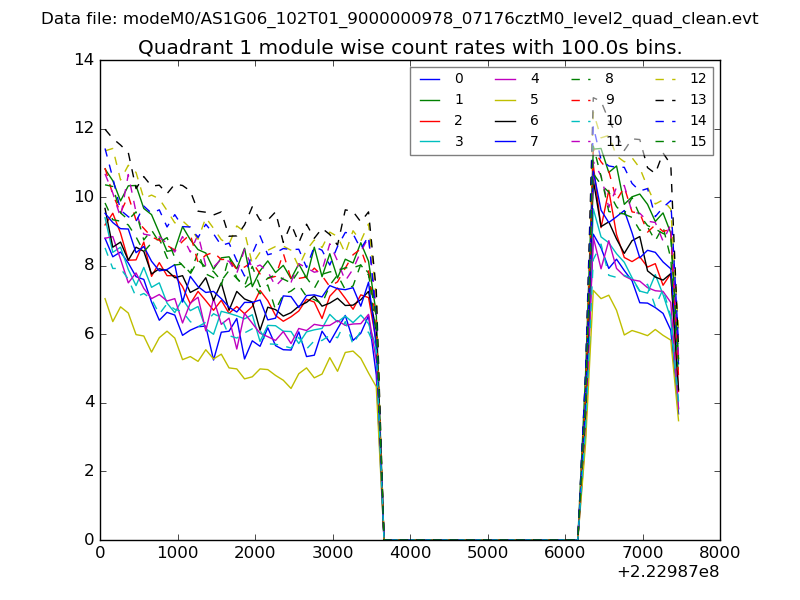

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

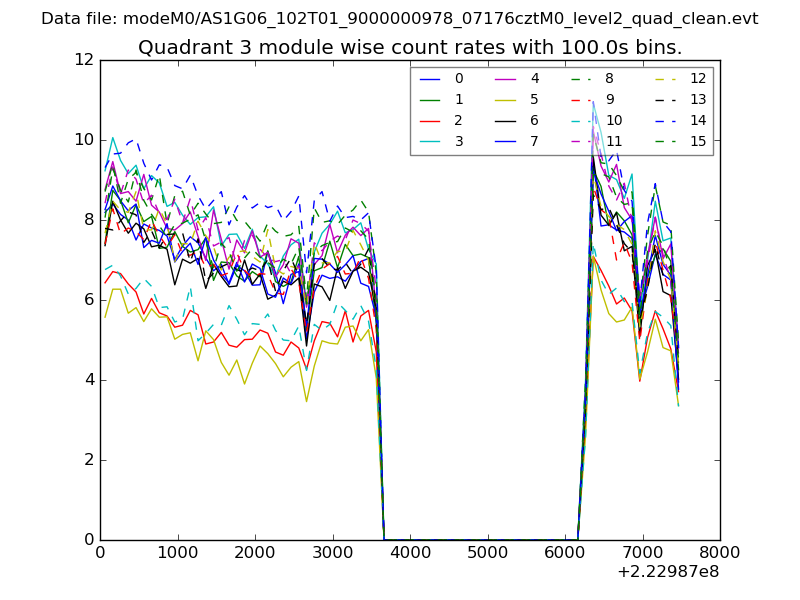

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

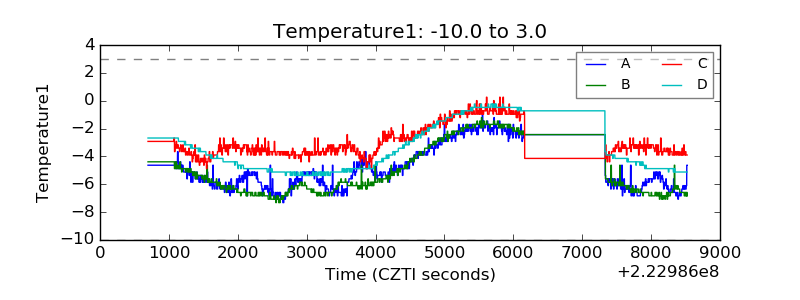

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

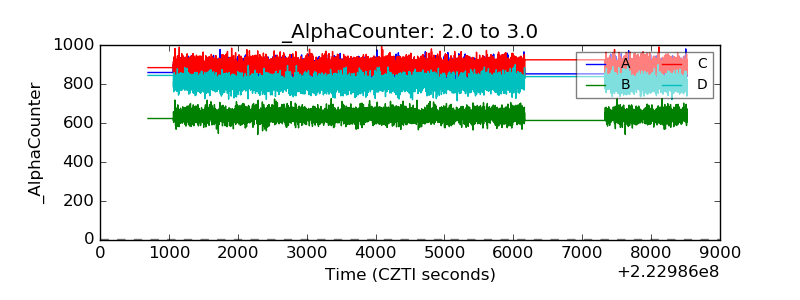

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
