| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_102T01_9000000978_07178cztM0_level2.evt | modeM0/AS1G06_102T01_9000000978_07178cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,528,320 | 94,708,800 |
| Size | 470.7 MB | 90.3 MB |
| Events in quadrant A | 3,426,152 | 606,897 |
| Events in quadrant B | 3,249,492 | 627,856 |
| Events in quadrant C | 3,004,073 | 610,210 |
| Events in quadrant D | 4,819,229 | 563,094 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14523 | 3 |
| B | 0 | 13957 | 2 |
| C | 0 | 13508 | 2 |
| D | 0 | 18743 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6596 | 42 | 0.636750% |
| B | 6596 | 40 | 0.606428% |
| C | 6596 | 8 | 0.121286% |
| D | 6596 | 243 | 3.684051% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7896 | 6597 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7896 | 6597 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7896 | 6597 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7896 | 6597 | 209 | 209 | 2.65% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 340609 | 2131.25 | 792 | 775 | 159.5 |
| A | 14 | 238 | 27706 | 168.9 | 792 | 775 | 159.5 |
| A | 0 | 226 | 7699 | 43.42 | 792 | 775 | 159.5 |
| B | 0 | 214 | 66681 | 441.27 | 803 | 786 | 149.3 |
| B | 0 | 219 | 26820 | 174.34 | 803 | 786 | 149.3 |
| B | 15 | 204 | 22677 | 146.59 | 803 | 786 | 149.3 |
| C | 10 | 22 | 9162 | 47.43 | 767 | 769 | 177.0 |
| C | 13 | 61 | 6021 | 29.68 | 767 | 769 | 177.0 |
| C | 9 | 68 | 2671 | 10.75 | 767 | 769 | 177.0 |
| D | 2 | 216 | 899254 | 4955.79 | 750 | 726 | 181.3 |
| D | 12 | 233 | 744413 | 4101.77 | 750 | 726 | 181.3 |
| D | 8 | 195 | 203546 | 1118.64 | 750 | 726 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

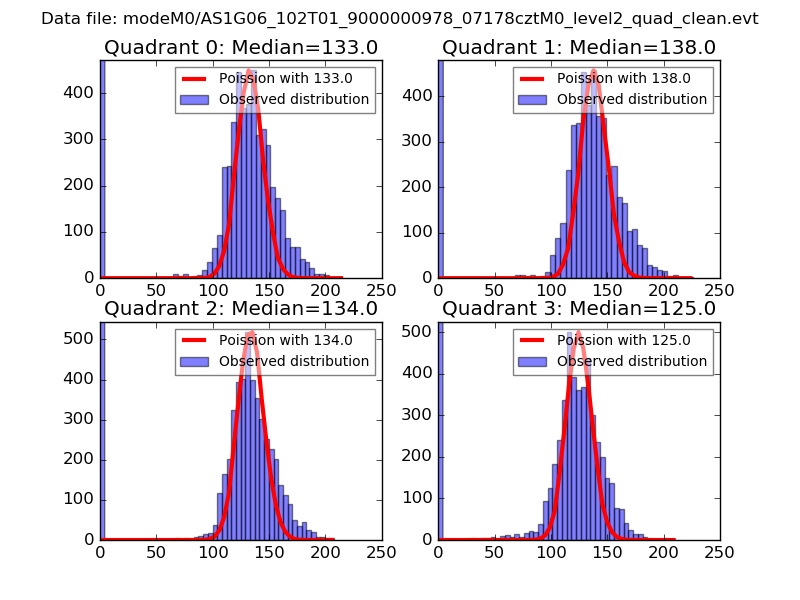

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

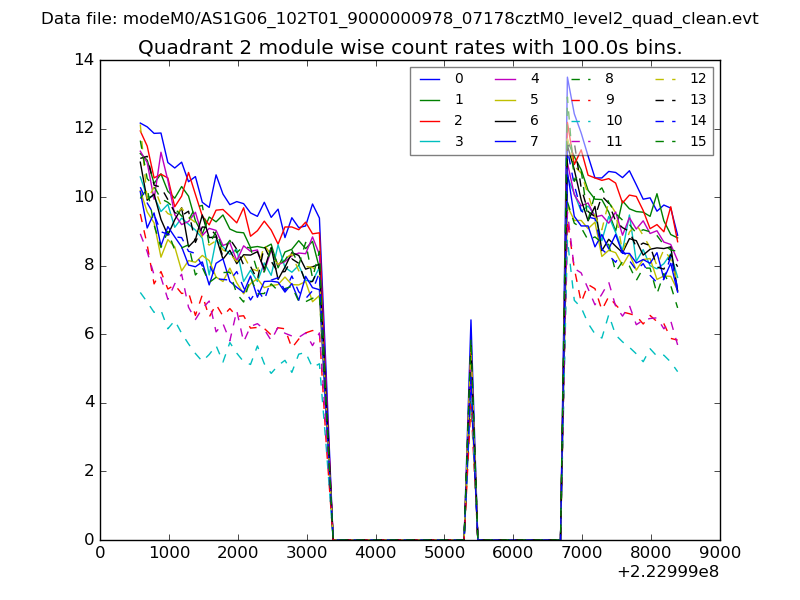

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

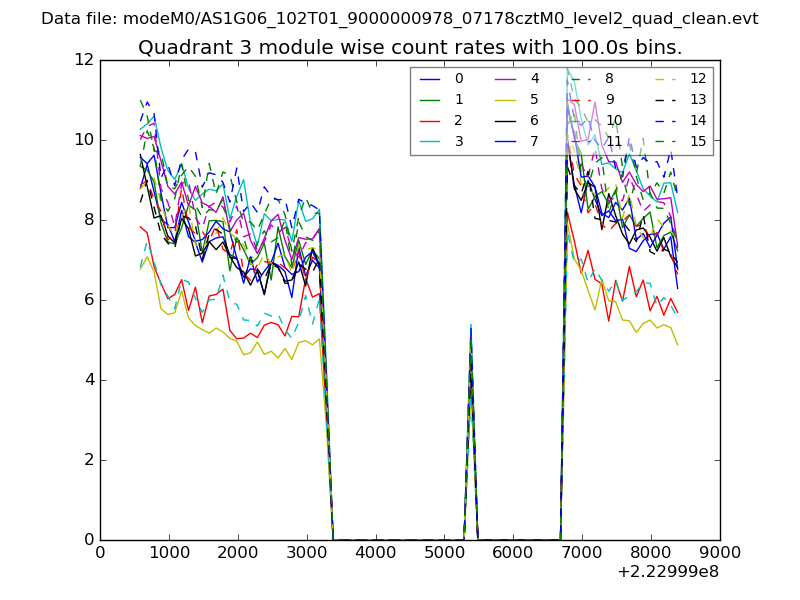

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

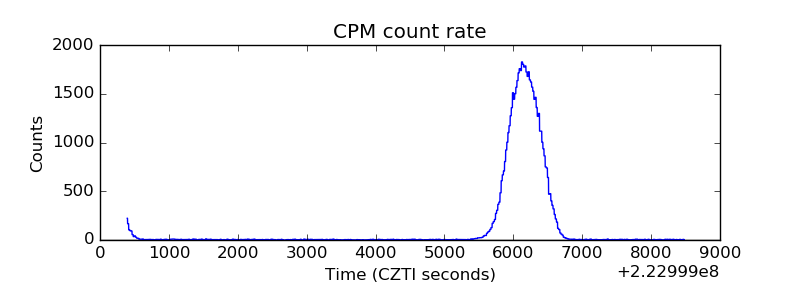

| _CPM_Rate |  |

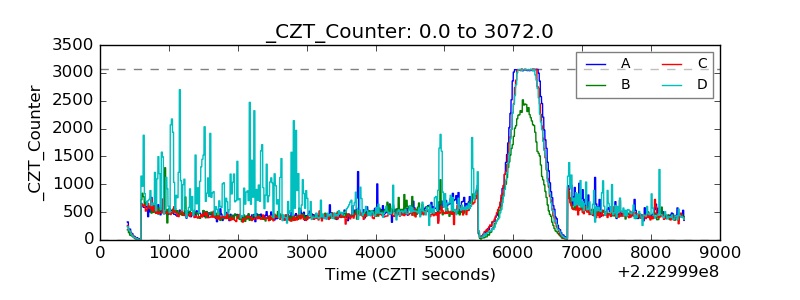

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

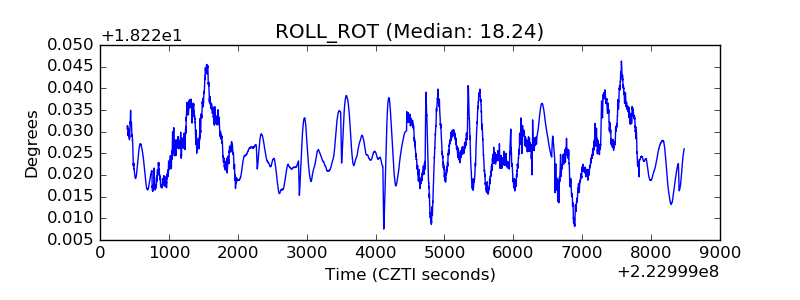

| _ROLL_ROT |  |

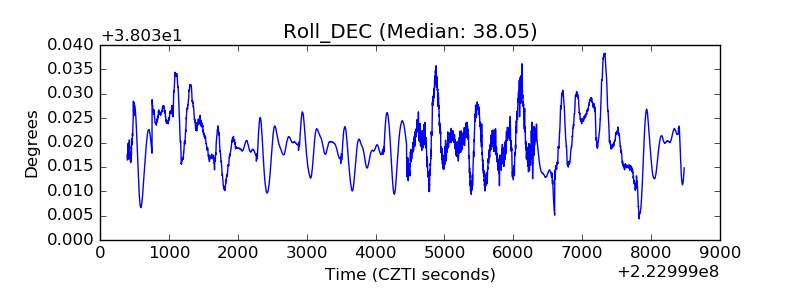

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
