| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_073T02_9000000982_07193cztM0_level2.evt | modeM0/AS1A02_073T02_9000000982_07193cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,067,840 | 91,399,680 |
| Size | 439.7 MB | 87.2 MB |
| Events in quadrant A | 3,117,387 | 582,601 |
| Events in quadrant B | 3,286,318 | 604,130 |
| Events in quadrant C | 3,080,104 | 584,799 |
| Events in quadrant D | 4,039,108 | 544,111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13442 | 3 |
| B | 0 | 13908 | 2 |
| C | 0 | 13388 | 2 |
| D | 0 | 16242 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 45 | 0.694123% |
| B | 6483 | 50 | 0.771248% |
| C | 6483 | 32 | 0.493599% |
| D | 6483 | 149 | 2.298319% |

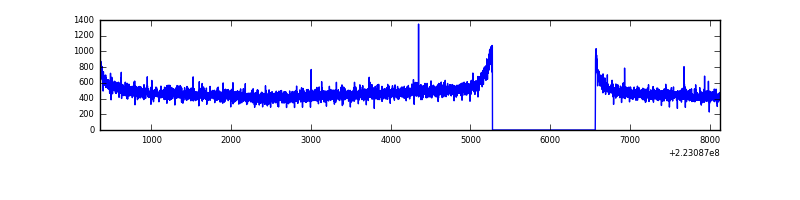

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7773 | 6484 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7773 | 6483 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7773 | 6484 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7773 | 6484 | 135 | 135 | 1.74% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 16272 | 95.21 | 802 | 787 | 162.6 |
| A | 14 | 111 | 10693 | 60.91 | 802 | 787 | 162.6 |
| A | 0 | 226 | 7634 | 42.1 | 802 | 787 | 162.6 |
| B | 0 | 214 | 56017 | 359.69 | 814 | 797 | 153.5 |
| B | 0 | 219 | 33738 | 214.57 | 814 | 797 | 153.5 |
| B | 4 | 239 | 24091 | 151.73 | 814 | 797 | 153.5 |
| C | 9 | 68 | 25094 | 134.4 | 782 | 787 | 180.9 |
| C | 14 | 67 | 6436 | 31.24 | 782 | 787 | 180.9 |
| C | 13 | 61 | 6126 | 29.52 | 782 | 787 | 180.9 |
| D | 8 | 195 | 402487 | 2170.35 | 766 | 743 | 185.1 |
| D | 2 | 216 | 257559 | 1387.4 | 766 | 743 | 185.1 |
| D | 2 | 14 | 201414 | 1084.09 | 766 | 743 | 185.1 |

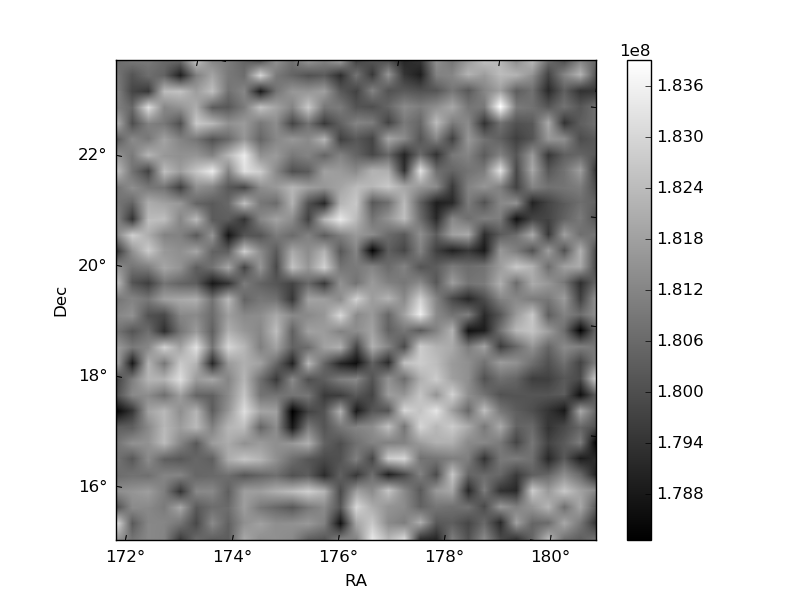

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

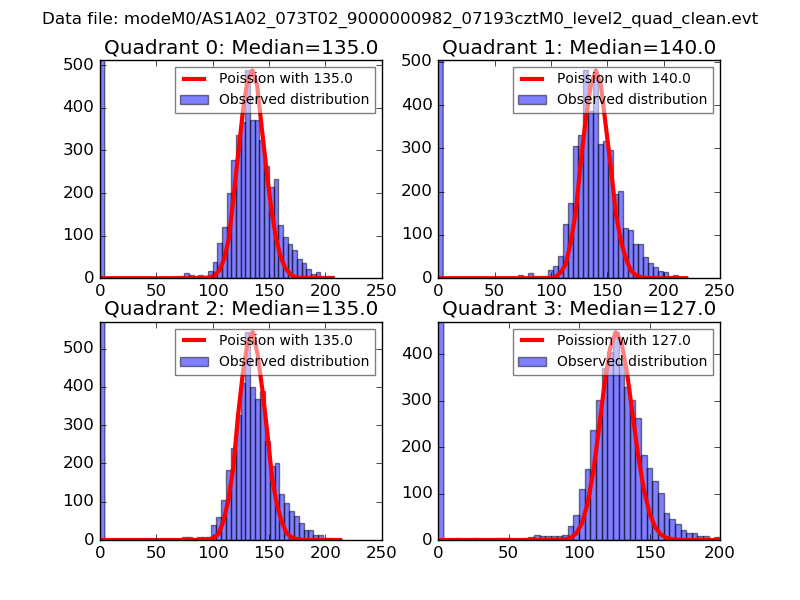

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

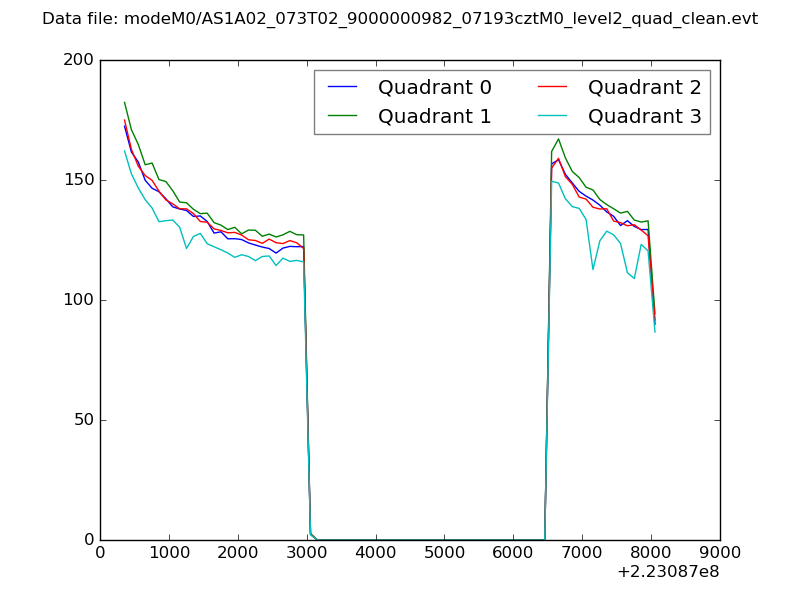

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

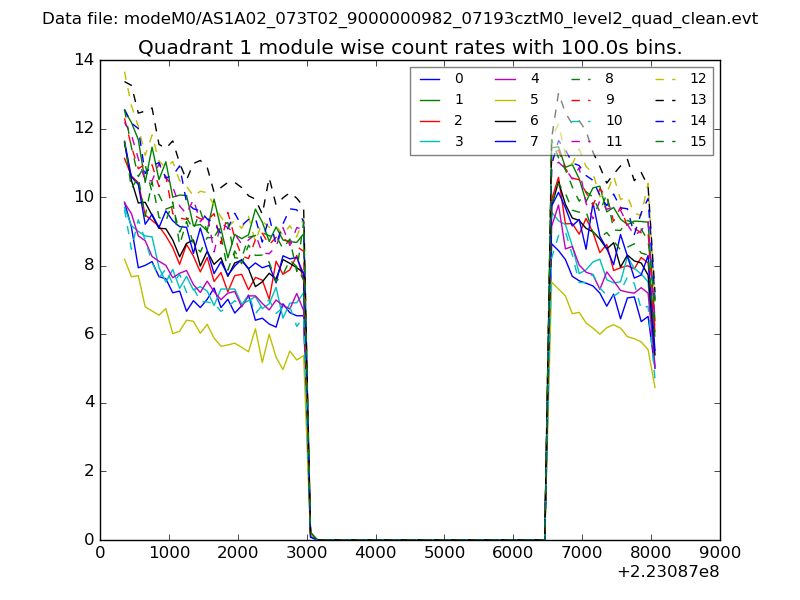

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

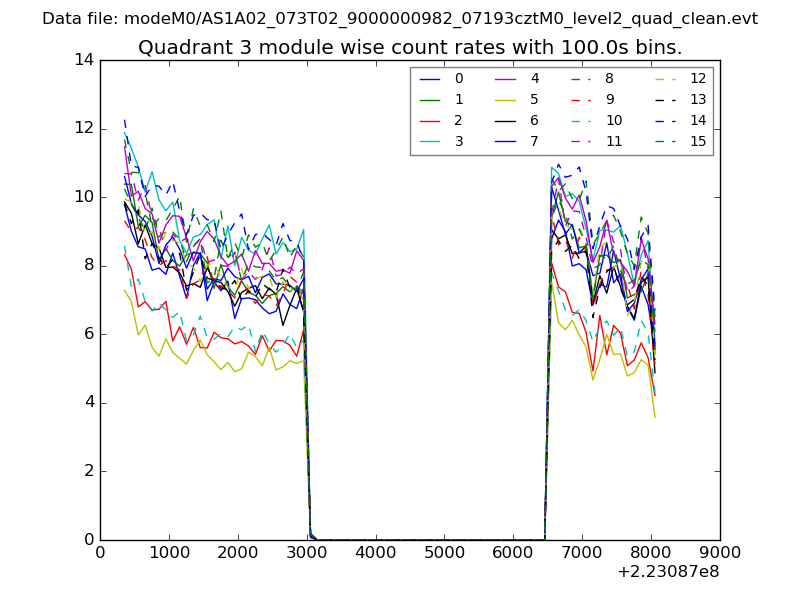

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

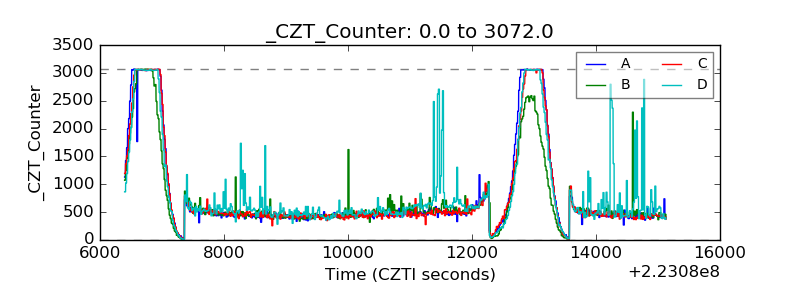

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

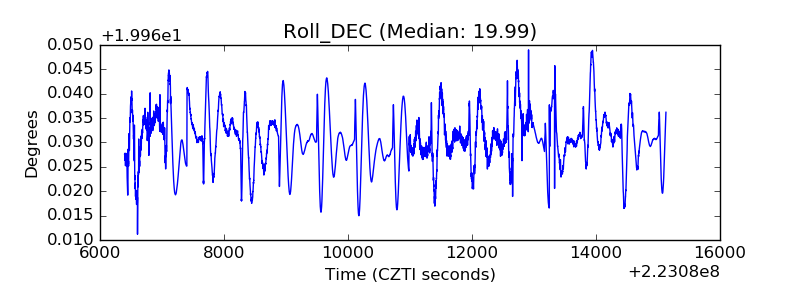

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
