| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_073T02_9000000982_07197cztM0_level2.evt | modeM0/AS1A02_073T02_9000000982_07197cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,876,480 | 89,573,760 |
| Size | 475.8 MB | 85.4 MB |
| Events in quadrant A | 3,468,157 | 549,701 |
| Events in quadrant B | 3,771,961 | 561,629 |
| Events in quadrant C | 3,477,447 | 552,891 |
| Events in quadrant D | 3,885,501 | 530,452 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15378 | 3 |
| B | 0 | 15975 | 2 |
| C | 0 | 15505 | 2 |
| D | 0 | 16662 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7431 | 205 | 2.758713% |
| B | 7431 | 203 | 2.731799% |
| C | 7431 | 170 | 2.287714% |
| D | 7431 | 215 | 2.893285% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

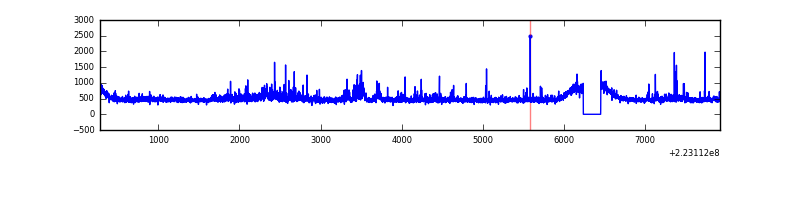

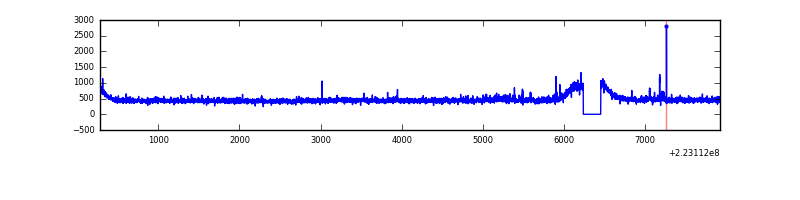

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 7431 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7646 | 7431 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7646 | 7431 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7646 | 7431 | 39 | 39 | 0.51% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 14286 | 72.25 | 894 | 872 | 185.6 |
| A | 0 | 226 | 8529 | 41.24 | 894 | 872 | 185.6 |
| A | 12 | 194 | 8083 | 38.84 | 894 | 872 | 185.6 |
| B | 0 | 219 | 92940 | 529.51 | 895 | 874 | 173.9 |
| B | 4 | 81 | 91987 | 524.03 | 895 | 874 | 173.9 |
| B | 0 | 214 | 80584 | 458.45 | 895 | 874 | 173.9 |
| C | 9 | 68 | 65378 | 316.53 | 870 | 874 | 203.8 |
| C | 13 | 61 | 6904 | 29.59 | 870 | 874 | 203.8 |
| C | 14 | 67 | 6430 | 27.26 | 870 | 874 | 203.8 |
| D | 2 | 216 | 229188 | 1067.5 | 869 | 840 | 213.9 |
| D | 2 | 136 | 160470 | 746.25 | 869 | 840 | 213.9 |
| D | 2 | 14 | 59357 | 273.56 | 869 | 840 | 213.9 |

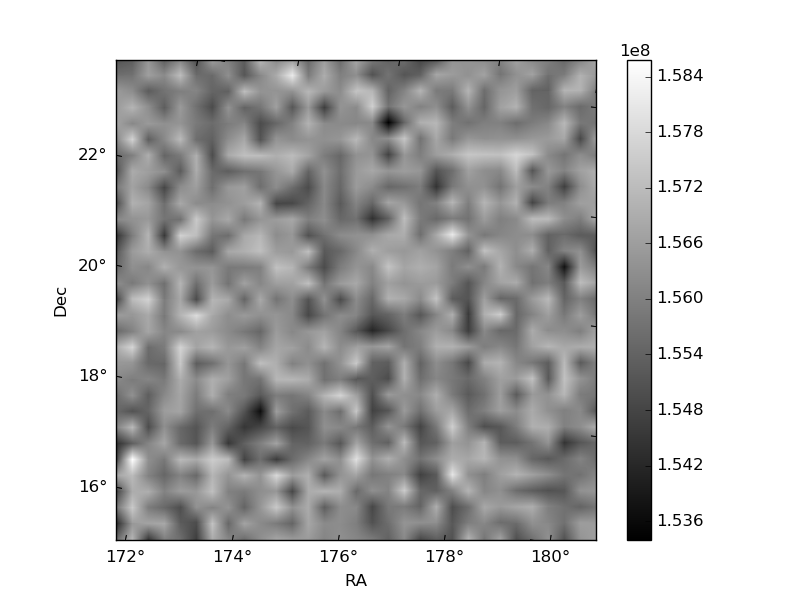

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

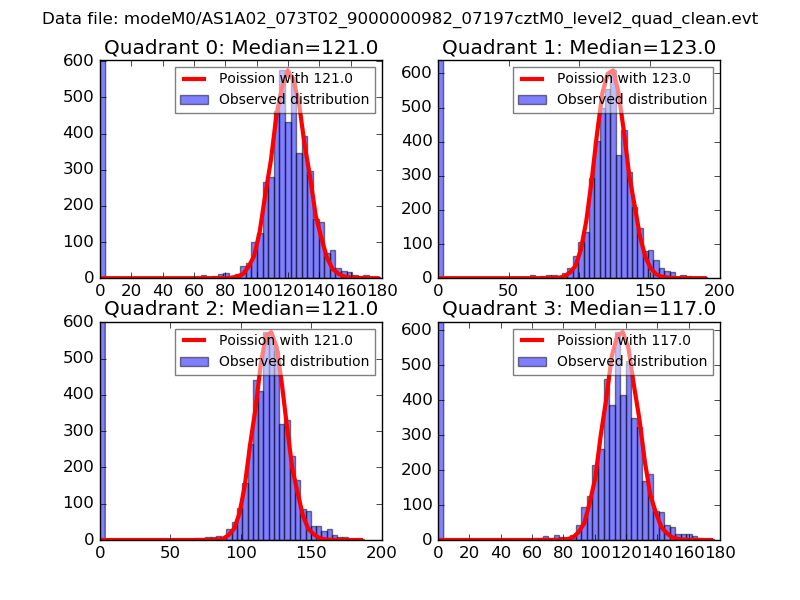

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

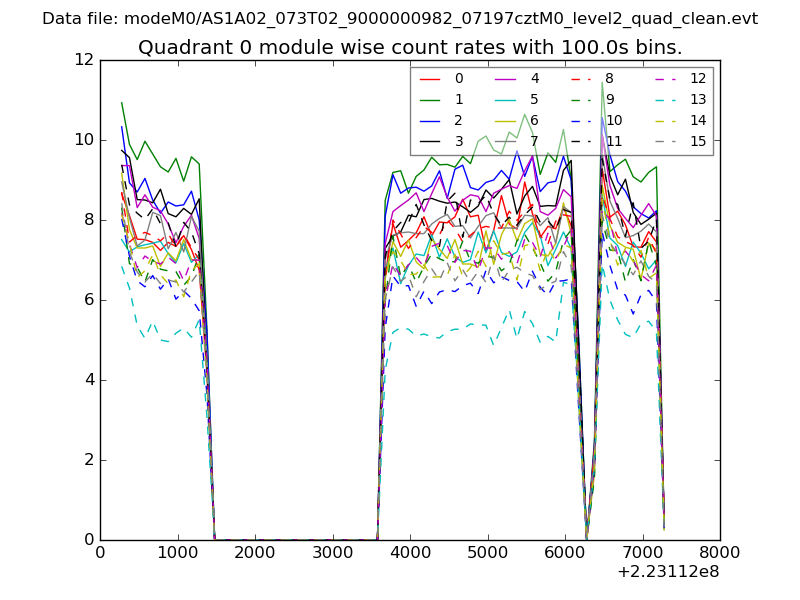

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

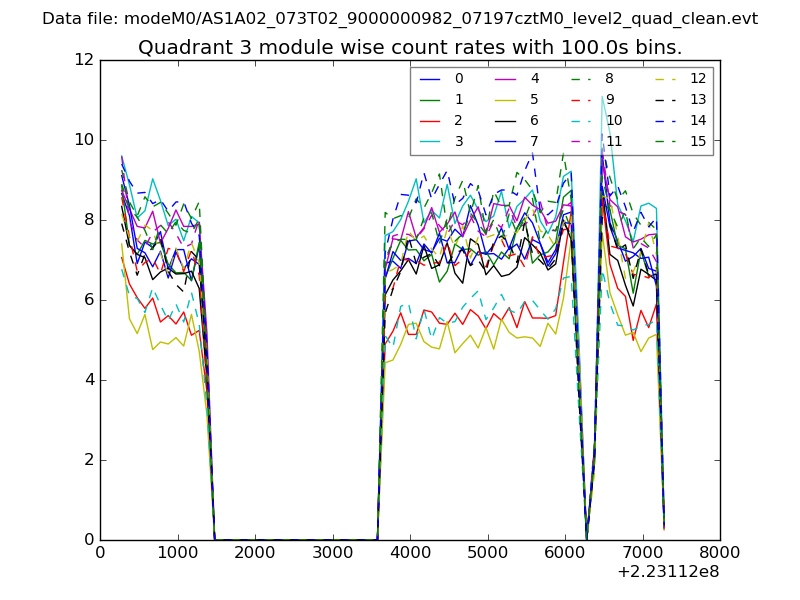

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

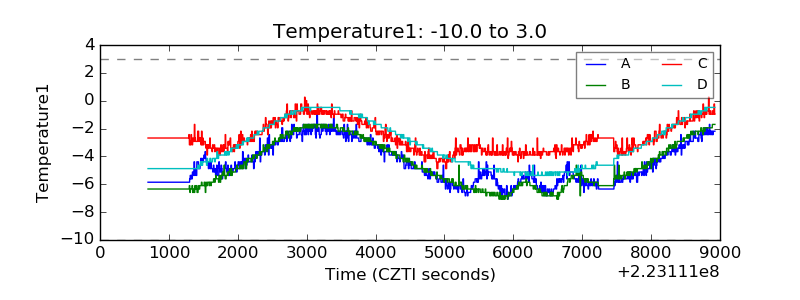

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

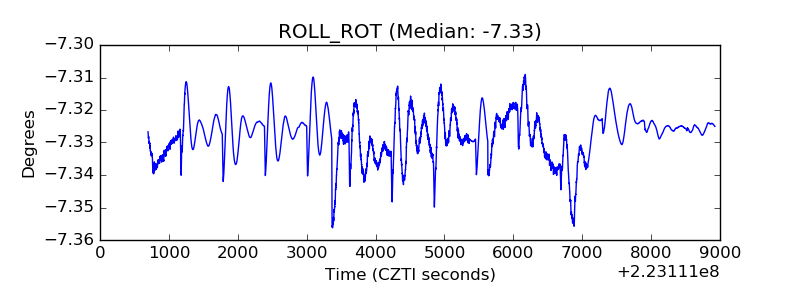

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
