| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_073T02_9000000982_07199cztM0_level2.evt | modeM0/AS1A02_073T02_9000000982_07199cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,417,280 | 74,664,000 |
| Size | 520.2 MB | 71.2 MB |
| Events in quadrant A | 3,546,234 | 437,580 |
| Events in quadrant B | 3,905,690 | 440,017 |
| Events in quadrant C | 3,506,996 | 437,393 |
| Events in quadrant D | 5,040,048 | 413,753 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15703 | 6 |
| B | 0 | 16600 | 1 |
| C | 0 | 15781 | 3 |
| D | 0 | 20088 | 9 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7651 | 81 | 1.058685% |
| B | 7653 | 164 | 2.142950% |
| C | 7652 | 83 | 1.084684% |
| D | 7651 | 296 | 3.868775% |

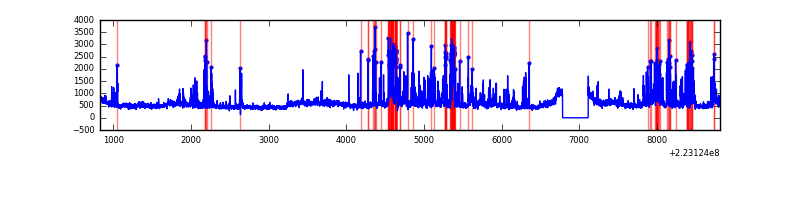

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7983 | 7653 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7983 | 7653 | 24 | 24 | 0.30% | 0.31% |  |
| C | 7983 | 7653 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7983 | 7653 | 159 | 159 | 1.99% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 14 | 14326 | 71.15 | 912 | 890 | 188.8 |
| A | 14 | 31 | 10789 | 52.42 | 912 | 890 | 188.8 |
| A | 14 | 111 | 8870 | 42.26 | 912 | 890 | 188.8 |
| B | 0 | 214 | 155351 | 874.4 | 908 | 885 | 176.7 |
| B | 4 | 239 | 150646 | 847.76 | 908 | 885 | 176.7 |
| B | 0 | 219 | 48031 | 266.88 | 908 | 885 | 176.7 |
| C | 9 | 68 | 50006 | 236.53 | 883 | 887 | 207.7 |
| C | 13 | 61 | 6813 | 28.54 | 883 | 887 | 207.7 |
| C | 8 | 128 | 4765 | 18.67 | 883 | 887 | 207.7 |
| D | 2 | 216 | 812613 | 3751.15 | 875 | 843 | 216.4 |
| D | 8 | 195 | 605321 | 2793.27 | 875 | 843 | 216.4 |
| D | 2 | 14 | 305953 | 1409.9 | 875 | 843 | 216.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

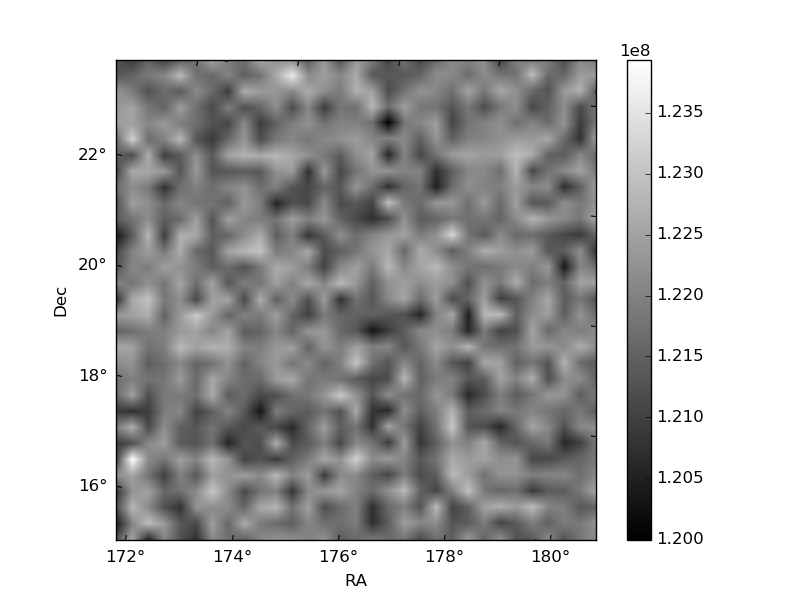

| Plot type | Count rate plots | Images |
|---|---|---|

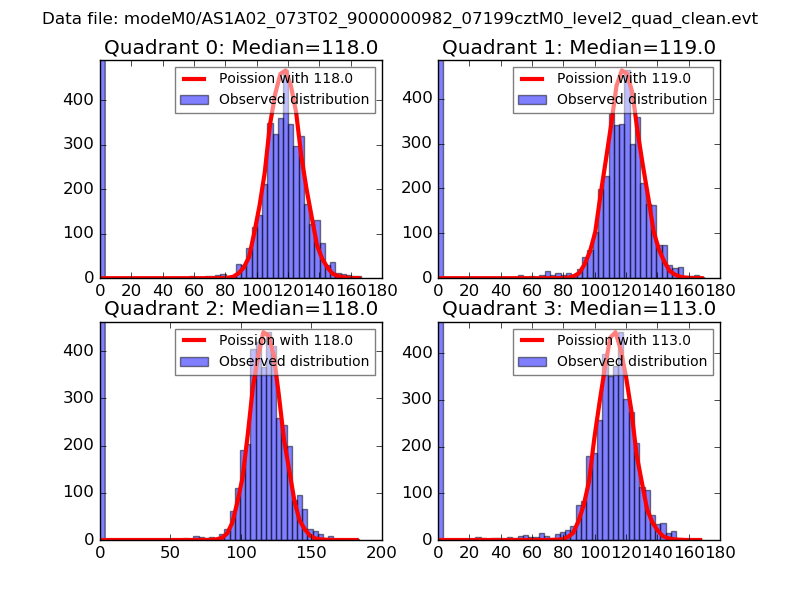

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

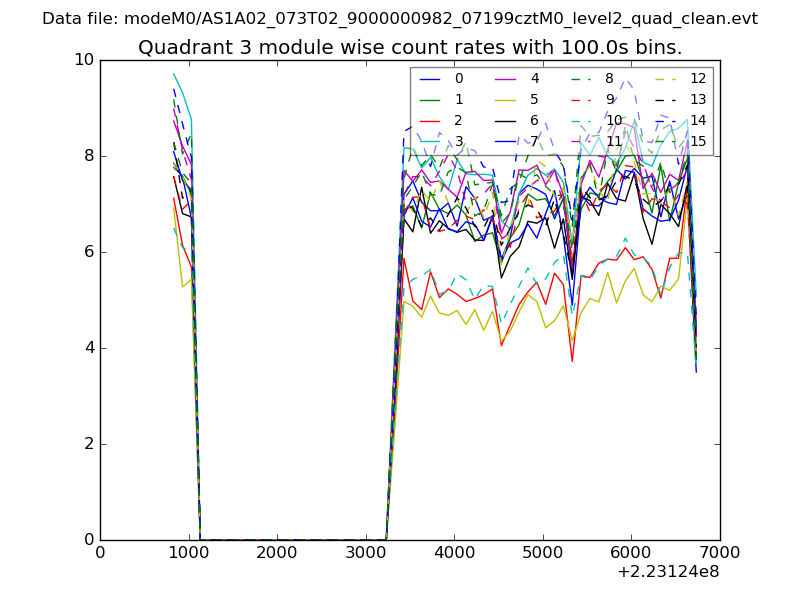

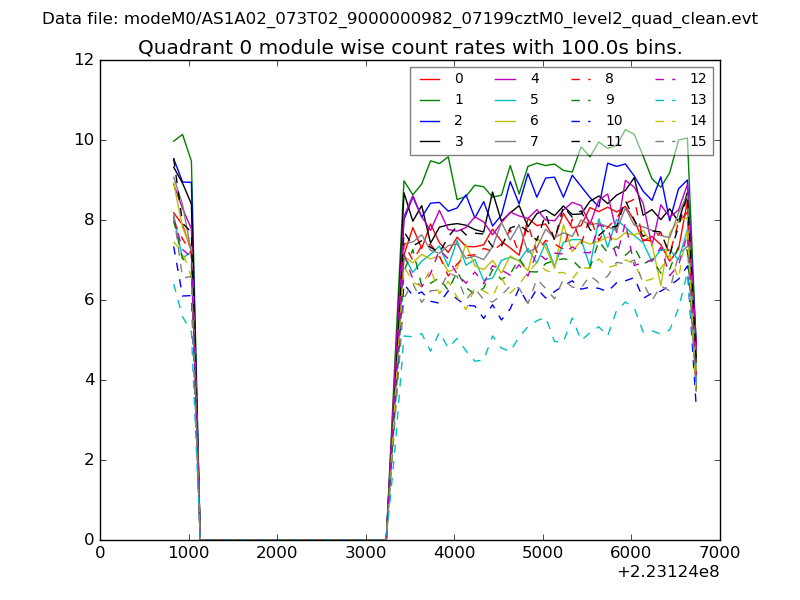

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

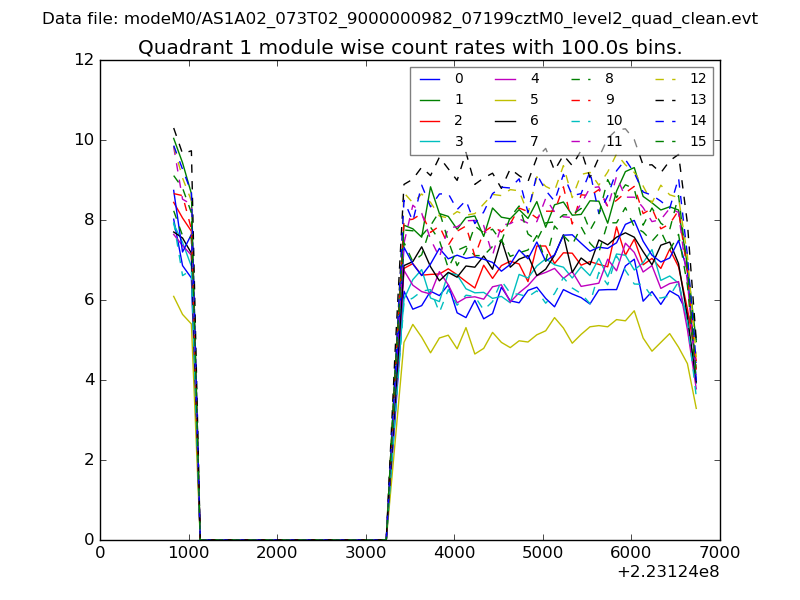

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

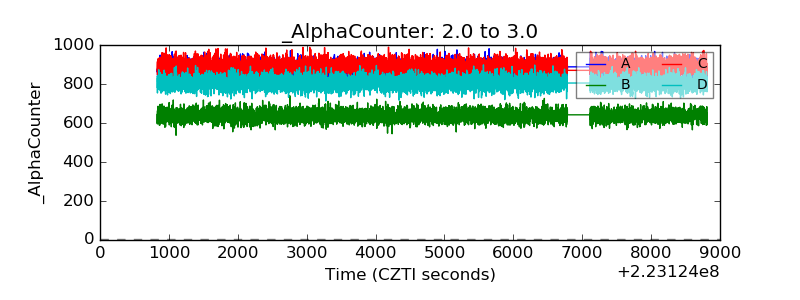

| Alpha Counter |  |

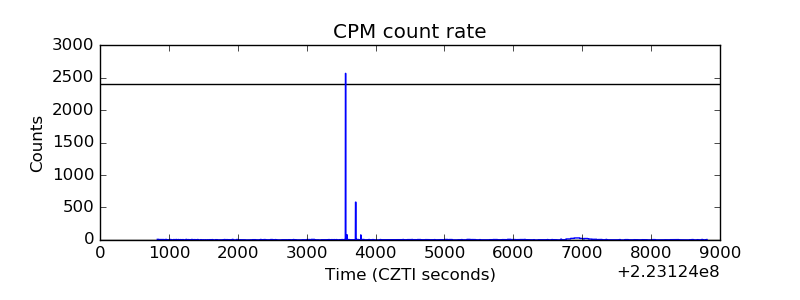

| _CPM_Rate |  |
