| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_073T02_9000000982_07203cztM0_level2.evt | modeM0/AS1A02_073T02_9000000982_07203cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,598,508,800 | 430,626,240 |
| Size | 2.4 GB | 410.7 MB |
| Events in quadrant A | 17,111,635 | 2,654,105 |
| Events in quadrant B | 18,369,342 | 2,696,319 |
| Events in quadrant C | 17,080,204 | 2,664,845 |
| Events in quadrant D | 23,672,125 | 2,521,040 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 744 | 0 |
| B | 0 | 744 | 0 |
| C | 0 | 744 | 0 |
| D | 0 | 744 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75597 | 7 |
| B | 0 | 78624 | 7 |
| C | 0 | 76056 | 7 |
| D | 0 | 95819 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 36491 | 660 | 1.808665% |
| B | 36491 | 706 | 1.934724% |
| C | 36491 | 456 | 1.249623% |
| D | 36490 | 1515 | 4.151822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

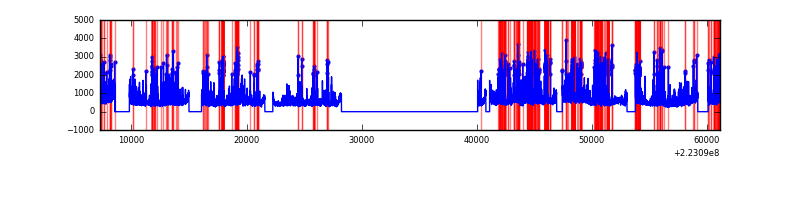

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

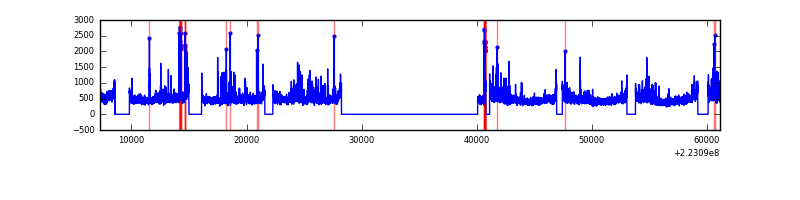

| A | 53862 | 36493 | 23 | 23 | 0.04% | 0.06% |  |

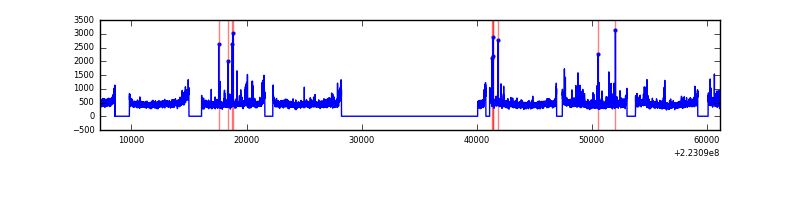

| B | 53862 | 36492 | 36 | 36 | 0.07% | 0.10% |  |
| C | 53862 | 36493 | 10 | 10 | 0.02% | 0.03% |  |
| D | 53861 | 36490 | 812 | 812 | 1.51% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 213225 | 234.23 | 4356 | 4256 | 892.2 |
| A | 0 | 226 | 41032 | 41.22 | 4356 | 4256 | 892.2 |
| A | 13 | 14 | 39985 | 40.05 | 4356 | 4256 | 892.2 |
| B | 0 | 214 | 515091 | 614.06 | 4376 | 4275 | 831.9 |
| B | 0 | 219 | 350490 | 416.19 | 4376 | 4275 | 831.9 |
| B | 4 | 81 | 208954 | 246.05 | 4376 | 4275 | 831.9 |
| C | 9 | 68 | 433336 | 434.64 | 4239 | 4251 | 987.2 |
| C | 13 | 250 | 90330 | 87.19 | 4239 | 4251 | 987.2 |
| C | 13 | 61 | 33247 | 29.37 | 4239 | 4251 | 987.2 |
| D | 8 | 195 | 2445027 | 2392.11 | 4193 | 4065 | 1020.4 |
| D | 2 | 216 | 2342322 | 2291.46 | 4193 | 4065 | 1020.4 |
| D | 2 | 14 | 1314585 | 1284.29 | 4193 | 4065 | 1020.4 |

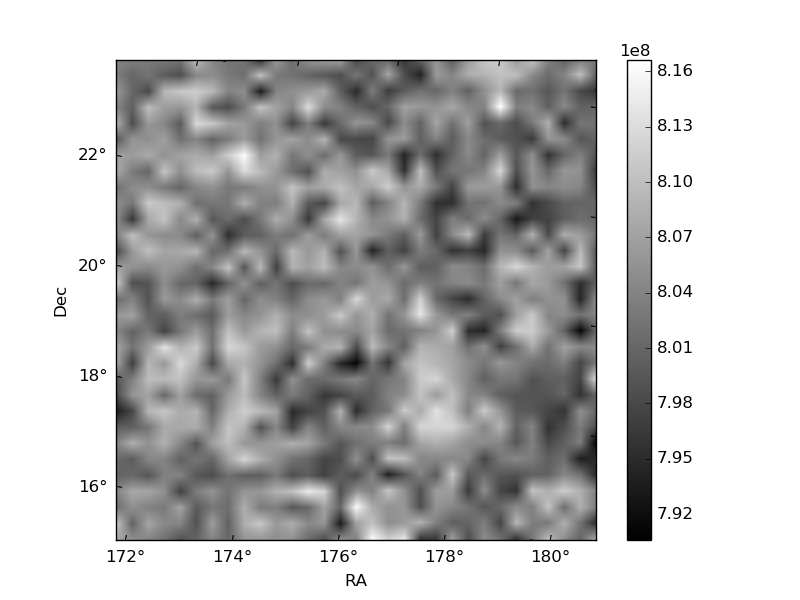

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

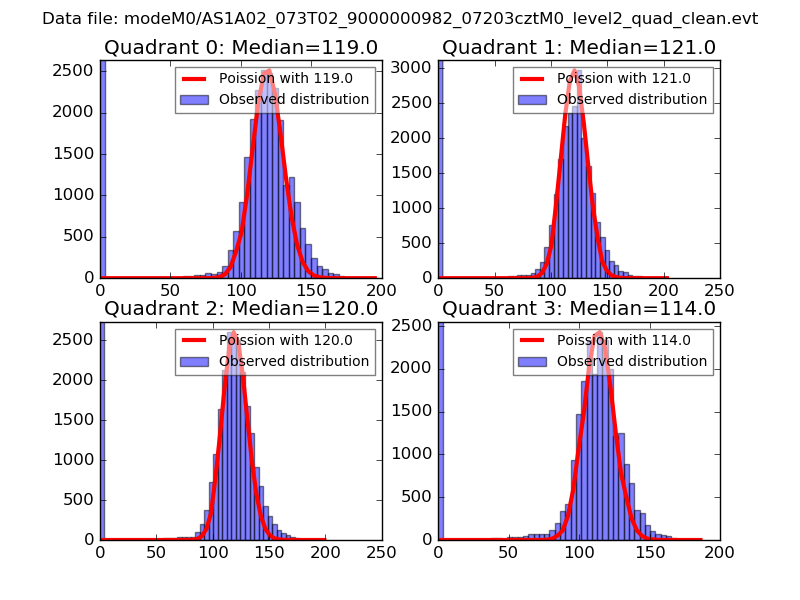

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

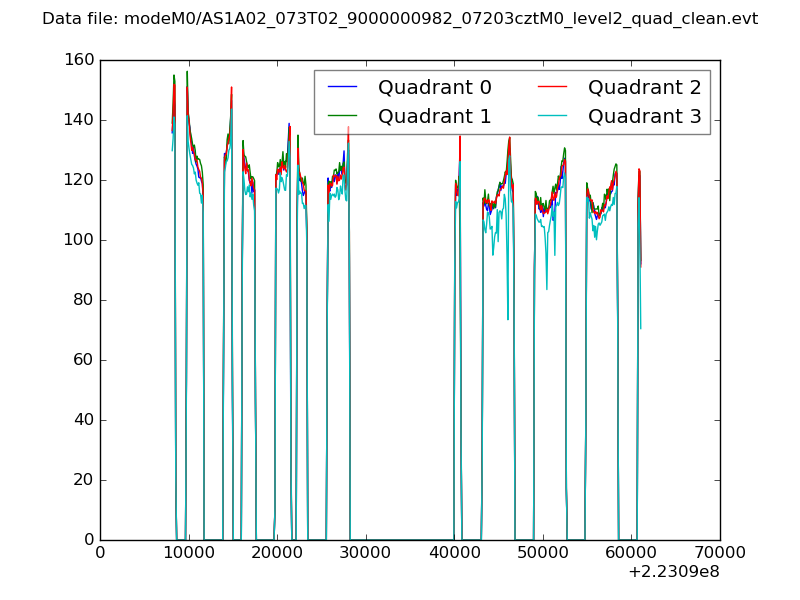

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

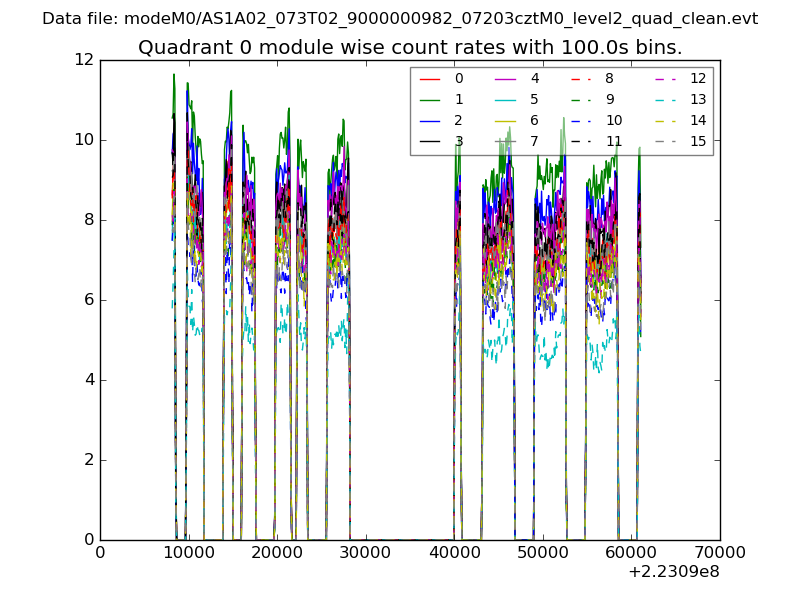

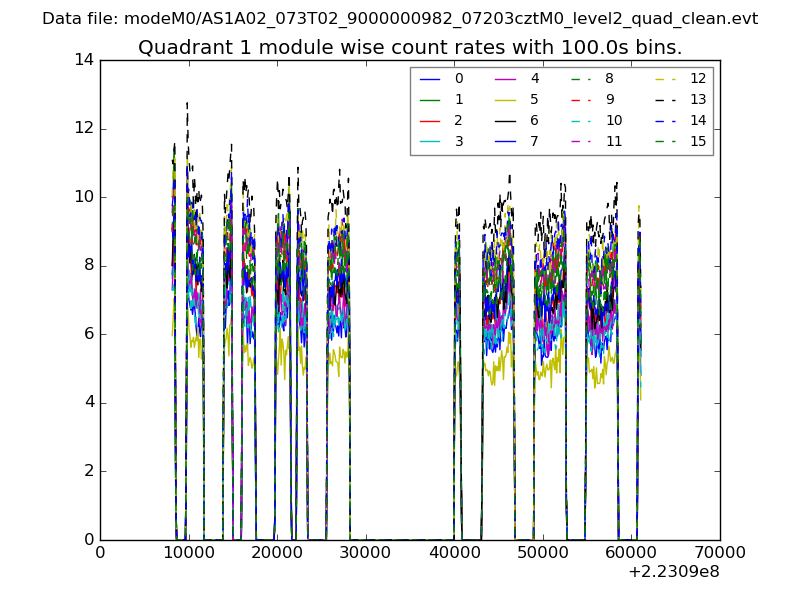

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

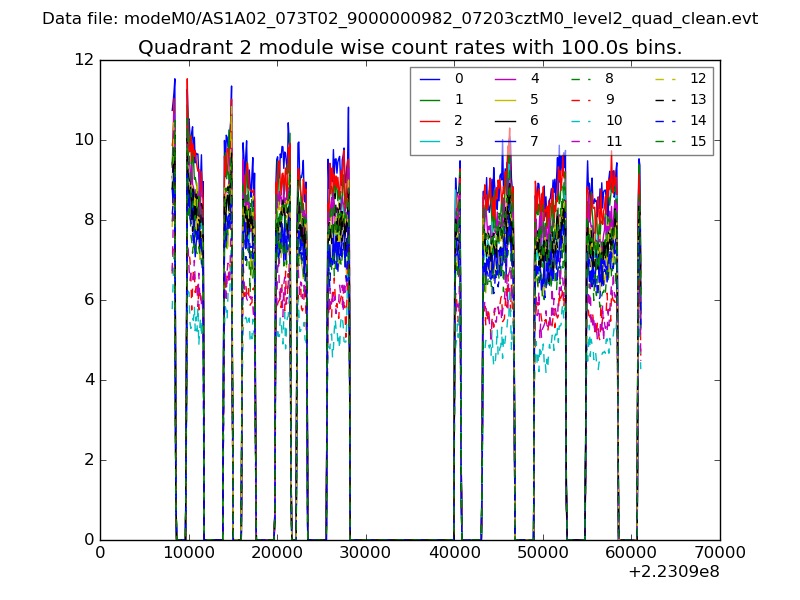

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

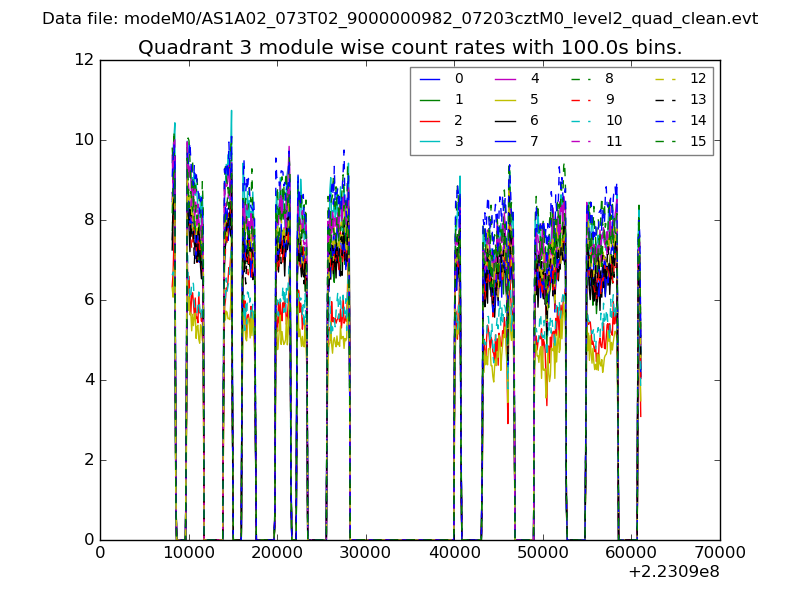

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

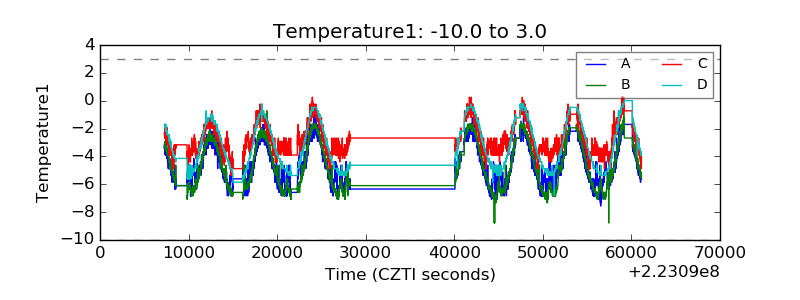

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

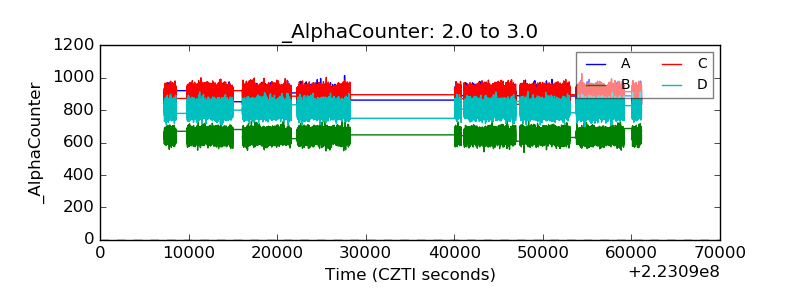

| Alpha Counter |  |

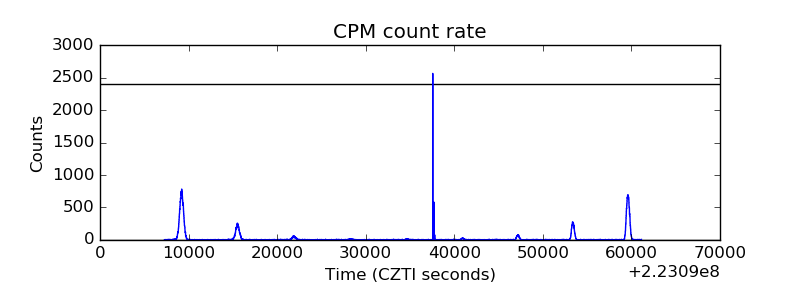

| _CPM_Rate |  |

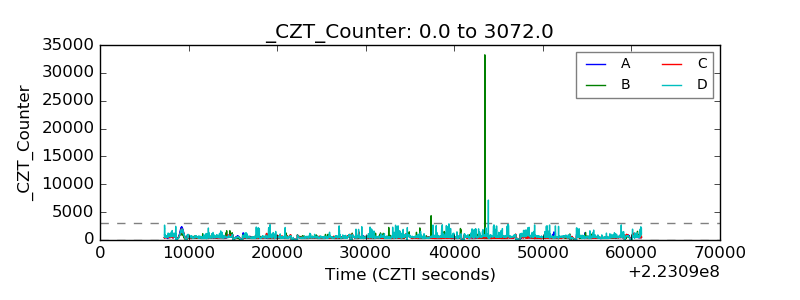

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

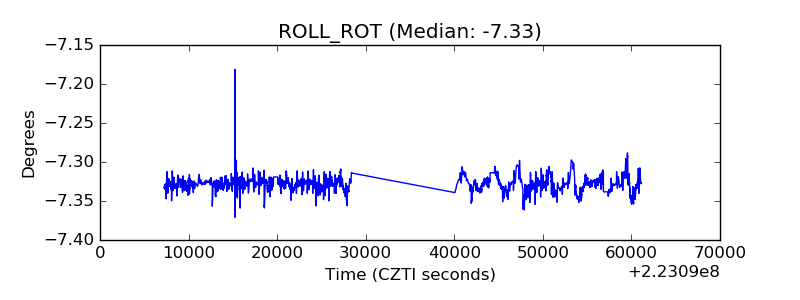

| _ROLL_ROT |  |

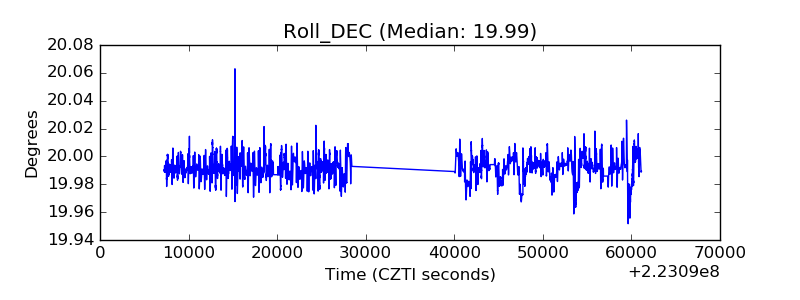

| _Roll_DEC |  |

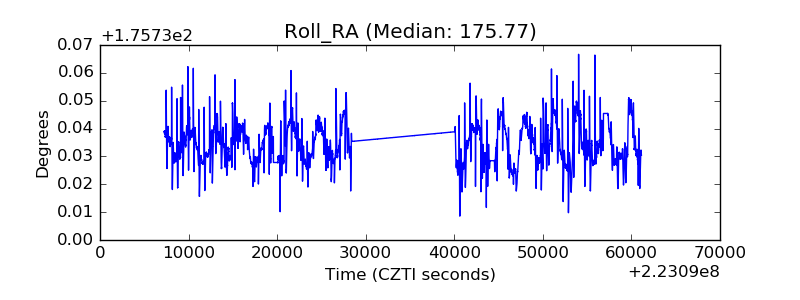

| _Roll_RA |  |

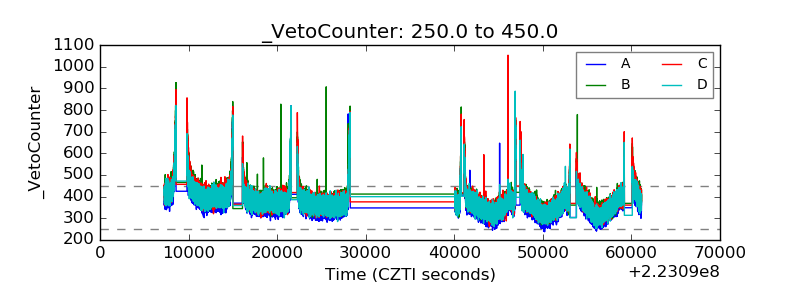

| Veto Counter |  |
