| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_083T01_9000000984_07203cztM0_level2.evt | modeM0/AS1G06_083T01_9000000984_07203cztM0_level2_quad_clean.evt |
| Size (bytes) | 312,598,080 | 75,594,240 |
| Size | 298.1 MB | 72.1 MB |
| Events in quadrant A | 2,117,910 | 504,171 |
| Events in quadrant B | 2,260,456 | 504,900 |
| Events in quadrant C | 2,100,658 | 486,197 |
| Events in quadrant D | 2,674,606 | 471,076 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 94 | 0 |
| B | 0 | 94 | 0 |
| C | 0 | 94 | 0 |
| D | 0 | 94 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9594 | 2 |
| B | 0 | 9801 | 1 |
| C | 0 | 9486 | 1 |
| D | 0 | 11010 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4593 | 31 | 0.674940% |
| B | 4593 | 34 | 0.740257% |
| C | 4593 | 13 | 0.283039% |
| D | 4593 | 67 | 1.458742% |

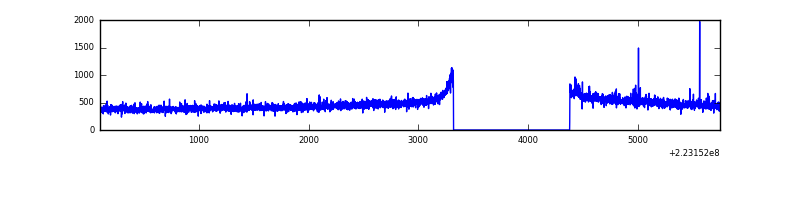

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5653 | 4593 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5653 | 4593 | 1 | 1 | 0.02% | 0.02% |  |
| C | 5653 | 4593 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5653 | 4593 | 37 | 37 | 0.65% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 13746 | 119.25 | 539 | 527 | 110.8 |
| A | 14 | 14 | 8510 | 72.02 | 539 | 527 | 110.8 |
| A | 14 | 111 | 7591 | 63.73 | 539 | 527 | 110.8 |
| B | 0 | 219 | 62591 | 598.18 | 543 | 530 | 103.8 |
| B | 4 | 81 | 50392 | 480.6 | 543 | 530 | 103.8 |
| B | 4 | 171 | 20471 | 192.2 | 543 | 530 | 103.8 |
| C | 9 | 68 | 64261 | 526.3 | 521 | 522 | 121.1 |
| C | 13 | 61 | 4091 | 29.47 | 521 | 522 | 121.1 |
| C | 8 | 222 | 1546 | 8.46 | 521 | 522 | 121.1 |
| D | 8 | 195 | 323596 | 2533.35 | 518 | 500 | 127.5 |
| D | 2 | 14 | 146868 | 1147.65 | 518 | 500 | 127.5 |
| D | 14 | 34 | 145669 | 1138.25 | 518 | 500 | 127.5 |

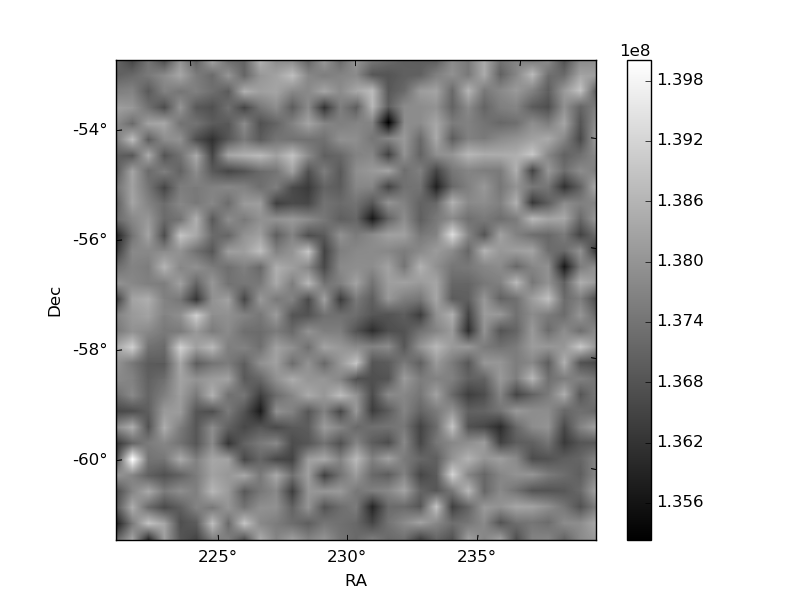

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

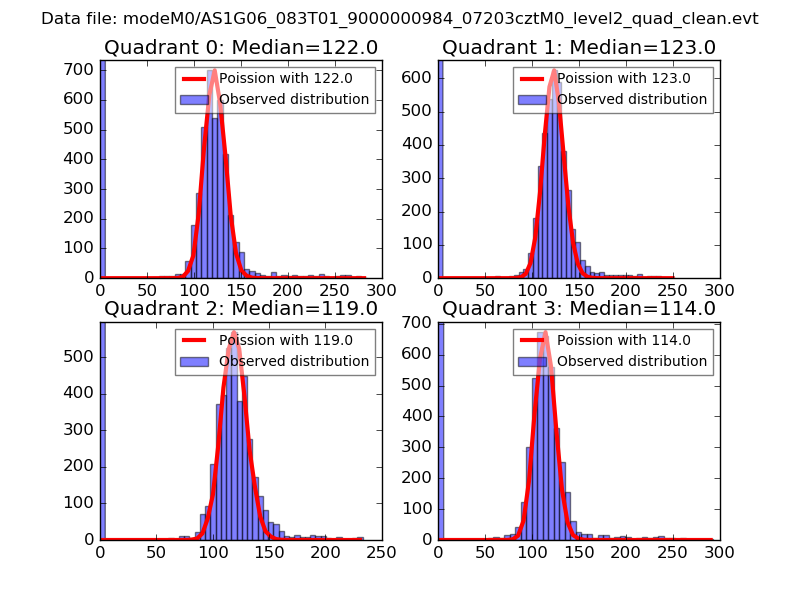

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

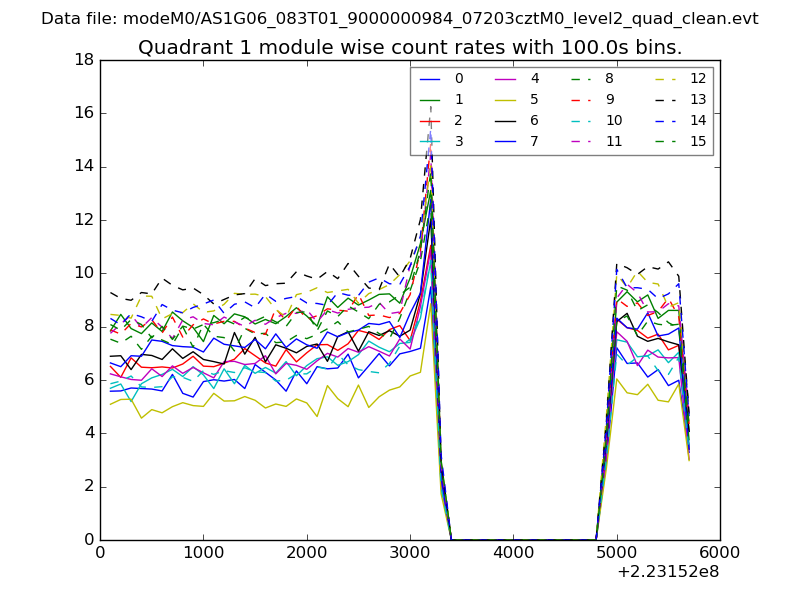

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

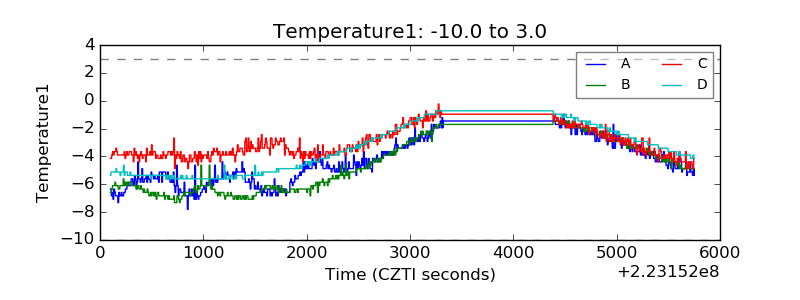

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

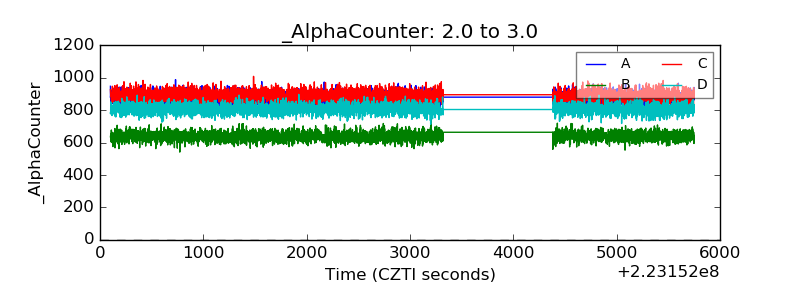

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

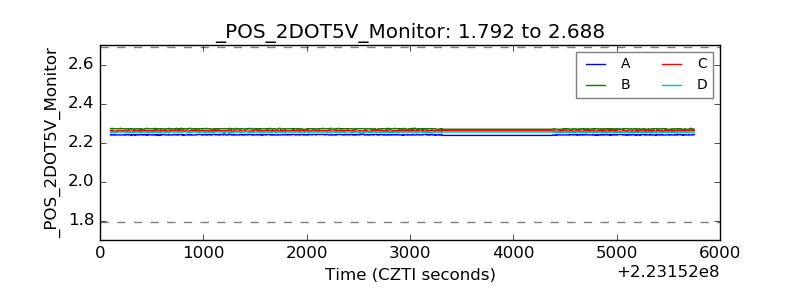

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

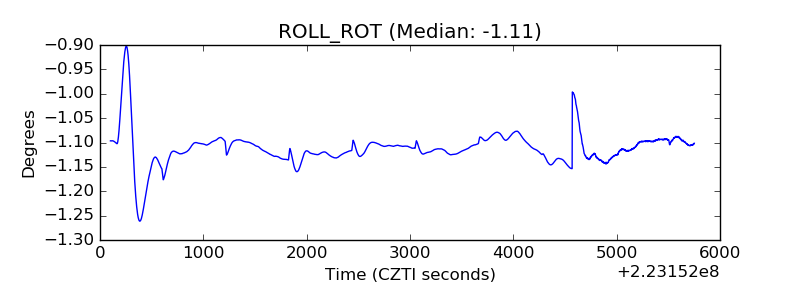

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
