| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_083T01_9000000984_07217cztM0_level2.evt | modeM0/AS1G06_083T01_9000000984_07217cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,612,785,600 | 307,656,000 |
| Size | 1.5 GB | 293.4 MB |
| Events in quadrant A | 11,143,150 | 1,970,307 |
| Events in quadrant B | 11,333,198 | 2,006,060 |
| Events in quadrant C | 9,894,466 | 1,967,953 |
| Events in quadrant D | 14,977,078 | 1,849,788 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 446 | 0 |
| B | 0 | 446 | 0 |
| C | 0 | 446 | 0 |
| D | 0 | 446 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48045 | 2 |
| B | 0 | 48336 | 2 |
| C | 0 | 45397 | 2 |
| D | 0 | 59583 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22138 | 617 | 2.787063% |
| B | 22138 | 548 | 2.475382% |
| C | 22138 | 385 | 1.739091% |
| D | 22138 | 1121 | 5.063691% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

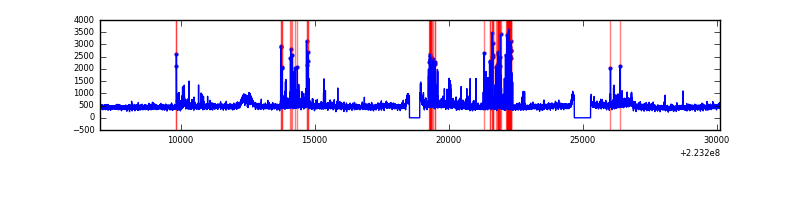

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23133 | 22138 | 94 | 94 | 0.41% | 0.42% |  |
| B | 23133 | 22138 | 41 | 41 | 0.18% | 0.19% |  |
| C | 23133 | 22138 | 2 | 2 | 0.01% | 0.01% |  |
| D | 23133 | 22138 | 592 | 592 | 2.56% | 2.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1351805 | 2624.59 | 2525 | 2468 | 514.1 |
| A | 14 | 14 | 33468 | 60.3 | 2525 | 2468 | 514.1 |
| A | 0 | 226 | 24076 | 42.03 | 2525 | 2468 | 514.1 |
| B | 0 | 214 | 418577 | 863.81 | 2552 | 2486 | 481.7 |
| B | 0 | 219 | 418327 | 863.29 | 2552 | 2486 | 481.7 |
| B | 0 | 228 | 239462 | 491.96 | 2552 | 2486 | 481.7 |
| C | 9 | 68 | 157742 | 271.51 | 2471 | 2476 | 571.9 |
| C | 9 | 243 | 54513 | 91.0 | 2471 | 2476 | 571.9 |
| C | 13 | 61 | 19326 | 29.47 | 2471 | 2476 | 571.9 |
| D | 2 | 63 | 1875772 | 3163.36 | 2435 | 2352 | 592.2 |
| D | 8 | 195 | 1342419 | 2262.76 | 2435 | 2352 | 592.2 |
| D | 2 | 216 | 1300678 | 2192.28 | 2435 | 2352 | 592.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

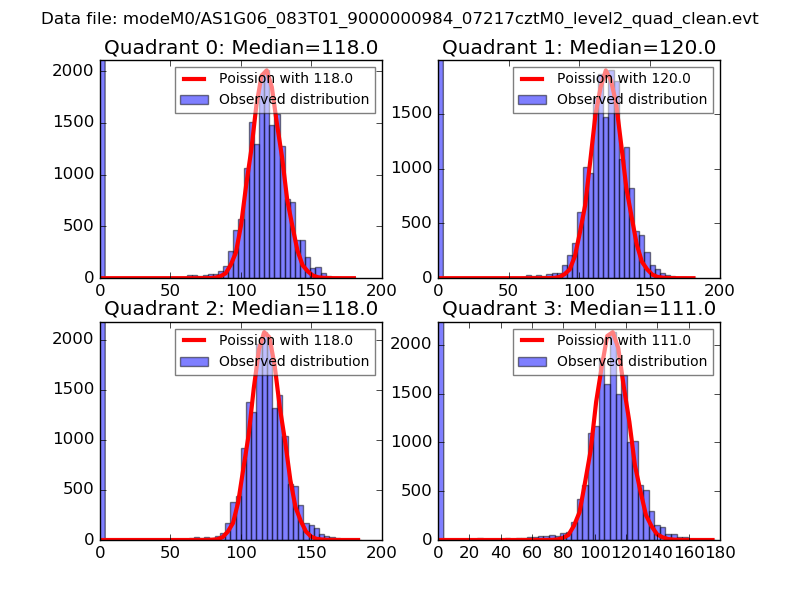

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

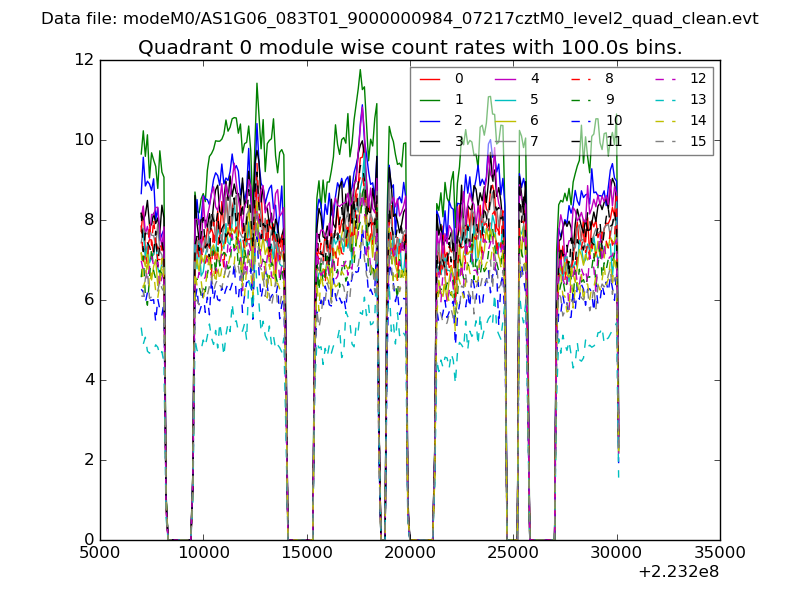

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

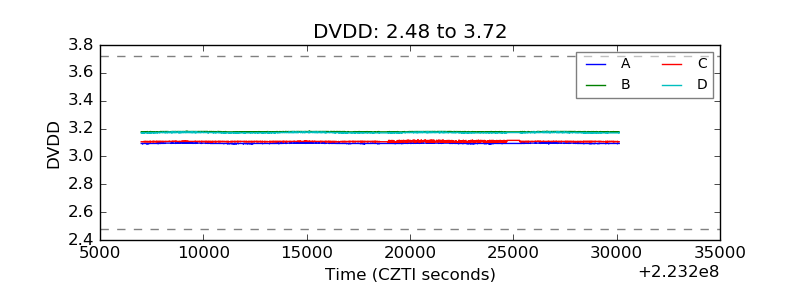

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

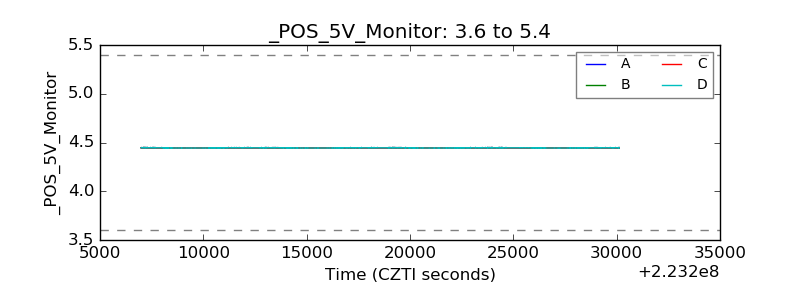

| +5 Volts monitor |  |
| _ROLL_ROT |  |

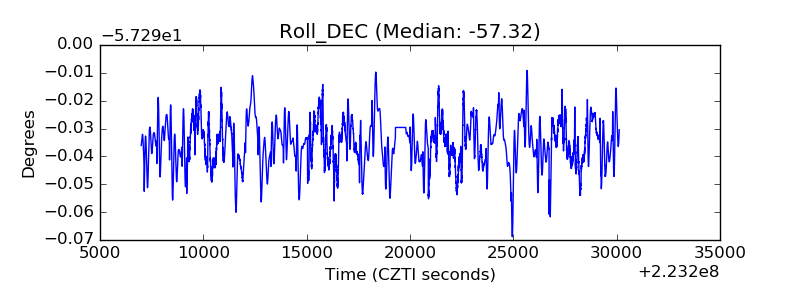

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
