| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_111T01_9000000986_07220cztM0_level2.evt | modeM0/AS1A02_111T01_9000000986_07220cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,798,400 | 106,453,440 |
| Size | 454.7 MB | 101.5 MB |
| Events in quadrant A | 3,423,425 | 695,023 |
| Events in quadrant B | 3,610,728 | 711,500 |
| Events in quadrant C | 3,155,857 | 690,114 |
| Events in quadrant D | 3,779,591 | 645,139 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14821 | 3 |
| B | 0 | 15555 | 2 |
| C | 0 | 14173 | 2 |
| D | 0 | 16047 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6918 | 57 | 0.823938% |
| B | 6918 | 114 | 1.647875% |
| C | 6918 | 25 | 0.361376% |
| D | 6918 | 126 | 1.821336% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9243 | 6919 | 8 | 8 | 0.09% | 0.12% |  |
| B | 9243 | 6919 | 33 | 33 | 0.36% | 0.48% |  |
| C | 9243 | 6919 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9243 | 6919 | 103 | 103 | 1.11% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 260695 | 1560.91 | 816 | 798 | 166.5 |
| A | 0 | 226 | 7695 | 41.42 | 816 | 798 | 166.5 |
| A | 12 | 194 | 7219 | 38.56 | 816 | 798 | 166.5 |
| B | 10 | 16 | 148139 | 938.84 | 828 | 807 | 156.9 |
| B | 0 | 214 | 102048 | 645.14 | 828 | 807 | 156.9 |
| B | 4 | 81 | 82609 | 521.27 | 828 | 807 | 156.9 |
| C | 9 | 68 | 12342 | 62.66 | 799 | 805 | 184.1 |
| C | 1 | 16 | 7781 | 37.89 | 799 | 805 | 184.1 |
| C | 12 | 4 | 7153 | 34.48 | 799 | 805 | 184.1 |
| D | 2 | 216 | 450147 | 2366.39 | 777 | 753 | 189.9 |
| D | 2 | 14 | 203993 | 1070.21 | 777 | 753 | 189.9 |
| D | 2 | 136 | 73358 | 382.32 | 777 | 753 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

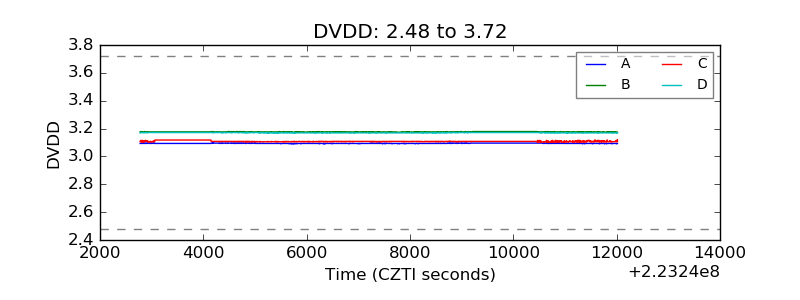

| D_VDD |  |
| Temperature 1 |  |

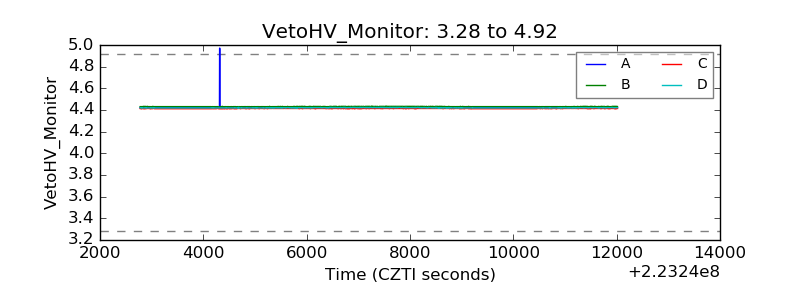

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

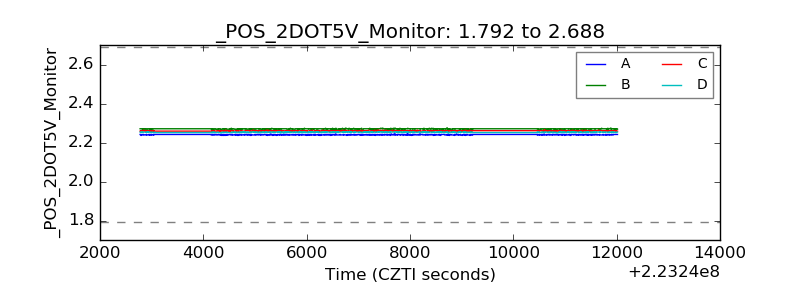

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

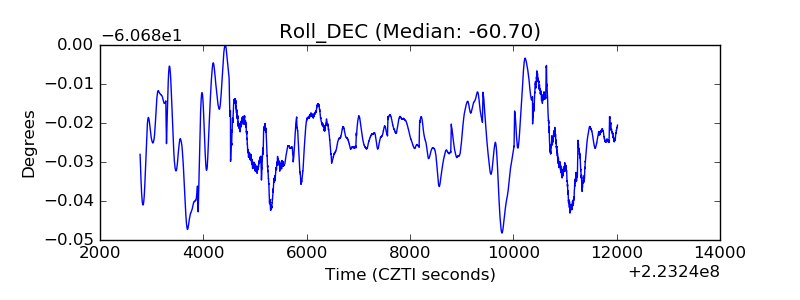

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
