| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T03_9000000990_07237cztM0_level2.evt | modeM0/AS1G05_246T03_9000000990_07237cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,528,960 | 104,368,320 |
| Size | 495.5 MB | 99.5 MB |
| Events in quadrant A | 3,211,236 | 685,947 |
| Events in quadrant B | 3,374,051 | 708,124 |
| Events in quadrant C | 4,175,483 | 688,584 |
| Events in quadrant D | 4,527,009 | 619,626 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13816 | 3 |
| B | 0 | 14437 | 2 |
| C | 0 | 16885 | 2 |
| D | 0 | 18105 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 25 | 0.379824% |
| B | 6582 | 79 | 1.200243% |
| C | 6582 | 34 | 0.516560% |
| D | 6582 | 550 | 8.356123% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7932 | 6583 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7932 | 6583 | 29 | 29 | 0.37% | 0.44% |  |
| C | 7932 | 6583 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7932 | 6582 | 521 | 521 | 6.57% | 7.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 144328 | 896.91 | 788 | 772 | 160.1 |
| A | 14 | 238 | 23257 | 140.48 | 788 | 772 | 160.1 |
| A | 3 | 1 | 7585 | 42.57 | 788 | 772 | 160.1 |
| B | 4 | 81 | 97534 | 639.48 | 801 | 783 | 151.3 |
| B | 10 | 16 | 93933 | 615.68 | 801 | 783 | 151.3 |
| B | 0 | 214 | 53996 | 351.72 | 801 | 783 | 151.3 |
| C | 9 | 68 | 1160839 | 6549.14 | 769 | 776 | 177.1 |
| C | 12 | 4 | 10197 | 53.19 | 769 | 776 | 177.1 |
| C | 13 | 61 | 6045 | 29.75 | 769 | 776 | 177.1 |
| D | 13 | 105 | 1361770 | 7835.87 | 706 | 683 | 173.7 |
| D | 2 | 216 | 228554 | 1311.87 | 706 | 683 | 173.7 |
| D | 2 | 14 | 179312 | 1028.38 | 706 | 683 | 173.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

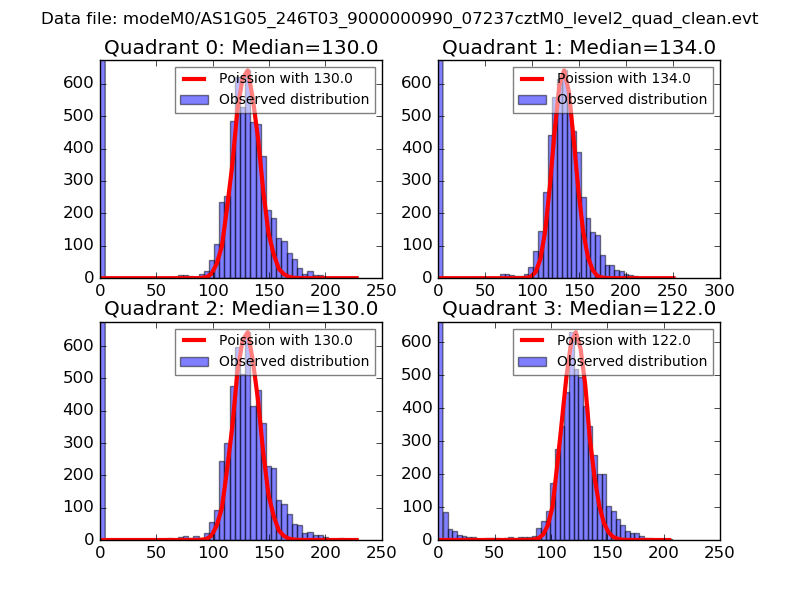

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

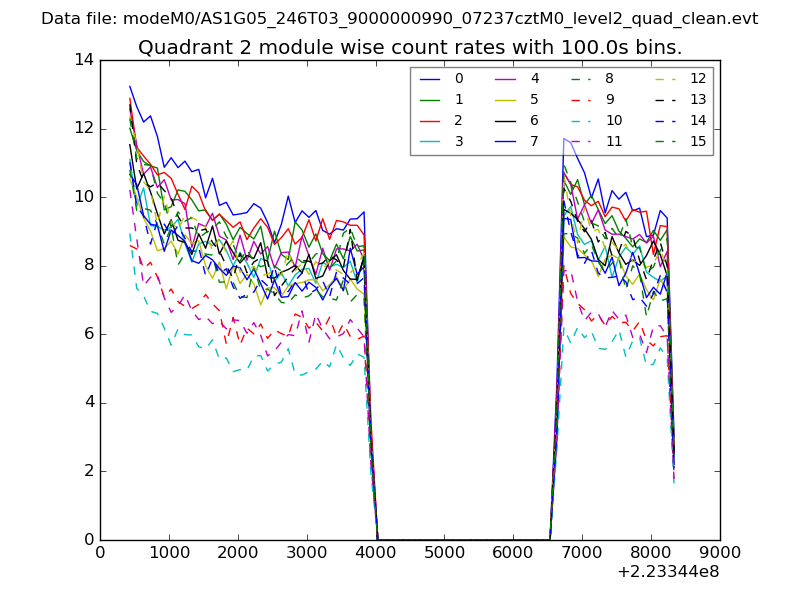

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

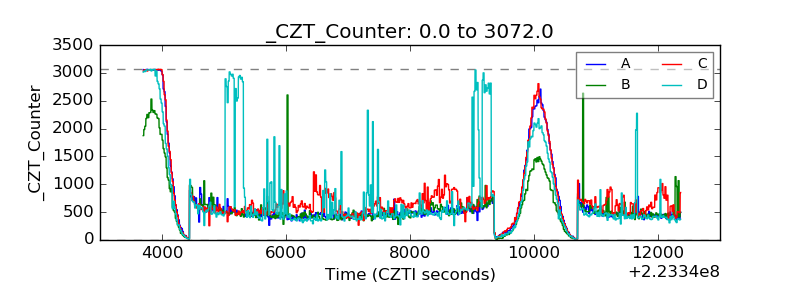

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
